Coffee Brewer: CBS-1221
User's Guide and Operator Instructions
Single Air Pot Brewer: CBS-1221
FETCO Commercial Beverage Equipment
CBS-1221 Air Pot Brewer, shown with 2.2 liter Air Pot (sold separately)
Product Description
FETCO CBS-1221 brewer
Gourmet metal brew basket
FETCO CBS-1221 brewer
Gourmet plastic brew basket
FETCO CBS-1221 brewer
Standard metal brew basket
FETCO CBS-1221 brewer
Standard plastic brew basket
Ready to brew out of the box-factory calibrated for 2.2 liters
Simple, intuitive digital controls and programming
User configurable batch size and brew parameters
Supplied with 120V cord and plug.
User configurable to 240V/3.3kW/13.8A for direct connect
Front accessible with modular components & service friendly
Accepts 2.2, 2.5 liter, 3 liter and 3.8 liter air pots & 1.9L server
Value priced
Self-cleaning spray head patented for mineralization resistance
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000 (All Countries)
FAX: (847) 719-3001
EMAIL:sales@fetco.com
orders@fetco.com (to order parts and equipment)
fetco.com
techsupport@fetco.com (all service queries)
P194
Features
REV. 000
November 2020
Advertisement
Table of Contents
Related Manuals for Fetco CBS-1221
Summary of Contents for Fetco CBS-1221

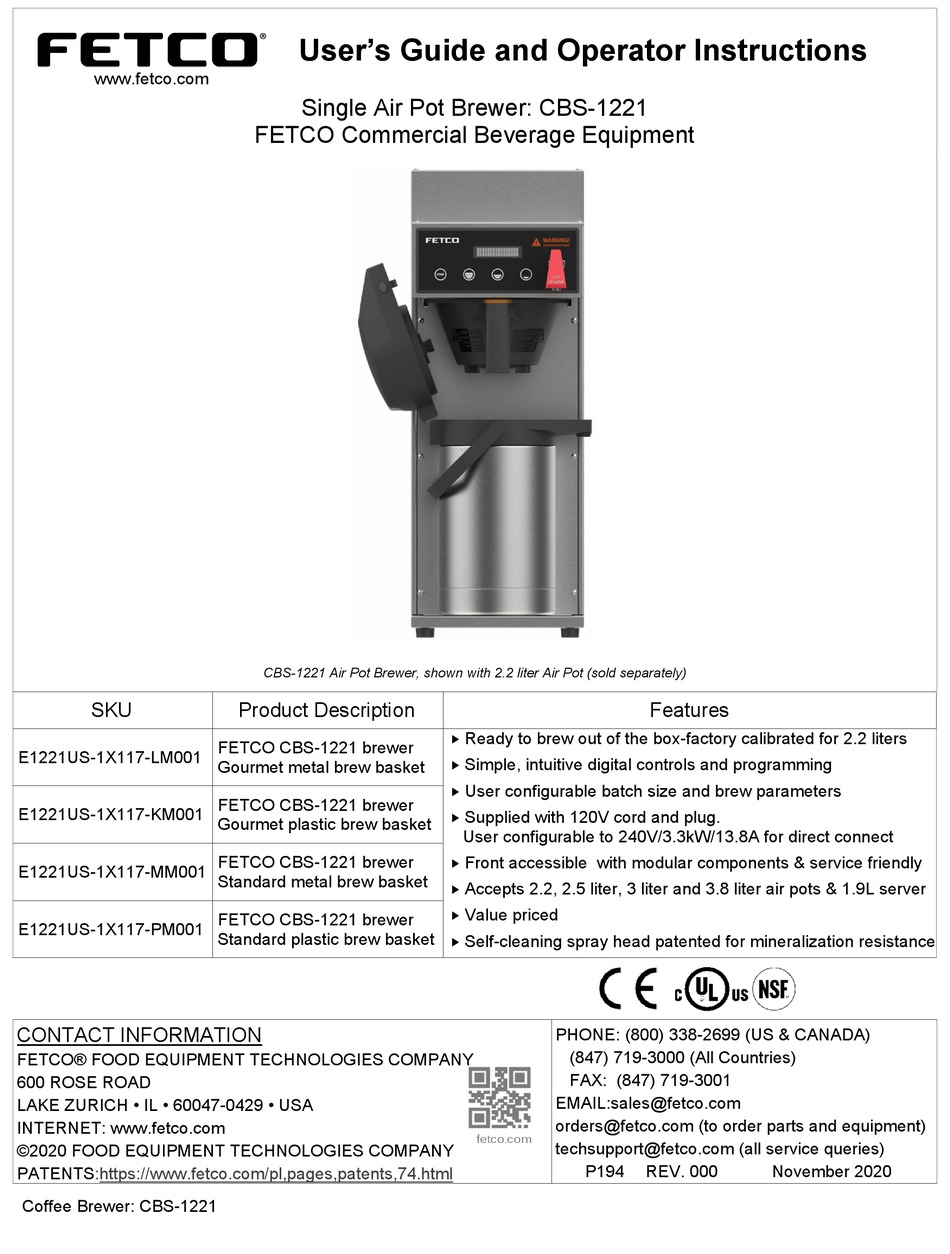

- Page 1 User’s Guide and Operator Instructions www.fetco.com Single Air Pot Brewer: CBS-1221 FETCO Commercial Beverage Equipment CBS-1221 Air Pot Brewer, shown with 2.2 liter Air Pot (sold separately) Product Description Features Ready to brew out of the box-factory calibrated for 2.2 liters ...
-
