www.fetco.com
CBS-5000H Series Coffee Brewers Models:CBS-51H15;CBS-52H15; CBS-52H20
Left: Single1½ Gal CBS-51H15
Contact Information
FETCO®
Food Equipment Technologies Company
600 Rose Road
Lake Zurich • IL • 60047-1560 • USA
© 2008-2019 Food Equipment Technologies Company
CBS-5000H Legacy Handle Operated Brewers
User's Guide and Operator Instructions
FETCO Commercial Beverage Equipment

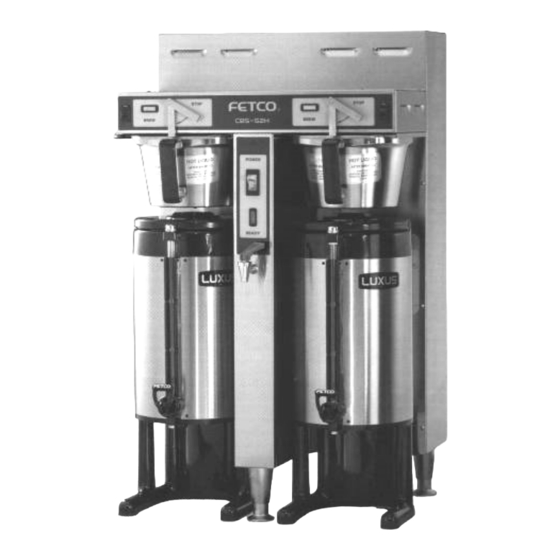

Center: Dual 1½ Gal CBS-52H15
fetco.com
Internet: www.fetco.com
Phone: (800) 338-2699 (US & Canada)
(847) 719-3000
Fax: (847) 719-3001
Email: sales@fetco.com
techsupport@fetco.com
Right: Dual 2 Gal CBS-52H20
P183 MARCH 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBS-5000H Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fetco CBS-5000H Series

Summary of Contents for Fetco CBS-5000H Series

  • Page 1 User’s Guide and Operator Instructions www.fetco.com CBS-5000H Series Coffee Brewers Models:CBS-51H15;CBS-52H15; CBS-52H20 FETCO Commercial Beverage Equipment Center: Dual 1½ Gal CBS-52H15 Left: Single1½ Gal CBS-51H15 Right: Dual 2 Gal CBS-52H20 Contact Information Internet: www.fetco.com FETCO® Phone: (800) 338-2699 (US & Canada)

  • Page 2: Table Of Contents

    Table of Contents Introduction ..............2 Installation ..............5 Product Description/Features ........2 Operating Procedures........... 7 Specifications ............... 2 Service ................8 Dimensions & Utility Connections ........ 4 Brewer Parts ............... 13 Troubleshooting ............20 Introduction This manual applies only to CBS-5000H 1½ gallon and 2 gallon series brewers manufactured after 2006 The 1gallon CBS-51H10 was discontinued in 2010.
  • Page 3 18.0 120/240 3 ph. 4 + ground 12.1 29.7 14.9 18.0 C53186 3 X 4000 watt 3 ph. 3 + ground 12.1 15.2 19.8 22.0 Go to fetco.com for the latest versions of all information Page 3 P183 March 2019...

  • Page 4: Dimensions & Utility Connections

    Dimensions & Utility Connections CBS-51H15 CBS-52H15 CBS-52H20 Go to fetco.com for the latest versions of all information Page 4 P183 March 2019...

  • Page 5: Installation

    All FETCO Hot Beverage Equipment is designed and sold for commercial use only. Here are the key points to consider before installation: Electrical: All FETCO brewers require NEUTRAL. Ground is not an acceptable substitute. Installation without neutral • may cause damage to the electronic components.
  • Page 6 Leaving the brewer in the on position will also avoid delays at the beginning of shifts for the brewer to reach operating temperature. Go to fetco.com for the latest versions of all information Page 6...

  • Page 7: Operating Procedures

    2. Pre-heat the dispensers. This step is very important to the overall success of the brewing operation. FETCO avoids the damaging affects of heat on fresh brewed coffee by using highly insulated dispensers. The dispenser must be pre-heated with hot water from the brewer.

  • Page 8: Service

    Service Warranty All FETCO brewers come with a limited warranty. All warranty service must be pre-authorized by calling the FETCO Service Department at (800) 338-2699. Principles of Operation Fill System The fill system consists of a liquid level control board, a water level probe at the top of the tank, a fill valve, and a fill tube.
  • Page 9 Dispense System: The dispense system is completely mechanical. It is one of the areas that makes FETCO's brewer truly unique. (See the illustration in this section.) When you rotate the brew lever down to brew, the end of the dispense tube is submerged in the hot water tank. It is held in the brew position by the magnetic action of the dispense latch coil.
  • Page 10 3. Work the tube back into the sprayhead seal. 4. Join the dispense tube shaft and the brew handle shaft with the drive screw. Go to fetco.com for the latest versions of all information Page 10 P183 March 2019...
  • Page 11 94.2 6000 1829 200.6 93.6 6500 1981 199.6 93.1 7000 2134 198.7 92.6 7500 2286 197.8 92.1 8000 2438 196.9 91.6 8500 2591 196.0 91.1 Go to fetco.com for the latest versions of all information Page 11 P183 March 2019...
  • Page 12 ½ gal. bypass + 1 gal. from spray head = 1 ½ gal. total. Bypass = 33.3%. Several adjustments may be necessary until the desired results are achieved. • Go to fetco.com for the latest versions of all information Page 12 P183 March 2019...

  • Page 13: Brewer Parts

    1044.00004.00 LABEL, DANGER, HIGH VOLTAGE For tank assembly and wiring diagram part numbers, call Tech Support at 800-338-2699. Provide the brewer serial number when calling Go to fetco.com for the latest versions of all information Page 13 P183 March 2019...
  • Page 14 Figure 2 – CBS-51H15 Main Assembly Drawing No. 1101.00268.00 CBS-51 H Go to fetco.com for the latest versions of all information Page 14 P183 March 2019...
  • Page 15 BB ASSY, 16" X 6", 0.280 DIA HOLE, BLACK 46013 LABEL, CLEANING INSTRUCTIONS 46035 LABEL, HOW TO ADJUST DIGIT. TIMER, THERMOSTAT & L.L.C.B. 1046.00020.00 TAG, INFORMATION Go to fetco.com for the latest versions of all information Page 15 P183 March 2019...
  • Page 16 Figure 3 – CBS-52H15 & CBS-52H20 Main Assembly Drawing No. 1101.00262.00 CBS-52H Go to fetco.com for the latest versions of all information Page 16 P183 March 2019...
  • Page 17 46035 LABEL, HOW TO ADJUST DIGIT. TIMER, THERMOSTAT & L.L.C.B. 46013 LABEL, CLEANING INSTRUCTIONS 1046.00035.00 LABEL, WARNING "TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE" Go to fetco.com for the latest versions of all information Page 17 P183 March 2019...
  • Page 18 1044.00004.00 LABEL, DANGER, HIGH VOLTAGE For tank assembly and wiring diagram part numbers, call Tech Support at 800-338-2699. Provide the brewer serial number when callin Go to fetco.com for the latest versions of all information Page 18 P183 March 2019...
  • Page 19 PAPER FILTERS, 13” X 5” Optional -Half Batch 500 PER CASE COLOR BREW BASKET HANDLES (optional) PART # DESCRIPTION 1023.00087.00 BREW BASKET HANDLE, GREEN 1023.00088.00 BREW BASKET HANDLE, ORANGE 1023.00090.00 BREW BASKET HANDLE, RED Go to fetco.com for the latest versions of all information Page 19 P183 March 2019...

  • Page 20: Troubleshooting

    MINOR Condensation from water tank -Insert an empty brew basket and server under brew heads dripping through dispense tube when not in use Go to fetco.com for the latest versions of all information Page 20 P183 March 2019...
  • Page 21 -Reduce temperature setting to 3 degrees below boiling at (Denver etc.) your altitude Defective thermostat -Replace the thermostat and or thermal probe. It’s not possible to trouble shoot the probe. Go to fetco.com for the latest versions of all information Page 21 P183 March 2019...
  • Page 22 End of section notes...
