NOTICE TO INSTALLER: Please leave this User Guide with the brewer.
Contact Information ........................................................2
Description & Features ...................................................2
Specifications..................................................................3
Requirements .................................................................3
Weights Capacities and Measurements.........................3
Electrical Configuration and Brewing Efficiency .............3
Installation.......................................................................5
Final Setup......................................................................7
© 2013 Food Equipment Technologies Company
®
TBS-2121 Iced Tea Brewer
ITD-2135 3.5 gallon Dual Slim dispenser [ 3 gallon-in use] are available separately
Table of Contents
FETCO®, LUXUS®, EXTRACTOR®, INTERMITTENT BREW, and Driven To Innovation™
are trademarks or trade names of Food Equipment Technologies Company.
User's Guide
Model:
TBS-2121

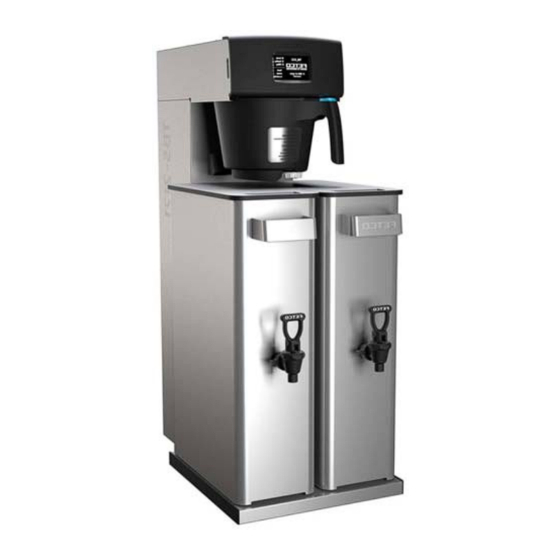

TBS-2121 Iced Tea Brewer with dual- 3 gallon slim dispensers
Operating Instructions...................................................10
Programming- operator access programming..............12
Programming-category screens: Menu Tree...............14
Test, Calibration and Flow Rate adjustment.................15
List of Error codes for TBS-2121: .................................18
Parts diagrams, bill of materials lists ............................22
Wiring diagrams............................................................26
P-121
NEW June 2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fetco TBS-2121XTS
Summary of Contents for Fetco TBS-2121XTS
-
Page 1: Table Of Contents
Parts diagrams, bill of materials lists ......22 Three position brewbasket and touch screen display..7 Wiring diagrams............26 FETCO®, LUXUS®, EXTRACTOR®, INTERMITTENT BREW, and Driven To Innovation™ are trademarks or trade names of Food Equipment Technologies Company. © 2013 Food Equipment Technologies Company... -
Page 2: Contact Information
Food Equipment Technologies Company (847) 719-3000 600 Rose Road Fax: (847) 719-3001 Lake Zurich • IL • 60047-0429 • USA Email: sales@fetco.com techsupport@fetco.com Internet: www.fetco.com Description & Features The TBS-2121 Iced Tea EXTRACTOR® series brewer features our universal spray over technology. -
Page 3: Specifications
(3gal/11.4L per batch) 1 X 1680 2+G NEMA 5-15P/5-20P-c T212101 NEMA PLUG CONFIGURATION NEMA 5-15P NEMA 5-20P Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice... - Page 4 Dimensions & Utility Connections—Rough-in drawings Rough-in TBS-2121 shown with two ITD-2135 3.5 gallon Dual Slim dispensers Utility Connections—TBS-2121...
-
Page 5: Installation
Here are the key points to consider before installation: Electrical: All FETCO brewers require an electrical ground wire. Installation without grounding is dangerous. Verify voltages, polarity, circuits, and circuit breaker access before attaching equipment. The electrical diagram is located in the Users Guide and online at www.fetco.com. - Page 6 The control board automatically disables the heaters until the tank is full of water. The heating process will start automatically when the tank has filled with water. Features of your FETCO Brewer Touch-screen for brewer operation Brew basket sensor (not accessible) SD card interface port (Load &...
-
Page 7: Final Setup
2. Turn power on—by pressing the brewer’s main power switch (located on ■ Filling the lower right of the back of the equipment) 3. The water tank will begin filling. FETCO Home Screen #1 will read Touch “FILLING”. ©2013 all rights screen 4. -
Page 8: Accessing Batch And Programming Menu Screens
Accessing batch and programming menu screens Batch selection and brew operation menu screens Tap FETCO HOME SCREEN 11:35 Ready ■ TBS_2121 to enter batch selection screen. □ Heating 9:22 □ Filling Align brewbasket handle to 11:35 select, center position batches ©2013 all rights... - Page 9 Operator Training Review the operating procedures for the brewer. Pay particular attention to the following areas: 1. Always have an empty dispenser under the brewbasket 2. Don't remove the brew basket from a brewer until it has stopped dripping. 3. Make sure the dispenser is empty before brewing into it. 4.
-
Page 10: Operating Instructions
To brew a single 3 gallon batch of iced tea, using default recipe NOTES FETCO TBS-2121 series equipment is factory calibrated and preloaded with nine recipes and is ready to brew. 1) Place paper filter in brew basket -FETCO 15” X 5 ½ ”product # F001... - Page 11 Brewing-shown by touchscreen -The FETCO TBS_2121 has three brew basket positions with three-brew batch menu screen per position. -Each menu screen has three recipes preprogrammed with basic settings. -There are two permanent batches Left top (L1) and Right to (R2); any or all of the remaining seven may be withdrawn -Settings are adjustable and the names can be changed.
-
Page 12: Programming- Operator Access Programming
Programming- operator access programming Accessing programming category screens ■ Ready TBS_2121 To enter: Turn unit “OFF”. After 10 second delay, turn unit “ON”, □ Heating Home Screen will appear □ Filling Immediately place finger on right side-(grey) of screen and “HOLD” PROGRAM Screen (first below) will appear. - Page 13 PROGRAM Factory set Default Programming Range Notes Programming Items Batch 1 L* • Batch Summary Display Summary Choose from list: (Regular 1-16) • Batch Name L: 1 -OR- Write: any name 3.80 liter 3.80 liter Volume of HOT tea for •...
-
Page 14: Programming-Category Screens: Menu Tree
Liters • Volume Liters |_____________[]__| Gallons Liters 1:00 mm:ss 1:00 mm:ss Logo Timeout |_[]_______________| 0:00 5:00 Has FETCO # Write: Service Tel. Choose from list Can enter any number (800) 338-2699 as default Programming Factory set Programming Range INPUTS Notes... -
Page 15: Test, Calibration And Flow Rate Adjustment
Programming Factory set Programming Range OUTPUTS Notes Items Default (display) TEST Opens valve to verify Dispense Valve • D. Valve Test (Press to test) Press To Test flow. Have container under brewbasket! < OUTPUTS > Scroll (left or right) from <Dispense Valve>... - Page 16 )TBS-2121 Auto-Calibrates SAVE by scrolling up, unit automatically readjusts the valve total flow (COMPLETED EXIT EXAMPLE: Calibrate DISPENSE VALVE > OUTPUTS Note: TBS-2121 default units are liters/ml. < > Display may be changed by user to gallons units. Dispense Valve 1) Enter Programming menu.
- Page 17 Programming Factory set Programming Range OTHER Notes Items Default (display) Error Codes • Display Errors (Codes) Chart is below Reset !!Errors must be • Reset Errors (Reset) |_______________[]____| corrected and cleared!! Setup upload Brewer Copy ------------------------------------------------------------------------ • From SD to B. Brewer ---- |________________[]____...
-
Page 18: List Of Error Codes For Tbs-2121
Brewbasket must Insert brewbasket be in place INSERT BREW BASKET Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice... - Page 19 FETCO ITD-2135 3 gallon Ice Tea Dispenser Product D-064 Instructions for use -Remove dispenser cover before brewing, replace cover after brew is complete -To prevent overflow, make sure the dispenser is completely empty before brewing into it. -Discard old tea often during the day and make a fresh batch -Never keep tea overnight in this or any dispenser.
-
Page 20: Optional Tea Dispenser Instructions And Cleaning
SCREW, #8 X 1/2", FLAT HD, PH, SHEET METAL 1023.00178.00 DISPENSER COVER, TBS-2121 1074.00005.00 CLEANING BRUSH--Ice Tea Dispenser SHOWN Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to change by FETCO without notice... - Page 21 NEW June 2013 Please see our website-www.fetco.com for the most up to date listings and additional parts and service information Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to change without notice.
-
Page 22: Parts Diagrams, Bill Of Materials Lists
Parts diagrams, bill of materials lists Drawing 1101.00142.00 TBS-2121 Assembly-No Sweetener... - Page 23 Drawing 1101.00142.00 TBS-2121 ASSEMBLY, NO SWEETENER, 1680 kW/120VAC Ref# Part number Description 1111.00033.00 WELDMENT, BODY TBS-2121 1102.00203.00 ASSEMBLY, SPRAY HOUSING, TBS-2121 1024.00017.00 O'RING, 3.739" ID X 0.070" CS, 70 DURO, BUNA 1083.00010.00 WASHER, #10 SCREW W/NEOPRENE-BONDED SEAL 1084.00006.00 NUT, 8-32 18-8 HEX MACHINE SCREW 1102.00113.00 SWITCH, REED, ASSEMBLY 1029.00006.00...
- Page 24 Drawing 1104.00049.00 TANK ASSY, 1680W/120VAC, TBS-2121 Drawing 1104.00049.00 TANK ASSY, 1680W/120VAC, TBS-2121 Ref# PART NO DESCRIPTION 1114.00079.00 WELDMENT, TANK, TBS-2121 1107.00023.00 HEATER ASSY, IMMERSION, 1680W/120VAC 1107.00017.00 HEATER ASSY, IMMERSION, 2300W/240VAC 1024.00050.00 GROMMET, SILICONE, 11.4mm ID 1024.00062.00 GROMMET, SHORT, SILICONE, LEVEL AND TEMP PROBE 1112.00202.00 PROBE WELDMENT, WATER LEVEL 1.188"...
- Page 25 1102.00203.00 Spray Housing Assembly, TBS-2121 Ref. PART NO DESCRIPTION 1102.00020.00 SPRAY HOUSING ASSY CSD DESIGN 1024.00002.00 ORING, AS568A-019, BUNA-N 1102.00019.00 ASSEMBLY, CASCADE SPRAY DOME 1023.00189.00 ADAPTER, SPRAY HSG, DSV11 VALVE 1082.00068.00 SCREW, M3.9x13, CHEESE PH., T/FORM, Z/P 1057.00038.00 DIAPHRAGM, VALVE DSV-11 1057.00050.00 SPACER PLATE DSV11, -1 OPTION 1057.00040.00...
-
Page 26: Wiring Diagrams
Wiring diagrams...
