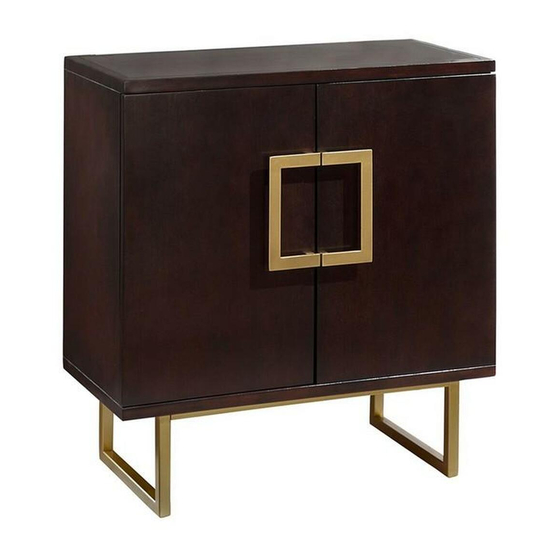

Madison Park Lexnnox Chest Assembly Instructions

Table of Contents

Download this manual

Important safety instructions:

Please carefully read all instructions before assembling the chest.

For your safety and ease, assembly by two or more adults is recommended.

Keep instructions for future use.

Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or

hardware.

Remove all parts and hardware from box along with any plastic protective packaging.

Step 1. Assemble the chest on a flat, soft surface such as a carpet or cloth to prevent scratching the finish. Attach

side frame (P3) to the rails (P2) aligning insert the insert bar on side frames (P3) to the end of rails (B) using bolts

(H1) as shown below. Securely tighten the bolts with Allen wrench (H2).

(H1)x4

(H2)x1

Table of Contents

Do you have a question about the Lexnnox Chest and is the answer not in the manual?

Page 1 Important safety instructions: Please carefully read all instructions before assembling the chest. For your safety and ease, assembly by two or more adults is recommended. Keep instructions for future use. Pre-assembly: Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or hardware.
Page 2 Step 2. 1) Turn over the chest (P1) on a flat, soft surface such as a carpet or cloth. 2) Then loosely attach the assembled base (P2,P3) to the bottom of the chest (P1) using bolts (H3,H4 )as shown below. Securely tighten all bolts with Allen wrench (H5). (H3)x4 (H4)x4 (H5)x1...
