ERA Protect Replica Siren Installation And Operating Manual

BATTERY OPERATED REPLICA SIREN

1. OVERVIEW

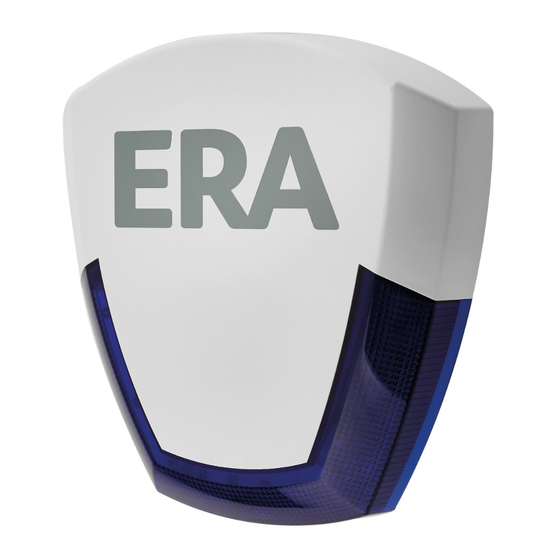

The ERA Protect Replica Siren is a visual deterrent,
which includes flashing comfort lights to either; show
potential intruders that there is likely to be a live alarm
system protecting the property, or enhance the
visibility of an existing live alarm system.
2. GET TO KNOW YOUR
PRODUCT
Front Cover
Comfort
LEDs
Cover Screw
3. WIRELESS OUTDOOR
SIREN INSTALLATION
Using the drilling template mark up the mounting holes
1.
required to be drilled.
ERA Home Security Ltd.
Valiant Way, Wolverhampton,
West Midlands, WV9 5GB.
Email: support@eraprotect.com
Web: www.eraprotect.com
Screw
Bayonet
ABS Plastic Feet
CUSTOMER HELPLINE
0345 257 2500
INSTALLATION AND
OPERATING MANUAL
Drill the marked holes where you will place your wall
2.
plugs.
Remove the front cover.
3.
Take the backplate of the Siren, three screws, wall
4.
plugs and a screwdriver to the location.
Push the wall plugs into the holes and proceed to
5.
screw the backplate onto the wall using the
screws provided.
Note: Battery is required to be connected before use.
Remove the battery cover and place 3 x AA batteries
6.
into the battery compartment
Model: SALAPWHRSBU
