ERA Nu Mail Shield TS008 Fitting Instructions & Routing Detail

1

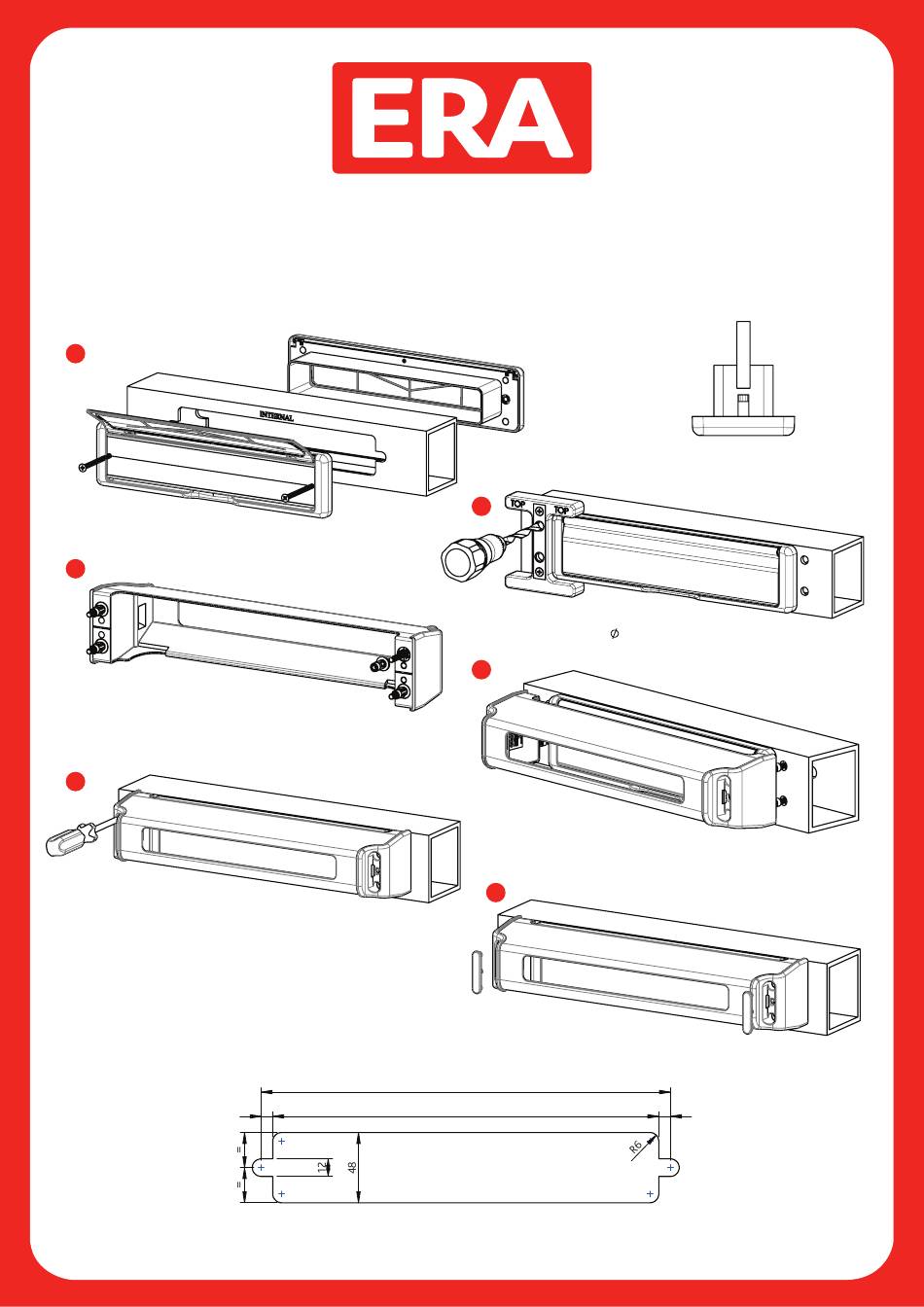

Fit letterplate with
supplied screws
3
Fit screws in Nu Mail Shield then
wind Jack Nuts on (finger tight)
5
Using an appropriate Philips hand
screwdriver, carefully tighten screws until a
firm fix is achieved (you must not use a power tool to tighten)
Tel: +44 1922 490049 Fax: +44 1922 494420 Email: info@erahomesecurity.com

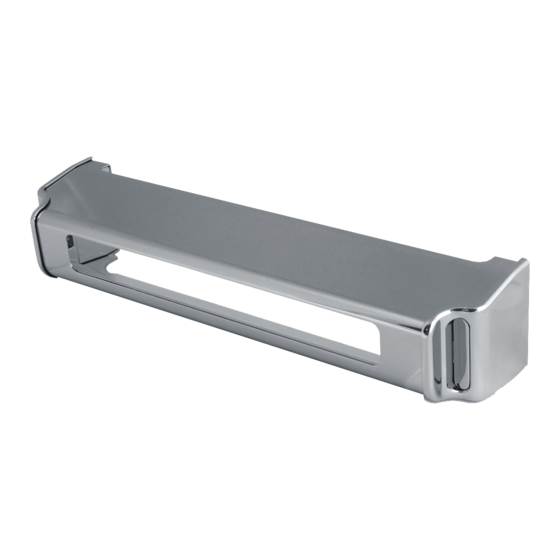

Nu Mail Shield TS008
Jacknut Installation
for fixing into non-reinforced sections
Routing Detail
=
ERA, Straight Road, Willenhall, West Midlands. WV12 5RA
www.eraeverywhere.com
2
Place jig over internal plate
& drill 9.50 holes
4
Carefully push the
Jack Nuts into the
drilled holes, to position
6
Fit screw covers
280
264
Fit support bushes to
external plate
=
