- Page 1 INSTALLATION AND OPERATING MANUAL VALIANT Solar Siren Alarm Kit Version 1.0...
- Page 2 DoP N : EM0017 ERA - VALIANT-Red Lens...
- Page 3 Telecommunications Terminal Equipment Directive, 1999/5/EC. Additional Accessories This can easily be extended at any time with the range of ERA Wireless Alarm Accessories for details visit www.erahomesecurity.com or call our Customer Support team on 0345 257 2500 (local call rate).
-
Page 4: Table Of Contents
Get to know your product PCB Layout Installation 3. Remote Control Get to know your product Buttons/Functions 4. Solar Charged Siren Positioning PCB Layout Jumper Setup Usage Installation Jamming Detection 5. Specification 6. Notes ERA Product Guarantee Specifications Page 2... -
Page 5: Kit Contents

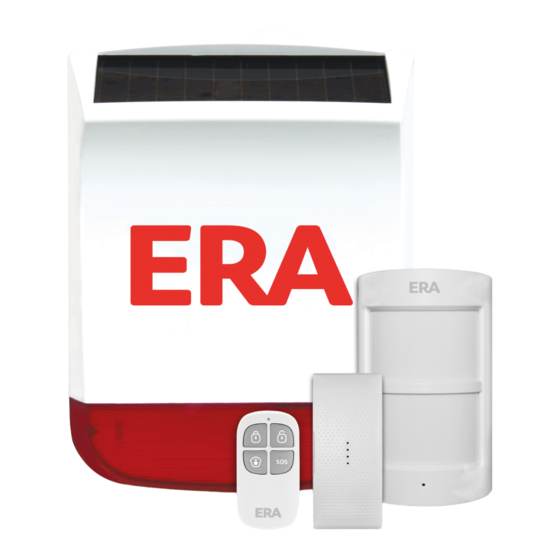

KIT CONTENTS Wireless Solar Siren x 1 Door/Window Sensor x 1 PIR Motion Sensor x 1 Remote Control x 1 Batteries Included 1. PIR MOTION DETECTOR 1.1. Get to know your product 1. Detection Window 2. Status Indicator 3. Test Button 4. -
Page 6: Pcb Layout
1.3. PCB Layout Infrared Sensor: Detects movement and triggers an alarm signal when the system Tamper is armed. Switch Infrared Tamper Switch: If the casing is opened Sensor when in ‘working state’, the tamper switch will be triggered and generate an alarm signal. -
Page 7: Magnetic Door/Window Sensor
The Window/door sensor transmits a signal to the control panel/siren Magnet when ‘contact’ is broken between Transmitter the transmitter and the magnet. Transmits a low battery signal to the ERA alarm control panel. Page 5... -
Page 8: Pcb Layout
2.2. LED Indication PCB Layout Flashes once: Door/window opened, transmitter sends the signal to the control panel/ siren. Battery Flashes every 3 seconds: Low battery indication (immediate battery change Tamper Switch recommended) Zone Setting 2.3. Installation Carefully remove the activation strip from the battery compartment. -
Page 9: Remote Control
3. REMOTE CONTROL 3.1. Get to know your product The remote control enables you to quickly and conveniently arm and disarm your alarm system. Disarm In the event of an emergency (when in or near Part Arm SOS Panic (Home Arm) your property), pressing the button will trigger the an alarm on the control panel/siren. -
Page 10: Solar Charged Siren
4. SOLAR CHARGED SIREN 4.1. Positioning Install the Siren to the outside of the building in a position that is clearly visible and at a height which is relatively inaccessible to an intruder. The Siren is designed to work on any aspect wall, however for optimum performance try to avoid installing on a north facing wall or to a wall with shadows cast by other buildings, trees and roof overhangs. -
Page 11: Usage
Please connect the 9V battery and press the power on/off button prior. Please note: after charging the battery for 12-24 hours, please remove the 9V battery. When installed as part of an ERA Alarm System, the Siren must be registered to the control panel only. -
Page 12: Installation
4.5. Installation Remove the fixing screw from Hold the mounting plate in Drill four holes in the wall and Hinge the front cover locating tabs the bottom edge of the Siren position and mark the positions insert the wall plugs. Insert the over the top edge of the backplate housing and carefully remove of the four mounting holes. -
Page 13: Specification
Before letting go of the tamper switch, press the red power button again to prevent the Siren from sounding. 5. SPECIFICATION Solar Siren Door/Window Sensor Model No. ERA-VALIANT-R Model No. EMAG Back Up Power 3.7V 1800 mAh Rechargeable Power Supply DC 3V (CR2032 Lithium x 2pcs) ≤5uA... -
Page 14: Notes
6. NOTES Disposal and Recycling Disposal of this product is covered by the Waste Electrical or Electronic Equipment (WEEE) Directive. It should not be disposed of with other household or commercial waste. At the end of its useful life the packaging and product should be disposed of via a suitable recycling centre. -
Page 15: Era Product Guarantee
ERA PRODUCT GUARANTEE We at ERA firmly believe in the quality of our goods. Our technology achieves outstanding performance and durability and we can therefore offer, in addition to your statutory rights, an additional limited guarantee. In the event of any material defects in any product manufactured by us due to faulty design, materials and/or... - Page 16 Customer Helpline: 0345 257 2500 www.erahomesecurity.com ERA Home Security Ltd Valiant Way, Wolverhampton, West Midlands, WV9 5GB email: support@erahomesecurity.com...
