Overall accuracy = 0.06 + 0.15 = ±0.21 %
STANDARDS & APPROVALS
CE conformity:
EMC Directive (2004/108/EC)
EMI EN 61000-6-4: 2007
EMS EN 61000-6-2: 2005
Low Voltage Directive (2006/95/EC)
EN 61010-1: 2001
Installation Category II
Pollution Degree 2
Input or output to power: Reinforced insulation (300 V)
Input to output: Basic insulation (300 V)
Approval:
UL/C-UL nonincendive Class I, Division 2,
Groups A, B, C, and D
(ANSI/ISA-12.12.01:2007, CAN/CSA-C22.2 No.213:1987)
UL/C-UL general safety requirements
(UL 61010-1:2008, CAN/CSA-C22.2 No.61010-1:1992)

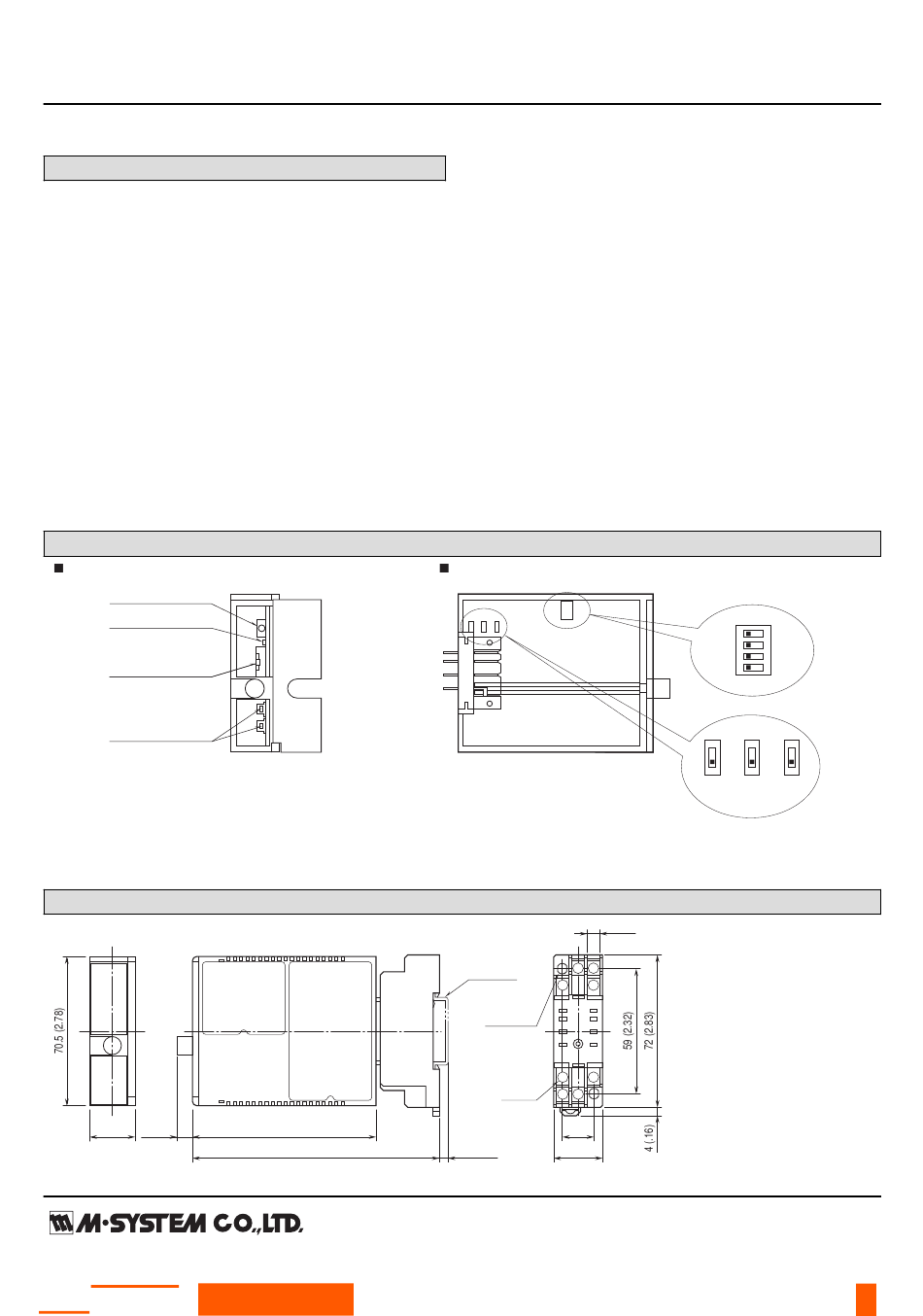

EXTERNAL VIEW

FRONT VIEW (with cover open)
Configurator Jack
Status Indictor LED
Zero/Span Selector
Top: SPAN
Middle: OFF
Bottom: ZERO
UP/DOWN Switches
The front cover cannot be opened to 180 deg.
when flush with neighboring units.
Refer to the instruction manual for detailed procedures.
DIMENSIONS unit: mm (inch)
21.5 (.85) 7.3 (.29)
SEN TRONIC
AG
Produkte, Support und Service
86.7 (3.41)
116.7 (4.59)
• When mounting, no extra space is needed between units.
Rugghölzli 2
CH - 5453 Busslingen
LEFT SIDE VIEW (with cover removed)
6 (.23)
DIN RAIL
4 1
35mm wide
8 5
2–4.2x5
(.17x.20)
MTG HOLE
6 (.24) deep
12 9
8–M3
SCREW
14 13
15 (.59)
[4 (.16)] 23 (.91)
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
MODEL: M2XPA3
Selector SW
OFF ON
1
2
3
4
