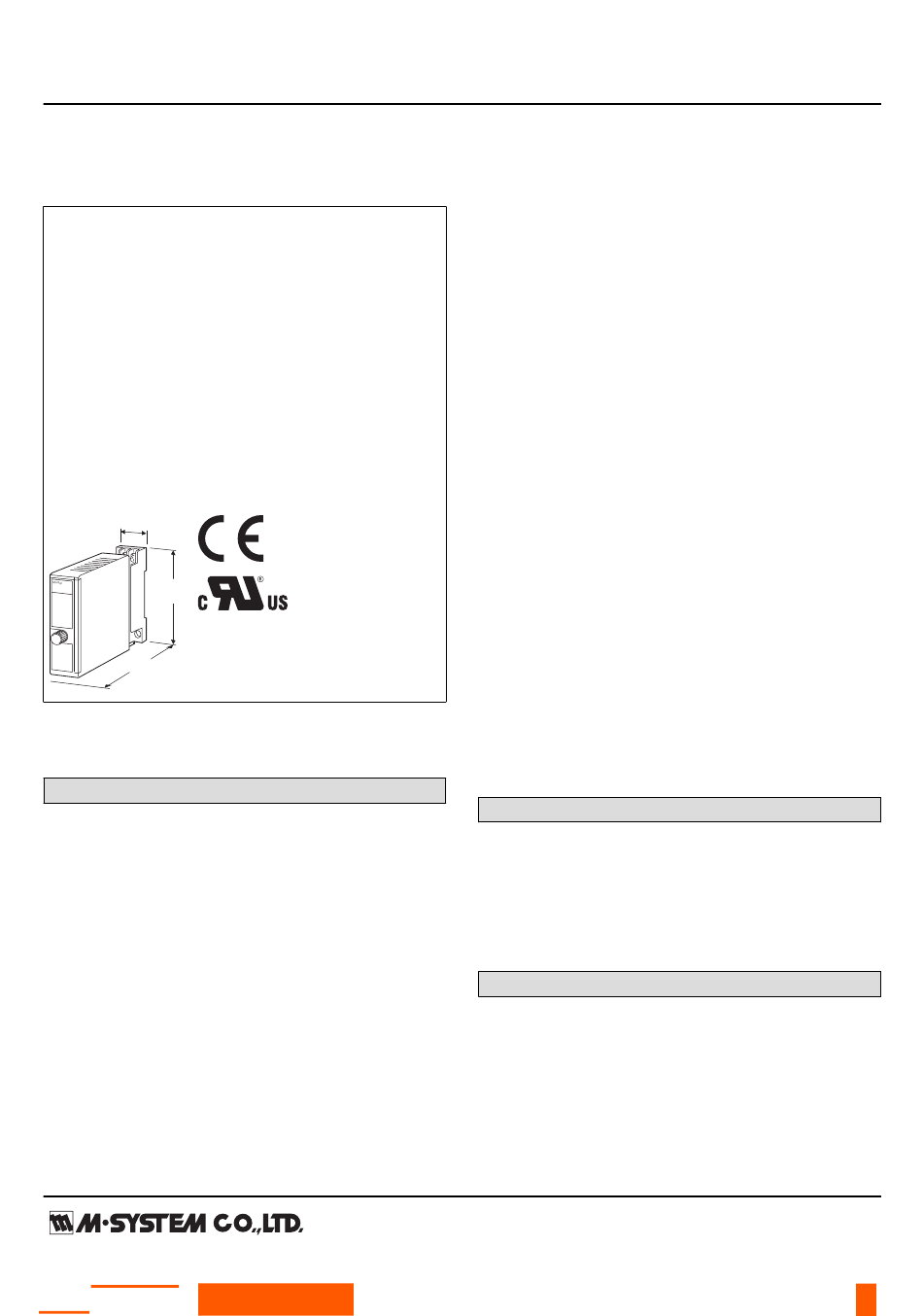

Super-mini Signal Conditioners Mini-M Series
PULSE SCALER
(field-configurable)
Functions & Features
• Converts pulse rate into convenient engineering unit for
display on a totalizing counter or meter
• Excitation
• Scaling factor adjustable of 1.0000 × 10
• Various outputs (open collector, voltage pulse and AC/DC
switch)
• Three-way isolation
• CE marking
• UL approval
Typical Applications
• Positive displacement flowmeters and turbine flowmeters
• Magnetic tachometers
23 (.91)
76
(2.99)
124
(4.88)
mm (inch)
MODEL: M2PRU–[1][2][3]–[4][5]
ORDERING INFORMATION
• Code number: M2PRU-[1][2][3]-[4][5]
Specify a code from below for each [1] through [5].
(e.g. M2PRU-A24A-M2/CE/Q)
• Scaling factor (e.g. 0.7000 × 10
• Specify the specification for option code /Q
(e.g. /C01/S01)
[1] INPUT
A1: Open collector
A2: Mechanical contact
C: Voltage pulse (sensitivity 2 V)
H: Two-wire current pulse
[2] EXCITATION
4: 12 V DC / 30 mA
7: 24 V DC / 30 mA
SEN TRONIC
AG
Produkte, Support und Service
0
–6
to 0.0001 × 10
–2
)
Rugghölzli 2
CH - 5453 Busslingen
MODEL: M2PRU
[3] OUTPUT
A: Open collector (max. 100 kHz)
M: 5 V pulse (max. 100 kHz)
N: 12 V pulse (max. 100 kHz)
P: 24 V pulse (max. 100 kHz)
R: AC/DC switch (max. 1 kHz)
[4] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
R2: 11 – 27 V DC
(Operational voltage range 11 – 27 V, ripple 10 %p-p max.)
(Select '/N' for 'Standards & Approvals' code.)
P: 110 V DC
(Operational voltage range 85 – 150 V, ripple 10 %p-p max.)
(110 V ±10 % for UL)
[5] OPTIONS (multiple selections)
STANDARDS & APPROVALS (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval (CE marking)
OTHER OPTIONS
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)
SPECIFICATIONS OF OPTION: Q (multiple selections)
COATING (For the detail, refer to M-System's web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
TERMINAL SCREW MATERIAL
/S01: Stainless steel
CAUTION
1) The M2PRU's output waveform is not uniform due to its
scaling method. The user must be aware that it may be
inconvenient for certain types of application.
2) The M2PRU is designed to accept at the maximum of 100
kHz, which may cause errors due to chattering in the input
pulses.
A filter circuitry (time constant: approx. 1 msec.) is
incorporated to eliminate unwanted chattering when the
mechanical contact input is specified. It is effective for
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
mailbox@sentronic.com
www.sentronic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2PRU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for M-system M2PRU

  • Page 1 C: Voltage pulse (sensitivity 2 V) inconvenient for certain types of application. H: Two-wire current pulse 2) The M2PRU is designed to accept at the maximum of 100 kHz, which may cause errors due to chattering in the input [2] EXCITATION pulses.
  • Page 2: General Specifications

    MODEL: M2PRU most relay types, however, an external CR filter as indicated ≥ 1200 Ω / 2.4 V for OFF below, could be added if the user need improvement. Limit • Voltage Pulse the input frequency to 10 Hz at maximum.
  • Page 3: Standards And Approvals

    MODEL: M2PRU PERFORMANCE Response time: 25 μsec. + input cycle + output cycle (time required for the first pulse to be output from a train of pulse input) Insulation resistance: ≥ 100 MΩ with 500 V DC Dielectric strength: 2000 V AC @1 minute (input to output to power to ground) STANDARDS &...
  • Page 4 MODEL: M2PRU DIMENSIONS unit: mm (inch) 6 (.23) DIN RAIL 35mm wide 2–4.2x5 (.17x.20) MTG HOLE 6 (.24) deep 8–M3 SCREW 14 13 21.5 (.85) 7.3 (.29) 86.7 (3.41) 15 (.59) 116.7 (4.59) [4 (.16)] 23 (.91) • When mounting, no extra space is needed between units.
  • Page 5: Points Of Caution

    • This equipment is suitable for use in a Pollution Degree ■ FILTER 2 environment and in Installation Category II, with the The M2PRU is designed to accept at the maximum of 100 maximum operating voltage of 300V. kHz, which may cause errors due to chattering in the input Insulation between signal input and output for the open pulses.
  • Page 6: Component Identification

    M2PRU COMPONENT IDENTIFICATION INSTALLATION Loosen the fixing screw at the front of the unit in order to Body Base Socket separate the body from the base socket. ■ DIN RAIL MOUNTING Set the base socket so that its DIN rail adaptor is at Fixing Screw the bottom.
  • Page 7: Adjustment Procedure

    M2PRU ADJUSTMENT PROCEDURE ■ FRONT VIEW (with cover open) ■ RIGHT SIDE VIEW ■ PULSE WIDTH Factory adjusted to a suitable value. Use only when the out- put device (counter) is not able to read the output pulses. Scaling Factor Min.
