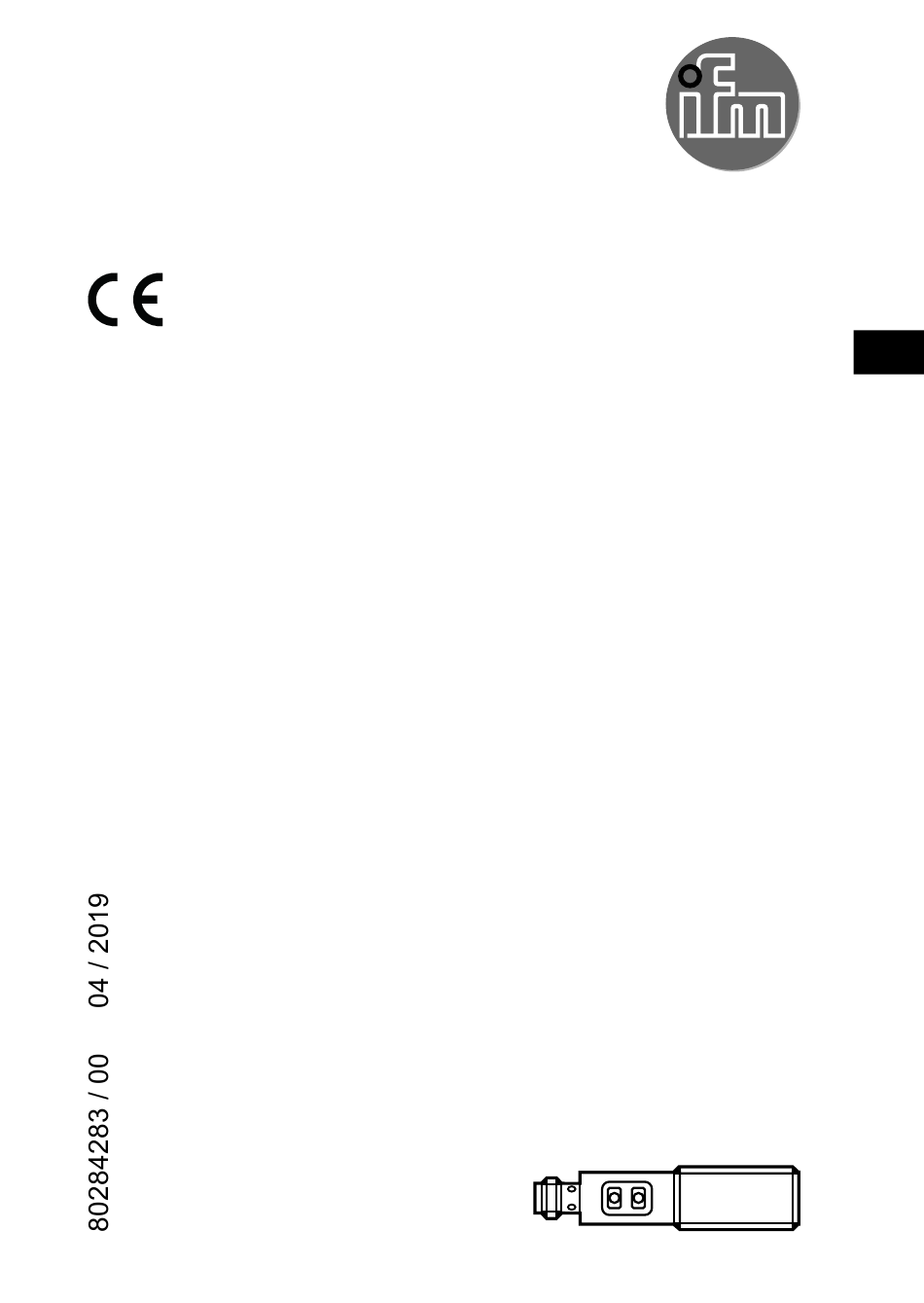

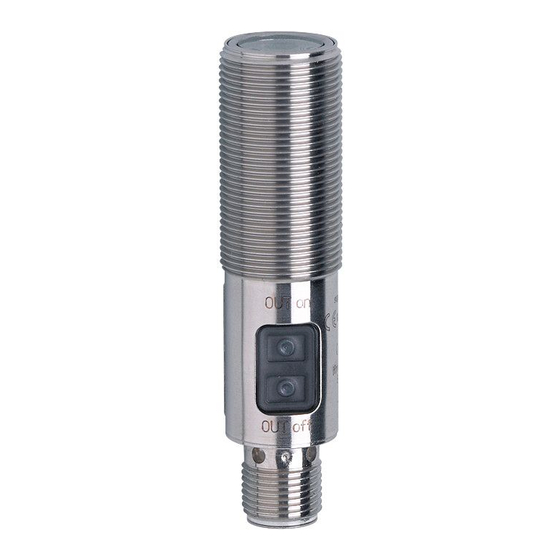

- Page 1 Operating instructions Retro-reflective sensor OGP7xx...
- Page 2 3 Functions and features In conjunction with a prismatic reflector or reflective tape the retro-reflective sensor detects objects and materials without contact and indicates their presence by a switching signal. Range: www.ifm.com → Select your country → Data sheet direct: e.g. OGE700.
- Page 3 4 Installation 1: LED ► Fit the prismatic reflector or the reflective tape behind the object to be detected. ► Align the retro-reflective sensor to it and secure it to a bracket. Maximum range is only possible with precise alignment. 5 Electrical connection The unit must be connected by a qualified electrician.
- Page 4 6 Settings 6.1 The sensor is to switch when the object is detected ► Position the object. ► Press [OUT on] for 2 s. > The LED flashes. ► Remove the object. ► Press [OUT off]. > The LED goes out. The programming is finished. 6.2 The sensor is not to switch when the object is detected ►...
- Page 5 ► For cleaning do not use any solvents or cleaning agents which could damage the plastic material. ► Do not try to open the module enclosure. There are no user - serviceable components inside. Technical data and further information at www.ifm.com...
