OG AC/DC Sensor Calibration
Pushbutton Calibration
Align sensor to point toward the object you wish to detect.
1
Fasten securely.
Push and hold button until red LED flashes quickly for 2
seconds. The LED will continue to flash with equal on/off
2
pulses.
Press button once with no object in detection area. The
3
red LED will briefly go out and then continue to flash.
Press button again with the object in detection area. The red
LED will go out for 2 seconds, then return to operating
4
mode. If red LED flashes rapidly for 2 seconds, calibration is
not possible. This may be due to a marginal application or
misadjustment of the sensor. Adjust and retry the application.
TEL: 800-441-8246 • FAX: 800-329-0436
www.ifmefector.com

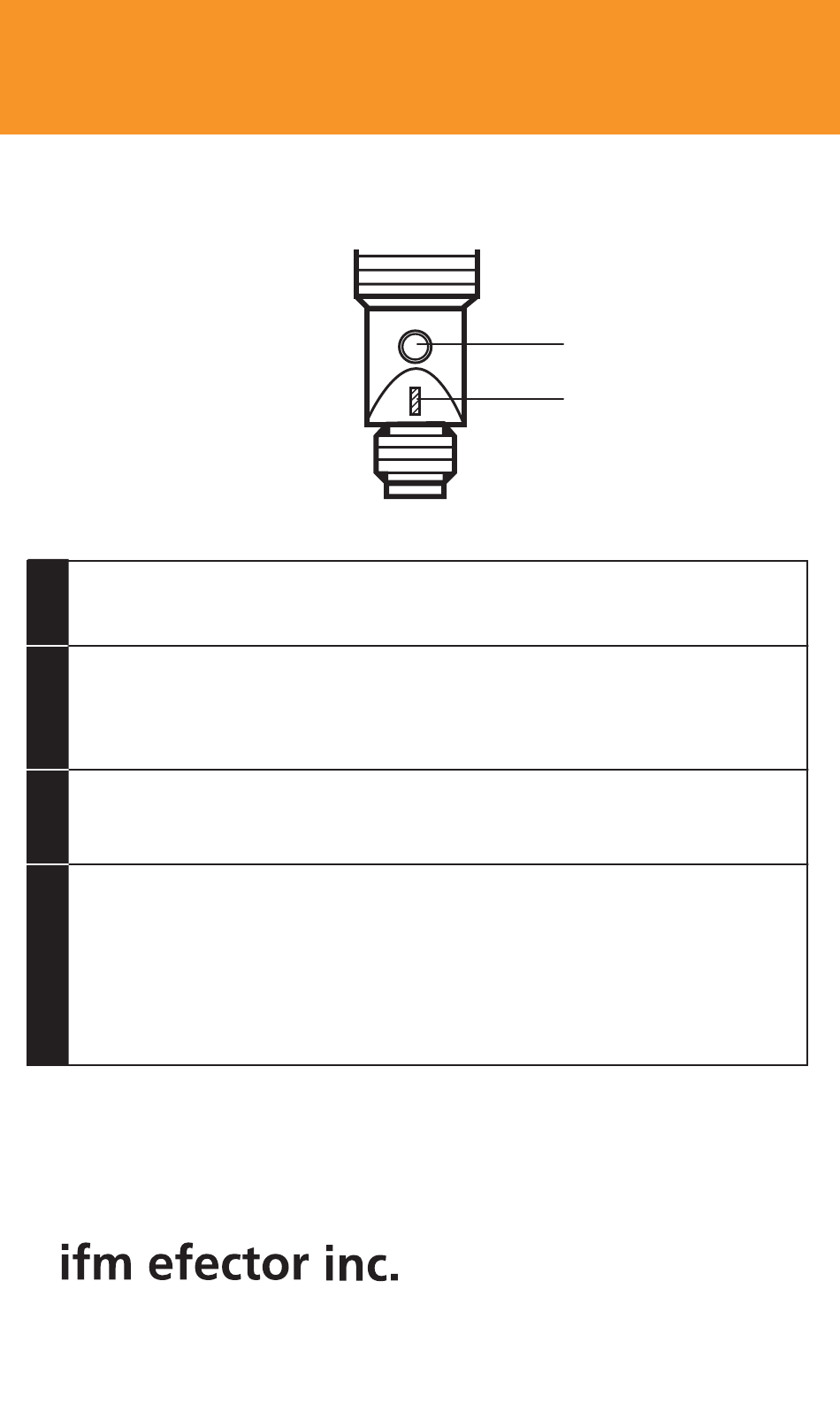

Pushbutton
Red - marginal
signal, output
status
10/02
Lit. No. B21002
