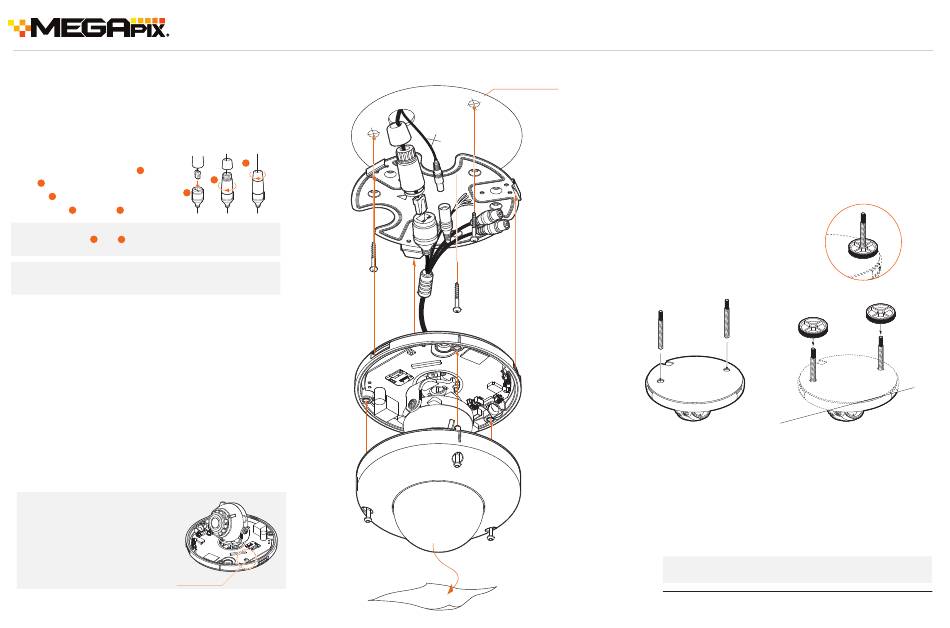

STEP 3 – INSTALLING THE CAMERA
1. Attach the main body to the mount bracket by tightening the
lock screw.
2. For soft installation surfaces, use the included metal mount plate.
Fix the mount plate on the mounting surface using the included
screws. Then, press the bottom case onto the mount plate. The
three bezels on the case will align and snap lock onto the plate.
3. To use the camera's waterproof wiring:
a. Install the LAN cable into .
a
b. will be assembled
b
a
to with a 1/4 turn.
a
c. Thread tightly to .
c b
NOTE: To ensure moisture seal, make sure the o-ring is in place
between and . In extreme environments use of an
a b
outdoor rated sealer is recommended.
NOTE: When using the waterproof cap, crimp the RJ45
connector after passing the cable through the
waterproof cap.
4. Once the installation is complete, adjust the camera's tilt, panning
and rotation as needed. The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 70°
Rotation: 0° ~ 360°
5. Assemble the dome cover over the camera body and detach the
protecting film from the dome bubble.
Resetting the camera: To reset
the camera, use the tip of a paper
clip or a pencil and press the reset
button. Pressing the button for five
(5) seconds will initiate a
camera-wide reset of all
the settings, including
network settings.
Reset Button
c
b
Poron Ring
STEP 3 – INSTALLING THE CAMERA (CONT.)
Mounting Template
Installation using Mount Bolt and Screws:
1. Using the mounting template, mark and drill the holes on the
mounting surface.
2. Secure the two long mounting screws to the camera's base.
3. Pass the wires through the mount bracket and make all
necessary connections.
4. Mount the camera to the mounting surface by using the 2 mounting
nuts. Rotate the locking discs over the screws until the camera is
held tightly from the mounting surface.
Protective Film
Quick Start Guide
NOTE:
Please refer to DMP guide for additional information on integration
and camera control.
