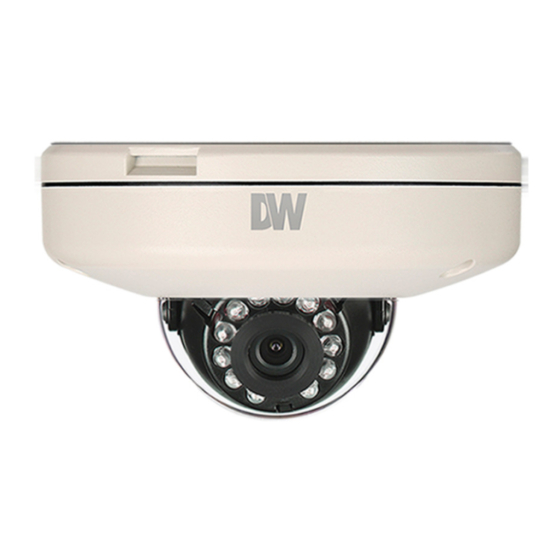

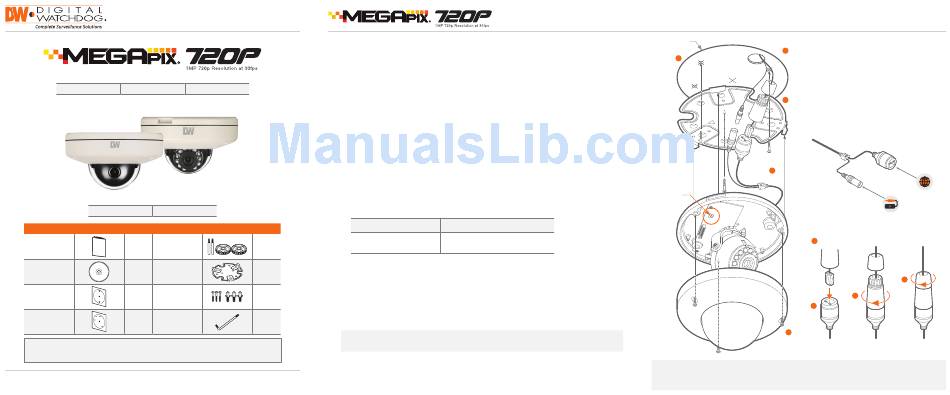

Digital Watchdog DWC-MF10M28T Quick Start Manual

DWC-MF10M28T DWC-MF10M36TIR
Username: admin Password: admin
WHAT'S IN THE BOX
Mount Bolt & Nut
QSG Manual 1 Set
– 2pcs
Manual CD 1 Set Mount Plate
Template Sheet
Screw & Plastic
for installing by 1 Set
Anchor – 3pcs
Bolt & Nut
Template Sheet
1 Set Torx Wrench
for installing by Plate
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
Step 1 – PREPARING TO MOUNT THE CAMERA
1.
The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to be damaged.
This may cause a breakdown or fire.
DWC-MF10M8TIR
3. For the installation process, remove the dome cover from the camera module by loosening
the three (3) screws on the dome. Use the wrench provided with the camera.
4. Using the mounting template sheet or the camera itself, mark and drill the necessary holes in
the wall or ceiling.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using an Ethernet
cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter to power the camera.
Power Requirements
DC 12V
1 Set PoE IEEE 802.3atPoE+ / PoE Class 2
1 Set
Step 3 – INSTALLING THE CAMERA
6.
To use the camera's water proof wiring:
1 Set
(1).
Install the LAN cable into (a).
(2). (b) will be assembled to (a) with a 1/4 turn.
(3).
Thread (c) tightly to (b).
1 Set
Note: To ensure moisture seal, make sure the o-ring is in place between (a) and (b). In extreme
environments use of an outdoor rated sealer is recommended.
7. Use the camera's 3-Axis gimbal to adjust the camera's tilt and angle. The camera's maximum tilting
angle is 70.
digital-watchdog.com
8. Assemble the dome cover over the camera body and detach the protecting film from the dome bubble.
Power Consumption
LED Off: 1.92W, 160mA
LED On: 2.7W, 230mA (IR models only)
Template
Sheet
1
4
Soft Surface Installation
For soft installation surfaces, use the included
metal mount plate. Fix the mount plate on the
mounting surface using the included screws.
5
Then, press the bottom case onto the mount
plate. The three bezels on the case will align
and snap lock onto the plate.
2
Reset
Button
6
a
3
Resetting the camera: To reset the camera, use the tip of a paper clip or a pencil and press the
reset button. Pressing the button for five (5) seconds will initiate a camera-wide reset of all the settings,
including network settings.
Quick Start Guide
NETWORK
CONNECTION
POWER
c
b
