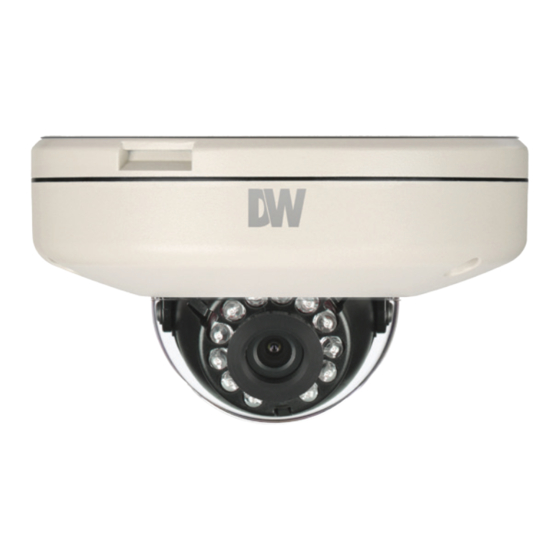

Digital Watchdog MEGAPIX DWC-MF4Wi4 Quick Start Manual

Quick Start Guide
DWC-MF4Wi4
DWC-MF4Wi6
DWC-MF4Wi8
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Mount Bolt &
QSG Manual 1 Set
Nut – 2pcs
L-Wrench 1 Set Mount Plate
Template
Screw &
Sheet for
1 Set Plastic Anchor
installing by
– 3pcs
Bolt & Nut
Template
Sheet for Waterproof
1 Set
installing by Cap
Plate
Test Monitor
1 Set
Cable
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search
bar. Results for applicable part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides
(QSG), software and firmware will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
Do not let the cables get caught in improper places or the electric line cover
2.
to be damaged. This may cause a breakdown or fire.
For the installation process, remove the dome cover from the camera module
3.
by loosening the three (3) screws on the dome. Use the wrench provided with
the camera.
4. Using the mounting template sheet or the camera itself, mark and drill the
necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5. Pass the wires through the mount bracket and make all necessary
connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect
the camera to the switch using an Ethernet cable for data transmission
and use a power adapter to power the camera.
Power Requirements
1 Set
DC 12V
PoE IEEE 802.3af / PoE Class 2
1 Set
STEP 3 – INSTALLING THE CAMERA
6. Attach the main body to the mount bracket by tightening the lock screw
using the six-angle wrench.
1 Set
7. For soft installation surfaces, use the included metal mount plate. Fix the
mount plate on the mounting surface using the included screws. Then, press
1 Set
the bottom case onto the mount plate. The three bezels on the case will align
and snap lock onto the plate.
8. To use the camera's water proof wiring:
(1). Install the LAN cable into
(2). will be assembled to
b
(3). Thread
c
NOTE: To ensure moisture seal, make sure the o-ring is in place between
and
a
sealer is recommended.
NOTE:
When using the waterproof cap, crimp the RJ45 connector after
passing the cable through the waterproof cap.
Use the camera's 3-Axis gimbal to adjust the camera's tilt and angle. The
9.
camera's maximum tilting angle is 70°.
digital-watchdog.com
10. Assemble the dome cover over the camera body and detach the protecting
film from the dome bubble.
Power Consumption
LED Off: 3W, 250mA
LED On: 4W, 330mA
a .
with a 1/4 turn.
a
tightly to .
b
. In extreme environments use of an outdoor rated
b
Quick Start Guide
Template
Sheet
1
4
5
2
3
a
Resetting the camera: To reset the camera, use the tip of a paper clip
or a pencil and press the reset button. Pressing the button for five (5)
seconds will initiate a camera-wide reset of all the settings, including
network settings.
NETWORK
POWER
Reset
Button
8
c
b
