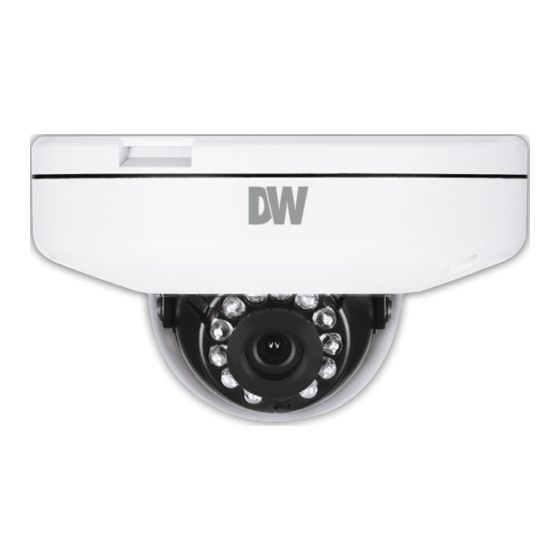

Digital Watchdog MEGAPIX DWC-MF5Wi4TWDMP Quick Start Manual

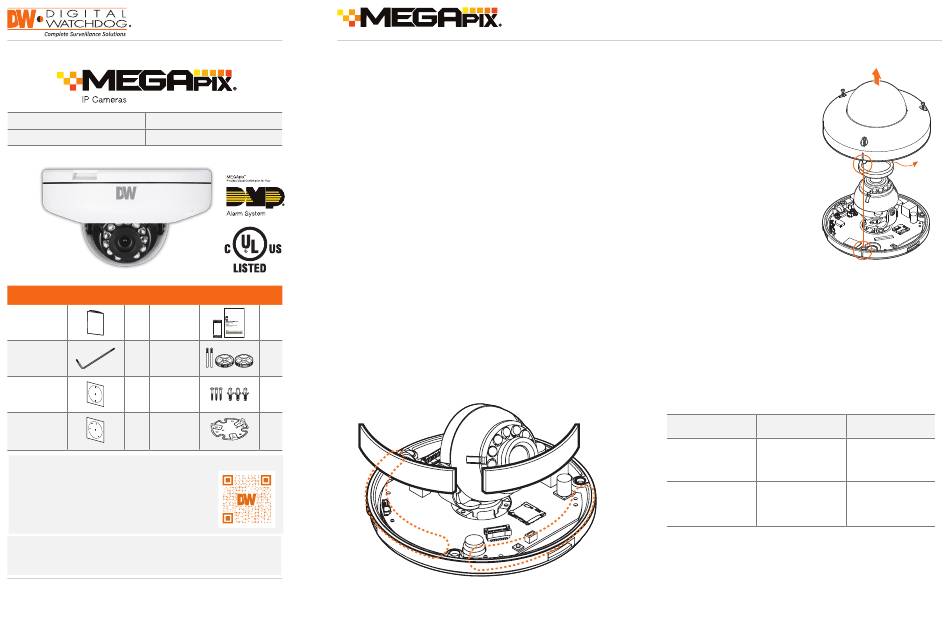

Quick Start Guide
5MP model 2.1MP/1080p model
DWC-MF5Wi4TWDMP DWC-MF2Wi4TWDMP
WHAT'S IN THE BOX
Quick Setup
Moisture
and Download 1 set
Absorber
guides
Mounting
Star Wrench 1 Bolt and
Nuts - 2pcs
Mounting Screws and
Template for Plastic
1
Bolt and Nuts Anchors –
Installation 3pcs
Mounting
Template for Mounting
1
Plate Plate
Installation
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference page for
the initial setup. It is recommended that the user read the entire instruction
manual for complete and proper camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the camera weight.
2. Do not let the cables get caught in improper places or the electric line
cover can be damaged. This may cause a short or fire.
3. CAUTION: These servicing instructions are for use by qualified
service personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
4. This product is intended to be supplied by a UL Listed Power Supply
Unit marked "Class 2" or "LPS" or "PS2" and rated 12 Vdc, 0.49A
(DWC-MF5Wi4TWDMP) and 0.33A (DWC-MF2Wi4TWDMP) min.
5. The wired LAN hub providing power over the Ethernet (PoE) in
accordance with IEEE 802-3af shall be a UL Listed device with the
output evaluated as a Limited Power Source as defined in UL60950-
1 or PS2 as defined in UL62368-1.
6. Unit is intended for installation in a Network Environment 0 as
defined in IEC TR 62102. As such, associated Ethernet wiring shall
be limited to inside the building.
7. For the installation process, remove the dome cover from the
camera module by loosening the three (3) screws on the dome. Use
the wrench provided with the camera.
8. Install the moisture packet in the base of the camera's lens.
1 set
a. Remove the moisture absorber from
the packaging.
b. Cut the card and folder along
1 set
the dotted line.
c. Place the moisture absorber
around the camera's lens module.
1 set
1
digital-watchdog.com
Quick Start Guide
9. Remove the protective film
between
the dome and the camera module.
10. Remove the Poron Ring before
placing the dome back on the
camera. When attaching the dome
back, align the line on the dome
with
the one on base of the camera.
11. Using the mounting template sheet
or the camera itself, mark and drill
the necessary holes in the wall or
ceiling.
STEP 2 – POWERING THE CAMERA
Pass the wires through the mount bracket and make all necessary
connections.
1. NETWORK CONNECTIONS – If you are using a PoE Switch, connect
the camera using an Ethernet cable for both data and power.
Reset Button
2. NETWORK CONNECTIONS – If you are using a non-PoE switch,
connect the camera to the switch using an Ethernet cable for data
transmission and use a power adapter to power the camera.
Part number Power Requirements
DC 12V, PoE IEEE 802.3af
DWC-MF5Wi4TWDMP Class 3
(Adapter not included).
DC 12V, PoE IEEE 802.3af
DWC-MF2Wi4TWDMP Class 2
(Adapter not included).
Poron Ring
Power Consumption
DC12V: max 5.9W
PoE: max 7.2W
DC12V: max 4.0W
PoE: max 5.5W
