Summary of Contents for Corally RADIX XP 6S

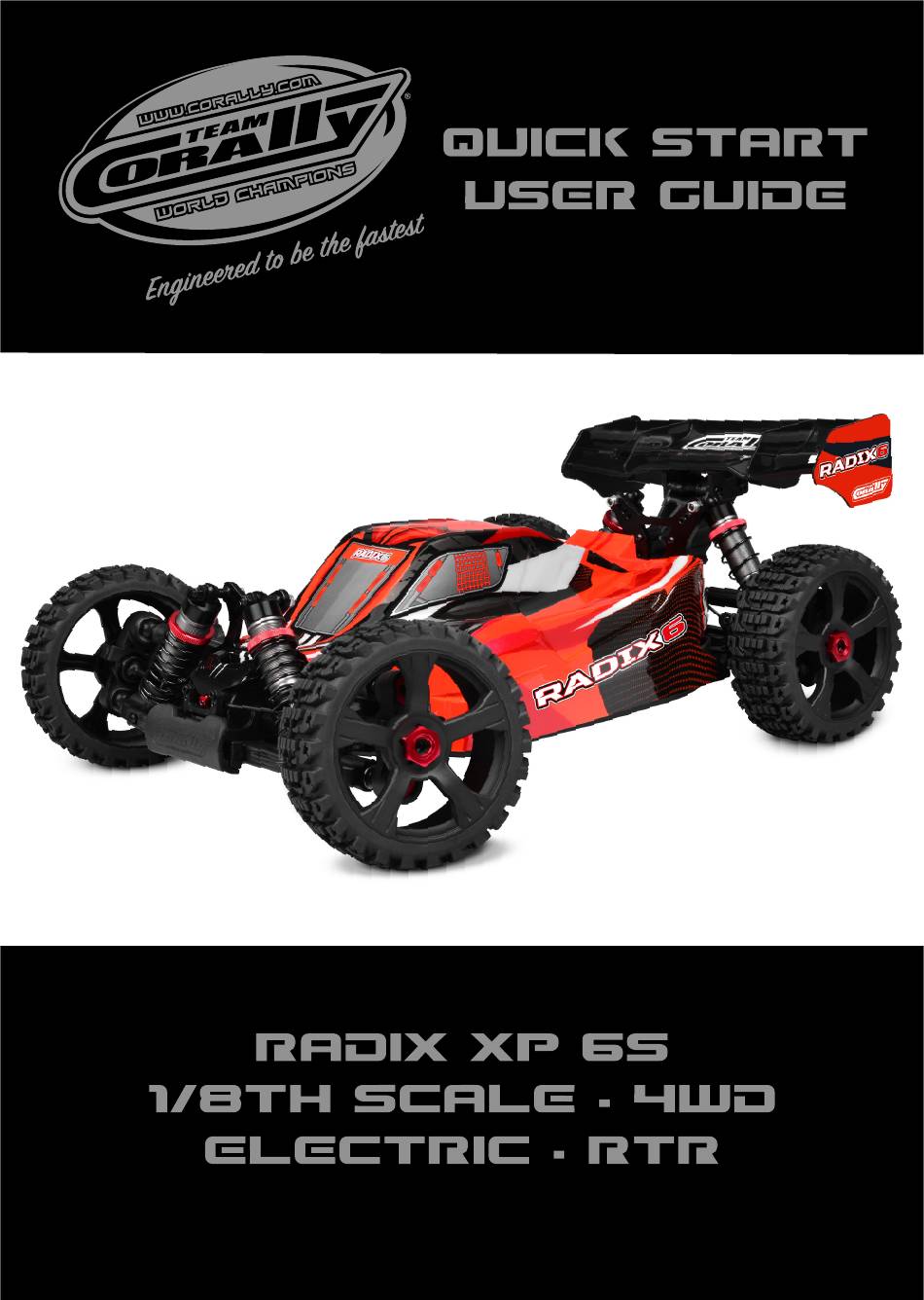

- Page 1 Download the latest version of the manual on www.corally.com Revised : 2021-01-19 www.corally.com C-00185_manual...
-
Page 2: Read First
Team Corally. Always take the time to read the instructions carefully in order to follow all the procedures to use your RC model safely for you and for other people and property in the area. -
Page 3: Use Precautions
Always take all necessary precautions when handling products (silicone oil, grease, thread lock, cyanolyte glue, fuel) for the operation of the model. (Refer to the manufacturer’s instructions) For your safety, to keep the warranty and obtain the best performance, always use original CORALLY genuine parts. Contains: LEAD (CAS 7439-92-1) ANTIMONY (CAS 7440-36-0) WARNING: This product contains a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. -
Page 4: Warranty
If material defects or manufacturing faults should arise in a product distributed or manufactured by Team Corally / JSP Group Intl bvba, and purchased by a consumer, we Team Corally / JSP Group Intl bvba acknowl- edge the obligation to correct those faults or defects within the limitations described below. This manufacturers warranty is in addition to, and does not affect, the legal or contractual rights of the consumer which arise from the purchase of such products. - Page 5 • When the battery is empty, recharge it immediately. Do not store an empty battery, the battery will continue to dis- charge, it will fall below the minimum voltage and become unusable. KIT CONTENT (Depends on the selected model) www.corally.com/Downloads/ Transmitter RTR Model (Chassis with Body)
-
Page 6: Car Components
CAR COMPONENTS Front Differential Front Shock Absorber Suspension Arm Anti-Roll Bar Steering Block Steering Link Battery compartment Steering Servo Receiver Box Centre Differential Brushless Motor Speed Controller (ESC) Power Switch Rear Suspension Arm Anti-Roll Bar Wheel Axle Rear Upright Camber Link Rear Shock Absorber Rear Differential... - Page 7 QUICK START GUIDE READ THE INSTRUCTIONS CHARGE THE BATTERY INSTALL 4x AA BATTERY CHARGER BATTERY MAKE SURE THAT ALL SCREWS AND NUTS ARE INSTALL THE BATTERY TURN ON THE TRANSMITTER (Always First) TIGHTENED PROPERLY. CONNECT THE BATTERY TO THE ESC CHECK THE FUNCTIONS CHECK THE RADIO SYSTEM RANGE SWITCH ON THE ESC...
- Page 8 BASIC CAR SETTINGS Possible setting with the optional parts : FRONT TOE C-00180-039 Steering Ball Cups - Composite C-00180-128 Turnbuckle - M4 - 50mm TOE-OUT TOE-OUT -1° -1° 31mm Adjust the angle by screwing the TURNBUCKLE. Possible setting with the options : FRONT CAMBER REAR CAMBER C-00180-130 Turnbuckle - M5 - 50mm...
-
Page 9: Ride Height
BASIC CAR SETTINGS SUSPENSION TRAVEL It is important to properly adjust the travel of the suspension arm to prevent the shock absorber from reaching the end of its travel and damaging it. • Place the chassis on a block in order to release the suspension to the maximum. •... - Page 10 REAR SILICONE OIL SPRING TENSION SILICONE OIL SPRING TENSION SHOCK PISTON TRACK USE 450CPS 400CPS 6 Holes Ø1.3mm OFF-ROAD 550CPS 450CPS 6 Holes Ø1.3mm BASHING 600CPS 500CPS 6 Holes Ø1.3mm FACTORY 500CPS 400CPS 6 Holes Ø1.3mm SPRING TENSION .www. corally.com/Chemicals/Silicone-Oils/...
- Page 11 SHOCK ABSORBER - EXPLODED VIEW Do not overtighten the Shock Cap to C-00180-080 Shock Piston prevent deformation of the silicone Shock Bladder. C-00180-133 Set content C-00180-189 Shock Piston - 4x1.6 Shock Piston - 4x1.8 C-31001-25 Shock Piston - 5x1.4 C-00180-080 Shock Piston - 5x1.5 Shock Piston - 5x1.6 C-00180-190...
-
Page 12: Differential Maintenance
Use the correct grade of silicone oil according to the operation. Use only Silicone Oil, never use any other types of oil. FRONT DIFF CENTRE DIFF REAR DIFF TRACK USE 7500 15.000 5000 OFF-ROAD 10.000 30.000 7500 FACTORY 20.000 50.000 10.000 www. corally.com/Chemicals/Silicone-Oils/... - Page 13 FRONT & REAR DIFFERENTIAL - EXPLODED VIEW C-3002-30-12 (4pcs) C-00180-153-3 C-00180-205 C-3611-4-08-16-05 C-00180-179 (set) C-00180-182 C-00180-184 C-00180-178 C-00180-205 C-00180-183 C-00180-182 C-3611-4-08-16-05 C-00180-153-3 C-00180-098 CENTRE DIFFERENTIAL - EXPLODED VIEW C-3002-30-10 (x4) C-00180-154-3 C-00180-205 C-3611-3-08-16-05 C-00180-179 (set) C-00180-205 C-00180-684 C-00180-182 C-00180-091 C-00180-183-1 C-00180-686 C-00180-182 C-3611-3-08-16-05...
-
Page 14: Gear Ratio
• Special hardened steel • CNC cut teeth for perfect teeth shape and concentricity • Module MOD1 • fits all cars with MOD1 gears (1/8 Scale) • for 5.0mm motor shafts www.corally.com/Pinions-Gears/Pinions-MOD1/ GEAR RATIO : 3.31 Km/h Km/h Km/h Km/h... - Page 15 FRONT DRIVE TRAIN - EXPLODED VIEW C-00180-117 C-00180-009 DIN913 C-00180-123 M4x4 C-00180-122 C-00180-009 C-00180-329 C-00180-123 C-3003-30-12 (2x) C-3003-30-10 C-00180-207 C-00180-009 C-3611-4-08-16-05 (x2) C-00180-150 C-00180-555 C-3201-60 C-00180-150 C-00180-011 C-00180-360 C-00180-193 C-3003-30-16 C-00180-149 C-00180-089 C-00180-012 (x2) C-3003-30-20 C-00180-051 C-00180-240 M4x10 C-00180-055 (set) DIN 913 M5x4 C-3611-4-08-16-05 (x2) C-00180-155-3...
- Page 16 REAR DRIVE TRAIN - EXPLODED VIEW M3x14 C-00180-226-B C-00180-005 C-3002-30-12 (x2) Nylstop Nut•M3 C-00180-535 C-3003-30-20 C-00180-005-2 C-00180-005-2 C-31205 (x5) C-3003-30-12 (x2) C-3101-40 (4) C-3101-30 C-3101-30 C-00180-005 C-00180-030 C-3003-30-14 C-3101-30 C-00180-148 C-3003-30-25 C-00180-030 DIN913•M4x4 C-00180-122 C-00180-055 C-00180-132 C-00180-329 C-00180-293 C-00180-148 C-3101-40 C-00180-021 C-00180-008 C-00180-556...
-
Page 17: Chassis - Exploded View
CHASSIS - EXPLODED VIEW C-54055 C-3001-40-12 C-3003-30-10 C-00180-023 C-00180-177 C-3003-30-30 C-3004-40-04 M3x8 C-3003-30-12 C-3001-40-10 C-00180-372 C-3003-30-10 C-00180-171 C-3001-40-08 (x2) C-72713 C-52022 C-3003-30-18 C-3002-30-06 C-00180-129 C-00180-176 C-00180-015 C-00180-044 (x2) C-54011 C-3003-30-12 (x4) C-00180-149 C-00180-018 C-00180-024 C-00180-013 C-3104-40 C-3101-40 C-3003-30-10 C-3003-30-08 (x2) C-3003-30-12 C-3002-30-08 (x4) C-3003-30-10... -
Page 18: Spare Parts
SPARE PARTS C-00180-004 C-00180-004-1 C-00180-005-2 C-00180-008 C-00180-009 Battery - ESC Tray - Composite Battery Strap - Hook & Loop Wing Mount - Adjustable - Hub - Rear - Composite - 1 pc Steering Block - Pillow Ball Cup - 1 pc - 2 pcs Composite - 1 Set (2) - Front - Composite - 1 set... - Page 19 SPARE PARTS C-00180-117 C-00180-122 C-00180-123 C-00180-127 C-00180-129 Pivot Ball Adjusting Nut - Alu- Pin 2.5x17mm - Steel - 10 pcs Pivot Ball - Steel - 4 pcs Hinge Pin - Outer - Steel - 2 pcs Turnbuckle - M3 - 35mm - minium - 4 pcs Steel - 2 pcs C-00180-131...
- Page 20 SPARE PARTS C-00180-193 C-00180-189 C-00180-190 C-00180-191 C-00180-192 Drive Shaft - Center - Front - Shock Bladders - Silicone - Shock Washer - 2.5x6x0.5mm - O-Ring - Silicone - 9x12mm O-Ring - Silicone - Steel - 1 pc 4 pcs Steel - 10 pcs - 5 pcs 16.2x19.8mm - 5 pcs C-00180-194...
- Page 21 SPARE PARTS C-00180-686 C-00185-375 C-00185-611 C-52022 C-54011 Digital Servo - CRHV-7225-MG Diff Case - Centre - Aluminium. Painted Body - Buggy - 1 pc Off-Road 1/8 Tires - Xprit - Low Speed Controller - TOROX 185 - - High Voltage - Core Motor - - 1 pc Profile - Glued on Rims - 1 pair Brushless - 2-6S...
-
Page 22: Option Parts
OPTION PARTS Fit with C-00180-128 Fit with C-00180-130 Fit with C-00180-039 Fit with C-00180-041 C-00180-039 C-00180-041 C-00180-128 C-00180-130 C-00180-224 Steering Ball Cups - Composite Rear Camber Ball Cups - Outer Turnbuckle - M4 - 50mm - Turnbuckle - M5 - 50mm - Fan Holder - Composite - 1 set - 1 set - Inner - 1 set... - Page 23 STEEL SCREWS LENGTH LENGTH LENGTH LENGTH HEX FLAT HEAD SCREWS HEX BUTTON HEAD SCREWS HEX SOCKET HEAD SCREWS HEX SET SCREWS DIN 7991 - STEEL - 10 PCS DIN 7380 - STEEL - 10 PCS DIN 912 - STEEL - 10 PCS DIN 916 - STEEL - 10 PCS NOMINAL LENGTH...
-
Page 24: Ball Bearings
NUTS NYLSTOP NUT NYLSTOP NUT - FLANGED NYLSTOP NUT LOW PROFILE NUT ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS STEEL - 10 PCS DIN 936 - STEEL - 10 PCS NOMINAL NOMINAL NOMINAL NOMINAL COLOR COLOR COLOR COLOR SIZE SIZE SIZE SIZE... - Page 25 ALUMINIUM WASHERS WASHER FOR SOCKET HEAD SCREW WASHER FOR BUTTON HEAD SCREW WASHER FOR FLAT HEAD SCREW ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS FOR S/H FOR S/H FOR S/H COLOR COLOR COLOR SCREW SCREW SCREW Gold C-3214-20-0...
-
Page 26: Declaration Of Conformity
Title/Titel/Titre : Ceo FEDERAL COMMUNICATIONS COMMISSION EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE JSP GROUP INTL BVBA / CORALLY, and is VALID ONLY for the equipment identified hereon for use under the Commission’s Rules and Regulations listed below. - Page 28 WWW.CORALLY.COM Team Corally is a registered trademark licensed to JSP Group Intl bvba Geelseweg 80 B-2250 OLEN Belgium • • • Tel: +32 14 25 92 94 info@corally.com • C-00185-M-EN...
