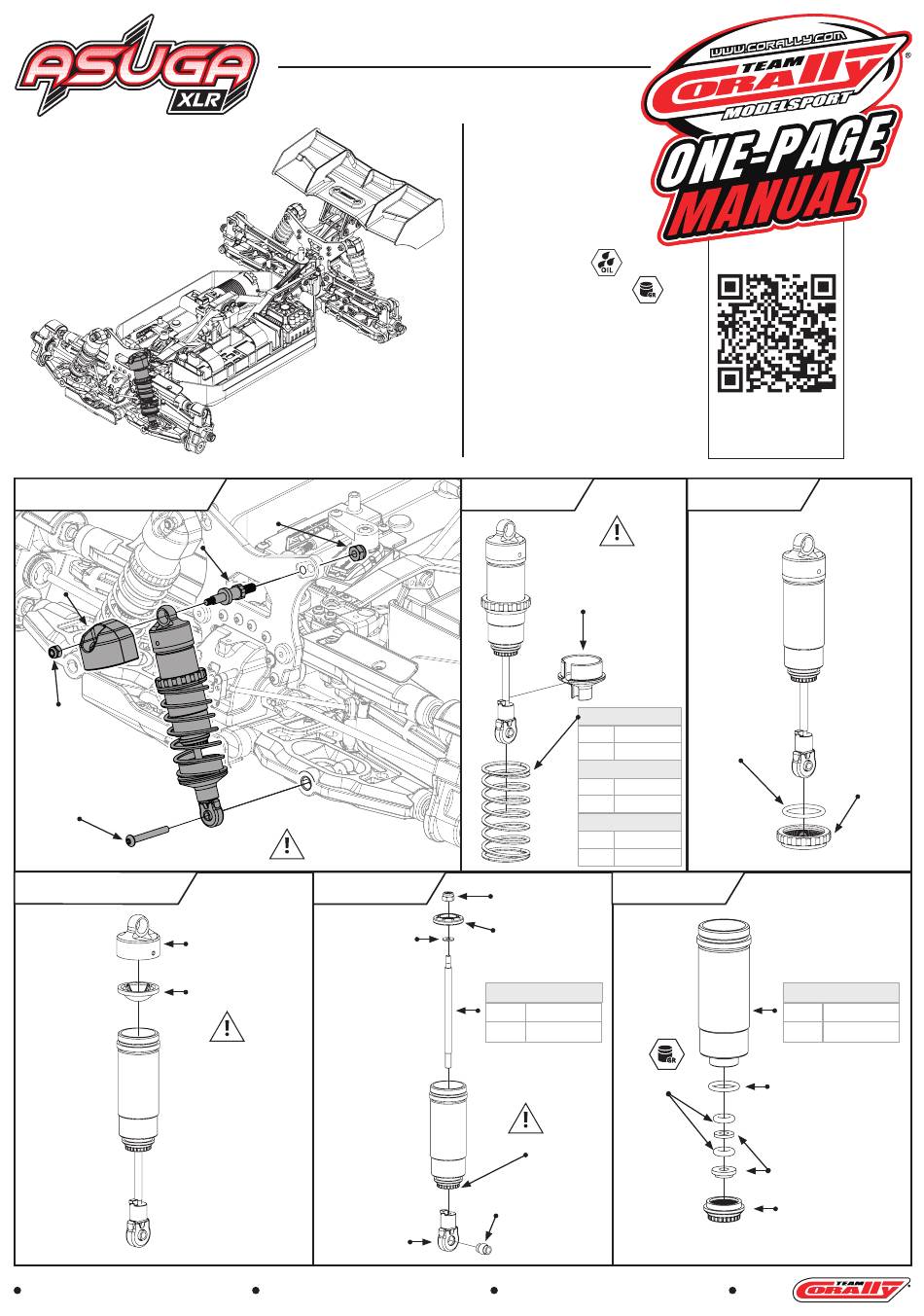

Corally ASUGA XLR Manual

PREPARATION
C-00180-148 C-00180-148
C-00180-658 C-00180-658
M3 Locknut M3 Locknut
C-3101-30-6 C-3101-30-6
BH M3x16 BH M3x16
C-3003-30-16 C-3003-30-16
STEP 3 4
and
C-00180-133 C-00180-133
C-00180-189 C-00180-189
Remove shock cap, drain
old fluid into an appropriate
container and discard.
Refill with fresh silicone
See additional details on the
www.world.corally.com
FRONT AND REAR SHOCKS
M4 Locknut M4 Locknut
C-3101-40-6 C-3101-40-6
Follow same procedure
for all 4 shocks.
STEP 5
C-00180-190 C-00180-190
shock fluid.
reverse side.
C-00180-770 C-00180-770
www.support.corally.com
Required Tools:
- 2.0 Hex Driver
- 5.0 Nutdriver
- Hex Cross Wrench
- Shock Pliers
- Silicone Shock Oil
- Blue Shock O-ring Grease
- Paper Towel
- Solvent/Brake Cleaner
Important Notice:
Do NOT use solvents on rubber
gaskets, seals, or O-rings to prevent
damage when cleaning or rebuilding.
STEP 1
Rotate the spring retainer to
lock it on the rod ends.
C-00180-029 C-00180-029
SPRING HARD (STOCK)
FRONT C-00180-291
C-00180-288
REAR
SPRING MEDIUM
FRONT C-00180-290
C-00180-287
REAR
SPRING SOFT
FRONT C-00180-289
C-00180-286
REAR
STEP 6
M2.5 Locknut M2.5 Locknut
C-3101-25 C-3101-25
C-00180-768 C-00180-768
SHOCK SHAFT
FRONT C-00180-166
C-00180-164
REAR
C-00180-188 C-00180-188
Loosen the bottom cap.
C-00180-149 C-00180-149
www.dealers.corally.com
VIDEO MANUAL
ON YOUTUBE
STEP 2
C-00180-192 C-00180-192
C-00180-136 C-00180-136
SHOCK BODY
FRONT C-00180-137
C-00180-134
REAR
C-00180-191 C-00180-191
C-00180-078 C-00180-078
C-00180-138 C-00180-138
