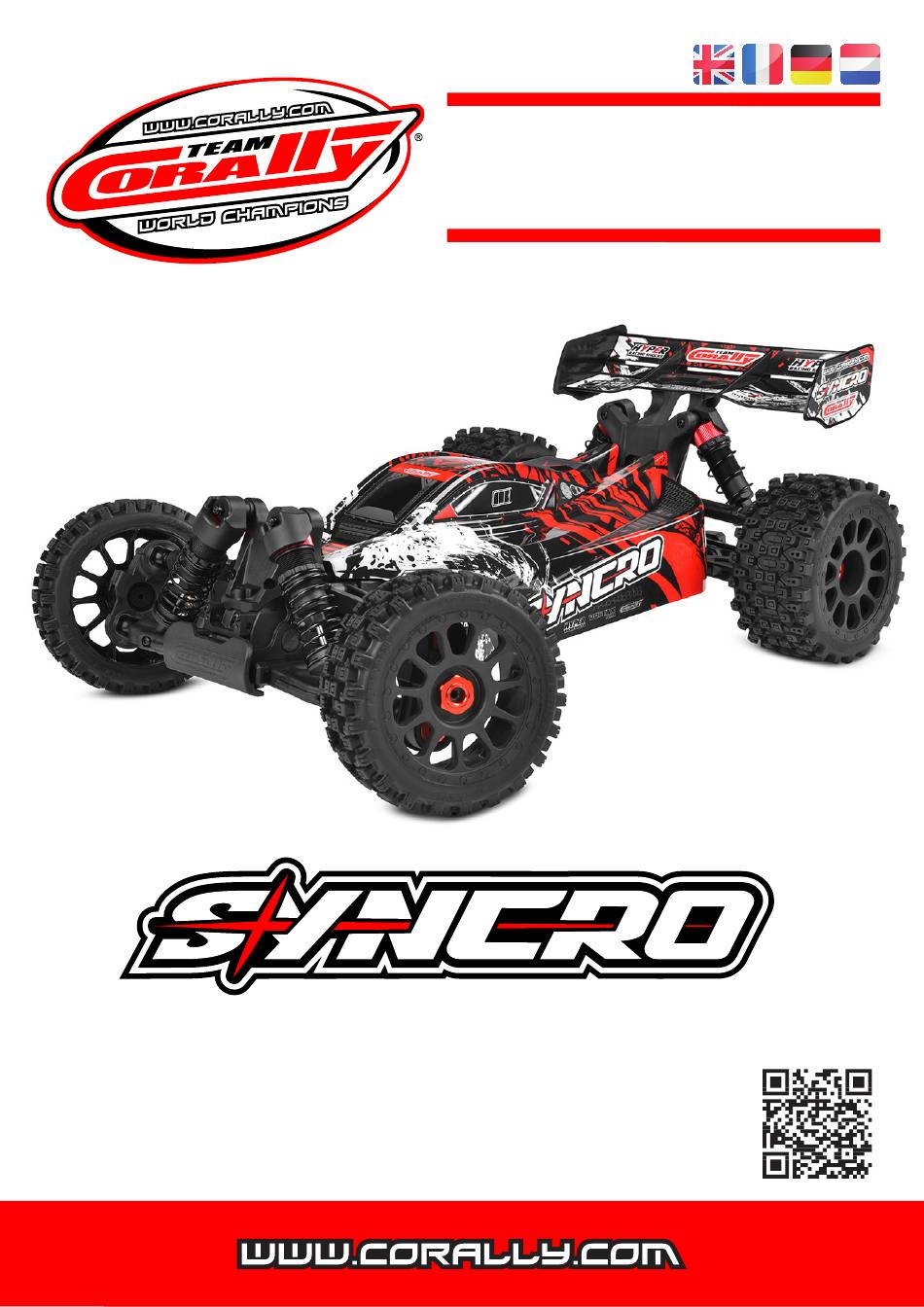

Page 1 Download the latest version of the manual from www.corally.com Téléchargez la dernière version de ce manuel sur www.corally.com Laden Sie die neueste Version des Handbuchs von www.corally.com herunter. Download de nieuwste versie van de handleiding van www.corally.com C-00289 Manual - V2...
Page 2: Read First
All Team Corally models guarantee a high quality of manufacture and performance that guarantees you a high satisfaction of use and services provided by the Team Corally. Always take the time to read the instructions carefully in order to follow all the procedures to use your RC model safely for you and for other people and property in the area.
Page 3: Use Precautions
Version française disponible sur le site: • Deutsche Version auf der Website verfügbar: • Nederlandse versie beschikbaar op de website: www.corally.com/en/useful-links/downloads-manuals USE PRECAUTIONS • QUICK START GUIDE Failure to operate your model in a safe and responsible manner may result in injury to yourself, others or damage to property around you.
Page 4: Warranty
He must send the defective goods to our local repre- sentatives or directly to Team Corally / JSP Group Intl bvba, Geelseweg 80, 2250 Olen, Belgium at his own risk and cost.
Page 5: Kit Content
Download manuals and other instructions about : Electronics - LiPo Safety Instructions - Spare parts - Option Parts ... ALL INSTRUCTION MANUALS ONE PAGE MANUALS (Step by step manual) Go to https://corally.com/en/useful-links/downloads-manuals Go to https://world.corally.com/ Select your car and visit the showroom Go to the bottom of the page and click on SUPPORT.
Page 6: Car Components
CAR COMPONENTS • QUICK START GUIDE Front Shock Absorber Suspension Arm Steering Block Anti-Roll Bar Steering Link Battery compartment Steering Servo Receiver Box Slipper Brushless Motor Speed Controller (ESC) Rear Suspension Arm Power Switch Wheel Axle Rear Shock Absorber Rear Upright Camber Link Rear Differential...
Page 7 QUICK START GUIDE • QUICK START GUIDE READ THE INSTRUCTIONS CHARGE THE BATTERY INSTALL 4x AA BATTERY - 1.5V CHARGER • Respect the polarity • Respectez la polarité • Beachten Sie die Polarität BATTERY • Respecteer de polariteit • Lisez les instructions •...
Page 8: Gear Ratio
GEAR RATIO SPEED GEAR CHART - TABLEAU DES VITESSES - DREHZAHLGANGDIAGRAMM - VERSNELLINGSTABEL GEAR RATIO : 3.31 SPUR GEAR : 46T Km/h Km/h Km/h Gear 13T Pinion 15T Pinion 17T Pinion Factory fitted Usable 11,71 10,14 8,95 Usable but not recommended + TORQUE + SPEED Note: The speed indicated in the table is a theoretical speed for information purposes.
Page 9 CHANGING THE MOTOR PINION - CHANGEMENT DU PIGNON MOTEUR - AUSWECHSELN DES MOTORRITZELS - VERANDEREN VAN HET MOTORRONDSEL • You can change the transmission ratio by changing the motor pinion. You can choose from 3 sprocket sizes 13, 15 and 17 teeth. The 13-tooth pinion is factory fitted and allows you to ride on all types of rough terrain.
Page 10 FRONT REAR SILICONE OIL SPRING TENSION SILICONE OIL SPRING TENSION SHOCK PISTON TRACK USE 450CPS 400CPS 4 Holes OFF-ROAD 600CPS 500CPS 4 Holes FACTORY 500CPS 500CPS 4 Holes .www. corally.com/Chemicals/Silicone-Oils/...
Page 11: Shock Absorber
SHOCK ABSORBER - AMORTISSEUR - STOSSDÄMPFER - SCHOKDEMPER • Do not overtighten the Shock Cap to prevent deformation of the silicone Shock Bladder. C-00180-1008 (set) • Ne serrez pas trop le capuchon de l’amortisseur pour éviter la déformation de la membrane en silicone. •...
Page 12: Differential Maintenance
Volg de stappen op deze pagina’s om de differentiëlen te verwijderen en te onderhouden. Om de differentiëlen weer in elkaar te zetten, herhaalt u de stappen in omgekeerde volgorde. REAR DIFFERENTIAL DIFFÉRENTIEL AVANT - VORDERACHSDIFFERENTIAL - VOORSTE DIFFERENTIEEL www. corally.com/Chemicals/Silicone-Oils/ CAPACITY MAX. Use the correct grade of silicone oil (Factory 10.000cps) according to the operation. Use only Silicone Oil, never use any other types of oil.
Page 13 REMOVING THE SLIPPER - DÉMONTAGE DU SLIPPER - DEMONTAGE DES SLIPPERS - DE SLIPPER VERWIJDEREN • If you need to replace any parts of the slipper or replace the spur gear, proceed as follows. • Si vous devez remplacer des composants du slipper ou remplacer la couronne, procédez comme indiqué ci-dessous. •...
Page 14 ADJUSTING THE SLIPPER - RÉGLAGE DU SLIPPER - EINSTELLEN DES SLIPPERS - DE SLIPPER AFSTELLEN Function of the slipper: It protects the transmission from jerking/blocking and also regulates the torque transmitted to the wheels during acceleration. - If the slipper is too tight, power is transmitted too quickly and brutally, which can damage your transmission. - If the slipper is too loose, the car takes longer to accelerate and the slipper makes a whistling noise.
Page 15 REAR DIFFERENTIAL - DIFFÉRENTIELS AR - DIFFERENTIAL HINTEN - ACHTER DIFFERENTIEEL C-3002-30-12 (4pcs) C-00180-153-2 C-00180-205 C-3611-3-08-16-05 C-00180-179 (set) C-00180-182 C-00180-184 C-00180-205 C-00180-183 C-00180-182 OPTION Aluminium 7075 Hard Anodised Aluminium 7075 Hard Anodised Made in Italy Made in Italy C-3611-3-08-16-05 C-00180-410 Xtreme Diff Case - 30mm - FR / RE - 1 pc C-00180-153-2...
Page 16 FRONT DRIVE TRAIN - TRAIN AVANT - FRONTANTRIEB - VOORSTE AANDRIJFLIJN C-00180-117 C-00180-329 DIN913 M4x4 C-00180-122 C-00180-150 C-00180-077 C-00180-123 C-00180-989 C-00180-207 C-3611-3-08-16-05 (x2) C-00180-009-1 C-00180-1181 C-00180-1037 6x12x1.5mm C-00180-024 C-00180-011 C-00180-555-1 HEX BUTTON HEAD SCREWS C-00180-992 DIN 7380 - STEEL - 10 PCS M3x8mm C-00180-1010 #C-3003-30-08...
Page 17 REAR DRIVE TRAIN - TRAIN ARRIÈRE - HINTERACHSANTRIEB - ACHTERSTE AANDRIJFLIJN C-00180-1358 C-00180-1003 C-3213-30-5 (x2) C-3101-30 (2x) C-00180-1011 C-00180-1010 C-3101-30 (2x) C-00180-993 C-00180-994 C-00180-024 C-3004-30-05 (2x) C-00180-035 C-00180-045 HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS C-00180-033 (set) M2.5x8mm #C-3003-25-08 C-00180-980...
Page 18 CHASSIS - CHASSIS - CHASSIS - CHASSIS C-00180-969 (set) C-00180-1017 (set) C-00180-969 (set) KURON 725 C-54054 C-00180-1019 C-3004-40-04 C-00180-076 C-72713 M1.0 Pinion - 13 Teeth PULSE G2 - 135 C-00180-171 C-00180-986 C-54015 C-00180-987 C-00180-969 C-52022 Digital Servo - C-00180-1020 CRHV-7225-MG C-00180-988 C-3104-40 C-00180-149...
Page 19: Servo-Saver
SERVO-SAVER - SAUVE-SERVO C-3611-3-06-10-03 C-00180-145 (set) OPTION C-00180-036 (set) C-00180-266 Servo Saver Steering Arm - Aluminium C-3101-30 7075 T6 - Hard Anodised - Black - 1 pc C-00180-216 C-3611-3-06-10-03 OPTION C-00180-191 C-00180-145 (set) C-00180-036 (set) C-3611-3-06-10-03 C-00180-831 C-3611-3-06-10-03 Steering Rack - Dual Stiffener - Alumin- ium - 1 Pc C-3003-30-10 C-00180-206...
Page 20: Spare Parts
SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-010 C-00180-004-1 C-00180-005-2 C-00180-008 C-00180-009-1 Battery Strap - Hook & Loop Wing Mount - Adjustable - Hub - Rear - Composite - 1 pc HD Steering Block (1pc) - Pillow Suspension Arm - Lower - Rear - 2 pcs Composite - 1 Set...
Page 21 ESC Plate - Composite - 1 pc Servo Steering Link - Compos- Drive Shaft - Centre - 97mm - - 2 pcs ite - 1 pc Steel - 1 pc SYNCRO - Body - Painted C-00180-1034 C-00180-1358 C-00180-1196 C-00180-1194 Pinion Cover for Centre Diff...
Page 22 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN FRONT & REAR DIFFERENTIAL - SPARE PARTS REAR DIFFERENTIAL - SPARE PARTS C-00180-689 C-00180-688 C-00180-179 C-00180-205 C-00180-184 Bevel Pinion 13T - Steel - 1 pc Diff. Bevel Gear 43T - Molded Planetary Diff.
Page 23 Composite - 2 pcs CHECK THE AVAILABILITY OF SPARE PARTS ON THE WEBSITE WWW.CORALLY.COM Visualisez la disponibilité des pièces de rechange sur le site web www.corally.com Sehen Sie sich die Verfügbarkeit von Ersatzteilen auf der Website www.corally.com an. Controleer de beschikbaarheid van reserveonderdelen op de website www.corally.com...
Page 24: Option Parts
SEE THE FULL LIST OF OPTIONS ON THE WWW.CORALLY.COM WEBSITE Visualisez la liste complète des options sur le site web www.corally.com Sehen Sie sich die vollständige Liste der Optionen auf der Website www.corally.com an. Bekijk de volledige lijst met opties op de website www.corally.com...
Page 25 STEEL SCREWS LENGTH LENGTH LENGTH LENGTH HEX FLAT HEAD SCREWS HEX BUTTON HEAD SCREWS HEX SOCKET HEAD SCREWS HEX SET SCREWS DIN 7991 - STEEL - 10 PCS DIN 7380 - STEEL - 10 PCS DIN 912 - STEEL - 10 PCS DIN 916 - STEEL - 10 PCS NOMINAL LENGTH...
Page 26: Ball Bearings
NUTS NYLSTOP NUT NYLSTOP NUT - FLANGED NYLSTOP NUT LOW PROFILE NUT ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS STEEL - 10 PCS DIN 936 - STEEL - 10 PCS NOMINAL NOMINAL NOMINAL NOMINAL COLOR COLOR COLOR COLOR SIZE SIZE SIZE SIZE...
Page 27: Declaration Of Conformity
Title/Titel/Titre : Ceo FEDERAL COMMUNICATIONS COMMISSION EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE JSP GROUP INTL BVBA / CORALLY, and is VALID ONLY for the equipment identified hereon for use under the Commission’s Rules and Regulations listed below.
Page 28 This manual is an edition of Corally, a division of JSP GROUP INTL nv, Geelseweg 80, B-2250 Olen, Belgium. This manual is protected by a copyright and nothing from this edition may be reproduced or used without any prior written authorisation. Whilst every effort has been made to ensure the accuracy of the information in this manual, errors creep in and Corally can accept no responsibility for failures, wrong specifications, accuracy of colours, losses or damages caused.

This manual is also suitable for:

Syncro-2 C-00289-b C-00289-r C-00289-o C-00289-g
