Corally KAGAMA-4 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
LANGUAGES
INSTRUCTION
MANUAL
• Download the latest version of the manual from www.corally.com
• Téléchargez la dernière version du manuel à partir de www.corally.com
• Laden Sie die neueste Version des Handbuchs von www.corally.com herunter.
• Download de nieuwste versie van de handleiding van www.corally.com
C-00293_Manual-V2
https://corally.com/en/useful-links/downloads-manuals

Advertisement

loading
Need help?

Need help?

Do you have a question about the KAGAMA-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Corally KAGAMA-4

Summary of Contents for Corally KAGAMA-4

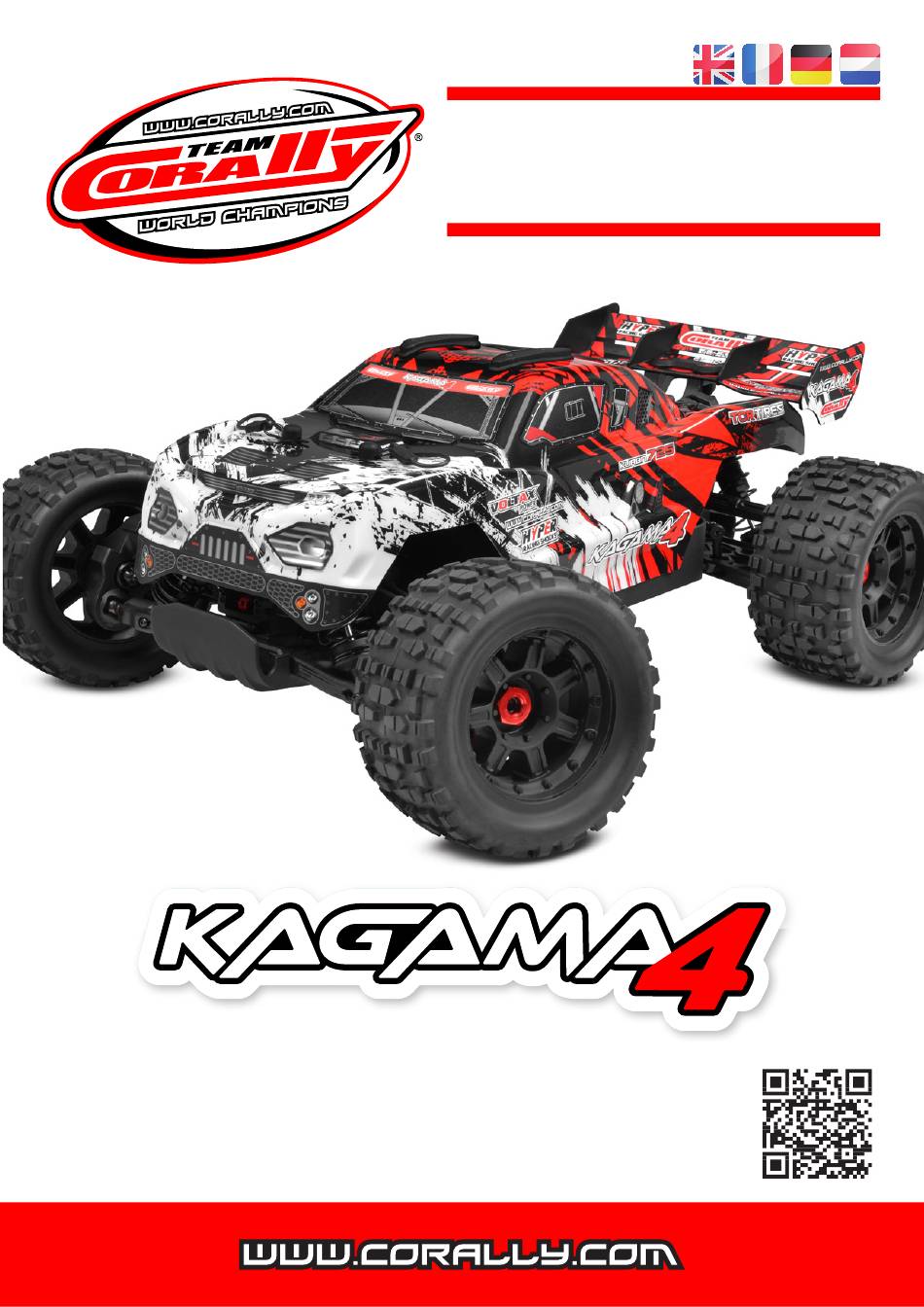

  • Page 1 MANUAL • Download the latest version of the manual from www.corally.com • Téléchargez la dernière version du manuel à partir de www.corally.com • Laden Sie die neueste Version des Handbuchs von www.corally.com herunter. • Download de nieuwste versie van de handleiding van www.corally.com C-00293_Manual-V2 https://corally.com/en/useful-links/downloads-manuals...
  • Page 2 All Team Corally models guarantee a high quality of manufacture and performance that guarantees you a high satisfaction of use and services provided by the Team Corally. Always take the time to read the instructions carefully in order to follow all the procedures to use your RC model safely for you and for other people and property in the area.
  • Page 3 Take all necessary precautions before, during and after using your model. You are responsible for the safe assembly, mainte- nance and use of your model. In case of any questions, contact your local reseller or contact Team Corally support for assistance. LIPO BATTERY SAFETY PRECAUTIONS** •...
  • Page 4 He must send the defective goods to our local rep- resentatives or directly to Team Corally / JSP Group Intl bvba, Geelseweg 80, 2250 Olen, Belgium at his own risk and cost.
  • Page 5 Elektronica - LiPo Veiligheidsinstructies - Onderdelen - Optie Onderdelen ... ALL INSTRUCTION MANUALS ONE PAGE MANUALS (Step by step manual) Go to https://corally.com/en/useful-links/downloads-manuals Go to https://world.corally.com/ Select your car and visit the showroom Go to the bottom of the page and click on SUPPORT.
  • Page 6 CAR COMPONENTS Front Differential Front Shock Absorber Suspension Arm Steering Block Steering Link Battery compartment Steering Servo Centre Differential Receiver Box Controller (ESC) Brushless Motor Power Switch Rear Suspension Arm Camber Link Wheel Axle Rear Upright Rear Shock Absorber Rear Differential...
  • Page 7 QUICK START GUIDE • QUICK START GUIDE READ THE INSTRUCTIONS CHARGE THE BATTERY INSTALL 4x AA BATTERY - 1.5V CHARGER • Respect the polarity • Respectez la polarité • Beachten Sie die Polarität BATTERY • Respecteer de polariteit • Lisez les instructions •...
  • Page 8 GEAR RATIO - RAPPORT DE TRANSMISSION - GETRIEBEVERHÄLTNIS- VERSNELLINGSVERHOUDING MOTOR PINION MOD1.0 - PIGNON MOTEUR MOD1.0 - MOTORRITZEL MOD1.0 - MOTOR PINION MOD1.0 High-performance pinions gear, manufactured from special steel for toughness and durability with precise tolerances and assures unparalleled concentricity. Created on a special gear machine, all pinions feature ultra-precise tooth shaping and ultra-true running for vibration-free operation.
  • Page 9 GEAR MESH ADJUSTMENT - AJUSTEMENT DE L’ENGRENAGE - GETRIEBEVERSTELLUNG - TANDWIELAFSTELLING • You can change the transmission ratio by changing the motor pinion. You can choose from 3 sprocket sizes 13, 15 and 17 teeth. The 13-tooth pinion is factory fitted and allows you to ride on all types of rough terrain. The 15-tooth will allow you to drive a little faster on any terrain and the 17-tooth will make the car go even faster but be careful not to use it on very rough terrain with steep climbs, mud or high grass as the engine will make a lot of effort, risk to get hot and will consume more battery.
  • Page 10 FRONT REAR SILICONE OIL SPRING TENSION SILICONE OIL SPRING TENSION SHOCK PISTON TRACK USE 450CPS 400CPS 6 Holes Ø1.3mm OFF-ROAD 600CPS 500CPS 6 Holes Ø1.3mm FACTORY 1000CPS 800CPS 6 Holes Ø1.3mm .www. corally.com/Chemicals/Silicone-Oils/...
  • Page 11 SHOCK ABSORBER - AMORTISSEUR - STOSSDÄMPFER - SCHOKDEMPER • Do not overtighten the Shock Cap to prevent deformation of the silicone Shock Bladder. C-00180-1008 (set) • Ne serrez pas trop le capuchon de l’amortisseur pour éviter la déformation de la membrane en silicone. •...
  • Page 12 DIFFERENTIAL MAINTENANCE - ENTRETIEN DU DIFFÉRENTIEL - DIFFERENZIALWARTUNG - DIFFERENTIEEL ONDERHOUD It may be necessary to replace the silicone oil every 50 runs (depends on how you drive and the type of terrain you drive on). To remove the FR&RE differentials, follow the steps below. Il peut être nécessaire de remplacer l’huile silicone toutes les 50 courses (cela dépend de votre conduite et du type de terrain sur lequel vous roulez).
  • Page 13 REMOVING THE CENTRE DIFFERENTIAL- DEMONTER LE DIFF CENTRAL - AUSBAU DES MITTELDIFFERENTIALS - VERWIJDEREN VAN HET MIDDENDIFFERENTIEEL CENTRE CAPACITY MAX. #C-81600...
  • Page 14 DIFFERENTIAL MAINTENANCE - ENTRETIEN DU DIFFÉRENTIEL - DIFFERENZIALWARTUNG - DIFFERENTIEEL ONDERHOUD REAR...
  • Page 15 DIFFERENTIAL MAINTENANCE - ENTRETIEN DU DIFFÉRENTIEL - DIFFERENZIALWARTUNG - DIFFERENTIEEL ONDERHOUD REAR CAPACITY MAX. #C-81520...
  • Page 16 FRONT & REAR DIFFERENTIAL - DIFFÉRENTIELS AV&AR - DIFFERENTIAL VORNE UND HINTEN - VOOR & ACHTER DIFFERENTIEEL C-3002-30-12 (4pcs) C-00180-153-2 C-00180-205 C-3611-3-08-16-05 C-00180-179 (set) C-00180-182 C-00180-184 C-00180-688 C-00180-205 C-00180-183 OPTION Aluminium 7075 Hard Anodised Aluminium 7075 Hard Anodised C-00180-182 Made in Italy Made in Italy C-00180-410 Xtreme Diff Case - 30mm -...
  • Page 17 FRONT DRIVE TRAIN - TRAIN AVANT - FRONTANTRIEB - VOORSTE AANDRIJFLIJN C-00180-329 C-00180-117 DIN913 M4x4 C-00180-122 C-00180-150 C-00180-108-1 C-00180-989 C-00180-123 C-00180-1244 C-00180-207 C-3611-3-08-16-05 (x2) C-00180-108-1 C-00180-1036 6x12x1.5mm C-00180-011 C-00180-556-1 C-00180-992 C-00180-1308 C-00180-1319 C-00180-1032 C-00180-1010 C-00180-150 C-00180-109 OPTION C-00180-1036 C-3004-40-10 6x12x2.5mm Aluminium 7075 Aluminium 7075 Hard Anodised...
  • Page 18 REAR DRIVE TRAIN - TRAIN ARRIÈRE - HINTERACHSANTRIEB - ACHTERSTE AANDRIJFLIJN C-00180-1313 C-00180-1314 C-00180-1316 C-00180-1314 C-00180-546 C-00180-1003 C-3611-3-10-15-04 (x2) C-3213-40-5 (x4) C-00180-1314 C-3213-30-5 C-3213-30-5 (x2) C-00180-1011 C-3101-30 C-3101-30 (2x) C-00180-1010 C-00180-993 HEX FLAT HEAD SCREWS C-00180-994 DIN 7991 - STEEL - 10 PCS M3x12mm #C-3002-30-12 C-3004-30-05 (2x)
  • Page 19 CHASSIS CENTRE HEX FLAT HEAD SCREWS HEX BUTTON HEAD SCREWS DIN 7991 - STEEL - 10 PCS DIN 7380 - STEEL - 10 PCS C-00180-834 M3x8mm M3x6mm #C-3002-30-08 #C-3003-30-06 C-00180-716 (set) M3x8mm M3x8mm #C-3002-30-08 #C-3003-30-08 M3x10mm #C-3003-30-10 C-3101-30 (x4) M3x12mm #C-3003-30-12 C-3101-30 (x4) C-00180-716 (set)
  • Page 20 SERVO-SAVER - SAUVE-SERVO - SERVO-SAVER - SERVO-SAVER C-3611-3-06-10-03 C-00180-145 (set) C-00180-036 (set) OPTION C-3101-30 C-00180-216 C-3611-3-06-10-03 C-00180-266 C-00180-191 Servo Saver Steering Arm - 7075 T6 - Hard Anodised - Black - 1 pc C-00180-145 (set) C-00180-036 (set) C-3611-3-06-10-03 C-3611-3-06-10-03 C-3003-30-10 C-00180-206 C-00180-1015 OPTION...
  • Page 21 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-004-1 C-00180-010 C-00180-011 C-00180-012 C-00180-018 Suspension Arm - Lower - Rear Suspension Arm - Upper - Front Suspension Arm - Lower - Front Centre Diff Bulkhead - Compos- Battery Strap - Hook & Loop - 2 pcs - Composite - 1 pc - Composite - 1 pc...
  • Page 22 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-546 C-00180-551 C-00180-556-1 C-00180-562 C-00180-555-1 Centre Diff Support Spacer - Wheelie Bar Wheel - Compos- Front Bumper - Composite. - Steering Links - Buggy - 77mm Camber Links Rear - 93mm - ite - 1 pc 1 pc Composite - 2 pcs...
  • Page 23 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-1316 C-00180-1325 C-00180-1352 C-00180-1314 C-00180-632 Wheelie Bar Support - Compos- Wing - Composite - 1 pc Roof Skids - Kagama 4 - Com- Motor Mount w/ Insert - MT Tires - XL4S - Grabber - posite - 1 Set Aluminum - 1 Set ite - 1 Set...
  • Page 24 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN FRONT & REAR DIFFERENTIAL - SPARE PARTS FRONT & REAR DIFFERENTIAL - SPARE PARTS C-00180-689 C-00180-688 C-00180-179 C-00180-205 C-00180-184 Bevel Pinion 13T - Steel - 1 pc Diff. Bevel Gear 43T - Molded Planetary Diff.
  • Page 25 Sensorless Check the availability of spare parts on the website www.corally.com Visualisez la disponibilité des pièces de rechange sur le site web www.corally.com Sehen Sie sich die Verfügbarkeit von Ersatzteilen auf der Website www.corally.com an. Controleer de beschikbaarheid van reserveonderdelen op de website www.corally.com...
  • Page 26 7075 T6 - Black - Set C-72715 • 15 Teeth Ball Beared - Full Alloy Case C-72717 • 17 Teeth FOR ALL SPARE & TUNING PARTS, VISIT THE CAR SPARES - TUNING / 1/8 SPORT - RTR SERIES SECTION ON WWW.CORALLY.COM. https://corally.com/en/catalog/car-spares-tuning/18-sport-rtr-series...
  • Page 27 STEEL SCREWS - VISSERIE ACIER • STAHLSCHRAUBEN • STAAL SCHROEVEN LENGTH LENGTH LENGTH LENGTH HEX FLAT HEAD SCREWS HEX BUTTON HEAD SCREWS HEX SOCKET HEAD SCREWS HEX SET SCREWS DIN 7991 - STEEL - 10 PCS DIN 7380 - STEEL - 10 PCS DIN 912 - STEEL - 10 PCS DIN 916 - STEEL - 10 PCS NOMINAL...
  • Page 28 NUTS - ECROUS • MUTTERN • MOEREN NYLSTOP NUT NYLSTOP NUT - FLANGED NYLSTOP NUT LOW PROFILE NUT ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS STEEL - 10 PCS DIN 936 - STEEL - 10 PCS NOMINAL NOMINAL NOMINAL NOMINAL COLOR COLOR...
  • Page 29 ALUMINIUM WASHERS WASHER FOR SOCKET HEAD SCREW WASHER FOR BUTTON HEAD SCREW WASHER FOR FLAT HEAD SCREW ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS FOR S/H FOR B/H FOR F/H COLOR COLOR COLOR SCREW SCREW SCREW C-3214-20-0 Gold...
  • Page 30 Title/Titel/Titre : Ceo FEDERAL COMMUNICATIONS COMMISSION EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE JSP GROUP INTL BVBA / CORALLY, and is VALID ONLY for the equipment identified hereon for use under the Commission’s Rules and Regulations listed below.
  • Page 31 M2.5 - M3 - M4 - Steel Black - 10 Sizes 10 Sizes - 370 pcs - 320 pcs More info C-38516 Universal Sport Car Series - Screws - Nuts Set - 34 Sizes - 970 pcs C-38520 Shim Ring Set - Steel- 15 Sizes - 375pcs www.corally.com...
  • Page 32 This manual is an edition of Corally, a division of JSP GROUP INTL nv, Geelseweg 80, B-2250 Olen, Belgium. This manual is protected by a copyright and nothing from this edition may be reproduced or used without any prior written authorisation. Whilst every effort has been made to ensure the accuracy of the information in this manual, errors creep in and Corally can accept no responsibility for failures, wrong specifications, accuracy of colours, losses or damages caused.
