Corally C-00170 KRONOS Quick Start User Manual

1/8th scale 4wd electric ready to run
Hide thumbs

Advertisement

Quick Links

Download this manual
www.corally.com
C-00170_manual-V2

Advertisement

loading
Need help?

Need help?

Do you have a question about the C-00170 KRONOS and is the answer not in the manual?

Questions and answers

Related Manuals for Corally C-00170 KRONOS

Summary of Contents for Corally C-00170 KRONOS

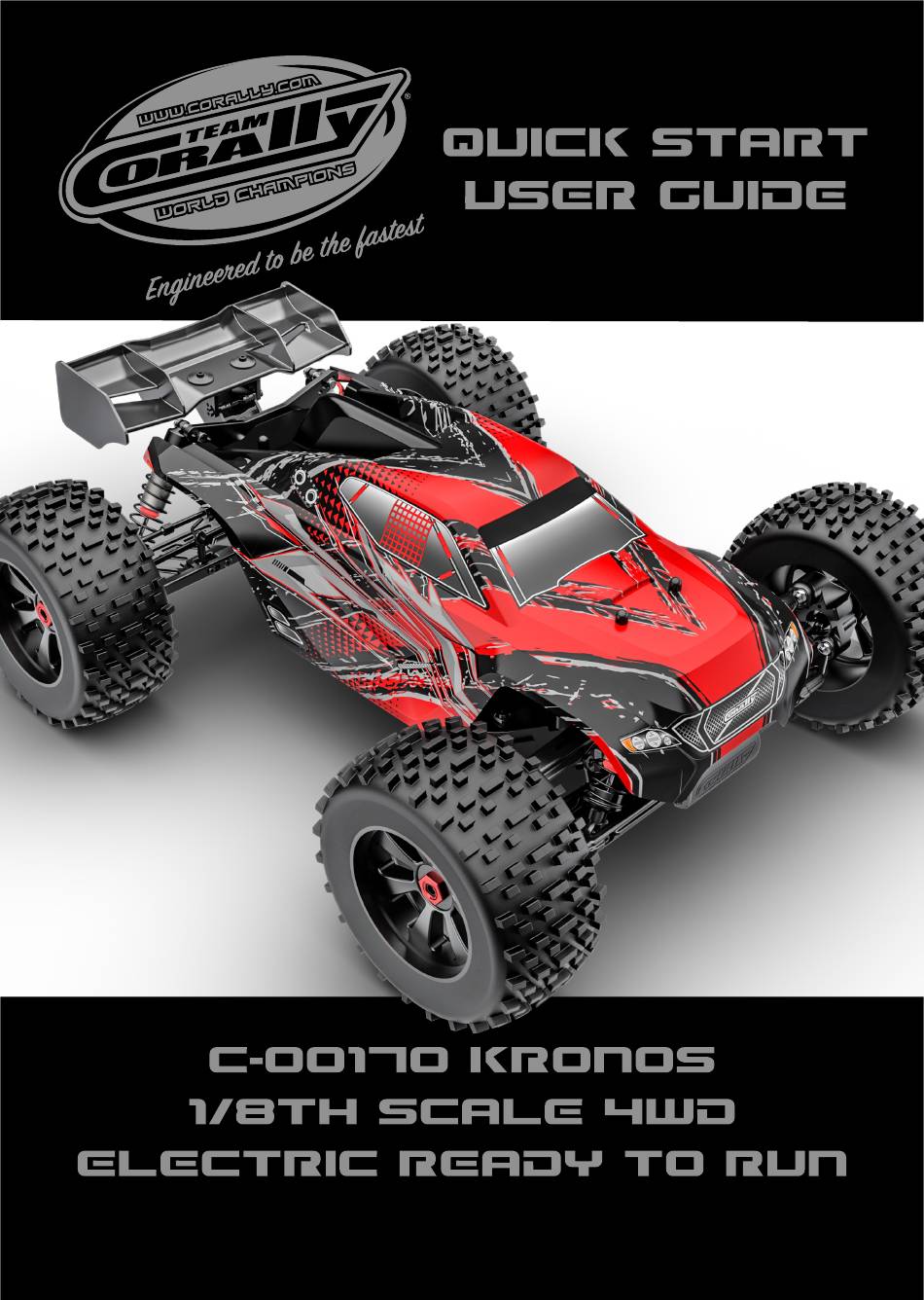

  • Page 1 C-00170_manual-V2...
  • Page 2 Team Corally. Always take the time to read the instructions carefully in order to follow all the procedures to use your RC model safely for you and for other people and property in the area.
  • Page 3 Always take all necessary precautions when handling products (silicone oil, grease, thread lock, cyanolyte glue, fuel) for the operation of the model. (Refer to the manufacturer’s instructions) For your safety, to keep the warranty and obtain the best performance, always use original CORALLY genuine parts. Contains: LEAD (CAS 7439-92-1) ANTIMONY (CAS 7440-36-0) WARNING: This product contains a chemical known to the state of California to cause cancer and birth defects or other reproductive harm.
  • Page 4 He must send the defective goods to our local rep- resentatives or directly to Team Corally / JSP Group Intl bvba, Geelseweg 80, 2250 Olen, Belgium at his own risk and cost.
  • Page 5 • When the battery is empty, recharge it immediately. Do not store an empty battery, the battery will continue to dis- charge, it will fall below the minimum voltage and become unusable. KIT CONTENT (Depends on the selected model) www.corally.com/Downloads/ Transmitter RTR Model...
  • Page 6 CAR COMPONENTS Front Differential Front Shock Absorber Anti-Roll Bar Suspension Arm Steering Block Steering Link Power Switch Steering Servo Speed Controller (ESC) Receiver Box Centre Differential Brushless Motor Battery compartment Turnbuckle Anti-Roll Bar Rear Suspension Arm Wheel Axle Rear Upright Rear Shock Absorber Rear Differential...
  • Page 7 QUICK START GUIDE READ THE INSTRUCTIONS CHARGE THE BATTERY INSTALL 4x AA BATTERY CHARGER BATTERY MAKE SURE THAT ALL SCREWS AND NUTS ARE INSTALL THE BATTERY TURN ON THE TRANSMITTER (Always First) TIGHTENED PROPERLY. CONNECT THE BATTERY TO THE ESC CHECK THE FUNCTIONS CHECK THE RADIO SYSTEM RANGE SWITCH ON THE ESC...
  • Page 8 BASIC CAR SETTINGS FRONT TOE TOE-OUT TOE-OUT -1° -1° 72mm Adjust the angle by screwing the TURNBUCKLE. FRONT CAMBER REAR CAMBER -1° -1° -2° -2° 63mm 63mm Adjust the angle by screwing the TURNBUCKLE. Adjust the angle by screwing the PIVOT BALL. FRONT CASTER 28°...
  • Page 9 BASIC CAR SETTINGS SUSPENSION TRAVEL It is important to properly adjust the travel of the suspension arm to prevent the shock absorber from reaching the end of its travel and damaging it. • Place the chassis on a block in order to release the suspension to the maximum. •...
  • Page 10 • A little oil will flow out of surface. the shock absorber. FRONT REAR SILICONE OIL SPRING TENSION SILICONE OIL SPRING TENSION SHOCK PISTON TRACK USE 450CPS 400CPS 6 Holes Ø1.3mm OFF-ROAD 600CPS 500CPS 6 Holes Ø1.3mm BASHING 650CPS 550CPS 6 Holes Ø1.3mm .www. corally.com/Chemicals/Silicone-Oils/ SPRING TENSION...
  • Page 11 SHOCK ABSORBER - EXPLODED VIEW Do not overtighten the Shock Cap to C-00180-080 Shock Piston prevent deformation of the silicone Shock Bladder. C-00180-133 Set content C-00180-189 Shock Piston - 4x1.6 Shock Piston - 4x1.8 C-31001-25 Shock Piston - 5x1.4 C-00180-080 Shock Piston - 5x1.5 Shock Piston - 5x1.6 C-00180-190...
  • Page 12 Use the correct grade of silicone oil according to the operation. Use only Silicone Oil, never use any other types of oil. FRONT DIFF CENTRE DIFF REAR DIFF TRACK USE 7500 15.000 5000 OFF-ROAD 10.000 30.000 7500 BASHING 20.000 50>100.000 10.000 www. corally.com/Chemicals/Silicone-Oils/...
  • Page 13 FRONT & REAR DIFFERENTIAL - EXPLODED VIEW C-00180-153-1 C-00180-205 C-3611-4-08-16-05 C-00180-179 (set) C-00180-182 C-00180-184 C-00180-178 C-00180-205 C-00180-183 C-00180-182 C-3611-4-08-16-05 C-00180-153-1 C-00180-098 CENTRE DIFFERENTIAL - EXPLODED VIEW C-00180-154-1 C-00180-205 C-3611-4-08-16-05 C-00180-179 (set) C-00180-182 C-00180-184 C-00180-205 C-00180-091 C-00180-183 C-00180-182 C-3611-4-08-16-05 C-00180-154-1 C-00180-090...
  • Page 14 Each pinion is marked with the tooth number for easy and quick identification. • Special hardened steel • CNC cut teeth for perfect teeth shape and concentricity • Module MOD1 • fits all cars with MOD1 gears (1/8 Scale) • for 5.0mm motor shafts www.corally.com/Pinions-Gears/Pinions-MOD1/ Motor Pinion C-72711 C-72712 C-72713...
  • Page 15 FRONT DRIVE TRAIN - EXPLODED VIEW C-00180-117 C-00180-108 C-00180-329 DIN916•M4x4 C-00180-122 C-00180-108 C-00180-108 C-00180-123 Nylstop Nut•M3 C-3611-4-08-16-05 M3x16 M3x10 C-3611-4-08-16-05 C-00180-207 C-00180-341 C-00180-150 C-00180-039 Steel Shim•M6 C-00180-144 C-00180-101 C-00180-040 C-00180-150 C-00180-193 M3x16 C-00180-149 C-00180-089 C-00180-100 M3x20 C-00180-051 M4x10 C-00180-240 C-00180-055 C-3611-4-08-16-05 DIN916•M4x4 C-00180-155-1...
  • Page 16 REAR DRIVE TRAIN - EXPLODED VIEW M3x14 C-00180-226-B C-00180-005 Nylstop Nut•M3 F/H•M3x10 (2) M3x20 C-00180-005 C-00180-005 C-00180-251 (2) M3x12 (2) Nylstop Nut•M3 (4) Nylstop Nut•M3 Nylstop Nut•M3 C-00180-005 DIN912•M3x25 C-00180-030 C-00180-122 M3x14 C-00180-055 DIN916•M4x4 C-00180-148 M3x16 C-00180-329 C-00180-041 C-00180-373 C-3611-4-08-16-05 Nylstop Nut•M3 C-00180-293 C-00180-030...
  • Page 17 CHASSIS - EXPLODED VIEW C-00180-301 F/H•M3x8 F/H•M3x14 Nylstop Nut•M3 C-54055 F/H•M3x8 M4x12 C-00180-301 C-00180-305 C-00180-023 C-00180-301 C-00180-177 DIN916•M4x4 C-00180-301 C-00180-301 Nylstop Nut•M3 C-00180-154-1 M3x10 C-00180-305 C-3611-4-08-16-05 M4x12 F/H•M3x8 M3x12 M3x8 M3x30 C-00180-372 C-72713 C-00180-205 M3x10 C-00180-171 F/H•M3x14 C-00180-091 C-00180-044 C-52021 M3x18 C-00180-188 F/H•M3x6...
  • Page 18 SPARE PARTS C-00180-004 C-00180-005 C-00180-013 C-00180-015 C-00180-017 Battery - ESC Tray - Composite Wing Mount - Adjustable - Servo Mount - Receiver Box - Center Diff Plate - Spur Gear Arm Holder - Steering Deck - - 1 pc Composite - 1 Set Composite - 1 Set Cover - Composite - 1 pc Composite - 1 pc...
  • Page 19 SPARE PARTS C-00180-108 C-00180-109 C-00180-114 C-00180-117 C-00180-122 Steering Block Wide - Pivot Ball Caster Clips Set - 1 to 4.5mm Composite Rear Upright - Wide Pivot Ball Adjusting Nut - Alu- Pin 2.5x17mm - Steel - 10 pcs Cup (2) - Front - Composite - 1 set - 1 Set - 1 pc minium - 4 pcs...
  • Page 20 SPARE PARTS C-00180-183 C-00180-184 C-00180-186 C-00180-188 C-00180-189 Diff. Gasket - 4 pcs Gear Diff. Pin - Steel - 2 pcs Chassis Brace Link - Steel O-Ring - Silicone - 4x8mm - Shock Bladders - Silicone - - 1 pc 5 pcs 4 pcs C-00180-190 C-00180-191...
  • Page 21 C-3001-30-06 M3x6 C-3002-40-10 M4X10 C-3003-30-12 M3x12 C-3004-40-04 M4x4 C-31001-40 C-3001-30-08 M3x8 C-3002-40-12 M4x12 C-3003-30-16 M3x16 C-3001-30-10 M3x10 C-3002-40-14 M4x14 C-3003-40-12 M4x12 C-3001-30-12 M3x12 C-3002-40-16 M4x16 C-3001-30-14 M3x14 C-3002-40-18 M4x18 C-3001-30-16 M3x16 C-3001-30-20 M3x20 C-3001-30-25 M3x25 C-3001-30-30 M3x30 C-3001-40-08 M4x8 www.corally.com...
  • Page 22 OPTION PARTS C-00180-157 C-00180-195 C-00180-196 C-00180-198 C-00180-199 Wing Washer - Lightened - Anti-Roll Bar - 2.6mm - Front Anti-Roll Bar - 2.5mm - Front Anti-Roll Bar - 2.2mm - Front Anti-Roll Bar - 2.0mm - Front Aluminum - 2 pcs - 1 pc - 1 pc - 1 pc...
  • Page 23 Title/Titel/Titre : Ceo FEDERAL COMMUNICATIONS COMMISSION EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE JSP GROUP INTL BVBA / CORALLY, and is VALID ONLY for the equipment identified hereon for use under the Commission’s Rules and Regulations listed below.
  • Page 24 WWW.CORALLY.COM Team Corally is a registered trademark licensed to JSP Group Intl bvba Geelseweg 80 B-2250 OLEN Belgium • • • Tel: +32 14 25 92 94 info@corally.com •...
