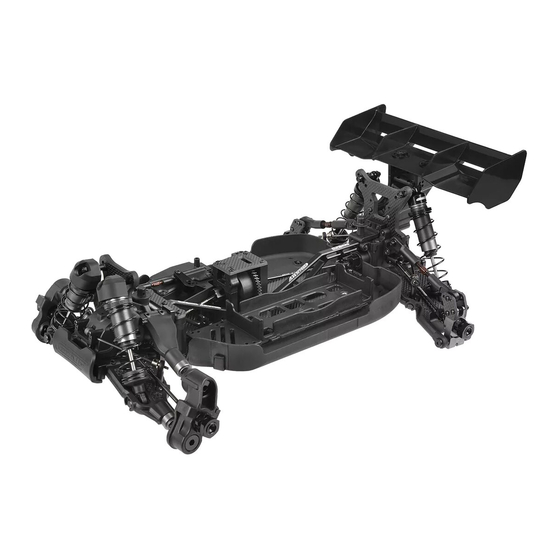

Corally SBX825 Instruction Manual

1/8 off-road buggy pro
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LANGUAGES
INSTRUCTION MANUAL
• Download the latest version of the manual from www.corally.com
• Téléchargez la dernière version du manuel à partir de www.corally.com
• Download the latest version of the manual from www.corally.com
• Download de nieuwste versie van de handleiding van www.corally.com
SBX-825 MANUAL Version 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBX825 and is the answer not in the manual?

Questions and answers

Related Manuals for Corally SBX825

Summary of Contents for Corally SBX825

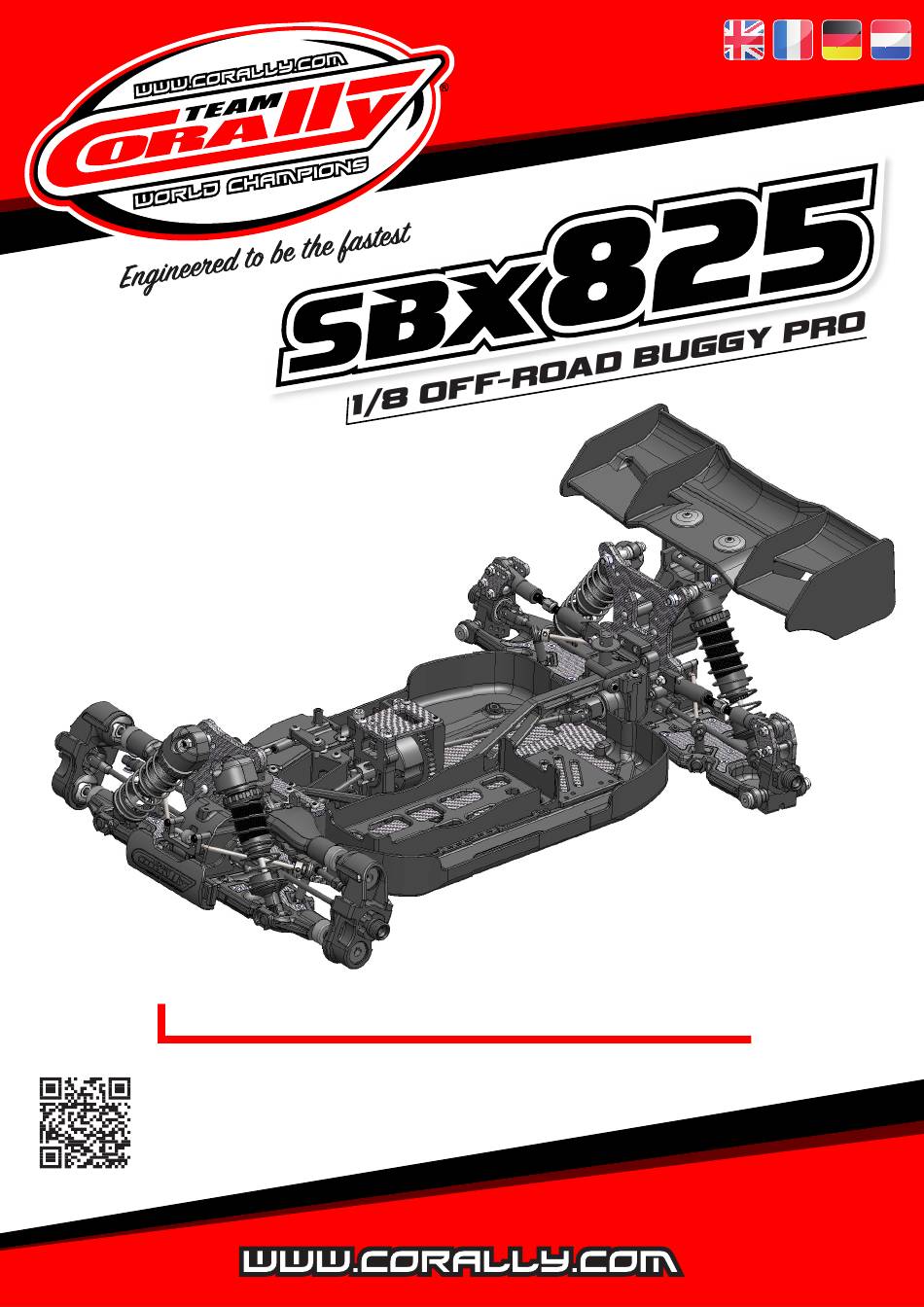

  • Page 1 INSTRUCTION MANUAL • Download the latest version of the manual from www.corally.com • Téléchargez la dernière version du manuel à partir de www.corally.com • Download the latest version of the manual from www.corally.com • Download de nieuwste versie van de handleiding van www.corally.com...
  • Page 2 • INTRODUCTION Thank you for purchasing a Team Corally car. This manual describes the assembly instructions for the model. You will also find some tips on how to maintain your RC model so that you can enjoy it for years to come. You have purchased one of the most efficient models available on the mar- ket that has been designed by a team of professionals.
  • Page 3 Version française disponible sur le site: • Deutsche Version auf der Website verfügbar: • Nederlandse versie beschikbaar op de website: www.corally.com/en/useful-links/downloads-manuals CAUTION GUIDE • USE PRECAUTIONS Failure to operate your model in a safe and responsible manner may result in injury to yourself, others or damage to property around you.

  • Page 4: Warranty

    Version française disponible sur le site: • Deutsche Version auf der Website verfügbar: • Nederlandse versie beschikbaar op de website: www.corally.com WARRANTY If material defects or manufacturing faults should arise in a product distributed or manufactured by Team Corally / JSP Group Intl bvba, and purchased by a consumer, we Team Corally / JSP Group Intl bvba acknowl- edge the obligation to correct those faults or defects within the limitations described below.

  • Page 5: Equipment & Tools Required

    EQUIPMENT & TOOLS REQUIRED C-53020 C-61320 Transmitter Receiver CMM-8 Racing Controller Rycon 825 - Sensored - 4-Pole CS-5245 C-51025 Pinions - MOD 1.0 - 5.0mm - Steel HV Ultra High Torque Servo Sport Racing 50C - 6700Mah - 4S - 14,8V Ultra-X 80 - AC/DC Balance Charger - 80W C-13100 Wheels...
  • Page 6 DIFFERENTIALS - DIFFÉRENTIELS - DIFFERENTIALE - DIFFERENTIËLEN FR&RE OPTION C-3002-30-12 (4pcs) Aluminium 7075 Hard Anodised Aluminium 7075 Hard Anodised Made in Italy Made in Italy C-00180-1104 C-00180-205 FRONT FRONT C-3611-3-08-16-05 or or REAR REAR C-00180-179 (set) C-00180-410 Xtreme Diff Case - 30mm - FR / RE C-00180-182 C-00180-1112 C-00180-205...
  • Page 7 FRONT TRANSMISSION - TRANSMISSION AVANT - VORDERE GETRIEBE - VOORSTE TRANSMISSIE C-00180-1111 C-3004-50-04 M5x4mm C-00180-033 (set) C-3611-3-08-16-05 Ball Bearing 8x16x5mm Apply CORALLY LOCK-IT 100 # C-13094 C-3611-3-08-16-05 Ball Bearing 8x16x5mm C-00180-156 C-00180-140 HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS...

  • Page 8: Table Of Contents

    FRONT TRANSMISSION - TRANSMISSION AVANT - VORDERE GETRIEBE - VOORSTE TRANSMISSIE C-3101-30-6 Nylstop Nut M3 - 4pcs C-3101-40-6 Nylstop Nut M4 - 2pcs C-00180-148 C-00180-046 HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS M3x14mm #C-3003-30-14 C-00180-779 • Shocktower Carbon 5mm C-00180-424 •...

  • Page 9: Bag

    REAR TRANSMISSION - TRANSMISSION ARRIERE - HINTERE GETRIEBE - ACHTERSTE TRANSMISSIE C-00180-1107 C-3004-50-04 M5x4mm C-00180-033 (set) C-3611-3-08-16-05 Ball Bearing 8x16x5mm Apply CORALLY LOCK-IT 100 # C-13094 C-3611-3-08-16-05 Ball Bearing 8x16x5mm C-00180-156 C-00180-141 HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS...

  • Page 10: Rear Transmission

    REAR TRANSMISSION - TRANSMISSION ARRIERE - HINTERE GETRIEBE - ACHTERSTE TRANSMISSIE C-3101-30-6 Nylstop Nut M3 - 4pcs C-00180-894 (set) C-00180-894 (set) C-00180-005-2 (set) HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS C-00180-894 (set) M3x16mm #C-3003-30-16 M3x20mm C-00180-148 #C-3003-30-20 C-3101-40-6 Nylstop Nut M4 - 2pcs...

  • Page 11: M2.5X18Mm

    REAR TRANSMISSION - TRANSMISSION ARRIERE - HINTERE GETRIEBE - ACHTERSTE TRANSMISSIE HEX BUTTON HEAD SCREWS Lithium Grease DIN 7380 - STEEL - 10 PCS Extreme friction reducer M2.5x18mm #C-3003-25-18 M3x10mm #C-3003-30-10 C-00180-033 (set) #C-82700 Apply Lithium Grease C-00180-033 (set) C-3004-30-05 M3x5mm HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS...

  • Page 12: Servo Installation

    SERVO INSTALLATION - INSTALLATION DU SERVO - SERVOEINBAU - SERVO-INSTALLATIE ±15,5mm C-00180-372 HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS M3x10mm C-00180-171 #C-3003-30-10 C-00180-149 C-00180-044 C-00180-129-3 C-00180-044 C-00180-997 (set) Servo Receiver (Not included) (Not included) C-00180-997 (set)

  • Page 13: Din 7991 - Steel - 10 Pcs

    CHASSIS ASSEMBLY - ASSEMBLAGE DU CHÂSSIS - CHASSISMONTAGE - CHASSISMONTAGE CARBON CHASSIS C-00180-1052 HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS M3x6mm #C-3003-30-06 C-00180-1070 Chassis - Carbon 3.5mm HEX FLAT HEAD SCREWS DIN 7991 - STEEL - 10 PCS M3x8mm #C-3002-30-08 M3x10mm...

  • Page 14: Chassis Assembly

    See important information on page 30 C-3101-30-6 Voir les informations importantes en page 30 Wichtige Informationen finden Sie auf Seite 30 Zie belangrijke informatie op pagina 30 Apply CORALLY LOCK-IT 100 # C-13094 HEX FLAT HEAD SCREWS DIN 7991 - STEEL - 10 PCS...
  • Page 15 CHASSIS ASSEMBLY - ASSEMBLAGE DU CHÂSSIS - CHASSISMONTAGE - CHASSISMONTAGE Controller (Not included) C-3104-40 - 2pcs HEX FLAT HEAD SCREWS Double-Side Tape DIN 7991 - STEEL - 10 PCS (Not included) M3x12mm #C-3002-30-12 C-00180-615 (set) C-13100 Double-sided Tape - Acrylic Clear OPTION C-00180-004-1 C-50535...

  • Page 16: M4X12Mm

    CHASSIS ASSEMBLY - ASSEMBLAGE DU CHÂSSIS - CHASSISMONTAGE - CHASSISMONTAGE HEX FLAT HEAD SCREWS DIN 7991 - STEEL - 10 PCS M4x12mm #C-3002-40-12 M4x14mm #C-3002-40-14...

  • Page 17: Servo-Saver

    SERVO-SAVER - SAUVE-SERVO - SERVO SAVER - SERVO-SAVER C-3611-3-06-10-03 C-00180-145-T (set) C-00180-036 (set) C-00180-266 C-3101-30 C-00180-216 C-3611-3-06-10-03 (x2) C-00180-191 C-00180-145-T (set) C-00180-036 (set) C-3611-3-06-10-03 C-3002-30-18 (x2) C-00180-831 C-3611-3-06-10-03 (x2) C-3003-30-10 (x2) C-00180-206 C-00180-147 (x2) C-00180-704-T C-3101-30 (x2) C-00180-150 (x2)

  • Page 18: Front Suspension

    FRONT SUSPENSION - SUSPENSION AVANT - VORDERRADAUFHÄNGUNG - VOOROPHANGING C-00180-739 HEX FLAT HEAD SCREWS DIN 7991 - STEEL - 10 PCS M3x14mm #C-3002-30-14 C-00180-801 HEX BUTTON HEAD SCREWS Carbon DIN 7380 - STEEL - 10 PCS M3x6mm #C-3003-30-06 M3x8mm #C-3003-30-08 C-00180-152 M3x10mm #C-3003-30-10...
  • Page 19 FRONT SUSPENSION - SUSPENSION AVANT - VORDERRADAUFHÄNGUNG - VOOROPHANGING L + R HEX FLAT HEAD SCREWS DIN 7991 - STEEL - 10 PCS M2.5x6mm #C-3002-25-06 C-00180-089 C-00180-1094 C-00180-1122 C-00180-1080 (Left side) C-00180-1079 (Right side) C-00180-1120 Carbon C-3004-30-04 C-00180-1086 C-00180-1076 (Right) C-00180-1077 (Left) •...
  • Page 20 Ball Bearing 8x16x5mm - 2pcs Do not overtighten the aluminium nuts otherwise the steering knuckle C-00180-077 will not move freely. C-00180-117-T Apply CORALLY Ne serrez pas trop les écrous en aluminium, C-00180-009-1 LOCK-IT 400 sinon la fusée de direction ne pourra pas bouger librement.
  • Page 21 FRONT SUSPENSION - SUSPENSION AVANT - VORDERRADAUFHÄNGUNG - VOOROPHANGING C-3004-30-03 M3x3mm C-00180-231 C-00180-195 HEX FLAT HEAD SCREWS DIN 7991 - STEEL - 10 PCS M2.5x10mm #C-3002-25-10 33.8mm C-00180-041 C-00180-128-3 C-00180-042...

  • Page 22: Rear Suspension

    REAR SUSPENSION - SUSPENSION ARRIÈRE - HINTERRADAUFHÄNGUNG - ACHTEROPHANGING L + R 19.5mm HEX BUTTON HEAD SCREWS C-00180-122 DIN 7380 - STEEL - 10 PCS M3x22mm #C-3003-30-22 C-00180-293 C-00180-029 C-00180-1270 C-00180-042 C-00180-170 C-3004-40-04 M4x4mm C-00180-1090 C-00180-1097 C-3611-3-08-16-05 Ball Bearing 8x16x5mm - 2pcs C-00180-1090 C-00180-1089 C-3004-30-04...
  • Page 23 REAR SUSPENSION - SUSPENSION ARRIÈRE - HINTERRADAUFHÄNGUNG - ACHTEROPHANGING • Screws to be used in case of play in the suspension arm. (not delivered) • Vis a utiliser en cas de jeu dans le bras de suspension. (Pas fournies) • Schraube zur Verwendung bei Spiel im Querlenker. (nicht geliefert) •...
  • Page 24 SHOCK ABSORBER ASSEMBLY - ASSEMBLAGE DE L’AMORTISSEUR - STOSSDÄMPFER-BAUGRUPPE - SCHOKDEMPERASSEMBLAGE • Do not overtighten the Shock Cap to prevent deformation of the silicone Shock Bladder. • Ne serrez pas trop le capuchon de l’amortisseur pour éviter la déformation de la membrane en silicone. •...
  • Page 25 SHOCK ABSORBER FILLING - REMPLISSAGE DES AMORTISSEURS - FÜLLEN DER STOSSDÄMPFER - SCHOKDEMPERS VULLEN Use the special shock absorber pliers for easy installation without damaging the shock absorber shaft. Utilisez la pince spéciale pour amortisseur pour un montage facile et sans risque d’abimer la tige d’amortisseur. Verwenden Sie die spezielle Stoßdämpferzange für eine einfache Montage, ohne die Stoßdämpferstange zu beschädigen.
  • Page 26 SHOCK ABSORBER INSTALLATION - INSTALLATION DES AMORTISSEURS - STOSSDÄMPFER-EINBAU - SCHOKDEMPER INSTALLATIE FRONT C-00180-658 C-3101-30-6 Nylstop Nut M3 C-3004-30-04 C-00180-1094 REAR C-00180-030 C-3101-30-6 Nylstop Nut M3 C-3004-30-04 C-00180-1094...

  • Page 27: Wing Installation

    C-72715 - 15 Teeth C-00180-176 C-72716 - 16 Teeth C-72717 - 17 Teeth SOCKET HEAD SCREWS DIN 912 - STEEL - 10 PCS M3x10mm Motor #C-3001-30-10 (Not included) M4x14mm #C-3001-40-14 C-00180-177 Motor Pinion M1.0 (Not included) Apply CORALLY LOCK-IT 100 # C-13094...
  • Page 28 GEAR MESH ADJUSTMENT - AJUSTEMENT DE L’ENGRENAGE - GETRIEBEVERSTELLUNG - TANDWIELAFSTELLING If the gear mesh is not correct, you wear out the spur gear prematurely, the transmission will make noise, give unnecessary load on the motor (higher consumption, heating of the transmission).
  • Page 29 WHEELS INSTALLATION - INSTALLATION DES ROUES - WIELEN INSTALLEREN - SERVO-SAVER Wheels (Not included) C-00180-1117 Recommended Tyres - Pneus recommandés - Empfohlene Reifen - Aanbevolen banden...
  • Page 30 CHASSIS STIFFENERS Long stiffeners = stiffer chassis. C-00180-806 Raidisseurs Longs = Châssis plus rigide. Lange Versteifungen = steiferes Fahrgestell. C-00180-1071 Lange verstijvers = stijver chassis. Short stiffeners = softer chassis. Raidisseurs Courts = Châssis plus souple. C-00180-1113 Kurze Versteifungen = weicheres Fahrwerk. Korte verstijvers = zachter chassis.
  • Page 31 INSERT SETUP - CONFIGURATION DES INSERTS - KONFIGURATION DER EINSÄTZE - CONFIGURATIE VAN DE INZETSTUKKEN ° *FACTORY SETTINGS = THE NUMBER INDICATES THE VALUE AND THE HOLE POSITION 1=1°, 5=0,5° LE CHIFFRE INDIQUE LA VALEUR EN DEGRÉ ET LA POSITION DE L’ORIFICE DE PUNT GEEFT DE POSITIE EN DE WAARDE IN (°) VAN HET GAT AAN DER PUNKT ZEIGT DIE POSITION UND DEN WERT IN (°) DES LOCHS AN *Réglage d’usine : 0°.
  • Page 32 INSERT SETUP - CONFIGURATION DES INSERTS - KONFIGURATION DER EINSÄTZE - CONFIGURATIE VAN DE INZETSTUKKEN ANTI-SQUAT ANGLE Insert RF Lower Suspension Arm Holder RF Lower Suspension Arm Holder RR Value Insert RR 0° 3° 0° 2,5° 0,5° Upper 3,5° 0,5° Lower 2°...

  • Page 33: Roll Center

    INSERT SETUP - CONFIGURATION DES INSERTS - KONFIGURATION DER EINSÄTZE - CONFIGURATIE VAN DE INZETSTUKKEN ROLL CENTER Insert Lower Suspension Arm Holder RF / RF Lower Suspension Arm Holder RR / FF Value Insert 0° 0° 0,5° Upper (+)0,56mm 0,5° Upper 0,5°...

  • Page 34: Spare Parts

    SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-004 C-00180-004-1 C-00180-005-2 C-00180-009-1 C-00180-018 Battery - ESC Tray - Composite Battery Strap - Hook & Loop Wing Mount - Adjustable - HD Steering Block - Pillow Ball Centre Diff Bulkhead - Compos- - 1 pc - 2 pcs Composite - 1 Set...
  • Page 35 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN Lightweight C-00180-150 C-00180-177 C-00180-157 C-00180-176 C-00180-171 Ball Shouldered - 6.8mm - Steel Motor Bulkhead - Aluminium Motor Mount - Aluminium - 1 pc Wing Washer - Lightened - Threaded Ball - 6mm - Steel - - 4 pcs - 1 pc Aluminium - 2 pcs...
  • Page 36 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN Carbon Carbon Carbon Carbon C-00180-1070 C-00180-1071 C-00180-1072 C-00180-1022 C-00180-1052 Spur Gear 46T - Composite - Side Guard Nut M3 - Alu. Chassis Buggy - Carbon 3.5mm Chassis Stiffener Front - Carbon Rear Arm - Left &...
  • Page 37 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN FRONT & REAR DIFFERENTIAL - SPARE PARTS C-00180-179 C-00180-184 C-00180-205 C-00180-098 C-00180-1104 Planetary Diff. Gears - Steel - Gear Diff Pin - 3.5x26.8mm - Diff. Outdrive Pin - 2x11,8mm - Diff Case - FR-RE - Composite PRO Diff.

  • Page 38: Option Parts

    Shock Cap Protector - Compos- - 4 pcs posite - 4 pcs ite - 2 pcs OPTION PARTS - PIÈCES D’OPTION - OPTIONSTEILE - OPTIES (For more options, see www.corally.com) Aluminium 7075 Aluminium 7075 Aluminium 7075 Aluminium 7075 CS-5245 HV...

  • Page 39: Setup Sheet

    Set Up Sheet available on website, https://corally.com/en/useful-links/downloads-manuals SETUP SHEET DATE : ___________ RACE : ________________________________ NAME : ___________________________________ LOCATION : _________________ LAPS : _________ BEST LAP TIME : ___________________ QUALIF. POSITION : _________ FINAL POSITION : ___________ TRACK CONDITION ELECTRONICS - TRANSMISSION...
