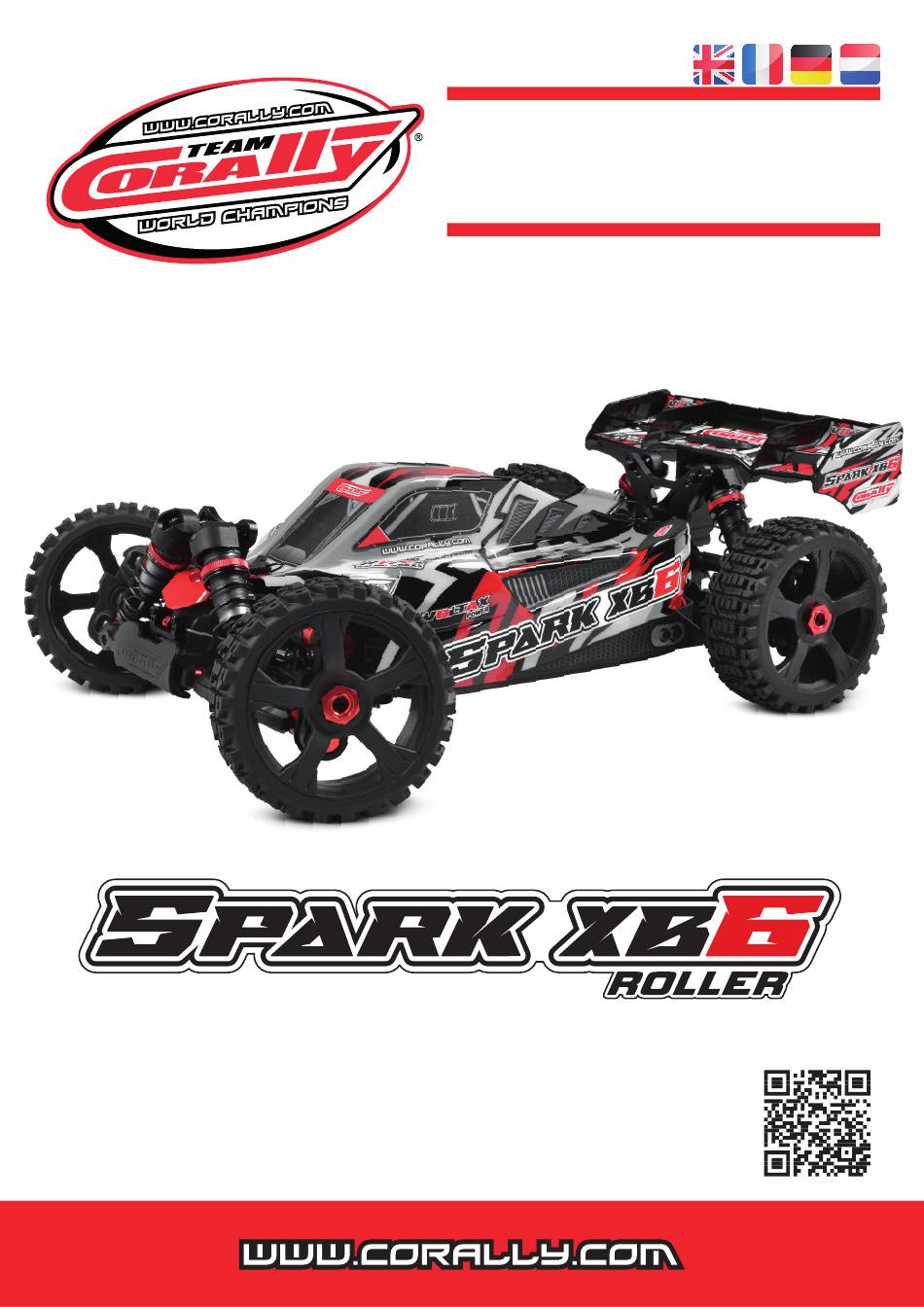

LANGUAGES
INSTRUCTION
MANUAL
Download the latest colour version of the manual from www.corally.com
Téléchargez la dernière version du manuel sur www.corally.com
Laden Sie die neueste Version des Handbuchs unter www.corally.com herunter
Download de nieuwste versie van de handleiding op www.corally.com
C-00485 Manual - Revised : 2023-06-20

Advertisement

loading
Need help?

Need help?

Do you have a question about the COR00485 and is the answer not in the manual?

Questions and answers

Related Manuals for Corally COR00485

Summary of Contents for Corally COR00485

  • Page 1 LANGUAGES INSTRUCTION MANUAL Download the latest colour version of the manual from www.corally.com Téléchargez la dernière version du manuel sur www.corally.com Laden Sie die neueste Version des Handbuchs unter www.corally.com herunter Download de nieuwste versie van de handleiding op www.corally.com...
  • Page 2 The user is responsible for the use of your model. The user assumes all risks associated with the use of the model. This model is not intended for use by children under 14 years of age without the supervision of a responsible adult who is familiar with the dangers of using a RC model. Team Corally / JSP Group Intl bvba, its manufacturers, distributors and resellers cannot control the use and load of the model and therefore cannot be held responsible for any damage to property and damage caused to persons resulting from the use of this product.
  • Page 3 Téléchargez le guide de démarrage rapide en Français sur le site • Laden Sie die Kurzanleitung auf Deutsch von der Website herunter • Download de Nederlandse snelstartgids op www.corally.com USE PRECAUTIONS • QUICK START GUIDE Failure to operate your model in a safe and responsible manner may result in injury to yourself, others or damage to property around you.
  • Page 4 Téléchargez le guide de démarrage rapide en Français sur le site • Laden Sie die Kurzanleitung auf Deutsch von der Website herunter • Download de Nederlandse snelstartgids op www.corally.com WARRANTY • QUICK START GUIDE If material defects or manufacturing faults should arise in a product distributed or manufactured by Team Corally / JSP Group Intl bvba, and purchased by a consumer, we Team Corally / JSP Group Intl bvba acknowledge the obligation to correct those faults or defects within the limita- tions described below.
  • Page 5 • Threadlock to secure screws #C-16250 Frein-filet - Schraubensicherungslack - Threadlock Team Corally - RC Car Tool Set • Brush and Cloth for cleaning Tool Bag with 16 pcs Tools Brosse et chiffon - Pinsel und Lappen - Penseel en doek...
  • Page 6 CAR COMPONENTS • QUICK START GUIDE Front Differential Front Shock Absorber Suspension Arm Steering Block Steering Link Battery compartment Steering Servo Not Included Receiver Box Centre Differential Not Included Brushless Motor Speed Controller (ESC) Not Included Not Included Rear Suspension Arm Wheel Axle Rear Upright Camber Link...
  • Page 7 QUICK START GUIDE • QUICK START GUIDE READ THE INSTRUCTIONS CHARGE THE BATTERY INSTALL 4x AA BATTERY - 1.5V CHARGER BATTERY • Lisez les instructions • Chargez la batterie • Installez les piles dans l’émetteur • Lesen Sie die Anleitung •...
  • Page 8 INSTALL ELECTRONICS (not included) INSTALLER L’ÉLECTRONIQUE (non inclus) • ELEKTRONIK INSTALLIEREN (nicht enthalten) • ELEKTRONICA INSTALLEREN (niet meegeleverd) SERVO INSTALLATION M3x12mm (2) M3x12mm (2) M3x18mm M3x10mm (2) Recommended Servo : Digital Servo - CS-5226 - High Voltage #C-52001 ESC INSTALLATION Recommended ESC : Speed Controller - TOROX 185 - Brushless - 4-6S...
  • Page 9 - Sluit de motor aan op de regelaar zoals beschreven in de handleiding van de regelaar. M4x14mm (2) M4x14mm (2) Apply some Corally Screw Fix - Blue # C-13094 RECEIVER INSTALLATION M3x10mm (4) - Connect the servo cable to channel 1 of the receiver.
  • Page 10 GEAR RATIO SPEED GEAR CHART - Tableau de vitesse - Drehzahlgangdiagramm - Versnellingstabel With Spur Gear 46T - Gear Ratio 3.31 Avec couronne 46D - Rapport de démultiplication 3.31 - Mit Hauptzahnrad 46Z - Gear Ratio 3.31- Met tandwiel 46T - Gear Ratio 3.31 Km/h Mph Km/h Mph Km/h Mph Km/h Mph Km/h Mph Km/h Mph Km/h Mph Km/h Mph Gear 11T Pinion 12T Pinion 13T Pinion 14T Pinion 15T Pinion 16T Pinion 17T Pinion 18T Pinion 13,83...
  • Page 11 GEAR MESH ADJUSTMENT - AJUSTEMENT DE L’ENGRENAGE - GETRIEBEVERSTELLUNG - TANDWIELAFSTELLING • If the gear mesh is not correct, you wear out the spur gear prematurely, the transmission will make noise, give unnecessary load on the motor (higher consumption, heating of the transmission) •...
  • Page 12 FRONT REAR SILICONE OIL SPRING TENSION SILICONE OIL SPRING TENSION SHOCK PISTON TRACK USE 450CPS 400CPS 4 Holes OFF-ROAD 600CPS 500CPS 4 Holes FACTORY 500CPS 500CPS 4 Holes .www. corally.com/Chemicals/Silicone-Oils/...
  • Page 13 SHOCK ABSORBER - AMORTISSEUR - STOSSDÄMPFER - SCHOKDEMPER • Do not overtighten the Shock Cap to prevent deformation of the silicone Shock Bladder. • Ne serrez pas trop le capuchon de l’amortisseur pour éviter la déformation de la membrane en silicone. •...
  • Page 14 DIFFERENTIAL MAINTENANCE - ENTRETIEN DU DIFFÉRENTIEL - DIFFERENZIALWARTUNG - DIFFERENTIEEL ONDERHOUD • It may be necessary to replace the silicone oil every 50 runs (depends on how you drive and the type of terrain you drive on). To dismount and maintain the differentials, follow the steps on these pages. To reassemble the differentials, repeat the steps in reverse. •...
  • Page 15 DIFFERENTIAL MAINTENANCE - ENTRETIEN DU DIFFÉRENTIEL - DIFFERENZIALWARTUNG - DIFFERENTIEEL ONDERHOUD REAR DIFFERENTIAL DIFFÉRENTIEL ARRIÈRE - HINTERES DIFFERENTIAL - ACHTERSTE DIFFERENTIEEL CENTRE DIFFERENTIAL DIFFÉRENTIEL CENTRAL - MITTELDIFFERENTIAL - MIDDELSTE DIFFERENTIEELENTIEEL...
  • Page 16 FRONT & REAR DIFFERENTIAL - DIFFÉRENTIEL AV & AR - DIFFERENTIAL VORNE UND HINTEN - VOOR & ACHTER DIFFERENTIEEL C-3002-30-12 (4pcs) C-00180-153-X C-00180-205 C-3611-3-08-16-05 C-00180-179 (set) C-00180-182 C-00180-184 C-00180-178 C-00180-205 C-00180-183 C-00180-182 OPTION C-3611-3-08-16-05 Aluminium 7075 Hard Anodised Aluminium 7075 Hard Anodised Made in Italy Made in Italy C-00180-153-X...

  • Page 17: M3X14Mm

    FRONT DRIVE TRAIN - TRAIN AVANT - VORDERRADANTRIEB - VOORSTE AANDRIJFLIJN C-00180-329 C-00180-117 DIN913 M4x4 C-00180-122 C-00180-966 C-00180-150 C-00180-077 C-00180-123 M3x3 C-00180-207 C-3611-3-08-16-05 (x2) C-00180-009-1 C-00180-967 C-00180-532 C-00180-936 C-00180-555-1 HEX BUTTON HEAD SCREWS DIN 7380 - STEEL - 10 PCS C-00180-360 M3x10mm #C-3003-30-10...

  • Page 18: Table Of Contents

    REAR DRIVE TRAIN - TRAIN ARRIÈRE - HINTERACHSANTRIEB - ACHTERSTE AANDRIJFLIJN C-00180-226-B C-00180-005-2 (set) C-3101-30 C-00180-535 C-00180-005-2 (set) C-00180-005-2 (set) C-31205 (x2) C-3101-40 (4) C-3101-30 C-00180-658 C-3101-30 C-3101-30 C-00180-658 C-00180-148 C-00180-812 C-00180-148 C-3101-40 C-3101-40 DIN913•M3x3 C-00180-220 DIN913•M3x3 (x2) C-00180-231 C-00180-033 C-00180-045 C-00180-197 C-00180-979...

  • Page 19: M3X30Mm

    CHASSIS - CHASSIS - CHASSIS - CHASSIS OPTION C-00180-969 (set) Aluminium / Steel Aluminium / Steel C-00180-1017 (set) C-00180-969 (set) C-00180-685 Center Diff Assembly - KURON 825 46T Main Gear - Xpert C-54055 Build - 100K Oil Filled C-00180-970 C-3004-40-04 C-00180-023 C-00180-177 C-00180-076...
  • Page 20 SERVO-SAVER - SAUVE-SERVO C-3611-3-06-10-03 C-00180-145 (set) C-00180-036 (set) C-3101-30 C-00180-216 C-3611-3-06-10-03 (x2) C-00180-191 C-00180-145 (set) C-00180-036 (set) C-3611-3-06-10-03 C-3002-30-16 (x2) C-00180-831 C-3611-3-06-10-03 (x2) C-00180-206 C-00180-147 (x2) OPTION C-3003-30-10 (x2) C-3101-30 (x2) C-00180-175-2 C-00180-150 (x2) C-00180-266 Servo Saver Steering Arm - Aluminium 7075 T6 - Hard Anodised - Black - 1 pc...
  • Page 21 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-004-1 C-00180-005-2 C-00180-008 C-00180-009-1 C-00180-018 Battery Strap - Hook & Loop Wing Mount - Adjustable - Hub - Rear - Composite - 1 pc HD Steering Block (1pc) - Pillow Centre Diff Bulkhead - Compos- - 2 pcs Composite - 1 Set...

  • Page 22: C-00180-370-X

    SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-293 C-00180-321-4 C-00180-322 C-00180-329 C-00180-360 Ball 6.8mm - Steel - 4 pcs Chassis - Buggy - Aluminium Suspension Arm Pivot Pin - Low- Wheel Hex Adapter - Wide RTR Universal Joint Drive Shaft - 3mm - Black - 1 pc er Inner - Fr/Re - Steel - 2 pcs - Aluminium - 2 pcs...
  • Page 23 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN Body Decal Sheet C-00180-1168 C-00180-1168-4 • Red - 1 pc C-00180-1168-1 C-00180-1168-2 C-00180-1168-3 SPARK XB6 - Body - Clear - C-00180-1168-5 • Blue - 1 pc SPARK XB6 - Body - Painted - SPARK XB6 - Body - Painted - SPARK XB6 - Body - Painted - Buggy - 1 pc...

  • Page 24: C-00180-155-X

    SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN FRONT & REAR DIFFERENTIAL - SPARE PARTS FRONT & REAR DIFFERENTIAL - SPARE PARTS C-00180-090-1 C-00180-156 C-00180-178 C-00180-179 C-00180-184 Center Diff set - Case + diff Bevel Pinion 13T - Steel - 1 pc Diff.
  • Page 25 OPTION PARTS - PIÈCES D’OPTION - OPTIONSTEILE - OPTIES Aluminium 7075 FRONT FRONT REAR REAR Hard Anodised C-00180-626 C-00180-628 C-00180-289 C-00180-291 C-00180-410 Shock Spring - Soft - 1.4mm - Shock Spring - Hard - 1.8mm - Shock Spring - Soft - 1.4mm - Shock Spring - Hard - 1.8mm - Xtreme Diff Case - 30mm - 75/77mm - 2 pcs...
  • Page 26 Grade - 10 Sizes - 370 pcs Sizes - 320 pcs More info C-38516 Universal Sport Car Series - Screws - Nuts Set - 34 Sizes - 970 pcs C-38520 Shim Ring Set - Steel- 15 Sizes - 375pcs www.corally.com...
  • Page 27 Ontdek al deze producten en meer op de website www.corally.com This manual is an edition of Corally, a division of JSP GROUP INTL nv, Geelseweg 80, B-2250 Olen, Belgium. This manual is protected by a copyright and nothing from this edition may be reproduced or used without any prior written authorisation.
