OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL

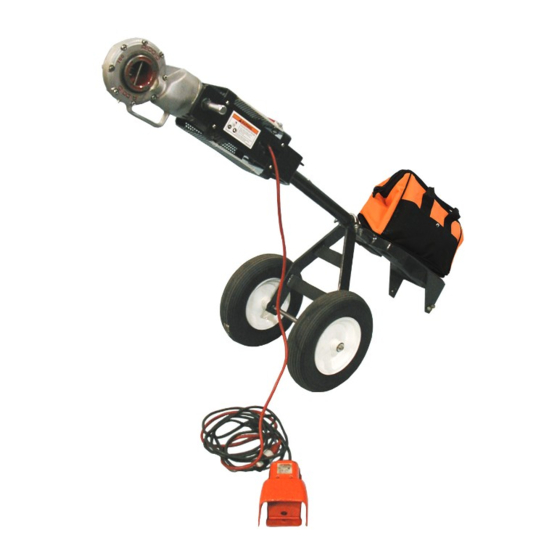

Power Mule II
WARNING
If you need additional copies of any literature, or if you have questions concerning the safe
and proper operation of this tool, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031,
Phone: 1-800-PICK VIC, E-Mail: pickvic@victaulic.com.
REV_C
WARNING
Failure to follow instructions and warnings could result in death,
serious personal injury, property damage, and/or product damage.
• Before operating or servicing the power mule, read all
instructions in this manual and all warning labels on the tool.
• Wear safety glasses, hardhat, foot protection, and hearing
protection while working around this tool.
• Save this operating and maintenance manual in a place
accessible to all operators of the tool.
TM-PMII

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Mule II and is the answer not in the manual?

Questions and answers

Related Manuals for Victaulic Power Mule II

Summary of Contents for Victaulic Power Mule II

  • Page 1 If you need additional copies of any literature, or if you have questions concerning the safe and proper operation of this tool, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031, Phone: 1-800-PICK VIC, E-Mail: pickvic@victaulic.com.

  • Page 2: Table Of Contents

    TM-PMII / Operating and Maintenance Instructions Manual TABLE OF CONTENTS HAZARD IDENTIFICATION Definitions for identifying the various hazard Hazard Identification . . . . . . . . . . . . . . . . . . . . 3 levels are provided below .

  • Page 3: Operator Safety Instructions

    . each operator PRIOR to working with the Wear proper apparel. Do not wear loose Power Mule II . These instructions describe safe clothing, jewelry, or anything that can operation of the tool, including set up and become entangled in moving parts .
  • Page 4 TM-PMII / Operating and Maintenance Instructions Manual CAUTION 12. OPERATE THE TOOL ON THE HANDLE The Power Mule II shall be used ONLY for SIDE ONLY. The Power Mule II must be driving cut grooving tools, as listed in this operated with a safety foot switch that is manual.

  • Page 5: Pallet Contents

    . Safety Foot Switch/Power Cord/Plug Assembly (Located in the Storage Bag) The Power Mule II operates at 13 amps with a Square-Drive Adapter (installed in Power Head) no-load operating speed of 32 rpm . Under load, the power mule runs at slower speeds .

  • Page 6: Power Requirements

    Failure to follow these instructions could 100 feet/31 m shall be avoided . result in death or serious personal injury. The Power Mule II is designed to operate on Power Head Rating Cord Lengths a 115-volt, 20-Amp, 25 - 60 Hz, single-phase...

  • Page 7: Tool Nomenclature

    If you need additional copies of any literature, or if you have questions concerning the safe and proper R213700LBL operation of any pipe preparation tools, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031, Phone 1-800-PICK VIC, E-Mail: pickvic@victaulic.com. 0567 Rev. D...

  • Page 8: Tool Dimensions And Specifications

    TM-PMII / Operating and Maintenance Instructions Manual TOOL DIMENSIONS AND SPECIFICATIONS 18.60 in/ 472 mm 27.83 in/ 707 mm 73.44 in/ 1865 mm Tool weight is 190 pounds/86 .2 kilograms . Tool sound pressure is 98 .4 dB(A) . Tool sound power is 107 dB(A) . Sound measurements are taken with a Ridgid Model 700 power drive .

  • Page 9: Tool Setup

    TM-PMII / Operating and Maintenance Instructions Manual TOOL SETUP WARNING • DO NOT plug the power head into the electrical source until instructed otherwise. Failure to follow this instruction could result in serious personal injury. Remove all components from the packaging, and ensure all necessary items are included .
  • Page 10 • The power mule shall always be operated with a safety foot switch. If the power mule does not contain a safety foot switch, contact Victaulic. Operating the power mule without a safety foot switch may result in serious personal injury.

  • Page 11: Tool Operation

    TM-PMII / Operating and Maintenance Instructions Manual Rotate the square-drive adapter to align the The square-drive adapter has been factory square hole with the square drive shaft of modified and installed for operation of the power the cut grooving tool . mule on the handle side .
  • Page 12 TM-PMII / Operating and Maintenance Instructions Manual Set the rotation control switch to the Grasp the handle of the power head . FORWARD position . Victaulic cut grooving Momentarily depress the safety foot switch, tools are designed to operate in a and check the rotation of the power head .

  • Page 13: Maintenance

    TM-PMII / Operating and Maintenance Instructions Manual MAINTENANCE When the grooving operation is complete: DANGER • Before performing any maintenance on the power mule, disconnect the power cord from the electrical source. Failure to follow these instructions could result in death or serious personal injury.

  • Page 14: Troubleshooting

    TM-PMII / Operating and Maintenance Instructions Manual TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Power head will not operate. The power head is not plugged into the safety Plug the power head into the safety foot foot switch. switch. Refer to the “Power Requirements” section on page 7.
  • Page 15 OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL Power Mule II UPDATED 08/2020 TM-PMII 4250 REV C RM00PM2000 VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY AND/OR ITS AFFILIATED ENTITIES IN THE UNITED STATES AND/OR OTHER COUNTRIES. © 2020 VICTAULIC COMPANY. ALL RIGHTS RESERVED.
