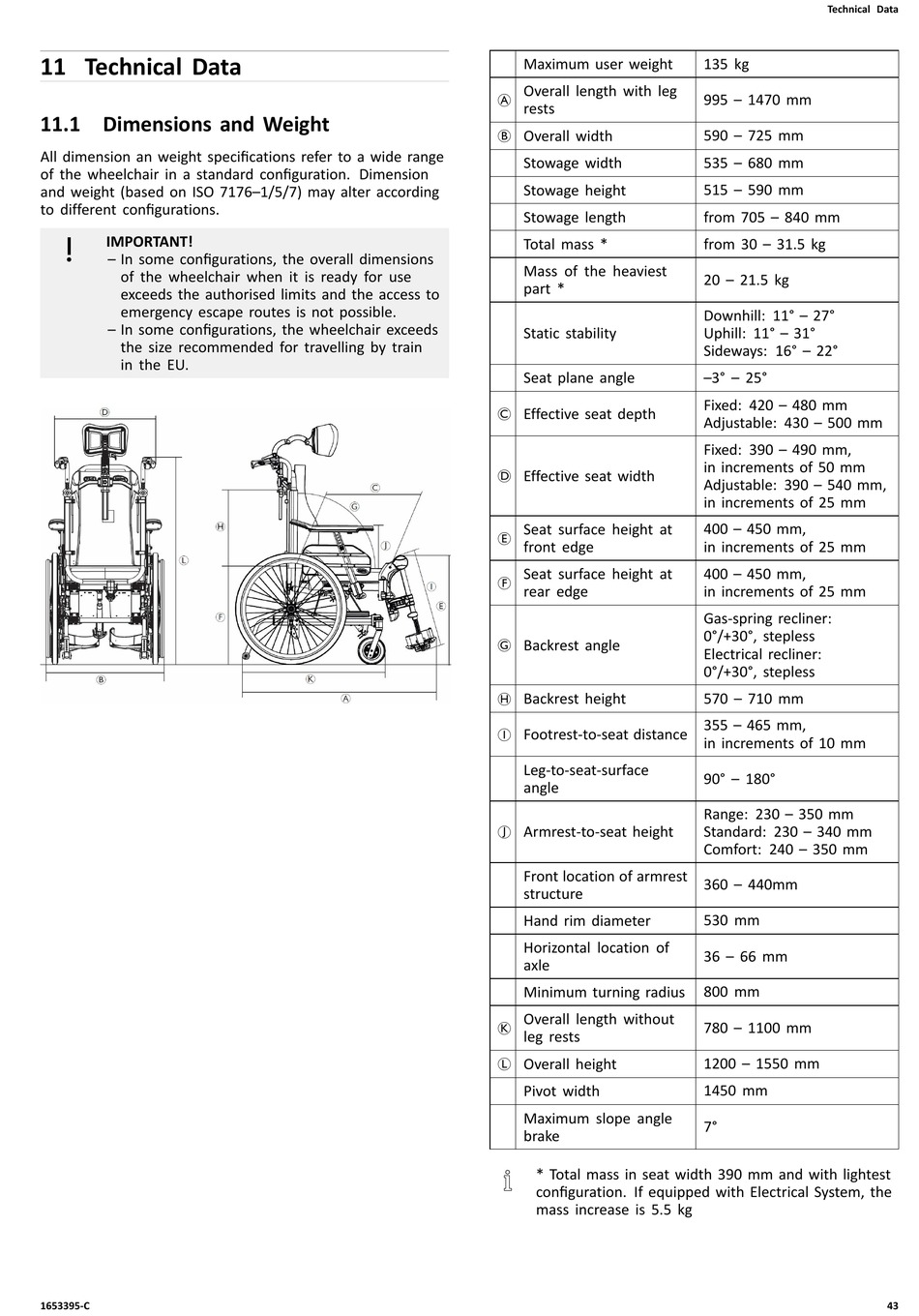

11 Technical Data
11.1 Dimensions and Weight
All dimension an weight specifications refer to a wide range
of the wheelchair in a standard configuration. Dimension
and weight (based on ISO 7176–1/5/7) may alter according
to different configurations.
IMPORTANT!
– In some configurations, the overall dimensions
of the wheelchair when it is ready for use
exceeds the authorised limits and the access to
emergency escape routes is not possible.
– In some configurations, the wheelchair exceeds
the size recommended for travelling by train
in the EU.
1653395-C
Maximum user weight
Overall length with leg
A
rests
B Overall width
Stowage width
Stowage height
Stowage length
Total mass *
Mass of the heaviest
part *
Static stability
Seat plane angle
C Effective seat depth
D Effective seat width
Seat surface height at
E
front edge
Seat surface height at
F
rear edge
G Backrest angle
H Backrest height
I Footrest-to-seat distance
Leg-to-seat-surface
angle
J Armrest-to-seat height
Front location of armrest
structure
Hand rim diameter
Horizontal location of
axle
Minimum turning radius
Overall length without
K
leg rests
L Overall height
Pivot width
Maximum slope angle
brake
* Total mass in seat width 390 mm and with lightest
configuration. If equipped with Electrical System, the
mass increase is 5.5 kg
Technical Data
135 kg
995 – 1470 mm
590 – 725 mm
535 – 680 mm
515 – 590 mm
from 705 – 840 mm
from 30 – 31.5 kg
20 – 21.5 kg
Downhill: 11° – 27°
Uphill: 11° – 31°
Sideways: 16° – 22°
–3° – 25°
Fixed: 420 – 480 mm
Adjustable: 430 – 500 mm
Fixed: 390 – 490 mm,
in increments of 50 mm
Adjustable: 390 – 540 mm,
in increments of 25 mm
400 – 450 mm,
in increments of 25 mm
400 – 450 mm,
in increments of 25 mm
Gas-spring recliner:
0°/+30°, stepless
Electrical recliner:
0°/+30°, stepless
570 – 710 mm
355 – 465 mm,
in increments of 10 mm
90° – 180°
Range: 230 – 350 mm
Standard: 230 – 340 mm
Comfort: 240 – 350 mm
360 – 440mm
530 mm
36 – 66 mm
800 mm
780 – 1100 mm
1200 – 1550 mm
1450 mm
7°
43
