ATM Digital Video Recorder
Quick Start Guide

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-8104AHQLI-K4

Summary of Contents for HIKVISION DS-8104AHQLI-K4

  • Page 1 ATM Digital Video Recorder Quick Start Guide...

  • Page 2: Table Of Contents

    ATM Digital Video Recorder Quick Start Guide TABLE OF CONTENTS Chapter1 Panels Description .......................... 6 1.1 Front Panel ............................6 1.2 Rear Panel ............................8 Chapter 2 Installation and Connections ...................... 10 2.1 DVR Installation ..........................10 2.2 Hard Disk Installation ........................10 2.3 Peripheral Connections ........................
  • Page 3 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
  • Page 4 ATM Digital Video Recorder Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 ATM Digital Video Recorder Quick Start Guide Applicable Models This manual is applicable to the models listed in the following table. Series Model DS-8104AHQLI-K4 DS-8104AHQ(L)I-K4 DS-8104AHQI-K4 Symbol Conventions The symbols that may be found in this document are defined as follows.
  • Page 6 ATM Digital Video Recorder Quick Start Guide Safety Instructions  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.  In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.

  • Page 7: Chapter1 Panels Description

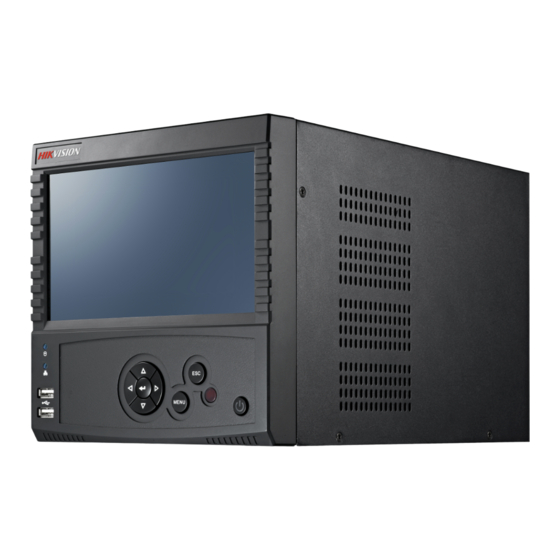

    ATM Digital Video Recorder Quick Start Guide Chapter1 Panels Description 1.1 Front Panel Figure 1-1 Front Panel of DS-8104AHQLI-K4...
  • Page 8 ATM Digital Video Recorder Quick Start Guide Table 1-1 Description of Front Panel Name Function Description The DIRECTION buttons are used to navigate between different fields and items in menus. In the Playback mode, the Up and Down button is used to speed up and slow down recorded video.

  • Page 9: Rear Panel

    ATM Digital Video Recorder Quick Start Guide Name Function Description Power indicator stays blue when the device has been turned on. Universal Serial Bus (USB) ports for additional USB Interface devices such as USB mouse and USB Hard Disk Drive (HDD). Tx/Rx indictor blinks blue when network Tx/Rx connection is functioning properly.
  • Page 10 ATM Digital Video Recorder Quick Start Guide Table 1-2 Description of Rear Panel No. Item Description VIDEO IN BNC connector for analog video input. AUDIO IN BNC connector for audio input. LINE IN BNC connector for two-way audio. AUDIO OUT BNC connector for audio output.

  • Page 11: Chapter 2 Installation And Connections

    ATM Digital Video Recorder Quick Start Guide Chapter 2 Installation and Connections 2.1 DVR Installation During installation of the DVR:  Use brackets for rack mounting.  Ensure ample room for audio and video cables.  When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter.
  • Page 12 ATM Digital Video Recorder Quick Start Guide Figure 2-2 Install the HDD Step 4 Tighten the screws on both sides of the bracket, and insert it to the chassis. Figure 2-3 Install the Bracket Step 5 Tighten the 2 screws on top of the bracket. Figure 2-4 Tighten the Screw Step 6 Re-install the cover of the DVR and fasten screws.

  • Page 13: Peripheral Connections

    ATM Digital Video Recorder Quick Start Guide 2.3 Peripheral Connections 2.3.1 Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device.

  • Page 14: Rs-485 And Controller Connection

    ATM Digital Video Recorder Quick Start Guide For DC load, the jumpers can be used within the limit of 12V/1A safely. To connect an AC load, jumpers should be left open (you must remove the jumper on the motherboard in the DVR). Use an external relay for safety (as shown in the figure above). There are 4 jumpers (JP1, JP2, JP3, and JP4) on the motherboard, each corresponding with one alarm output.

  • Page 15: Termination Switch Connection

    ATM Digital Video Recorder Quick Start Guide Step 2 Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part. Ensure signal cables are in tight. Step 3 Connect Ta on controller to R+ on terminal block and Tb on controller to R- on terminal block. Fasten stop screws.

  • Page 16: Hdd Storage Calculation Chart

    ATM Digital Video Recorder Quick Start Guide 2.4 HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K...

  • Page 17: Chapter 3 Menu Operation

    ATM Digital Video Recorder Quick Start Guide Chapter 3 Menu Operation 3.1 Menu Structure The menu structure varies according to different models. Menu Maintenance Shutdown Record Camera Configuration Playback Export Manual Schedule Camera General System Info Logout Normal Record Normal General Continuous Parameters...

  • Page 18: Activating Your Device

    ATM Digital Video Recorder Quick Start Guide Step 2 Turn on the POWER button on the real panel. The Power LED on the front panel will turn blue. The unit will begin to start. After the device starts up, the wizard will guide you through the initial settings, including modifying password, date and time settings, network settings, HDD initializing, and recording.

  • Page 19: Using The Unlock Pattern For Login

    ATM Digital Video Recorder Quick Start Guide STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

  • Page 20: Login And Logout

    ATM Digital Video Recorder Quick Start Guide Figure 3-5 Draw the Pattern  Connect at least 4 dots to draw the pattern.  Each dot can be connected for once only. Step 2 Draw the same pattern again to confirm it. When the two patterns match, the pattern is configured successfully.
  • Page 21 ATM Digital Video Recorder Quick Start Guide Figure 3-7 Login Step 2 Enter Password. Step 3 Click OK to log in. In the Login interface, for the admin, if you have entered the wrong password for 7 times, the account will be locked for 60 seconds. For the operator, if you have entered the wrong password for 5 times, the account will be locked for 60 seconds.
  • Page 22 ATM Digital Video Recorder Quick Start Guide Figure 3-10 Import GUID 1) Select the GUID file from the USB flash disk and click Import button to pop up the Reset Password interface Figure 3-11 Reset Password 2) Input the new password and confirm the password. 3) Click OK to save the new password.

  • Page 23: User Logout

    ATM Digital Video Recorder Quick Start Guide Figure 3-13 Duplicate the Password  If you want to retrieve the password when you forget it, you must export the GUID file first.  Once the password is reset, the GUID file becomes ineffective. You can export a new GUID file.

  • Page 24: Configuring Signal Input Channel

    ATM Digital Video Recorder Quick Start Guide Figure 3-15 Wizard 3.7 Configuring Signal Input Channel Purpose You can configure the analog and IP signal input types and the connectable maximum IP camera number. Step 1 Go to Menu > Camera > Camera > Signal Input Status. Figure 3-16 View Signal Input Type Step 2 Check the checkbox to select different signal input types: HD/CVBS and IP.

  • Page 25: Network Settings

    ATM Digital Video Recorder Quick Start Guide 3.8 Network Settings Purpose: Network settings must be properly configured before you operate DVR over network. Step 1 Go to Menu > Configuration > Network > General. Figure 3-17 Network Settings Step 2 In the General Settings interface, you can configure the following settings: Working Mode, NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server.
  • Page 26 ATM Digital Video Recorder Quick Start Guide Figure 3-18 General Settings Interface Step 2 Configure the following settings.  Language: The default language is English.  Output Standard: Select the output standard to be PAL or NTSC.  VGA/HDMI Resolution: Select the output resolution, which must be the same with the resolution of the VGA/HDMI display.

  • Page 27: Adding Ip Cameras

    ATM Digital Video Recorder Quick Start Guide  System Date: Select the system date.  System Time: Select the system time.  Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.  Enable Wizard: Enable/disable the Wizard when the device starts up. ...

  • Page 28: Configuring Custom Protocols

    ATM Digital Video Recorder Quick Start Guide Step 3 (Optional) Check Enable H.265 (For Initial Access) for the connected IP camera supporting H.265. Then the IP camera will be encoded with H.265.  OPTION 2: Step 1 Click the Custom Adding button to pop up the Add IP Camera (Custom) interface. Figure 3-21 Add IP Camera Step 2 Select the detected IP camera and click the Add button to add it directly, and you can click Search to refresh the online IP camera manually.

  • Page 29: Live View

    ATM Digital Video Recorder Quick Start Guide Figure 3-22 Protocol Management Step 2 Select a custom protocol from the drop-down list, and configure its corresponding parameters.  Protocol Name: Edit the name for the custom protocol.  Enable Sub-stream: If the network camera does not support sub-stream or the sub-stream is not needed, leave the checkbox empty.
  • Page 30 ATM Digital Video Recorder Quick Start Guide Live View Icons In the live view mode, there are icons at the upper-right corner of the screen for each channel, showing the status of the record and alarm in the channel for quick reference. Alarm (video loss, tampering, motion detection, VCA or sensor alarm) Record (manual record, continuous record, motion detection, VCA or alarm triggered record) Alarm and Record...
  • Page 31 ATM Digital Video Recorder Quick Start Guide Table 3-1 Mouse Operation in Live View Name Description Common Enter the General Settings interface and Camera Settings interface. Menu Menu Enter the main menu of the system by right-clicking the mouse. Switch to the single full screen by choosing channel number from Single Screen the dropdown list.

  • Page 32: Atm Settings

    ATM Digital Video Recorder Quick Start Guide 3.13 ATM Settings Step 1 Go to Menu > Configuration > ATM. Figure 3-24 ATM Settings Step 2 Check Enable ATM to enable ATM function. Step 3 Select the input mode to Network Interception, Serial Port Interception, Network Protocol, or Serial Port Protocol, which refers to the connection type of the ATM DVR.

  • Page 33: Recording Settings

    ATM Digital Video Recorder Quick Start Guide Figure 3-26 Data Package Settings Step 6 Click Apply to finish the ATM settings. 3.14 Recording Settings Before you start Make sure that the disk has already been installed. If not, please install a disk and initialize it. You may refer to the user manual for detailed information.

  • Page 34: Playback

    ATM Digital Video Recorder Quick Start Guide 3.15 Playback Purpose The recorded video files and pictures on the hard disk can be played back in the following modes: instant playback, all-day playback for the specified channel, and playback by normal/ATM/event/tag/sub-periods/external file search/picture. Step 1 Go to Menu >...

  • Page 35: Chapter 4 Accessing By Web Browser

    ATM Digital Video Recorder Quick Start Guide Chapter 4 Accessing by Web Browser You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.
  • Page 36 ATM Digital Video Recorder Quick Start Guide  If the device is already activated, enter the user name and password in the login interface, and click the Login button. Figure 4-2 Login Step 3 Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in.
  • Page 37 ATM Digital Video Recorder Quick Start Guide UD12535B...
