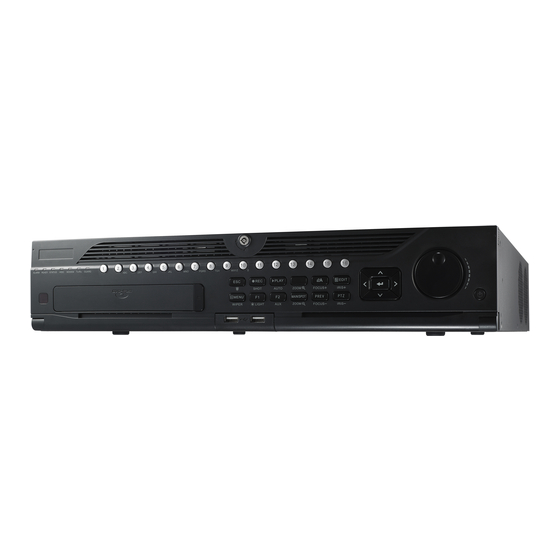

Page 1: Digital Video Recorder
Digital Video Recorder User Manual UD.6L0202D1336A01...
Page 2 The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Hangzhou Hikvision Digital Technology Co., Ltd. (Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may appear in the book.
Page 3 User Manual of Digital Video Recorder Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to following embedded network DVR series. Series Model Type 9200HWI-ST Series DS-9204/08/16HWI-ST Network DVR 9100HFI-ST Series...
Page 4 User Manual of Digital Video Recorder Regulatory information FCC information compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 5: Preventive And Cautionary Tips
User Manual of Digital Video Recorder Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Unit is designed for indoor use only. •...
Page 6: Product Key Features
 Connectable to the third-party network cameras that support ONVIF or PSIA protocol (this feature is supported by HDVR series).  Connectable to Hikvision smart IP cameras.  PAL/NTSC adaptive video inputs.  H.264 video compression with high reliability and superior definition.
Page 7 User Manual of Digital Video Recorder storage capacity.  8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.  Support eSATA disk for recording or backup.  Hot-swappable HDD supporting RAID0, RAID1, RAID5 and RAID10 storage schemes. And 8 virtual disks can be configurable (this feature is supported by DS-9100/9000HFI-RT series only).
Page 8 User Manual of Digital Video Recorder mismatch, illegal login, network disconnected, IP confliction, abnormal record/capture, HDD error, and HDD full, etc.  Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email and alarm output.  Automatic restore when system is abnormal. Other Local Functions ...
Page 9 User Manual of Digital Video Recorder  SDK for Windows and Linux system.  Source code of application software for demo.  Development support and training for application system.
Page 10: Table Of Contents
User Manual of Digital Video Recorder TABLE OF CONTENTS Product Key Features ........................5 Chapter 1 Introduction ......................... 14 Front Panel ........................15 IR Remote Control Operations................... 19 USB Mouse Operation ....................... 22 Input Method Description ....................23 Rear Panel ......................... 24 Starting Up and Shutting Down the Device ...............
Page 11 User Manual of Digital Video Recorder 4.2.6 Calling Patterns ......................62 PTZ Control Panel ......................63 Chapter 5 Record and Capture Settings ..................65 Configuring Encoding Parameters ..................66 Configuring Record/Capture Schedule ................70 Configuring Motion Detection Recording and Capture ............. 74 Configuring Alarm Triggered Recording and Capture ............
Page 12 User Manual of Digital Video Recorder Backing up Pictures ......................126 Managing Backup Devices ....................129 Hot Spare Backup ......................131 7.4.1 Setting the Hot Spare Device .................. 131 7.4.2 Setting the Working Device ..................132 7.4.3 Hot Spare Management ................... 133 Chapter 8 Alarm Settings......................
Page 13 User Manual of Digital Video Recorder 9.4.3 Checking Network Status ..................179 9.4.4 Checking Network Statistics ................... 180 Chapter 10 RAID Configuration ....................181 10.1 Configuring Array and Virtual Disk................. 182 10.1.1 One-touch Configuration..................183 10.1.2 Manually Creating Array and Virtual Disk.............. 184 10.2 Rebuilding Array ......................
Page 14 Logging out / Shutting down / Rebooting Device ............. 245 Chapter 15 Appendix ........................ 246 Glossary ............................247 Troubleshooting ..........................248 Summary of Changes ........................253 List of Compatible IP Cameras ....................254 List of Hikvision IP Cameras ....................254 List of Third-party IP Cameras ....................260...
Page 15: Chapter 1 Introduction
User Manual of Digital Video Recorder Chapter 1 Introduction...
Page 16: Front Panel
User Manual of Digital Video Recorder 1.1 Front Panel The front panels of the devices are shown in Figure 1.1. DS-9100/9000HFI-ST & DS-9100/9000HFI-RT & DS-9200HWI-ST DS-9100/9000HWI-ST DS-9100/9000HFI-XT DS-8100/8000HFI-ST & DS-8100/8000HWI-ST Figure 1. 1 Front Panel (1)
Page 17 User Manual of Digital Video Recorder Table 1. 1 Description of Control Panel Buttons (1) Name Function Description ALARM Alarm indicator turns red when a sensor alarm is detected. Ready indicator is normally blue, indicating that the device is functioning READY properly.
Page 18 User Manual of Digital Video Recorder On checkbox fields, pressing the button will tick the checkbox. In PTZ Control mode, the button adjusts the iris of the camera. In Playback mode, it can be used to generate video clips for backup. Enter/exit the folder of USB device and eSATA HDD.
Page 19 User Manual of Digital Video Recorder If GUARD indicator is blue (default), all the alarm event and exception settings are valid. Otherwise, alarm event and exception settings are invalid, but normal recording is still available. It is important to note that you must press the EDIT button on either the remote or front panel on a text field before you’re able to edit its content.
Page 20: Ir Remote Control Operations
User Manual of Digital Video Recorder 1.2 IR Remote Control Operations The device may also be controlled with the included IR remote control, shown in Figure 1.3. Batteries (2× AAA) must be installed before operation. Figure 1. 3 Remote Control The keys on the remote control closely resemble the ones on the front panel.
Page 21 User Manual of Digital Video Recorder Adjust focus in the PTZ Control menu. A Button It is also used to switch input methods (upper and lowercase alphabet, symbols and numeric input). Enter the Manual Record setting menu. In PTZ control settings, press the button and then you can call a PTZ REC Button preset by pressing Numeric button.
Page 22 User Manual of Digital Video Recorder Make sure you have installed batteries properly in the remote control. And you have to aim the remote control at the IR receiver in the front panel. If there is no response after you press any button on the remote, follow the procedure below to troubleshoot. Steps: 1.
Page 23: Usb Mouse Operation
User Manual of Digital Video Recorder 1.3 USB Mouse Operation A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this device. To use a USB mouse: 1. Plug USB mouse into one of the USB interfaces on the front panel of the device. 2.
Page 24: Input Method Description
User Manual of Digital Video Recorder 1.4 Input Method Description Figure 1. 4 Soft Keyboard (1) Figure 1. 5 Soft Keyboard (2) Description of the buttons on the soft keyboard: Table 1. 5 Description of the Soft Keyboard Icons Icon Description Icon Description...
Page 25: Rear Panel
User Manual of Digital Video Recorder 1.5 Rear Panel DS-9100/9000HFI-ST DS-9200/9100/9000HWI-ST & DS-9100/9000HFI-RT DS-9100/9000HFI-XT DS-8100/8000HFI-ST...
Page 26 User Manual of Digital Video Recorder DS-8100/8000HWI-ST Figure 1. 6 Rear Panel (1) Table 1. 6 Description of Rear Panel (1) Item Description VIDEO IN BNC connector for analog video input. LOOP OUT (for DS-9100/9000HFI-ST/RT/XT BNC connector for video loop output. &...
Page 27 User Manual of Digital Video Recorder ALARM IN Connector for alarm input. ALARM OUT Connector for alarm output. Ground (needs to be connected when DVR starts up). AC 100V ~ 240V AC 100V ~ 240V power supply. POWER Switch for turning on/off the device. Universal Serial Bus (USB) ports for additional devices such as USB Hard Disk Drive (HDD).
Page 28: Starting Up And Shutting Down The Device
User Manual of Digital Video Recorder 1.6 Starting Up and Shutting Down the Device Purpose: Proper startup and shutdown procedures are crucial to expanding the life of the device. Before you start: Check that the voltage of the extra power supply is the same with the device’s requirement, and the ground connection is working properly.
Page 29 User Manual of Digital Video Recorder • Take 2: By operating the front panel (not available for 7200 series) 1. Press and hold the POWER button on the front panel for 3 seconds. 2. Enter the administrator’s username and password in the dialog box for authentication. 3.
Page 30: Chapter 2 Getting Started
User Manual of Digital Video Recorder Chapter 2 Getting Started...
Page 31: Using The Wizard For Basic Configuration
User Manual of Digital Video Recorder 2.1 Using the Wizard for Basic Configuration By default, the Setup Wizard starts once the device has loaded. Figure 2. 1 Start Wizard Interface Operating the Setup Wizard: 1. The Start Wizard can walk you through some important settings of the device. If you don’t want to use the Start Wizard at that moment, click Exit.
Page 32 User Manual of Digital Video Recorder Figure 2. 3 Date and Time Settings 6. After the time settings, click Next which takes you to the Network Start Wizard window. Dual NIC is not supported by DS-7200HWI-SV series. DS-9100/9000HFI-ST/RT/XT & DS-9200/9100/9000HWI-ST & DS-8100/8000HFI (HWI)-ST DS-7200HWI-ST Figure 2.
Page 33 User Manual of Digital Video Recorder window (supported by DS-9100/9000HFI-RT series only). Figure 2. 5 Array Management 8. After configuring array settings, click Next to enter the HDD Management window. Figure 2. 6 HDD Management 9. To initialize the HDD, click Init. Initialization removes all the data saved in the HDD. 10.
Page 34 User Manual of Digital Video Recorder Click the icon , and you can enable the continuous recording or motion Detection recording for all channels of the device. Figure 2. 8 Record Settings 13. Click OK to complete the wizard settings.
Page 35: Adding And Connecting The Ip Cameras
User Manual of Digital Video Recorder 2.2 Adding and Connecting the IP Cameras This Chapter is available for HDVR series only. 2.2.1 Adding the IP Cameras Purpose: HDVR can connect the network cameras and record the video got from them. So before you can get a live view or record of the video, you should add the network cameras to the connection list of the device.
Page 36 User Manual of Digital Video Recorder 004&8004HFI-ST&DS-9004HFI-RT&9004HWI-ST series at most when all the analog cameras are disabled. Figure 2. 10 Analog Camera Management 2. To add the online cameras: Select the IP Camera tab, and the online cameras in the same network segment with the device will be displayed on the list.
Page 37 User Manual of Digital Video Recorder Or click the button Add All to add all the online cameras automatically. The user name and password are admin and 12345 by default. Optionally, you can click the button Custom Adding to enter the Custom Adding interface. Figure 2.
Page 38 User Manual of Digital Video Recorder Figure 2. 14 Import IP Camera Configuration File Select the backup device from the drop-down list and you can click the Refresh button to get the latest information of the backup device. Select the configuration file of IP camera from the list. Click the Import button to import the IP cameras to the device.
Page 39: Configuring The Connected Ip Cameras
User Manual of Digital Video Recorder Figure 2. 16 Export IP Camera Configuration File Select the backup device from the drop-down list and you can click the Refresh button to get the latest information of the backup device. Click the Export button to export the configuration file of IP cameras to the backup device. Click OK on the pop-up message box after the exporting process is complete.
Page 40 User Manual of Digital Video Recorder Figure 2. 18 Edit IP Camera 2. Edit the camera information, such as the IP address, protocol, port, etc. 3. Click the button OK to save the new settings. 4. To delete the added camera, click the icon Or check the corresponding checkbox and click the button Delete.
Page 41 User Manual of Digital Video Recorder 2. There are 16 custom protocols provided in the system. Select a custom protocol from the drop-down list, and configure its corresponding parameters. Before customizing the protocol for the network camera, you have to contact the manufacturer of the network camera to consult the URL (uniform resource locator) for getting main stream and sub-stream.
Page 42: Chapter 3 Live View
User Manual of Digital Video Recorder Chapter 3 Live View...
Page 43: Introduction Of Live View
User Manual of Digital Video Recorder 3.1 Introduction of Live View Live view shows you the video image getting from each camera in real time. The device automatically enters Live View mode when powered on. It is also at the very top of the menu hierarchy, thus right-clicking the mouse repeatedly (depending on which menu you’re on) brings you to the Live View mode.
Page 44: Operations In Live View Mode
User Manual of Digital Video Recorder 3.2 Operations in Live View Mode In live view mode, there are many functions provided. Some of the functions are listed below. • Single Screen: showing only one screen on the monitor. • Multi-screen: showing multiple screens on the monitor simultaneously. •...
Page 45: Using The Mouse In Live View
User Manual of Digital Video Recorder for channel 2. Show multi-screen Press the PREV/FOCUS- button. Manually switch Next screen: right direction button. screens Previous screen: left direction button. Auto-switch Press Enter button. Playback Press Play button. Switch main and aux Press Main/Aux button and Enter button.
Page 46: Using An Auxiliary Monitor
User Manual of Digital Video Recorder Figure 3. 1 Right-click Menu-DVR Series Figure 3. 2 Right-click Menu-HDVR Series 3.2.3 Using an Auxiliary Monitor Certain features of the Live View are also available while in an Aux monitor. These features include: •...
Page 47: Quick Setting Toolbar In Live View Mode
User Manual of Digital Video Recorder 3.2.4 Quick Setting Toolbar in Live View Mode Click on the live view window, a quick setting toolbar will be shown on the bottom as follows: The Live View Strategy icon and Information icon are only available for network cameras.
Page 48 User Manual of Digital Video Recorder • Dim Light: the image is smoother than the other two modes. • Outdoor: the image is relatively clearer and sharper. The degree of contrast and saturation is high. Figure 3. 5 Image Settings for Analog Camera You can adjust the image parameters, including brightness, contrast, saturation, hue, sharpness and denoising.
Page 49 User Manual of Digital Video Recorder Figure 3. 7 Image Settings- Customize for Network Camera Live View Strategy icon can be selected to enter the Live View Strategy menu. You can set the live view performance to real-time, balanced or fluency. This feature is only available for network cameras.
Page 50 User Manual of Digital Video Recorder Figure 3. 9 Information...
Page 51: Adjusting Live View Settings
User Manual of Digital Video Recorder 3.3 Adjusting Live View Settings Purpose: Live View settings can be customized to meet different needs. You can configure the output interface, number of display window, dwell time for screen display, audio output settings, etc. We use the interface of DS-9100HFI-ST series (unless otherwise stated) as the example to describe the following settings.
Page 52 User Manual of Digital Video Recorder Figure 3. 11 Live View- Camera Order To set the camera order: Click the View tab. Select a Video Output Interface and select a screen layout Select the small window, and double-click on the channel number to display the channel on the window.
Page 53: Channel-Zero Encoding
User Manual of Digital Video Recorder 3.4 Channel-zero Encoding Purpose: Sometimes you need to get a remote view of many channels in real time from web browser or CMS (Client Management System) software, in order to decrease the bandwidth requirement without affecting the image quality, channel-zero encoding is provided as an option for you.
Page 54: Manual Video Quality Diagnostics
User Manual of Digital Video Recorder 3.5 Manual Video Quality Diagnostics Purpose: The video quality of the analog channels can be diagnosed manually and you can view the diagnostic results from a list. Steps: 1. Enter the Manual Video Quality Diagnostics interface. Menu>...
Page 55: User Logout
User Manual of Digital Video Recorder 3.6 User Logout Purpose: After logging out, the monitor turns to the live view mode and if you want to do some operation, you need to enter user name and password to log in again. Steps: 1.
Page 56: Chapter 4 Ptz Control
User Manual of Digital Video Recorder Chapter 4 PTZ Control...
Page 57: Configuring Ptz Settings
User Manual of Digital Video Recorder 4.1 Configuring PTZ Settings Purpose: Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should be done before you control the PTZ camera. Before you start: Make sure that the PTZ camera and the device are connected properly via RS-485 interface. Steps: 1.
Page 58: Setting Ptz Presets, Patrols & Patterns
User Manual of Digital Video Recorder 4.2 Setting PTZ Presets, Patrols & Patterns Before you start: Make sure that the presets, patrols and patterns should be supported by PTZ protocols. We use the interface of DS-9100HFI-ST series (unless otherwise stated) as the example to describe the following settings.
Page 59: Calling Presets
User Manual of Digital Video Recorder 4.2.2 Calling Presets Purpose: The view angle of the PTZ camera will be moved to the predefined position when you call a preset. Call a preset on the PTZ setting interface: Steps: 1. Enter the PTZ Control interface. Menu>...
Page 60: Customizing Patrols
User Manual of Digital Video Recorder 2. Click the Camera tab on the panel, and select the channel for control on the camera list. 3. Click the Preset tab on the panel, and double-click the preset you want to call on the preset list. 4.2.3 Customizing Patrols Purpose: A patrol is a scanning track specified by a group of user-defined key points, with the scanning speed between...
Page 61: Calling Patrols
User Manual of Digital Video Recorder You can also click to delete the corresponding key point and click to delete all the key points. Figure 4. 8 KeyPoints Deletion 4.2.4 Calling Patrols Purpose: The PTZ camera will move according to the predefined patrol path when you call a patrol. Call a patrol in the PTZ setting interface: Steps: 1.
Page 62: Customizing Patterns
User Manual of Digital Video Recorder Figure 4. 10 PTZ Panel- Patrol 4.2.5 Customizing Patterns Purpose: A pattern is a memorized, repeating series of pan, tilt, zoom, and preset functions. Steps: 1. Enter the PTZ Control interface. Menu>Camera>PTZ>More Settings 2. Choose pattern number in the option box. Figure 4.
Page 63: Calling Patterns
User Manual of Digital Video Recorder 4.2.6 Calling Patterns Purpose: The PTZ camera will move according to the predefined pattern path when you call a pattern. Call a pattern in the PTZ setting interface Steps: 1. Enter the PTZ Control interface. Menu>...
Page 64: Ptz Control Panel
User Manual of Digital Video Recorder 4.3 PTZ Control Panel To enter the PTZ control Panel, there are 2 ways supported: Option1: In the PTZ settings interface, click the PTZ button on the lower-right corner. Option2: In the Live View mode, you can press the PTZ Control button on the front panel or on the remote control, or click the PTZ Control icon in the quick setting toolbar to enter the PTZ control panel;...
Page 65 User Manual of Digital Video Recorder Stop the patrol or Minimize Exit pattern movement windows...
Page 66: Chapter 5 Record And Capture Settings
User Manual of Digital Video Recorder Chapter 5 Record and Capture Settings...
Page 67: Configuring Encoding Parameters
User Manual of Digital Video Recorder Sensor alarm is not supported by DS-7200HWI-SV series. The interfaces of the device are subject to the actual model. 5.1 Configuring Encoding Parameters Purpose: By configuring the encoding parameters you can define the parameters which affect the image quality, such as transmission stream type, the resolution, etc.
Page 68 User Manual of Digital Video Recorder 2. Encoding Parameters for Recording Click the Record tab to configure the record parameters, such as stream type, resolution, bitrate type, video quality, frame rate, etc. • Pre-record: The time you set to record before the scheduled time or event. For example, when an alarm triggered the recording at 10:00, if you set the pre-record time as 5 seconds, the camera records it at 9:59:55.
Page 69 User Manual of Digital Video Recorder 3. Encoding Parameters for Sub-stream Click the Substream tab to configure the parameters of sub-stream, such as stream type, resolution, frame rate, etc. Figure 5. 6 Sub-stream Encoding Click Apply to save the settings. Optionally, you can click Copy to copy the settings to other analog channels if needed.
Page 70 User Manual of Digital Video Recorder  The two-way audio record can only be bound to the analog cameras.  The bound two-way audio record will overlap the original audio input during the two-way audio. Figure 5. 9 Two-way Audio Record...
Page 71: Configuring Record/Capture Schedule
To schedule the automatic capture, you need to choose the Capture tab in the Schedule interface. We use the interface of DS-9000HFI-ST series (unless otherwise stated) as example to describe the following settings.
Page 72 User Manual of Digital Video Recorder as well. For detailed information, refer to Chapter 8.1 and Chapter 8.2. Figure 5. 11 Edit Schedule To arrange other schedule, leave the All Day checkbox blank and set the Start/End time and Type. Up to 8 periods can be configured for each day.
Page 73 User Manual of Digital Video Recorder Click OK to save setting and back to upper level menu. Task 2: Draw the Schedule Steps: Click to select a record type, including Continuous, Motion, Alarm, M | A, M & A, VCA and None. ...
Page 74 User Manual of Digital Video Recorder Figure 5. 15 Draw the Schedule (2) You can repeat the above steps to set schedule for other channels. If the settings can also be used to other channels, click Copy, and then choose the channel to which you want to copy. Click Apply in the Record/Capture Schedule interface to save the settings.
Page 75: Configuring Motion Detection Recording And Capture
User Manual of Digital Video Recorder 5.3 Configuring Motion Detection Recording and Capture Purpose: Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the device can analyze it and do many actions to handle it. Enabling motion detection function can trigger certain channels to start recording/capture, or trigger full screen monitoring, audible warning, notify the surveillance center and so on.
Page 76 User Manual of Digital Video Recorder IP Camera is supported by HDVR series only. Select the channels which you want the motion detection event to trigger recording or capture. Click Apply to save the settings. Click OK to back to the upper level menu. Click Apply in the Motion Detection interface to save the settings.
Page 77: Configuring Alarm Triggered Recording And Capture
User Manual of Digital Video Recorder 5.4 Configuring Alarm Triggered Recording and Capture Purpose: Follow the procedure to configure alarm triggered recording or capture. Sensor alarm is not supported by DS-7200HWI-SV series. We use the interface of DS-9100HFI-ST series (unless otherwise stated) as example to describe the following settings. Steps: 1.
Page 78 User Manual of Digital Video Recorder Figure 5. 24 Alarm Settings for DVR Series Figure 5. 25 Alarm Settings for HDVR Series IP Camera is supported by HDVR series only. Check the checkbox to choose the alarm triggered recording/capture channel. Click Apply to save settings.
Page 79 User Manual of Digital Video Recorder Figure 5. 27 Record Schedule...
Page 80: Configuring Manual Recording And Continuous Capture
User Manual of Digital Video Recorder 5.5 Configuring Manual Recording and Continuous Capture Purpose: Follow the steps to set parameters for the manual recording and continuous capture. Using manual recording and continuous capture, you need to manually cancel the record and capture. The manual recording and manual continuous capture is prior to the scheduled recording and capture.
Page 81 User Manual of Digital Video Recorder Figure 5. 30 Continuous Recording Figure 5. 31 Motion Detection Recording Click Yes to enable all-day continuous recording or all-day motion detection recording of all channels. 5. Enabling and disabling the continuous capture. Select Continuous Capture tab on the left bar. Figure 5.
Page 82: Configuring Holiday Recording And Capture
User Manual of Digital Video Recorder 5.6 Configuring Holiday Recording and Capture Purpose: You may want to have different plan for recording and capture on holiday. Follow the steps to configure the record or capture schedule on holiday for that year. The priority of holiday schedule is higher than any other schedule.
Page 83 User Manual of Digital Video Recorder There are three different modes for the date format to configure holiday schedule, including Date, Week and Month. Set the start and end date. Click Apply to save settings. Click OK to exit the Edit interface. 4.
Page 84: Configuring Redundant Recording And Capture
User Manual of Digital Video Recorder 5.7 Configuring Redundant Recording and Capture Purpose: The record files and captured pictures are stored not only in the R/W (read/write) HDD but also in the redundant HDD when the Redundant Record/Capture function is enabled, thus enhancing the data safety and reliability effectively.
Page 85 User Manual of Digital Video Recorder Select Record. Figure 5. 40 Record Parameters Select Camera you want to configure. Check checkbox to enable redundant recording and capture. Click Apply to save settings. Repeat the above steps2)-4) for configuring other channels. If the setting can also be applied to other analog channels, click Copy and then choose the channel(s).
Page 86: Configuring Hdd Group For Recording And Capture
User Manual of Digital Video Recorder 5.8 Configuring HDD Group for Recording and Capture Purpose: You can group the HDDs and save the record files and captured pictures in certain HDD group. Steps: 1. Enter HDD setting interface. Menu > HDD Figure 5.
Page 87 User Manual of Digital Video Recorder IP Camera is supported by HDVR series only. Choose Group number in the drop-down list of Record on HDD Group. Check the channels you want to save in this group. Click Apply to save settings. After having configured the HDD groups, you can configure the Recording and Capture settings by following the procedure provided in Chapter 5.2-5.7.
Page 88: Files Protection
User Manual of Digital Video Recorder 5.9 Files Protection Purpose: You can lock the recorded files or set the HDD property to Read-only to protect the record files from being overwritten. We use the interface of DS-9000HFI-RT series (unless otherwise stated) as example to describe the following settings.
Page 89 User Manual of Digital Video Recorder Figure 5. 45 Locked File Management 4. You can click the icon on the Locked File Management interface to unlock the selected record file. Task 2: Lock File when Export Steps: 1. Enter Export setting interface. Menu>...
Page 90: Setting Hdd Property To Read-Only
User Manual of Digital Video Recorder Figure 5. 47 Export- Search Result 5. Protect the record files. Select the record file to be protected, and then click the icon. The icon turns to , indicating that the file is locked. Click the icon to unlock the file and the file is not protected.
Page 91 User Manual of Digital Video Recorder Figure 5. 50 HDD General- Editing 3. Set the HDD to Read-only. 4. Click OK to save settings and back to the upper level menu.  You can’t save any files in a Read-only HDD. If you want to save files in the HDD, change the property to R/W.
Page 92: Chapter 6 Playback
User Manual of Digital Video Recorder Chapter 6 Playback...
Page 93: Playing Back Record Files
User Manual of Digital Video Recorder 6.1 Playing Back Record Files  We use the interface of DS-9000HFI-ST series (unless otherwise stated) as the example to describe the following settings.  Frame extracting mode is only supported by DVR series.
Page 94 User Manual of Digital Video Recorder Figure 6. 2 Right-click Menu-DVR Series Figure 6. 3 Right-click Menu-HDVR Series Front Panel: Press PLAY button to play back record files of the channel under single-screen live view mode. Pressing numerical buttons will switch playback to the corresponding channels during playback process. Front panel operation is not supported by 7200HWI-SV series.
Page 95: Playing Back By Time
User Manual of Digital Video Recorder Figure 6. 4 Playback Interface  indicates the start time and end time of the record files.  represents normal recording (manual or schedule); represents event recording (motion, alarm, motion | alarm, motion & alarm, VCA). ...
Page 96 User Manual of Digital Video Recorder  If there are normal recordings (manual or schedule) for that camera in that day, on the calendar, the icon for that day is displayed as ; If there are event triggered recordings (motion, alarm, motion | alarm, motion &...
Page 97: Playing Back By Event Search
User Manual of Digital Video Recorder  represents normal recording (manual or schedule); represents event recording (motion, alarm, motion | alarm, motion & alarm, VCA).  Playback progress bar: use the mouse to click any point of the progress bar to locate special frames, and a thumbnail of the specified frame will be displayed.
Page 98 User Manual of Digital Video Recorder Figure 6. 8 Event Playback Interface-Motion The VCA event search is only available to the HDVR series. 4. Click Search, and the record files matching the search conditions will be displayed on a list. Figure 6.
Page 99 User Manual of Digital Video Recorder 5. Click button to play back the record files. You can click Back to return to the search interface. Pre-play and post-play can be configured for the playback of event triggered record files. Pre-play: The time you set to play back before the event. For example, when an alarm triggered the recording at 10:00, if you set the pre-play time as 5 seconds, the video plays back from 9:59:55.
Page 100 User Manual of Digital Video Recorder Figure 6. 11 Interface of Playback by Event Figure 6. 12 Toolbar of Playback by Event Table 6. 2 Detailed Explanation of Playback-by-event Interface Button Operation Button Operation Button Operation Button Operation Audio on/ Adjust Start/Stop Capture...
Page 101: Playing Back By Tag
User Manual of Digital Video Recorder 6.1.4 Playing Back by Tag Purpose: Default tags and customized tags can be added to mark the record files, and you can search the added tags and play back the marked record files through tag playback. Before you start: 1.
Page 102 User Manual of Digital Video Recorder Figure 6. 14 Tag Management Interface Steps: 1. Enter Playback interface. Menu>Playback 2. Click and select to enter the Tag Playback interface. Figure 6. 15 Video Search by Tag 3. Select the channels from the list, and specify the start time and end time for search. 4.
Page 103 User Manual of Digital Video Recorder Pre-play and post-play time can be set according to actual needs. Pre-play time and post-play time is added to the time point of the tag. Figure 6. 16 Interface of Playback by Tag Figure 6. 17 Toolbar of Playback by Tag Figure 6.
Page 104 User Manual of Digital Video Recorder mode...
Page 105: Smart Playback
User Manual of Digital Video Recorder 6.1.5 Smart Playback Purpose: The smart playback function provides an easy way to get through the less effective information. When you select the smart playback mode, the system will analyze the video containing the motion or VCA information, mark it with green color and play it in the normal speed while the video without motion will be played in the 16-time speed.
Page 106 User Manual of Digital Video Recorder Table 6. 4 Detailed Explanation of Smart Playback Button Operation Button Operation Button Operation Pause play/ Smart search Stop Play Scaling Video type / Process bar up/down the picture time line...
Page 107: Playing Back By Searching System Log
User Manual of Digital Video Recorder 6.1.6 Playing Back by Searching System Log Purpose: You can also play back record file(s) after searching system logs. Steps: 1. Enter Log Information interface. Menu>Maintenance>Log Information>Log Search Figure 6. 20 Log Search Interface 2.
Page 108: Playing Back External Files
User Manual of Digital Video Recorder Figure 6. 21 Result of System Log Search 6. Select a log with record file and click button to enter Playback interface. If there is no record file at the time point of the log, the message box “No result found” will pop up. Figure 6.
Page 109: Playing Back Frame Extracting Record
User Manual of Digital Video Recorder The files stored in the extrenal device are listed in the right-side list. You can click the Refresh button to refresh the file list. 3. Select a record file and click to play it. Figure 6.
Page 110 User Manual of Digital Video Recorder Figure 6. 24 Frame Extracting Record Playback Interface 2. Select the record type (Normal, Event and Tag) from the drop-down list and search the corresponding files. For details, see Chapter 6.1.2, Chapter 6.1.3 or Chapter 6.1.4. 3.
Page 111: Auxiliary Functions Of Playback
User Manual of Digital Video Recorder 6.2 Auxiliary Functions of Playback 6.2.1 Playing Back Frame by Frame Purpose: Play video files frame by frame, in order to view the image details of the video when abnormal events occur. Steps: • Using a Mouse: Go to Playback interface.
Page 112 User Manual of Digital Video Recorder Figure 6. 27 Interface of Smart Playback 2. Click the icon on the toolbar to enter Smart Search mode. The smart search toolbar appears at the bottom of the screen. Figure 6. 28 Draw Area for Smart Search 3.
Page 113: Digital Zoom
User Manual of Digital Video Recorder click the button to set the full screen as the detection area. 4. Click the icon to start the smart search, and the events occurred in the defined area will be marked as on the time bar. 6.2.3 Digital Zoom We use the interface of DS-9000HFI-RT series (unless otherwise stated) as example to describe the following settings.
Page 114 User Manual of Digital Video Recorder Figure 6. 30 4-ch Synchronous Playback Interface  If more than one channel is optional, the synchronous playback will be activated.  The record files will be marked by two lines on the process bar. The upper one indicates the record files of the selected channel;...
Page 115: Picture Playback
User Manual of Digital Video Recorder 6.3 Picture Playback Purpose: The captured pictures stored in the HDDs of the device can be searched and viewed. Steps: 1. Enter Playback interface. Menu>Playback and s 2. Click elect to enter the Picture Playback interface. Figure 6.
Page 116 User Manual of Digital Video Recorder Figure 6. 32 Result of Picture Playback 6. The toolbar in the bottom part of Playback interface can be used to control playing process. Figure 6. 33 Picture Playback Toolbar Table 6. 5 Detailed Explanation of Picture-playback Toolbar Button Function Button...
Page 117: Chapter 7 Backup
User Manual of Digital Video Recorder Chapter 7 Backup...
Page 118: Backing Up Record Files
User Manual of Digital Video Recorder 7.1 Backing up Record Files Before you start: Please insert the backup device(s) into the device. 7.1.1 Quick Export Purpose: Export record files to backup device(s) quickly. We use the interface of DS-9000HFI-RT series (unless otherwise stated) as example to describe the following settings.
Page 119: Backing Up By Normal Video Search
User Manual of Digital Video Recorder Figure 7. 2 Quick Export using USB1-1 4. Select the backup device from the drop-down list and click the button Export. The record files within the start time and end time will be exported to the external storage device (e.g., USB Flash Drive) after the backup process is complete.
Page 120 User Manual of Digital Video Recorder When the backup device is the eSATA HDD, click Menu>Record>Advanced, select eSATA1 from the eSATA drop-down list, and set the usage as Export. Click Apply to save the settings and click Yes to confirm it. Backup using USB flash drives, USB HDDs, USB writer and DVD-R/W Steps: 1.
Page 121 User Manual of Digital Video Recorder The size of the currently selected files is displayed in the lower-left corner of the window. Figure 7. 6 Export by Normal Video Search using USB Flash Drive 4. Click the button Export on the Export interface to start the backup process. A prompt message will pop up after the backup process is complete.
Page 122: Backing Up By Event Search
User Manual of Digital Video Recorder 7.1.3 Backing up by Event Search Purpose: The event triggered recordings can be backed up on USB devices (USB flash drives, USB HDDs, USB writer), DVD-R/W or eSATA HDD. Quick Backup and Normal Backup are supported. Steps: 1.
Page 123 User Manual of Digital Video Recorder Click the button Details, and you can view the detailed information of selected events. Then, select the record files, click the button Export or click the button Export All to select all the record files directly to enter the Export interface.
Page 124: Backing Up Video Clips
User Manual of Digital Video Recorder 5. The exported record files will be displayed in a list on the Export interface. You can click to view the video, or click to delete the record file. The Player program player.exe will be exported automatically during record file export. Figure 7.
Page 125 User Manual of Digital Video Recorder Figure 7. 15 Interface of Playback by Time 2. In the playback process, click the icon in the playback toolbar to start/stop clipping record file(s). 3. Click the button on the toolbar, select Video Clip tab, and you can view and export the video clips. Figure 7.
Page 126 User Manual of Digital Video Recorder Figure 7. 17 Export Video Clips Using USB Flash Drive Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”. Figure 7. 18 Export Finished 5. After the backup is complete, the exported record files will be displayed in a list on the Export interface. The Player program player.exe will be exported automatically during record file export.
Page 127: Backing Up Pictures
User Manual of Digital Video Recorder 7.2 Backing up Pictures Task 1: Back up Captured Pictures when Playback Purpose: Back up the pictures captured during playback. Steps: 1. Enter Playback interface and start the playback. For details, see Chapter 6.1. Figure 7.
Page 128 User Manual of Digital Video Recorder 4. Refer to the steps4~5 in Chapter 7.1.4 to export the pictures. Task 2: Back up All Types of Captured Pictures Purpose: Back up pictures using USB devices (USB flash drives, USB HDDs, USB writer), DVD-R/W or eSATA HDD. Steps: 1.
Page 129 User Manual of Digital Video Recorder the button Export All to select all the pictures and enter the Export interface. Here we take USB flash drive as an example. For more backup devices, see Chapter 7.1.2. Figure 7. 25 Export Pictures Using USB Flash Drive 4.
Page 130: Managing Backup Devices
User Manual of Digital Video Recorder 7.3 Managing Backup Devices We use the interface of DS-9000HFI-RT series (unless otherwise stated) as example to describe the following settings. Steps: 1. Enter the Export interface of backup device. For details, see Chapter 7.1-7.2. Figure 7.
Page 131 User Manual of Digital Video Recorder For USB Writers and DVD-R/W: Click the button Erase, and you can erase the files from a re-writable CD/DVD. If the inserted device is not recognized, you can perform the following steps:  Click the button Refresh. ...
Page 132: Hot Spare Backup
User Manual of Digital Video Recorder 7.4 Hot Spare Backup This section is only applicable to the devices of HDVR series. Before you start: At least 2 devices are required to be online. Purpose: Several devices can form an N+1 hot spare system. The system consists of several working devices and a hot spare device;...
Page 133: Setting The Working Device
User Manual of Digital Video Recorder Figure 7. 31 Hot Spare Mode Settings 7.4.2 Setting the Working Device Steps: 1. Enter the Hot Spare Settings interface of the working device. Menu>Configuration>Hot Spare 2. Set the working mode of the device as Normal Mode (default). 3.
Page 134: Hot Spare Management
User Manual of Digital Video Recorder 7.4.3 Hot Spare Management Steps: 1. Enter the Hot Spare Settings interface of the hot spare device again. The connected working device is displayed on the device list. Check the checkbox to select the working device from the list, and click the button Add to link the working device to the hot spare device.
Page 135 User Manual of Digital Video Recorder function. The record synchronization function can be enabled for up to 1 working device at a time. Figure 7. 36 Working Status of Hot Spare Device-3...
Page 136: Chapter 8 Alarm Settings
User Manual of Digital Video Recorder Chapter 8 Alarm Settings...
Page 137: Setting Motion Detection
User Manual of Digital Video Recorder 8.1 Setting Motion Detection We use the interface of DS-9100HFI-ST series (unless otherwise stated) as example to describe the following settings. Steps: 1. Enter Motion Detection interface and choose a camera you want to set motion detection. Menu>...
Page 138 User Manual of Digital Video Recorder Figure 8. 4 Set Trigger Camera Motion Detection for HDVR Series Triggering IP Camera is supported by HDVR series only. 4. Set arming schedule of the channel. Select Arming Schedule tab and set arming schedule of the channel. Choose one day of a week and up to eight time periods can be set within each day.
Page 139 User Manual of Digital Video Recorder 6. If you want to set motion detection for another channel, repeat the above steps or just click Copy in the Motion Detection interface to copy the above settings to it. You are not allowed to copy the “Trigger Channel” action and motion detection settings to IP camera. Figure 8.
Page 140: Setting Sensor Alarm
User Manual of Digital Video Recorder 8.2 Setting Sensor Alarm Purpose: You can set handling method of an external sensor alarm. Sensor alarm is not supported by DS-7200HWI-SV series. Steps: 1. Enter Alarm Settings interface and select an alarm input. Menu>...
Page 141 User Manual of Digital Video Recorder Time periods cannot be repeated or overlapped. Figure 8. 10 Arming Schedule of Alarm Input 5. Select Linkage Action tab to set alarm linkage actions of the alarm input (please refer to Chapter 8.7). 6.
Page 142 User Manual of Digital Video Recorder Figure 8. 12 Settings of Alarm Input Copy...
Page 143: Setting Vca Alarm
User Manual of Digital Video Recorder 8.3 Setting VCA Alarm Before you start: Enable the VCA (Video Content Analysis) function and set the detection rules on the IP camera side. For details, see the user manual of IP camera. Purpose: The HDVR can receive the VCA alarm sent by smart IP cameras.
Page 144 User Manual of Digital Video Recorder 4. Set arming schedule of the channel. Select Arming Schedule tab and set arming schedule of the channel. Choose one day of a week and up to eight time periods can be set within each day. Set up arming schedule of other days of a week.
Page 145: Detecting Video Loss
User Manual of Digital Video Recorder 8.4 Detecting Video Loss Purpose: Detect video loss of a channel and take alarm response action(s). Steps: 1. Enter Video Loss interface and select a channel you want to detect. Menu> Camera> Video Loss Figure 8.
Page 146 User Manual of Digital Video Recorder 5. If you want to set video loss handling method for another channel, repeat the above steps or just click Copy in Video Loss interface to copy the above settings to it. Copying video loss settings to IP camera is not supported. Figure 8.
Page 147: Detecting Video Tampering
User Manual of Digital Video Recorder 8.5 Detecting Video Tampering Purpose: Trigger alarm and take alarm response action(s) when the lens is covered. Steps: 1. Enter Video Tampering interface and select a channel you want to detect video tampering. Menu> Camera> Video Tampering Figure 8.
Page 148 User Manual of Digital Video Recorder 4. Select Linkage Action tab to set alarm linkage actions of video tampering alarm. For details, see Chapter 8.7. Click Apply to save the settings and click OK to complete the video tampering settings of the channel. 5.
Page 149: Handling Exceptions
User Manual of Digital Video Recorder 8.6 Handling Exceptions Purpose: Exception settings refer to the handling method of various exceptions, e.g.  HDD Full: The HDD is full.  HDD Error: Writing HDD error, unformatted HDD, etc.  Network Disconnected: Disconnected network cable. ...
Page 150 User Manual of Digital Video Recorder 3. Set the alarm linkage actions. For details, see Chapter 8.7. 4. Click Apply to save the settings. Figure 8. 24 Settings Interface Exception...
Page 151: Setting Alarm Linkage Actions
User Manual of Digital Video Recorder 8.7 Setting Alarm Linkage Actions Purpose: Alarm linkage actions will be activated when an alarm or exception occurs, including Full Screen Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Send Email, Upload Captured Pictures to FTP (this function is supported by DVR series only) and Trigger Alarm Output (not supported by the DS-7200 series).
Page 152 User Manual of Digital Video Recorder 1. Enter Alarm Output interface. Menu> Configuration> Alarm> Alarm Output Select an alarm output and set alarm name and dwell time. If “Manually Clear” is selected in the drop-down list of Dwell Time, you can clear it only by going to Menu>...
Page 153 User Manual of Digital Video Recorder Figure 8. 27 Copy of Alarm Output Settings...
Page 154: Triggering Or Clearing Alarm Output Manually
User Manual of Digital Video Recorder 8.8 Triggering or Clearing Alarm Output Manually Purpose: Sensor alarm can be triggered or cleared manually. If “Manually Clear” is selected in the drop-down list of dwell time of an alarm output, the alarm can be cleared only by clicking Clear button in the following interface. Steps: Select the alarm output you want to trigger or clear and make related operations.
Page 155: Chapter 9 Network Settings
User Manual of Digital Video Recorder Chapter 9 Network Settings...
Page 156: Configuring General Settings
1. Enter the Network Settings interface. Menu > Configuration > Network Figure 9. 1 Network Settings Interface for DS-9200HWI-ST & DS-9100HFI-ST/RT/XT (HWI-ST) & DS-8100HFI(HWI)-ST Figure 9. 2 Network Settings Interface for DS-9000HFI-ST/RT/XT (HWI-ST) & DS-8000HFI(HWI)-ST Figure 9. 3 Network Settings Interface for DS-7200HWI-SV...
Page 157 User Manual of Digital Video Recorder In network settings interface: The FTP setting is supported by DVR series only. The Dual NIC (network interface card) is not supported by DS-7200HWI-SV series. We use the interface of DS-9100HFI-ST series (unless otherwise stated) as example to describe the following settings. 2.
Page 158 User Manual of Digital Video Recorder Figure 9. 5 Load Balance Working Mode Net Fault-tolerance Mode: The two NIC cards use the same IP address, and you can select the Main NIC to LAN1 or LAN2. By this way, in case of one NIC card failure, the device will automatically enable the other standby NIC card so as to ensure the normal running of the whole system.
Page 159: Configuring Advanced Settings
User Manual of Digital Video Recorder 9.2 Configuring Advanced Settings We use the interface of DS-9100HFI-ST series (unless otherwise stated) as example to describe the following settings. 9.2.1 Configuring PPPoE Settings Purpose: Your device also allows access by Point-to-Point Protocol over Ethernet (PPPoE). Steps: 1.
Page 160 User Manual of Digital Video Recorder Prior registration with your ISP is required before configuring the system to use DDNS. Steps: 1. Enter the Network Settings interface. Menu > Configuration > Network 2. Select the DDNS tab to enter the DDNS Settings interface. Figure 9.
Page 161 User Manual of Digital Video Recorder Figure 9. 12 Peanut Hull Settings Interface • NO-IP: Enter the account information in the corresponding fields. Enter Server Address for NO-IP. In the Device Domain Name text field, enter the domain obtained from the NO-IP website (www.no-ip.com).
Page 162 User Manual of Digital Video Recorder Figure 9. 15 Register an Account In the Device Management interface, click to register the device. Figure 9. 16 Register the Device The device name can only contain the lower-case English letter, numeric and ‘-’; and it must start with the lower-case English letter and cannot end with ‘-’.
Page 163: Configuring Ntp Server Settings
User Manual of Digital Video Recorder Device Domain Name: It refers to the Device Domain Name on the device or the Device Name on the HiDDNS server you created. User Name: Enter the user name of the device. By default it is admin. Password: Enter the password of the device.
Page 164: Configuring Ftp Server Settings
User Manual of Digital Video Recorder network, NTP software can be used to establish a NTP server used for time synchronization. 9.2.4 Configuring FTP Server Settings FTP configuration is supported by DVR series only. Purpose: The FTP (File Transfer Protocol) can be configured on your device to realize dual-directional transmission of control files over Internet.
Page 165: Configuring Snmp Settings
User Manual of Digital Video Recorder Directory: In the Directory field, you can select the Root directory, Parent directory and secondary directory. When the Parent Directory is selected, you have the option to use the Device Name, Device No. or Device IP for the name of the directory, or you can customize the directory name; and the when the Secondary Directory is selected, you can use the Camera Name or Camera No.
Page 166: Configuring Nat Settings
User Manual of Digital Video Recorder 9.2.6 Configuring NAT Settings Two ways are provided for port mapping to realize the remote access via the cross-segment network, UPnP™ and manual mapping.  UPnP Purpose: Universal Plug and Play (UPnP™) permits the device to discover the presence of other network devices on the network seamlessly and establish functional network services for data sharing, communications, etc.
Page 167 User Manual of Digital Video Recorder If you select Manual as the mapping type, you can edit the external port on your demand by clicking to activate the External Port Settings dialog box. Steps: Click to activate the External Port Settings dialog box. Configure the external port No. for server port, http port, RTSP port and https port respectively.
Page 168: Configuring Remote Alarm Host Settings
User Manual of Digital Video Recorder The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of the other ports should be between 1 and 65535 and the value must be different from each other. If multiple devices are configured for the UPnP™...
Page 169: Configuring Multicast Settings
User Manual of Digital Video Recorder Figure 9. 29 More Settings Interface 3. Enter Alarm Host IP and Alarm Host Port in the text fields. The Alarm Host IP refers to the IP address of the remote PC on which the CMS (Client Management System) software (e.g., iVMS-4200) is installed, and the Alarm Host Port must be the same as the alarm monitoring port configured in the software.
Page 170: Configuring Rtsp Settings
User Manual of Digital Video Recorder 9.2.9 Configuring RTSP Settings Purpose: The RTSP (Real Time Streaming Protocol) is network control protocol designed for use in entertainment and communications systems to control streaming media servers. Steps: 1. Enter the Network Settings interface. Menu >...
Page 171: Configuring Https Settings
User Manual of Digital Video Recorder The Server Port should be set to the range of 2000-65535 and it is used for remote client software access. The HTTP port is used for remote IE access. 9.2.11 Configuring HTTPS Settings Purpose: HTTPS (Hyper Text Transfer Protocol Secure) ensures the data transferred is encrypted using Secure Socket Layer (SSL) or Transport Layer Security (TLS).
Page 172: Configuring High-Speed Download Settings
User Manual of Digital Video Recorder Enter the country, host name/IP, validity and other information. Click OK to save the settings. OPTION 2: Create the authorized certificate Click the Create button to create the certificate request. Download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed valid certificate, import the certificate to the device.
Page 173: Configuring Email Settings
User Manual of Digital Video Recorder If you enable the high-speed download function, the local menu operation will be affected. It is recommended to disable this function after finishing the remote download of record files. Figure 9. 38 Message Box for High-speed Download 4.
Page 174 User Manual of Digital Video Recorder Figure 9. 40 Email Settings Interface 5. Configure the following Email settings: Enable Server Authentication (optional): If your mail server requires authentication, check this checkbox to use authentication to log in to this server and enter the login User Name and Password. User Name: The user account of sender’s Email for SMTP server authentication.
Page 175: Virtual Host Settings
User Manual of Digital Video Recorder Figure 9. 42 Email Testing Attention 9.2.14 Virtual Host Settings Purpose: You can directly get access to the IP camera management interface from the HDVR management interface.  The Virtual host function is only supported by the HDVR series. ...
Page 176: Telnet Settings
User Manual of Digital Video Recorder 9.2.15 Telnet Settings Purpose: Telnet function provides an easy way to get access to the DVR/HDVR. You can see the advanced information about the device by inputting command; as well the configuration can also be realized through telnet connection. Steps: 1.
Page 177: Checking Network Traffic
User Manual of Digital Video Recorder 9.3 Checking Network Traffic Purpose: You can check the network traffic to obtain real-time information of device such as linking status, MTU, sending/receiving rate, etc. Steps: 1. Enter the Network Traffic interface. Menu > Maintenance > Net Detect Figure 9.
Page 178: Network Detection
User Manual of Digital Video Recorder 9.4 Network Detection Purpose: You can obtain network connecting status of device through the network detection function, including network delay, packet loss, etc. 9.4.1 Testing Network Delay and Packet Loss Steps: 1. Enter the Network Detection interface. Menu >...
Page 179: Exporting Network Packet
User Manual of Digital Video Recorder 9.4.2 Exporting Network Packet Purpose: By connecting the device to network, the captured network data packet can be exported to USB-flash disk, SATA/eSATA DVD-R/W and other local backup devices. Dual NIC is not supported by DS-7200HWI-SV series. We use the interface of DS-9100HFI-ST series (unless otherwise stated) as example to describe the following settings.
Page 180: Checking Network Status
User Manual of Digital Video Recorder 9.4.3 Checking Network Status Purpose: You can also check the network status and quick set the network parameters in this interface. Dual NIC is not supported by DS-7200HWI-SV series. We use the interface of DS-9100HFI-ST series (unless otherwise stated) as example to describe the following settings.
Page 181: Checking Network Statistics
User Manual of Digital Video Recorder Figure 9. 55 Network Parameters Configuration 9.4.4 Checking Network Statistics Purpose: You can check the network statistics to obtain the real-time information of the device. Steps: 1. Enter the Network Statistics interface. Menu > Maintenance> Net Detect 2.
Page 182: Chapter 10 Raid Configuration
User Manual of Digital Video Recorder Chapter 10 RAID Configuration...
Page 183: Configuring Array And Virtual Disk
User Manual of Digital Video Recorder This chapter is available for DS-9100/9000HFI-RT series only. For the configuration for alarm linkage actions of array exception, please refer to Chapter 8.6 and Chapter 8.7. 10.1 Configuring Array and Virtual Disk Purpose: RAID (redundant array of independent disks) is a storage technology that combines multiple disk drive components into a logical unit.
Page 184: One-Touch Configuration
User Manual of Digital Video Recorder 10.1.1 One-touch Configuration Purpose: Through one-touch configuration, you can quickly create the disk array and virtual disk. By default, the array type to be created is RAID 5. Steps: 1. Enter the Physical Disk Settings interface. Menu >...
Page 185: Manually Creating Array And Virtual Disk
User Manual of Digital Video Recorder 5. You can click Array tab to view the information of the successfully created array. By default, one-touch configuration creates an array and a virtual disk. Figure 10. 4 Array Settings Interface 6. Click Virtual Disk tab to view the automatically created virtual disk. By default, one-touch configuration adopts background initialization to initialize the virtual disk.
Page 186 User Manual of Digital Video Recorder Figure 10. 6 Physical Disk Settings Interface 2. Click Create to enter the Create Array interface. Figure 10. 7 Create Array Interface 3. Edit the Array Name; set the RAID Level to RAID 0, RAID 1, RAID 5 or RAID 10; select the Physical Disk that you want to configure array.
Page 187 User Manual of Digital Video Recorder If the number of HDDs you select is not compatible with the requirement of the RAID level, the error message box will pop up. Figure 10. 8 Error Message Box 5. You can click Array tab to view the successfully created array. Figure 10.
Page 188 User Manual of Digital Video Recorder the RAID, and cannot detect the bad sector. Foreground (Recommended): By using foreground initialization, the RAID will be initialized totally and the bad sector of the hard disks can be detected and repaired. The virtual disk can be used only after the initialization is complete.
Page 189 User Manual of Digital Video Recorder Figure 10. 14 Hot Spare Disk...
Page 190: Rebuilding Array
User Manual of Digital Video Recorder 10.2 Rebuilding Array Purpose: The working status of array includes Functional, Disk Loss and Offline. By viewing the array status, you can take immediate and proper maintenance for the disks so as to ensure the high security and reliability of the data stored in the disk array.
Page 191: Manually Rebuilding Array
User Manual of Digital Video Recorder 10.2.2 Manually Rebuilding Array Purpose: If there is no hot spare disk available, you can rebuild the array manually to restore the array when the virtual disk is in Degraded status. Steps: Enter the Array Settings interface. The status of the array is displayed as Disk Loss, and the status of the virtual disk is displayed as Degraded.
Page 192: Repairing Virtual Disk
User Manual of Digital Video Recorder 10.3 Repairing Virtual Disk Purpose: When the disk cannot be displayed on the HDD Information interface while the virtual disk can still show in the Array Settings interface, you have to repair the virtual disk. If the virtual disk is under foreground initialization, the repairing cannot be done.
Page 193: Deleting Array / Virtual Disk
User Manual of Digital Video Recorder 10.4 Deleting Array / Virtual Disk Before deleting the array, the virtual disk(s) under this array must be deleted first. Deleting array and virtual disk will delete all the data saved in the disk. 10.4.1 Deleting the Virtual Disk Steps: Enter the Virtual Disk interface.
Page 194 User Manual of Digital Video Recorder Figure 10. 25 Array Settings Interface Select an array and click to delete the array. Figure 10. 26 Confirm Array Deletion In the pop-up message box, click Yes to confirm the array deletion. Deleting array will cause to delete all the data in the array.
Page 195: Upgrading Firmware
User Manual of Digital Video Recorder 10.5 Upgrading Firmware Purpose: You can view the information of the firmware and upgrade the firmware by local backup device or remote FTP server. Steps: Enter the Firmware interface to view the information of the firmware, including the version, maximum physical disk quantity, maximum array quantity, auto-rebuild status, etc.
Page 196 User Manual of Digital Video Recorder Figure 10. 28 Upgrade the Firmware...
Page 197: Chapter 11 Hdd Management
User Manual of Digital Video Recorder Chapter 11 HDD Management...
Page 198: Initializing Hdds
User Manual of Digital Video Recorder In this chapter, we use the interface of DS-9100HFI-ST series (unless otherwise stated) as example to describe the following settings. 11.1 Initializing HDDs Purpose: A newly installed hard disk drive (HDD) must be initialized before it can be used with your device. If there is uninitialized HDD existed in the device, the following message box pops up when the device starts up.
Page 199 User Manual of Digital Video Recorder Figure 11. 3 Confirm Initialization 4. Select OK to start initialization. Figure 11. 4 Start Initialization 5. After the HDD has been initialized, the status of the HDD will change from Uninitialized to Normal. Figure 11.
Page 200: Managing Network Hdd
User Manual of Digital Video Recorder 11.2 Managing Network HDD Purpose: You can add the allocated NAS or disk of IP SAN to device, and use it as network HDD. Steps: Enter the HDD Information interface. Menu > HDD > General Figure 11.
Page 201 User Manual of Digital Video Recorder Click Search to search the available NAS disks. Select the NAS disk from the list shown below. Or you can just manually enter the directory in the text field of NetHDD Directory. Click OK to add the configured NAS disk. Up to 8 NAS disks can be added.
Page 202 User Manual of Digital Video Recorder If the added NetHDD is uninitialized, please select it and click Init for initialization. Figure 11. 11 Initialize Added NetHDD...
Page 203: Managing Esata
User Manual of Digital Video Recorder 11.3 Managing eSATA Purpose: When there is an external eSATA device connected to device, you can configure eSATA for the use of Record/Capture or Export, and you can manage the eSATA in the device. Steps: Enter the Advanced Record Settings interface.
Page 204: Managing Hdd Group
User Manual of Digital Video Recorder 11.4 Managing HDD Group 11.4.1 Setting HDD Groups Purpose: Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD settings. Steps: 1. Enter the Storage Mode interface. Menu >...
Page 205: Setting Hdd Property
User Manual of Digital Video Recorder 6. Select a HDD from the list and click to enter the Local HDD Settings interface. Figure 11. 17 Local HDD Settings Interface 7. Select the Group number for the current HDD. The default group No. for each HDD is 1. 8.
Page 206 User Manual of Digital Video Recorder Figure 11. 19 Set HDD Property 3. Set the HDD property to R/W, Read-only or Redundancy. 4. Click OK to save the settings and exit the interface. 5. In the HDD Information menu, the HDD property will be displayed in the list. At least 2 hard disks must be installed on your device when you want to set a HDD to Redundancy, and there is one HDD with R/W property.
Page 207: Configuring Quota Mode
User Manual of Digital Video Recorder 11.5 Configuring Quota Mode Purpose Each camera can be configured with allocated quota for the storage of recorded files or captured pictures. Steps 1. Enter the Storage Mode interface. Menu > HDD > Advanced 2.
Page 208 User Manual of Digital Video Recorder Figure 11. 23 Copy Settings to Other Camera(s) for HDVR Series IP Camera is supported by HDVR series only. 6. Select the camera (s) to be configured with the same quota settings. You can also click the checkbox of Analog or IP Camera to select all cameras.
Page 209: Configuring Frame Extracting Mode
User Manual of Digital Video Recorder 11.6 Configuring Frame Extracting Mode Purpose: If you want to extend the record time of the HDD, you can set the storage mode of the HDD to Frame Extracting. In this mode, the bitrate of frame extracting record is less than 1/8 of that of normal record and the frame rate of frame extracting record is 1 fps so as to maintain longer storage time of the record files.
Page 210 User Manual of Digital Video Recorder  The estimation of the record time is only for reference.  If you change the storage capacity of the device, e.g., a new HDD is connected or a HDD is removed, you have to configure the frame extracting mode again.
Page 211: Configuring Disk Clone
User Manual of Digital Video Recorder 11.7 Configuring Disk Clone Before you start: Connect a HDD to the device via the eSATA interface. Purpose: You can clone all the data stored on the HDD, which is installed on the device, to a connected eSATA disk according to the actual needs or when the S.M.A.R.T.
Page 212 User Manual of Digital Video Recorder The capacity of destination disk must be the same as that of the clone source disk. 4. Check the checkbox of the HDD to be cloned in the Clone Source list. 5. Click the Clone button and a message box pops up. Figure 11.
Page 213: Checking Hdd Status
User Manual of Digital Video Recorder 11.8 Checking HDD Status Purpose: You may check the status of the installed HDDs on device so as to take immediate check and maintenance in case of HDD failure. Checking HDD Status in HDD Information Interface Steps: 1.
Page 214: Checking S.m.a.r.t. Information
User Manual of Digital Video Recorder 11.9 Checking S.M.A.R.T. Information Purpose: The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for HDD to detect and report on various indicators of reliability in the hopes of anticipating failures. This chapter is not available for DS-9100/9000HFI-RT series. Steps: 1.
Page 215: Detecting Bad Sector
User Manual of Digital Video Recorder 11.10 Detecting Bad Sector Purpose: You can detect the bad sector of the HDD to check the status of the HDD. This chapter is not available for DS-9100/9000HFI-RT series. Steps: 1. Enter the Bad Sector Detection interface. Menu >...
Page 216: Configuring Hdd Error Alarms
User Manual of Digital Video Recorder 11.11 Configuring HDD Error Alarms Purpose: You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal. Steps: 1. Enter the Exception interface. Menu > Configuration > Exceptions 2. Select the Exception Type to HDD Error from the drop-down list. 3.
Page 217: Chapter 12 Camera Settings
User Manual of Digital Video Recorder Chapter 12 Camera Settings...
Page 218: Configuring Osd Settings
User Manual of Digital Video Recorder 12.1 Configuring OSD Settings Purpose: You can configure the OSD (On-screen Display) settings for the camera, including date /time, camera name, etc. We use the interface of DS-9100HFI-ST series (unless otherwise stated) as example to describe the following settings.
Page 219 User Manual of Digital Video Recorder Copying the OSD settings to network cameras is not available. Select the camera (s) to be configured with the same OSD settings. You can also check checkbox to select all cameras. Click OK to finish the Copy settings and back to the OSD Configuration interface. 8.
Page 220: Configuring Privacy Mask
User Manual of Digital Video Recorder 12.2 Configuring Privacy Mask Purpose: Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Steps: 1. Enter the Privacy Mask Settings interface. Menu >...
Page 221: Configuring Video Parameters
User Manual of Digital Video Recorder 7. Click Apply to save the settings. 12.3 Configuring Video Parameters Steps: 1. Enter the Image Settings interface. Menu > Camera > Image Figure 12. 5 Image Settings Interface for Analog Camera Connected to DS-9200 HWI-ST Series Figure 12.
Page 222 User Manual of Digital Video Recorder Figure 12. 7 Image Settings Interface for IP Camera  The defog mode is only available for analog cameras connected to DS-9200 HWI-ST series device.3 types of defog modes are available: Auto (default), Manual and Disable. ...
Page 223: Chapter 13 Device Management And Maintenance
User Manual of Digital Video Recorder Chapter 13 Device Management and Maintenance...
Page 224: Viewing System Information
User Manual of Digital Video Recorder 13.1 Viewing System Information 13.1.1 Viewing Device Information Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2. Click the Device Info tab to enter the Device Information interface to view the device name, model, serial No.
Page 225: Viewing Record Information
User Manual of Digital Video Recorder Figure 13. 3 Camera Information Interface for HDVR Series 13.1.3 Viewing Record Information Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2. Click the Record tab to enter the Record Information interface to view the recording status and encoding parameters of each camera.
Page 226: Viewing Alarm Information
User Manual of Digital Video Recorder Figure 13. 5 Record Information Interface for HDVR Series 13.1.4 Viewing Alarm Information This function is not available for DS-7200 series. Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2.
Page 227: Viewing Hdd Information
User Manual of Digital Video Recorder Menu > Maintenance > System Info 2. Click the Network tab to enter the Network Information interface to view the network information. Figure 13. 7 Network Information Interface 13.1.6 Viewing HDD Information Steps: 1. Enter the System Information interface. Menu >...
Page 228: Searching & Exporting Log Files
User Manual of Digital Video Recorder 13.2 Searching & Exporting Log Files Purpose: The operation, alarm, exception, information and running status of the device can be stored in log files, which can be viewed and exported at any time. Steps: 1.
Page 229 User Manual of Digital Video Recorder Figure 13. 10 Log Search Results 5. You can click of each log or double-click the log to view its detailed information. And you can also click the button to view the related video files if available. Figure 13.
Page 230 User Manual of Digital Video Recorder Figure 13. 13 Export Log Files 8. Select the backup device from the drop-down list of Device Name. 9. Click Export to export the log files to the selected backup device. You can click New Folder to create new folder in the backup device, or click Format to format the backup device before log export.
Page 231: Importing/Exporting Configuration Files
User Manual of Digital Video Recorder 13.3 Importing/Exporting Configuration Files Purpose: The configuration files of the device can be exported to local device for backup; and the configuration files of one device can be imported to multiple devices if they are to be configured with the same parameters. Steps: 1.
Page 232: Upgrading System
User Manual of Digital Video Recorder 13.4 Upgrading System Purpose: The firmware on your device can be upgraded by local backup device or remote FTP server. 13.4.1 Upgrading by Local Backup Device Steps: 1. Connect your device with a local backup device where the update firmware file is located. 2.
Page 233: Restoring Default Settings
User Manual of Digital Video Recorder 13.5 Restoring Default Settings Steps: Enter the Default interface. Menu > Maintenance > Default Figure 13. 17 Restore Default Settings Click OK to restore the default settings. Except the network parameters (including IP address, subnet mask, gateway, MTU, NIC working mode, default route and server port), all other parameters of the device will be restored to factory default settings.
Page 234: Chapter 14 Others
User Manual of Digital Video Recorder Chapter 14 Others...
Page 235: Configuring Rs-232 Serial Port
User Manual of Digital Video Recorder 14.1 Configuring RS-232 Serial Port Purpose: The RS-232 port can be used in two ways: Parameters Configuration: Connect a PC to the device through the PC serial port. Device parameters can be configured by using software such as HyperTerminal. The serial port parameters must be the same as the device’s when connecting with the PC serial port.
Page 236: Configuring General Settings
User Manual of Digital Video Recorder 14.2 Configuring General Settings Purpose: You can configure the BNC output standard, VGA output resolution, mouse pointer speed, etc. Steps: Enter the General Settings interface. Menu > Configuration > General Select the General tab. Figure 14.
Page 237 User Manual of Digital Video Recorder • System Time: Select the system time. • Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable. • Enable Wizard: Enable/disable the Wizard when the device starts up. • Enable Password: Enable/disable the use of the login password. 4.
Page 238: Configuring Dst Settings
User Manual of Digital Video Recorder 14.3 Configuring DST Settings Steps: 1. Enter the General Settings interface. Menu >Configuration>General 2. Choose DST Settings tab. Figure 14. 4 DST Settings Interface You can check checkbox before the Auto DST Adjustment item. Or you can manually check the Enable DST checkbox, and then you choose the date of the DST period.
Page 239: Configuring More Settings
User Manual of Digital Video Recorder 14.4 Configuring More Settings Steps: 1. Enter the General Settings interface. Menu > Configuration > General 2. Click the More Settings tab to enter the More Settings interface. Figure 14. 5 More Settings Interface 3.
Page 240: Managing User Accounts
User Manual of Digital Video Recorder 14.5 Managing User Accounts Purpose: There is a default account in the device: Administrator. The Administrator user name is admin and the password is 12345. The Administrator has the permission to add and delete user and configure user parameters. 14.5.1 Adding a User Steps: 1.
Page 241 User Manual of Digital Video Recorder • Guest: The Guest user has permission of Local Log Search in Local Configuration, Remote Log Search in Remote Configuration and only has the local/remote playback in the Camera Configuration. User’s MAC Address: The MAC address of the remote PC which logs onto the device. If it is configured and enabled, it only allows the remote user with this MAC address to access the device.
Page 242: Deleting A User
User Manual of Digital Video Recorder Local Camera Management is supported by HDVR series. 6. Set the operating permission of Local Configuration, Remote Configuration and Camera Configuration for the user. Local Configuration • Local Log Search: Searching and viewing logs and system information of device. •...
Page 243: Editing A User
User Manual of Digital Video Recorder 1. Enter the User Management interface. Menu > Configuration > User 2. Select the user to be deleted from the list. Figure 14. 11 Delete a User 3. Click to delete the selected user. 14.5.3 Editing a User Steps: 1.
Page 244: Changing Password Of Admin
User Manual of Digital Video Recorder Figure 14. 13 Edit User Interface 4. Edit the user information, including user name, password, level and MAC address. If you want to change the password of the user, check checkbox to enable changing the password. 5.
Page 245 User Manual of Digital Video Recorder Figure 14. 15 Change Password 3. Enter the old password, check checkbox, enter new password and confirm password on the menu. 4. Click OK to save the settings and exit the menu.
Page 246: Logging Out / Shutting Down / Rebooting Device
User Manual of Digital Video Recorder 14.6 Logging out / Shutting down / Rebooting Device Steps: 1. Enter the Shutdown interface. Menu > Shutdown Figure 14. 16 Shutdown Menu 2. Click to log out, or Click to shut down the device, or Click to reboot the device.
Page 247: Chapter 15 Appendix
User Manual of Digital Video Recorder Chapter 15 Appendix...
Page 248: Glossary
User Manual of Digital Video Recorder Glossary • Dual Stream: Dual stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the device, with the main stream having a maximum resolution of 4CIF and the sub-stream having a maximum resolution of CIF.
Page 249: Troubleshooting
User Manual of Digital Video Recorder Troubleshooting No image displayed on the monitor after the device is starting up normally. Possible Reasons No VGA or HDMI connections. Connection cable is damaged. Input mode of the monitor is incorrect. Steps Verify the device is connected with the monitor via HDMI or VGA cable. If not, please connect the device with the monitor and reboot.
Page 250 User Manual of Digital Video Recorder Check if the fault is solved by the step 1 to step 3. If it is solved, finish the process. If not, please contact the engineer from our company to do the further process. ...
Page 251 User Manual of Digital Video Recorder Verify the power indicator is normal. When the IPC is offline, please try the ping command on PC to check if the PC connects with the IPC. Verify the network between IPC and HDVR is stable. When the IPC is offline, connect PC and HDVR with the RS-232 cable.
Page 252 User Manual of Digital Video Recorder 1) When image is stuck, connect the RS-232 ports on PC and the rear panel of device with the RS-232 cable. 2) Open the Super Terminal, and execute the command of “ping 192.168.0.0 –l 1472 –f” (the IP address may change according to the real condition), and check if there exists packet loss.
Page 253 User Manual of Digital Video Recorder Simultaneously press the Ctrl and C to exit the ping command. Verify the frame rate is real-time frame rate. Select “Menu > Record > Parameters > Record”, and set the Frame Rate to “Full Frame”. Verify the hardware can afford the playback.
Page 254: Summary Of Changes
User Manual of Digital Video Recorder Summary of Changes Version 3.1.0 Added Support smart IP camera connection, VCA alarm and VCA triggered recording. (Chapter 5.2; Chapter 8.3) Support transfer protocol settings when adding/editing IP cameras. (Chapter 2.2) Support viewing the real-time frame rate, bitrate, and resolution of added IP camera on the live view interface.
Page 255: List Of Compatible Ip Cameras
User Manual of Digital Video Recorder List of Compatible IP Cameras List of Hikvision IP Cameras For the list, our company holds right to interpret. Max. Type Model Version Sub-stream Audio Resolution √ √ DS-2CD883F-E V5.1.0 build 131202 2560× 1920 DS-2CD783F-E(I) √...
Page 256 User Manual of Digital Video Recorder Max. Type Model Version Sub-stream Audio Resolution √ √ DS-2CD8464F-EI V5.1.0 build 131202 1280× 960 √ √ DS-2CD863PF/NF-E V5.1.0 build 131202 1280× 960 √ √ DS-2CD763PF/NF-E V5.1.0 build 131202 1280× 960 √ √ DS-2CD763PF/NF-EI V5.1.0 build 131202 1280×...
Page 257 User Manual of Digital Video Recorder Max. Type Model Version Sub-stream Audio Resolution √ DS-2CD4212F-I(2.8-12mm) V5.1.0 build 131202 1280× 960 × √ DS-2CD6213F V5.1.0 build 131202 1280× 960 × √ DS-2CD6223F V5.1.0 build 131202 1920× 1080 × DS-2CD4024F DS-2CD4124F-I(2.8-12mm) √ √...
Page 258 User Manual of Digital Video Recorder Max. Type Model Version Sub-stream Audio Resolution √ √ DS-2CD793PF(WD)-E(I) V5.1.0 build 131202 704× 576 √ √ DS-2CD893NF(WD)-E V5.1.0 build 131202 704× 576 √ √ DS-2CD793NF(WD)-E(I) V5.1.0 build 131202 704× 576 DS-2CD9121 V3.4.2 build 130718 1600×...
Page 259 User Manual of Digital Video Recorder Max. Type Model Version Sub-stream Audio Resolution DS-2DF5286-A/D/A3/D3/AF/A3F DS-2DE5172-A/A3 √ √ DS-2DE5174-A/AE/AE3/A3/D/D3 V5.1.0 build 131203 1280× 960 DS-2DE5176-A/AE DS-2DE7172-A √ √ DS-2DE7174-A/AE/D V5.1.0 build 131203 1280× 960 DS-2DE7176-A/AE DS-2DE5182-A/A3 √ √ DS-2DE5184-A/AE/AE3/A3/D/D3 V5.1.0 build 131203 1920×...
Page 260 User Manual of Digital Video Recorder Max. Type Model Version Sub-stream Audio Resolution DS-2ZCN3006 DS-2ZMN2006 √ √ V5.0.2 build130926 1280× 960 DS-2ZMN3006 DS-2ZCN2007 √ √ V5.0.2 build130926 1920× 1080 DS-2ZCN3007 DS-2ZMN2007 √ √ DS-2ZMN3007 V5.0.2 build130926 1920× 1080 DS-2ZMN0407 DS-6501HFI √...
Page 261: List Of Third-Party Ip Cameras
User Manual of Digital Video Recorder List of Third-party IP Cameras ONVIF compatibility refers to the camera can be supported both when it uses the ONVIF protocol and its private protocols. Only ONVIF is supported refers to the camera can only be supported when it uses the ONVIF protocol. Only AXIS is supported refers to the function can only be supported when it uses the AXIS protocol.
Page 262 User Manual of Digital Video Recorder IP Camera Manufacturer Model Version Max. Resolution Sub-stream Audio or Protocol √ WFB-100Ap V3.1.0.9 1280× 800 × VB-H410 (ONVIF Ver.+1.0.0 √ Canon 1280× 960 × compatibility) √ HUNT HLC_79AD V1.0.40 1600× 1200 × WV-SW559(ONVIF Application:1.30 √...
Page 263 User Manual of Digital Video Recorder IP Camera Manufacturer Model Version Max. Resolution Sub-stream Audio or Protocol √ √ F3206 MG.1.6.02c045 1920× 1080 √ √ F531E LM.1.6.18P10 640× 480 0301001031218...
Page 264 User Manual of Digital Video Recorder...

This manual is also suitable for:

Ds-9100hfi-rt Ds-9100hfi-st Ds-9000hfi-rt Ds-9100hfi-xt Ds-9000hfi-xt Ds-8100hfi-st ... Show all

HIKVISION DS-9000HFI-ST User Manual

Chapter 1 Introduction

Chapter 2 Getting Started

Chapter 3 Live View

Chapter 4 PTZ Control

Chapter 5 Record and Capture Settings

Chapter 6 Playback

Chapter 7 Backup

Chapter 8 Alarm Settings

Chapter 9 Network Settings

Chapter 10 RAID Configuration

Chapter 11 HDD Management

Chapter 12 Camera Settings

Chapter 13 Device Management and Maintenance

Chapter 14 Others

Chapter 15 Appendix

Quick Links

Digital Video Recorder

User Manual

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-9000HFI-ST

Summary of Contents for HIKVISION DS-9000HFI-ST
