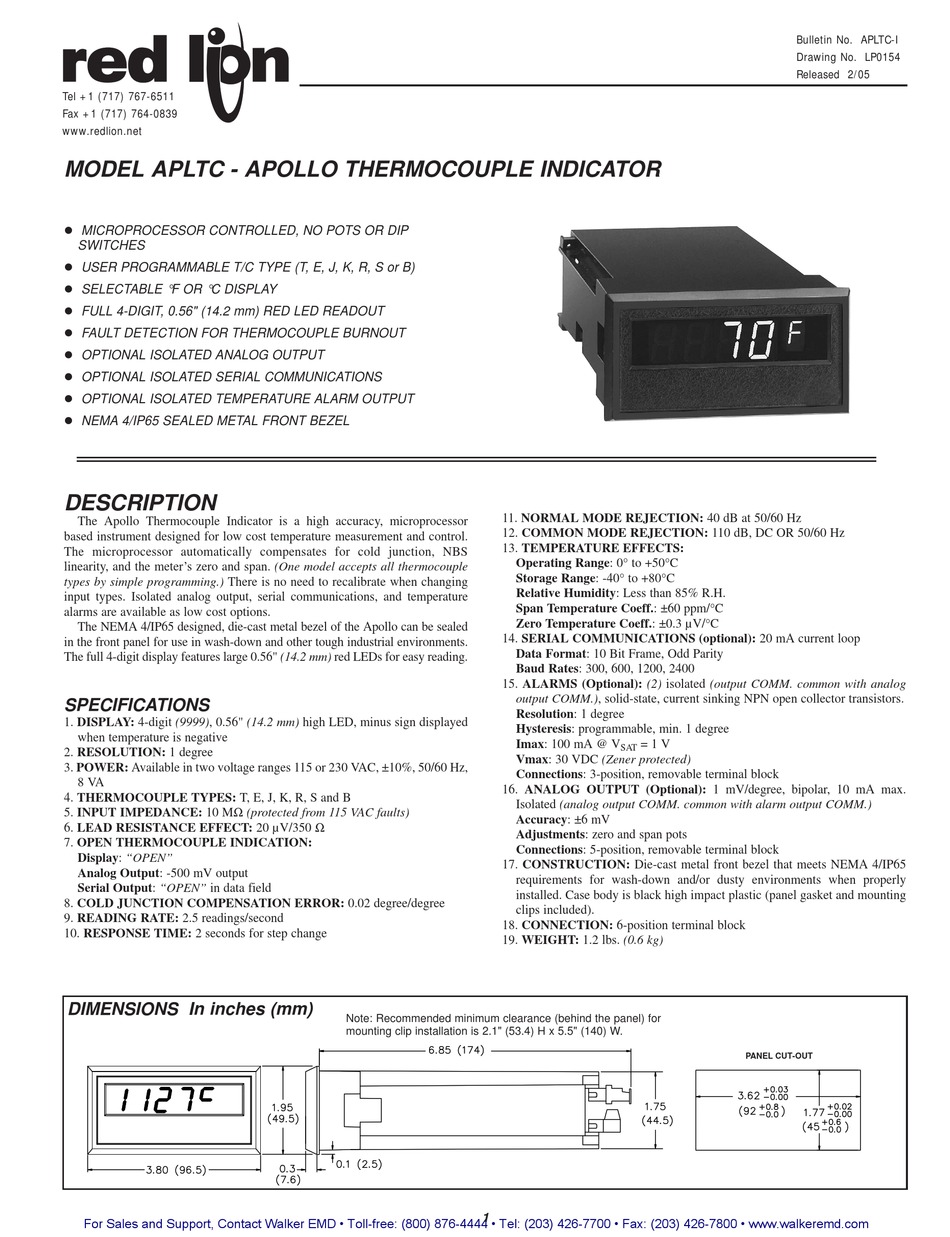

MODEL APLTC - APOLLO THERMOCOUPLE INDICATOR
! MICROPROCESSOR CONTROLLED, NO POTS OR DIP
SWITCHES
! USER PROGRAMMABLE T/C TYPE (T, E, J, K, R, S or B)
! SELECTABLE °F OR °C DISPLAY
! FULL 4-DIGIT, 0.56" (14.2 mm) RED LED READOUT
! FAULT DETECTION FOR THERMOCOUPLE BURNOUT
! OPTIONAL ISOLATED ANALOG OUTPUT
! OPTIONAL ISOLATED SERIAL COMMUNICATIONS
! OPTIONAL ISOLATED TEMPERATURE ALARM OUTPUT
! NEMA 4/IP65 SEALED METAL FRONT BEZEL
DESCRIPTION
The Apollo Thermocouple Indicator is a high accuracy, microprocessor
based instrument designed for low cost temperature measurement and control.
The microprocessor automatically compensates for cold junction, NBS
linearity, and the meter's zero and span. (One model accepts all thermocouple
types by simple programming.) There is no need to recalibrate when changing
input types. Isolated analog output, serial communications, and temperature
alarms are available as low cost options.
The NEMA 4/IP65 designed, die-cast metal bezel of the Apollo can be sealed
in the front panel for use in wash-down and other tough industrial environments.
The full 4-digit display features large 0.56" (14.2 mm) red LEDs for easy reading.
SPECIFICATIONS
1. DISPLAY: 4-digit (9999), 0.56" (14.2 mm) high LED, minus sign displayed
when temperature is negative
2. RESOLUTION: 1 degree
3. POWER: Available in two voltage ranges 115 or 230 VAC, ±10%, 50/60 Hz,
8 VA
4. THERMOCOUPLE TYPES: T, E, J, K, R, S and B
5. INPUT IMPEDANCE: 10 MΩ (protected from 115 VAC faults)
6. LEAD RESISTANCE EFFECT: 20 µV/350 Ω
7. OPEN THERMOCOUPLE INDICATION:
Display: "OPEN"
Analog Output: -500 mV output
Serial Output: "OPEN" in data field
8. COLD JUNCTION COMPENSATION ERROR: 0.02 degree/degree
9. READING RATE: 2.5 readings/second
10. RESPONSE TIME: 2 seconds for step change
DIMENSIONS In inches (mm)
For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
11. NORMAL MODE REJECTION: 40 dB at 50/60 Hz
12. COMMON MODE REJECTION: 110 dB, DC OR 50/60 Hz
13. TEMPERATURE EFFECTS:
Operating Range: 0° to +50°C
Storage Range: -40° to +80°C
Relative Humidity: Less than 85% R.H.
Span Temperature Coeff.: ±60 ppm/°C
Zero Temperature Coeff.: ±0.3 µV/°C
14. SERIAL COMMUNICATIONS (optional): 20 mA current loop
Data Format: 10 Bit Frame, Odd Parity
Baud Rates: 300, 600, 1200, 2400
15. ALARMS (Optional): (2) isolated (output COMM. common with analog
output COMM.), solid-state, current sinking NPN open collector transistors.
Resolution: 1 degree
Hysteresis: programmable, min. 1 degree
Imax: 100 mA @ V
Vmax: 30 VDC (Zener protected)
Connections: 3-position, removable terminal block
16. ANALOG OUTPUT (Optional): 1 mV/degree, bipolar, 10 mA max.
Isolated (analog output COMM. common with alarm output COMM.)
Accuracy: ±6 mV
Adjustments: zero and span pots
Connections: 5-position, removable terminal block
17. CONSTRUCTION: Die-cast metal front bezel that meets NEMA 4/IP65
requirements for wash-down and/or dusty environments when properly
installed. Case body is black high impact plastic (panel gasket and mounting
clips included).
18. CONNECTION: 6-position terminal block
19. WEIGHT: 1.2 lbs. (0.6 kg)
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 2.1" (53.4) H x 5.5" (140) W.
1
Bulletin No. APLTC-I
Drawing No. LP0154
Released 2/05
= 1 V
SAT
PANEL CUT-OUT
