Instruction Manual
MANLT10 REV G 29/05/20
VICTORIA (HEAD OFFICE)
Telephone: +61 (03) 9215 2700
Fax: +61 (03) 9215 2701
www.silvan.com.au
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144

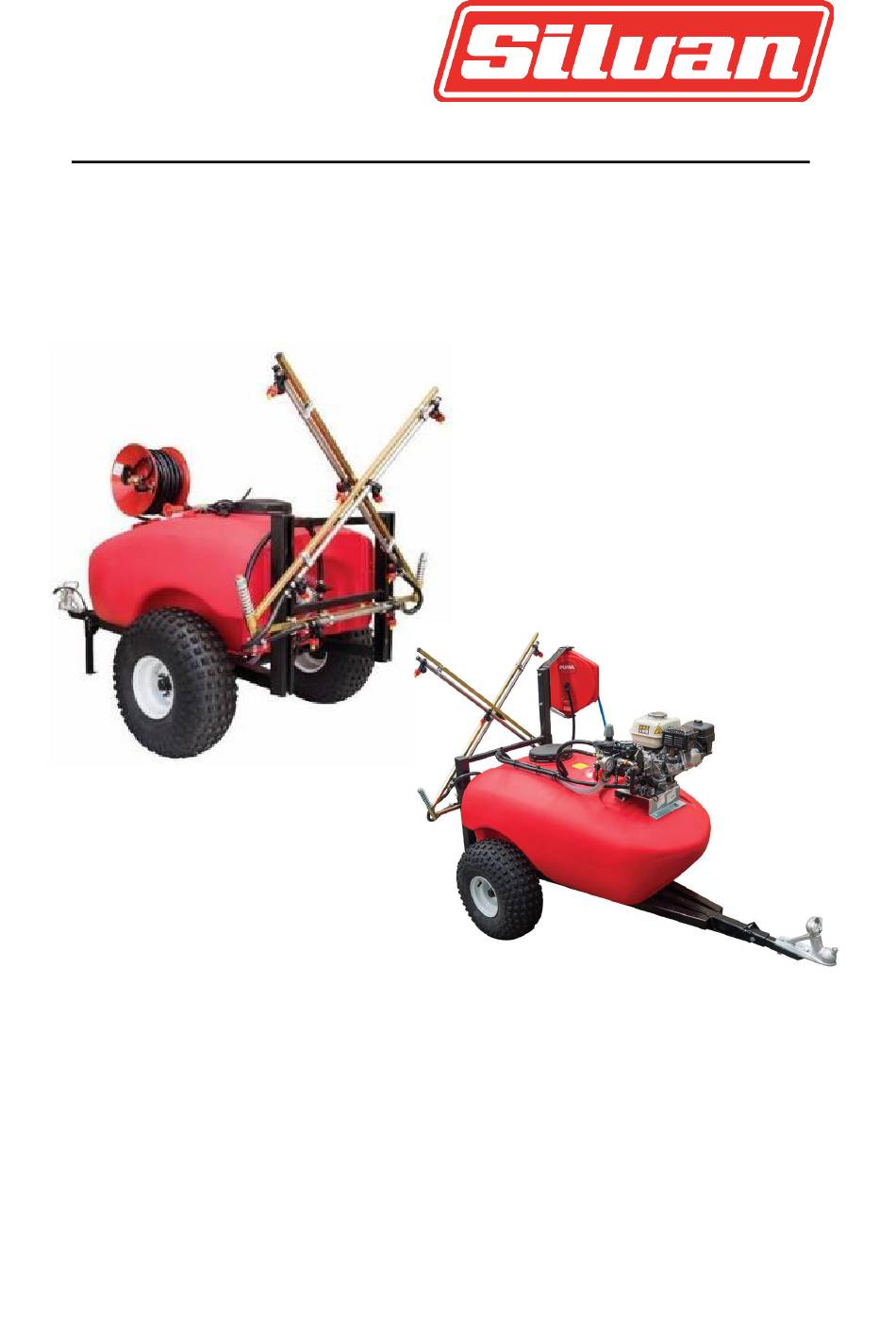

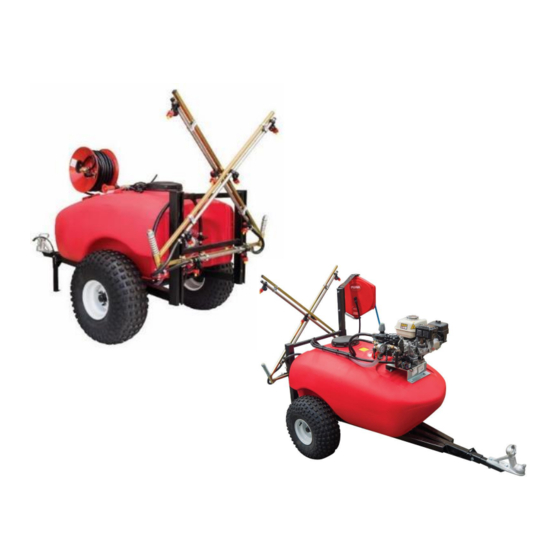

LIGHTFOOT SPRAYERS 300L
NEW ZEALAND
Hamilton, New Zealand
Telephone: +64 (07) 8496 033
Fax: +64 (07) 8496070
www.silvannz.co.nz
LT30-S8
LT30-34
Advertisement
Table of Contents
Related Manuals for Silvan Selecta LT30-S8
Summary of Contents for Silvan Selecta LT30-S8
- Page 1 Instruction Manual MANLT10 REV G 29/05/20 LIGHTFOOT SPRAYERS 300L LT30-S8 LT30-34 SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND Telephone: +61 (03) 9215 2700 Hamilton, New Zealand Fax: +61 (03) 9215 2701 Telephone: +64 (07) 8496 033 www.silvan.com.au...
- Page 2 No liability can be accepted for any inaccuracies or omissions in this publication, although due care has been taken to make it as complete and accurate as possible. The information, illustrations and technical data were considered to be correct at the time of preparation. In accordance with our policy of continuous development Silvan Australia Pty.
-
Page 3: Warranty Exclusions
Warranty Silvan Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. -
Page 4: Safety Instructions
Safety Instructions Before attempting to operate or install the sprayer carefully read and take note of the following safety warnings. Failure to comply with these warnings may result in serious injury or death. Warning! This sprayer is designed and manufactured solely for the purpose of applying agricultural chemicals to plants. -
Page 5: Specifications
12V version: Power loom for fitment from PUMPS OPTIONS: Lightfoot to vehicle with remote mountable • 300L UNIT on/off power switch o Model LT30-S8 with 12V high capacity • Motorized version: controls mounted directly Aquatec 20L/min (open flow) pump, 414 on pump; optional remote controls available... -
Page 6: Installations
Installations Warning! Do not exceed the vehicle manufacturer’s specified safe load and carrying capacity. CONNECTING TO 12 VOLT DC SUPPLY (12V Version): The Sprayer requires a 12 volt DC power source. A 3 metre loom is provided with the sprayer to allow the sprayer to be connected to the 12 volt DC source available. - Page 7 Operation (12V Version) It is always recommended that you first test all spray equipment thoroughly with clean water. There are a few accessories available for Lightfoot Sprayers and each will have its own spraying characteristics due to the number and size of nozzles, the diameter and length of hose.
- Page 8 Operation (12V Version, cont.) Important note: Spray units must not be operated while the pump is pulsating/cycling because it can cause premature component failure. • Chemical solution may now be added to the tank. • Follow the mixing instructions and safety precautions provided by the chemical manufacturer.
- Page 9 Operation (Motorised Version) This pump been designed Start Up: constructed solely to pump agricultural 1. Ensure the control valve is in the bypass liquid chemicals, normally used for pest, position and any taps not being used are weed and fungus control. in the closed position.
- Page 10 Operation (Motorised Version, cont.) Two Outlet Ball Type Control Valve: The selection of either the bypass or pressure mode is controlled by the rotary lever “A” - refer to diagram. Moving the lever clockwise through its full travel selects bypass, which recirculates the full flow of fluid from the pump to the tank via the agitator line.
-
Page 11: Maintenance
Maintenance CLEANING THE FILTER: To avoid chemical contamination, wear appropriate protective equipment including gloves whenever maintenance is carried out. Turn off the pump and depress the trigger on the spray lance to dissipate any pressure. The sprayer utilises an external suction filter. Unscrew the cap on the filter housing in order to remove the filter. -
Page 12: General Information
Calibration GENERAL INFORMATION: WHEN TO SPRAY: Results will be best when wind speed is low, temperature low and relative humidity high. An ideal time is at sunup when these conditions are most likely to apply. APPLICATION RATE: The application rate depends on the following. •... - Page 13 Refer to the chart below for general boom compatibility and details (results may vary depending on your specific pressure, nozzles, and chemical viscosity). Compatibility Nozzles Boom Width Spray Width Breakback Facility Part Number LT30-S8 1.05 meters 2 meters L99-09 *YES 2.05 meters 3 meters L99-08...
