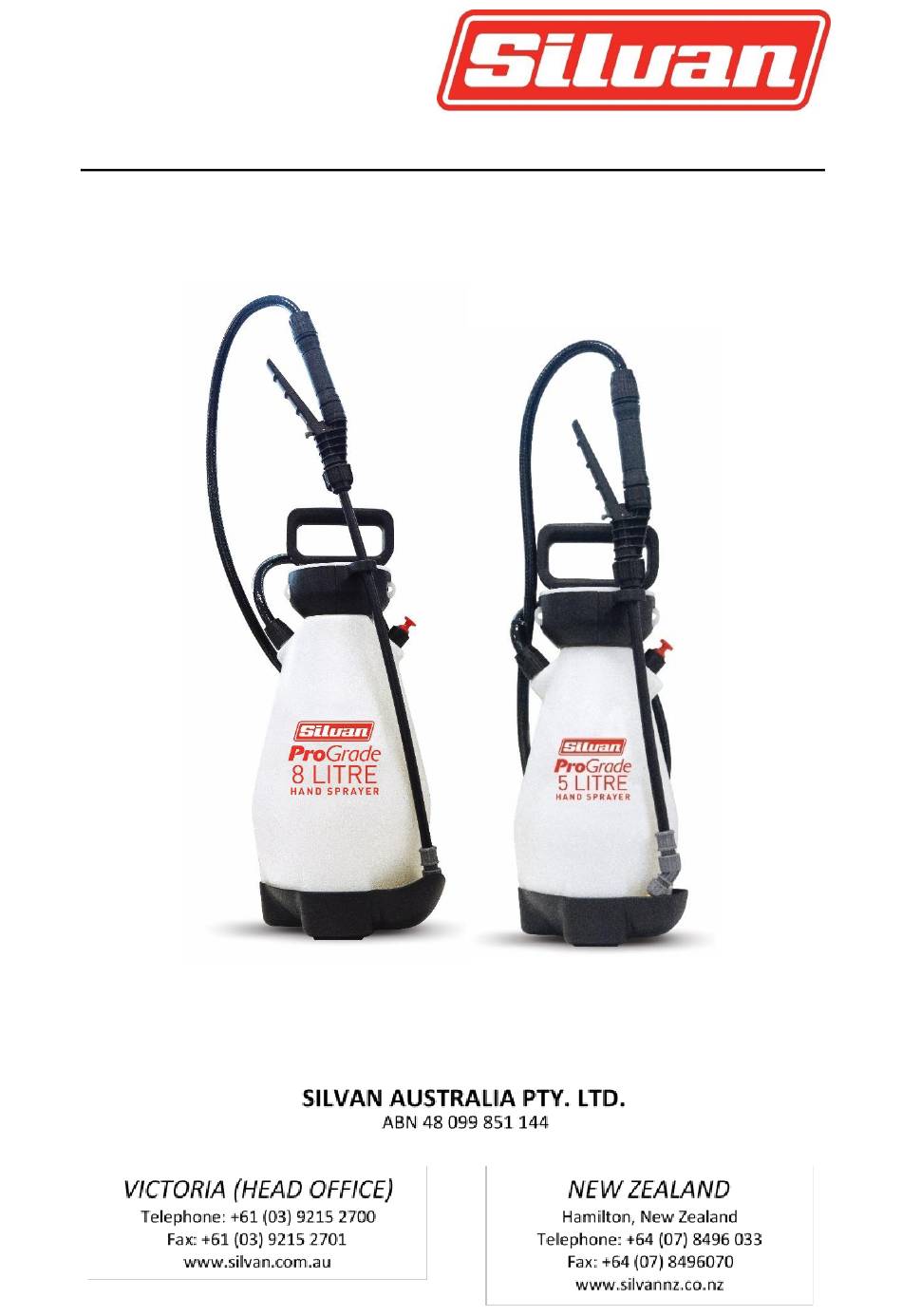

- Page 1 Instruction Manual MAN190545 REV A 23/04/18 PRO GRADE HAND SPRAYER 5L& 8L 190545, 190546, 190548, 190549...
-
Page 2: Safety Instructions
Safety Instructions WARNINGS • This sprayer is designed and manufactured solely for the purpose of applying agricultural chemicals. Under no circumstances may it be used for any other purpose. • Read owner’s manual completely before operating this sprayer. • Test the sprayer with water before using chemicals •... - Page 3 Assembly Assemble Hose to Tank: IMPORTANT: Do not attempt to heat or alter hose, hose nut, or barb prior to assembly. 1. Align hose barb tabs, push hose barb into tank until it stops (See Figure A). 2. Slide hose nut into place and turn Figure A Figure B clockwise to tighten.
-
Page 4: Operation
Operation Filling: IMPORTANT: Always make sure the pressure is released from the tank before filling or servicing. 1. Pull up on the knob of the pressure release valve until all the pressure is released from the tank. (See Figure E). 2. - Page 5 Operation (cont.) Spraying and Locking: 1. Direct nozzle away from you and squeeze shut-off lever to begin spraying. 2. For continuous spraying, squeeze lever and rotate lock (See Figure J). 3. Unlock if needed and release shut- off lever to stop spraying. 4.
-
Page 6: Nozzle Maintenance
Maintenance Pump Lubrication: Pump should be periodically oiled by applying 10 to 12 drops of light oil down the pump rod through the opening in the pump cap as shown. Pump Disassembly & Reassembly: NOTE: Remove pump from tank prior to disassembly. 1. - Page 7 Maintenance (cont.) Shut-off Maintenance: Always depressurise sprayer before maintenance. 1. Unscrew the handle from the shut-off assembly. 2. Remove the filter from the shut-off assembly. 3. Clean any debris from inside the handle, shut-off assembly, or the filter by rinsing with cool, clean water. 4.
-
Page 8: Troubleshoot
Troubleshoot Problem Reason Solution Sprayer starts to spray Squeeze shut-off lever and when pumping or sprayer rotate the lock towards the will not stop spraying Shut-off lock is engaged. nozzle as described in Spraying when shut-off lever is and Locking section. released. -
Page 9: Spare Parts
Spare Parts Code Description 183869 Hand Pump Assembly 183870 Pressure Relief Valve 183862 Nozzle Kit 183871 Hand Pump Repair Kit 183859 Trigger Assembly (Shut Off Assembly) 5A 183863 Trigger Assembly & Wand Repair Kit 183860 Stainless Steel Wand 183861 Poly Wand...
