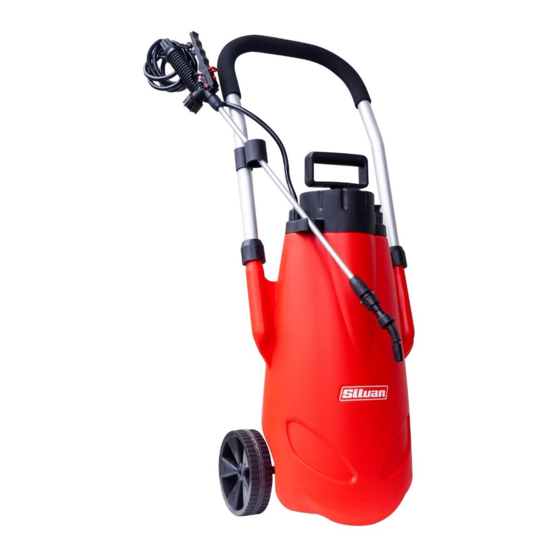

Silvan Selecta TR13-1 Instruction Manual

Trolley sprayer 13l
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
MANTR13-1 REV C 28/03/19
TROLLEY SPRAYER 13L
TR13-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR13-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silvan Selecta TR13-1

Summary of Contents for Silvan Selecta TR13-1

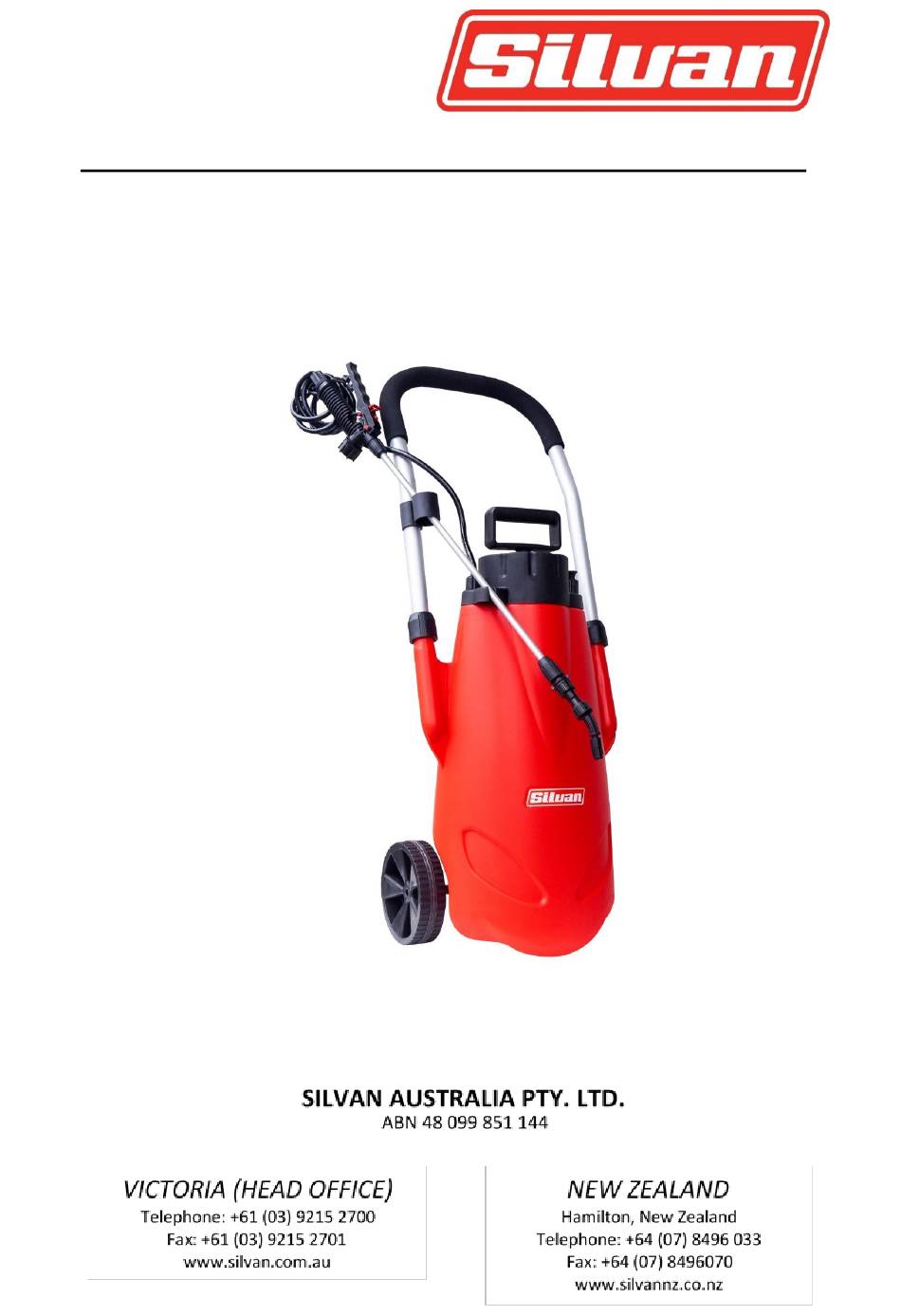

  • Page 1 Instruction Manual MANTR13-1 REV C 28/03/19 TROLLEY SPRAYER 13L TR13-1...

  • Page 2: Safety Instructions

    Safety Instructions Before attempting to operate or install the sprayer carefully read and take note of the following safety warnings. Failure to comply with these warnings may result in serious injury or death. Warning! Prior to using the sprayer all operators must read and fully understand the contents of this instruction manual, all safety information fitted to the sprayer and any other manual for associated equipment.

  • Page 3: Specifications

    Specifications GENERAL: This trolley sprayer has been designed and manufactured primarily for applying agricultural and horticultural herbicides and insecticides to plants. It may also be used for cleaners and other products compatible with Viton seals. TANK: 13L blow moulded translucent polyethylene tank, U.V. stabilised and impact resistant with calibrated fill mark moulded into the tank.

  • Page 4: Installation

    Installation GUN ASSEMBLY: Fit the spray lance to the gun ensuring the rubber seal is fitted. Fit the 45-degree elbow and nozzle to the tip of the lance again ensuring the seal is in place. SEAL POSITION FIT THE TROLLEY HANDLES AND ADJUST THE HEIGHT: The handle length can be adjusted by loosening the nut shown in the diagram, adjusting the length and retightening.

  • Page 5: Operation

    Operation FILLING THE TANK AND ADDING CHEMICAL: Warning: Before using the sprayer for the first time or adding chemical check the operation and function of the sprayer with clean water. Check that the filter is clean, and all fittings, hoses and gun connections are tight. Partly fill the sprayer before adding chemical.

  • Page 6: Service And Maintenance

    Operation (cont.) ADJUSTING THE SPRAY LANCE AND THE NOZZLE: The spray lance can be adjusted by loosening the nut as shown below, extending the lance to the desired length, and retightening. The nozzle can be adjusted by loosening the nozzle as shown below, loosening and tightening the nozzle for desired spray stream (single stream or cone stream).
  • Page 7 Service & Maintenance (cont.) SERVICING THE PUMP: To access all O-rings and seals the pump will need to be opened. Top of pump will twist open then Piston can slide out. Pump Seal Diaphragm O-Ring Inspect under the diaphragm for dirt or debris and clean. Remove diaphragm and clear; replace if damaged.

  • Page 8: Spare Parts

    Spare Parts Part Number Description 382-097 Extendable Lance Only TR13-23 Handle Lock Nut Suit TR13-1 TR13-21 Pump Assembly Suit TR13-1 TR13-22 Seal Service Kit Suit TR13-1 TR13-24 Safety Release Valve Suit TR13-1...

  • Page 9: Troubleshooting Guide

    Troubleshoot TROUBLESHOOTING GUIDE Problem Solution • Air Leak: • Check pump assembly is screwed in tight. Check for dirt or damage of sealing gasket, replace if necessary. • Check safety air release valve is tightly fitted, not damaged or making “hiss” noise. Remove, clean then refit.
  • Page 10 SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND 68 Atlantic Drive, Keysborough, 22 Sunshine Avenue 3173, Victoria, Australia Te Rapa, Hamilton, 2001 New Zealand Telephone: +61 (03) 9215 2700 Telephone: +64 (07) 8496 033 Facsimile: +61 (03) 9215 2701 Fax: +64 (07) 8496070 www.silvan.com.au...
