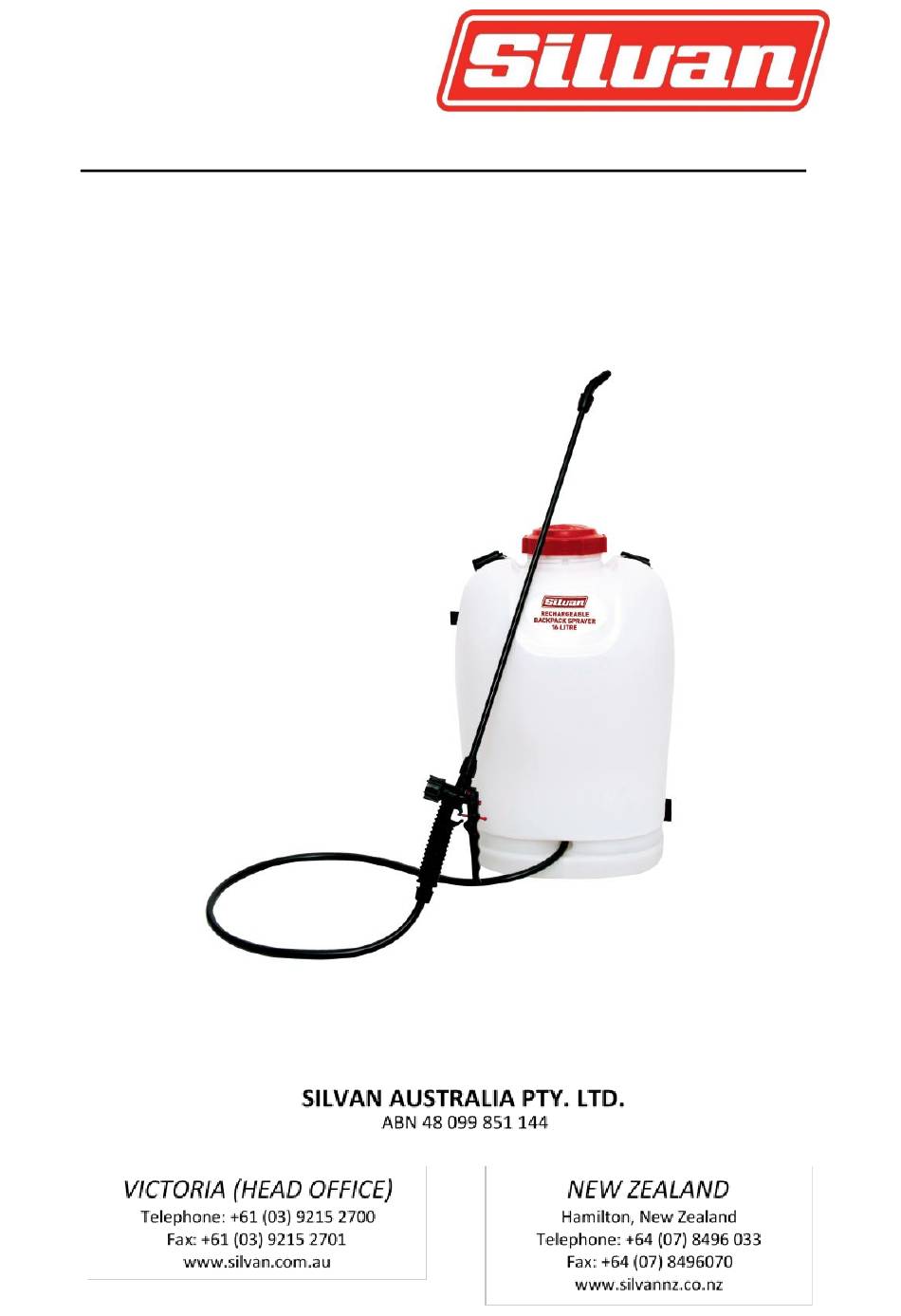

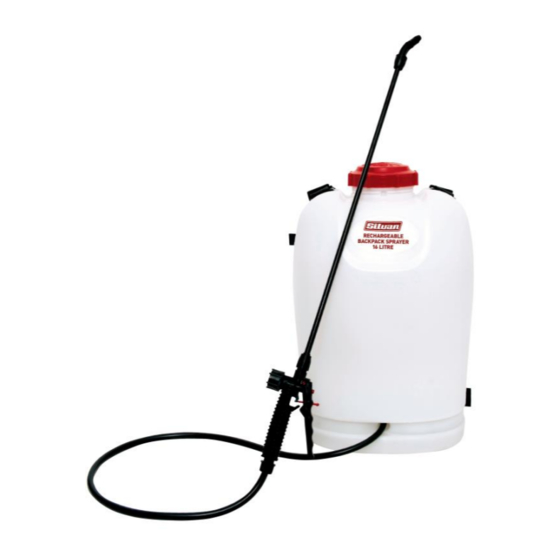

- Page 1 Instruction Manual MANWP16-6 REV G 11/04/17 RECHARGEABLE BACKPACK SPRAYER WP16-6...
-
Page 2: Safety Instructions
Safety Instructions Before attempting to operate or install the sprayer carefully read and take note of the following safety warnings. Failure to comply with these warnings may result in serious injury or death. Warning! This sprayer is designed and manufactured solely for the purpose of applying agricultural chemicals to plants. -
Page 3: Specifications
Specifications GENERAL: TANK: This knapsack sprayer has been designed and 16L blow moulded translucent polyethylene manufactured solely for the purpose of tank, U.V. stabilized and impact resistant applying agricultural horticultural with calibrated fill mark moulded into the herbicides and insecticides to plants. tank. -
Page 4: Installation
Installation GUN ASSEMBLY: Fit the spray lance to the gun ensuring the O-Ring is fitted. Fit the 45-degree elbow and nozzle to the tip of the lance again ensuring the O-ring is in place. O-RING POSITION ADJUSTING SHOULDER STRAPS: The shoulder straps are supplied fitted. If they become disconnected reattach as shown in the pictures below. -
Page 5: Operation
Operation CHARGING THE BATTERY: Note: The battery should be charged before first use. Check the pump switch is in the off position. Plug the battery charger into a standard 240 Volt power point. Connect the coaxial plug on the output lead to the socket on the sprayer. Recharging time depends on the state of the battery. -
Page 6: Maintenance
Maintenance To avoid chemical contamination, wear appropriate protective equipment including gloves whenever maintenance is carried out; turn off the pump and depress the trigger on the spray lance to dissipate any pressure. After spraying is completed, drain unused chemicals from the tank. Rinse the tank with clean water then operate the sprayer with clean water in the tank to clean out the pump, hose and spray lance. - Page 7 Maintenance (cont.) USING THE VACUUM PUMP: If the sprayer has not been used for some time or has been left with chemical in it then the pump valves may become stuck. If this happens the pump will run but no liquid is pumped. If this happens you can use the hand operated vacuum pump to prime the pump as follows: Empty the tank and spray hose of liquid Make sure the power switch on the knapsack is off...
-
Page 8: Troubleshooting Guide
Troubleshoot (cont.) TROUBLE SHOOTING GUIDE Problem Solution • Ensure battery wires are connected to battery properly. • Check the inline Fuse in the power loom (Fuse is Blown or Pump does not operate cable to fuse is loose/ disconnected). • Check battery is not flat, or charger has not been working. Connect Charger to 240V Power socket, Charger Indicator light should be Green when not connected to sprayer •...
