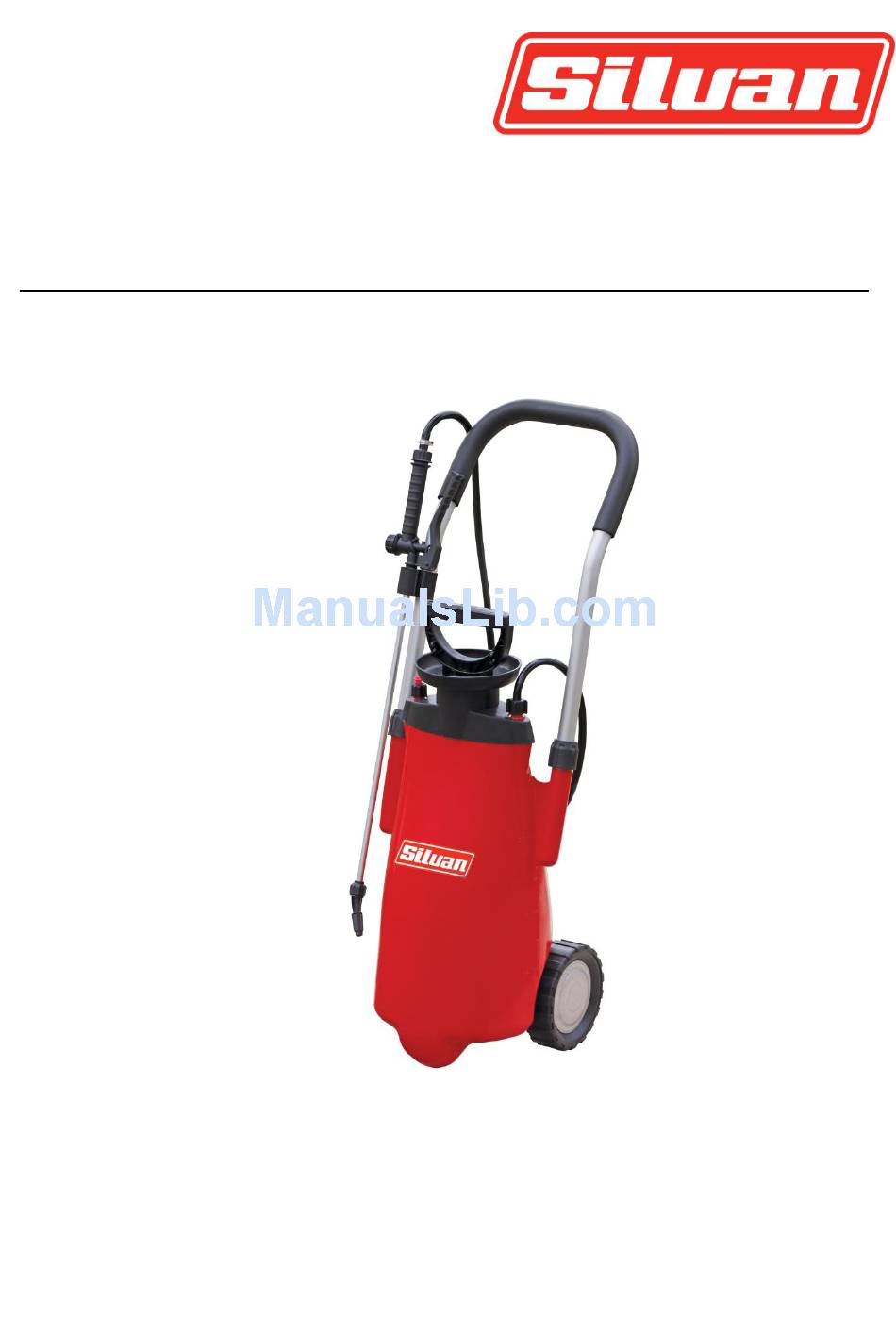

Instruction Manual
MANTR12-2 REV C 17/10/16
MODEL: TR12-2

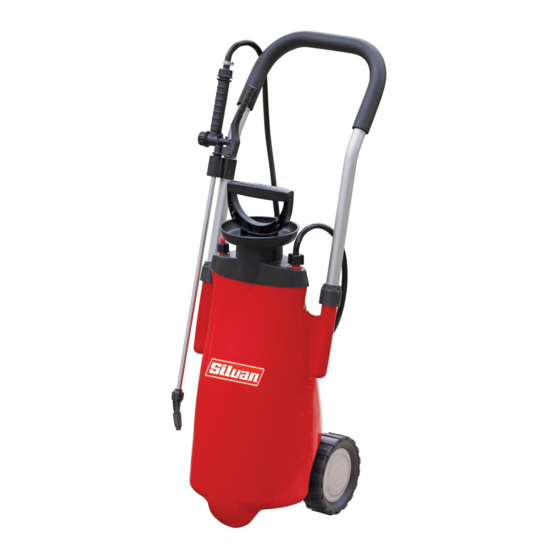

12L TROLLEY SPRAYER
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144
VICTORIA (HEAD OFFICE)
NEW ZEALAND
244- 264 Greens Rd,
22 Sunshine Avenue
Dandenong South, 3175 Australia
Te Rapa, Hamilton, 2001 New Zealand
Telephone: +61 (03) 9215 2700
Telephone: +64 (07) 8496033
Facsimile: +61 (03) 9215 2701
Fax: +64 (07) 8496070
www.silvan.com.au
www.silvannz.co.nz
Advertisement
Table of Contents
Related Manuals for Silvan Selecta TR12-2
Summary of Contents for Silvan Selecta TR12-2
- Page 1 Instruction Manual MANTR12-2 REV C 17/10/16 MODEL: TR12-2 12L TROLLEY SPRAYER SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND 244- 264 Greens Rd, 22 Sunshine Avenue Dandenong South, 3175 Australia Te Rapa, Hamilton, 2001 New Zealand...
-
Page 2: Safety Instructions
Safety Instructions Before attempting to operate or install the sprayer carefully read and take note of the following safety warnings. Failure to comply with these warnings may result in serious injury or death. Warning ! Prior to using the sprayer all operators must read and fully understand the contents of this instruction manual, all safety information fitted to the sprayer and any other manual for associated equipment. -
Page 3: Installation
Installation FITTING WHEELS Fit each wheel with the supplied parts as shown R-CLIP WHEEL AXLE WASHER HUB CAP WASHER AXLE WASHER WASHER R-CLIP WHEEL HUB CAP GUN ASSEMBLY Fit the spray lance to the gun ensuring the rubber seal is fitted. Fit the 45 degree elbow and nozzle to the tip of the lance again insuring the seal is in place. - Page 4 Installation FIT THE TROLLEY HANDLES AND ADJUST THE HEIGHT The handle length can be adjusted by loosening the nut shown in the diagram, adjusting the length and retightening trolley...
-
Page 5: Operation
Operation FILLING THE TANK AND ADDING CHEMICAL Warning : Before using the sprayer for the first time or adding chemical check the operation and function of the sprayer with clean water. Check that the filter is clean and all fittings, hoses and gun connections are tight. Partly fill the sprayer before adding chemical. - Page 6 Service & Maintenance SERVICING THE PUMP To access all o-rings and seals the pump will need to be opened. Top of pump will twist open then Piston can slide out. To access all o-rings and seals the pump will need to be opened. Top of pump will twist open then Piston can slide out. Inspect under diaphragm for dirt or debris and clean Remove diaphragm and clear, replace if damaged...
-
Page 7: Spare Parts
Spare Parts P/No TR12-20 -Spray lance P/No TR12-21 -Pump Assembly P/No TR12-22 -Seal Service Kit Kit Not Shown. Includes common o-rings and seals for pump service and maintenance. P/No TR12-23 -Handle Lock Nut... -
Page 8: Troubleshooting Guide
Trouble Shooting TROUBLE SHOOTING GUIDE Symptom Remedy Air Leak -Check pump assembly is screwed in tight. Check for dirt or damage of sealing gasket, replace if necessary No or limited pressure inside -Check safety air release valve is tightly fitted, not damaged or making “hiss”...
