Instruction Manual
MANSP55 REV J 09/04/20

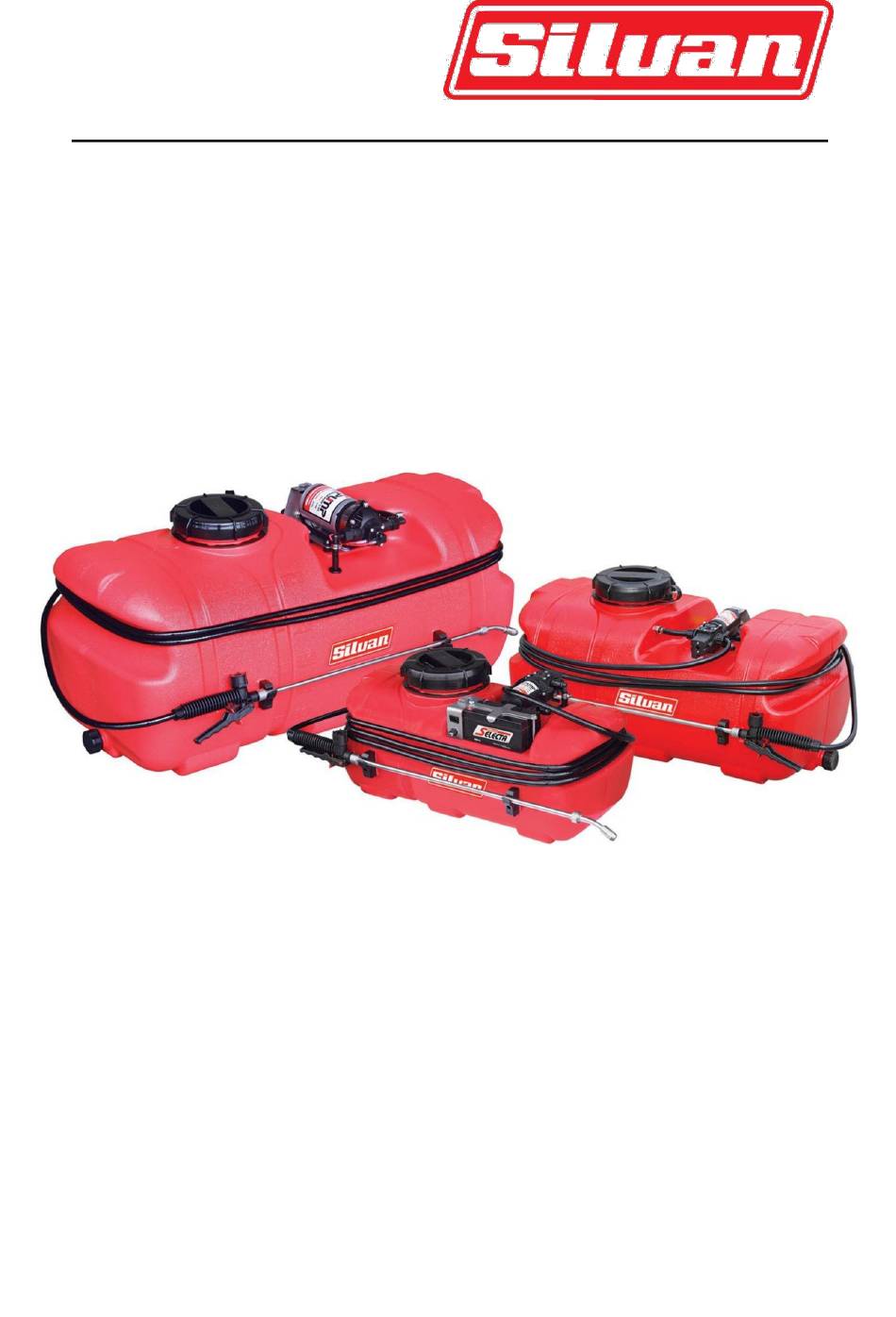

REDLINE SPOTPAK 25, 55 & 100
12V AND RECHARGEABLE
SP25-R1, SP55-R1, SP100-R2, SP25-B, SP25-TR2
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144
VICTORIA (HEAD OFFICE)
NEW ZEALAND
Telephone: +61 (03) 9215 2700
Hamilton, New Zealand
Fax: +61 (03) 9215 2701
Telephone: +64 (07) 8496 033
www.silvan.com.au
Fax: +64 (07) 8496070
www.silvannz.co.nz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Silvan Selecta REDLINE SPOTPAK Series
Summary of Contents for Silvan Selecta REDLINE SPOTPAK Series
- Page 1 Instruction Manual MANSP55 REV J 09/04/20 REDLINE SPOTPAK 25, 55 & 100 12V AND RECHARGEABLE SP25-R1, SP55-R1, SP100-R2, SP25-B, SP25-TR2 SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND Telephone: +61 (03) 9215 2700 Hamilton, New Zealand Fax: +61 (03) 9215 2701 Telephone: +64 (07) 8496 033 www.silvan.com.au...
-
Page 2: New Product Warranty
New Product Warranty Silvan Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. -
Page 3: Safety Information
Safety Information Before attempting to operate or install the sprayer carefully read and take note of the following safety warnings. Failure to comply with these warnings may result in serious injury or death. Warning! This sprayer is designed and manufactured solely for the purpose of applying agricultural chemicals to plants. -
Page 4: Specifications
Safety Information BATTERY CHARGER WARNINGS (FOR RECHARGEABLE SPRAYERS ONLY) Warning! When using the battery charger ensure it is a dry environment and do not leave the charger where it may rain. Warning! The battery charger is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have given supervision or instruction. - Page 5 Specifications Battery Charger Specifications Tradename/Brand Name: SILVAN Model No.: W & T – AD12W120070 Input: 100 – 240V~, 60/50Hz, 0.4A – 0.2A Output: 12VDC, 0.7A Class II Symbol: Symbol For Indoor Use Only: Symbol SMPS incorporating a short circuit proof isolating transformer (inherently or non- inherently): Symbol SMPS:...
-
Page 6: Fitting Instructions
Fitting Instructions Fit the TWO (2) gun clips to the side of the tank with screws supplied. (NOT FOR MODEL SP25-TR2) Do not exceed the vehicle manufacturer’s specified safe load and carrying capacity. Position the sprayer to minimize contamination to the operator. With the pump mounted away from operator the risk of contamination due to hose failure can be minimized. -
Page 7: Setup And Testing
Setup And Testing It is always recommended that you first test all spray equipment thoroughly with clean water. 1. Be sure to wear safety equipment as recommended by the chemical manufacturer before adding chemical to the sprayer 2. Check the suction line foot filter is clean and undamaged. 3. -
Page 8: Troubleshooting Guide
Trouble Shooting Trouble Shooting Guide Problem Solution • Ensure battery wires are connected to battery properly • Check the inline fuse in the power loom of the 12V version or Pump does not operate in the fuse holder on the battery mounting plate of the rechargeable unit •...
