Instruction Manual
MANSP50 REV F 01/04/16
VICTORIA (HEAD OFFICE)
244- 264 Greens Rd,
Dandenong South, 3175 Australia
Telephone: +61 (03) 9215 2700
Facsimile: +61 (03) 9215 2701
www.silvan.com.au
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144
NEW ZEALAND
22 Sunshine Avenue
Te Rapa, Hamilton, 2001 New Zealand
Telephone: +64 (07) 8496033
Fax: +64 (07) 8496070
www.silvannz.co.nz

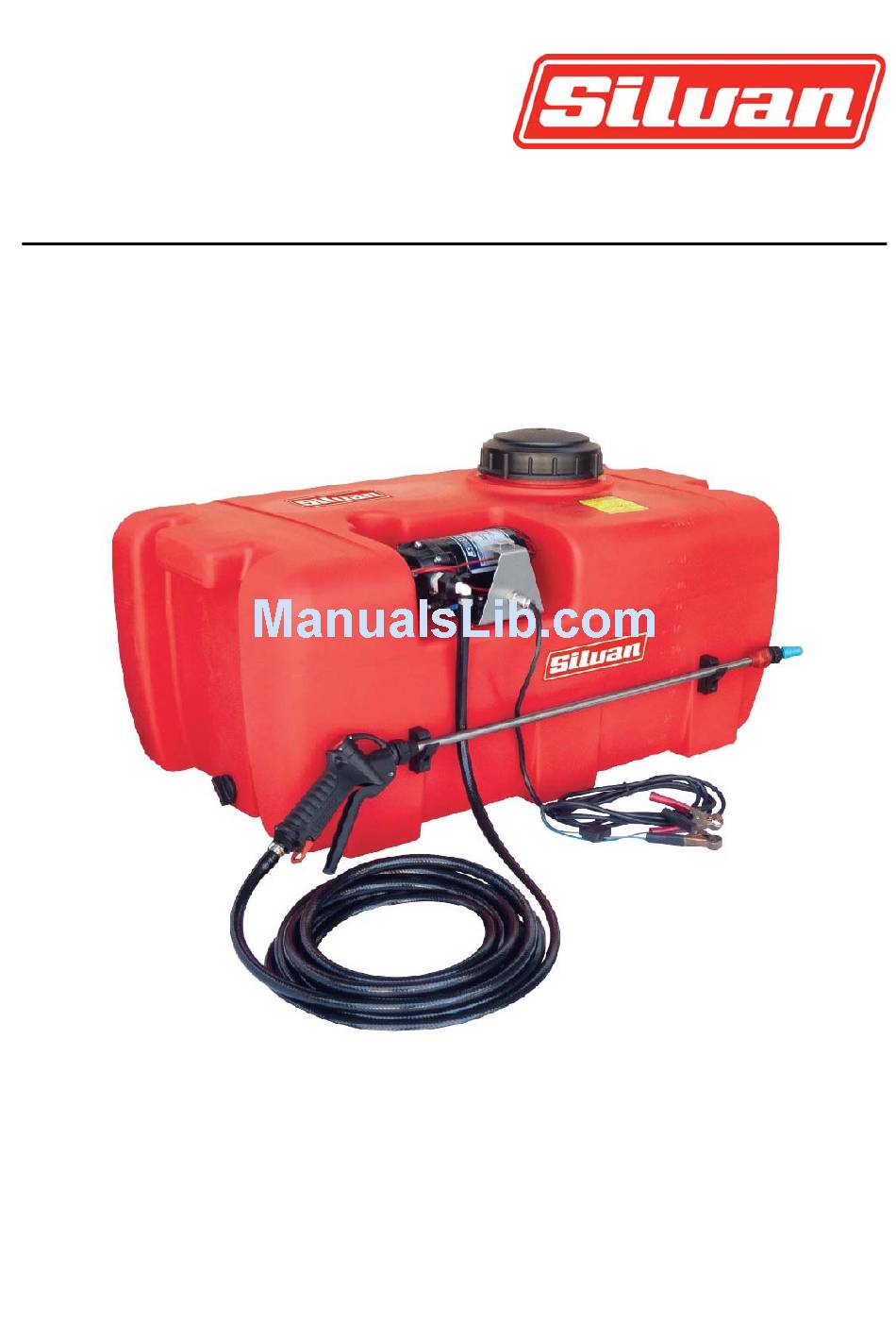

Spotpak
50L
100L
200L
Advertisement
Table of Contents
Related Manuals for Silvan Selecta Spotpak 50L
Summary of Contents for Silvan Selecta Spotpak 50L
- Page 1 Instruction Manual MANSP50 REV F 01/04/16 Spotpak 100L 200L SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND 244- 264 Greens Rd, 22 Sunshine Avenue Dandenong South, 3175 Australia Te Rapa, Hamilton, 2001 New Zealand Telephone: +61 (03) 9215 2700 Telephone: +64 (07) 8496033 Facsimile: +61 (03) 9215 2701...
-
Page 2: New Product Warranty
New Product Warranty Silvan Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. -
Page 3: Safety Information
Safety Information Warnings ! You need to read carefully and take note of the following warnings before attempting to operate or install this sprayer. Failure to comply with these warnings may result in serious injury or death. Warning ! This sprayer is designed and manufactured solely for the purpose of applying agricultural chemicals to plants. Under no circumstances may it be used for any other purposes. -
Page 4: Specifications
Specifications GENERAL The Silvan Spotpak is a compact portable sprayer. Whether you are a commercial grower, or a home gardener you will find many uses for this unit. The tank pump and wand fittings are corrosion resistant and are suitable for applying weedicides, herbicides, insecticides, fungicides, miticides, organic and green formulations. -
Page 5: Installation
Installation Do not exceed the vehicle manufacturer’s specified safe load and carrying capacity. SETTING UP YOUR SPOTPAK The hose is supplied fitted at one end to the spray lance. Fit the white elbow fitting to the outlet of the pump and finger tighten. FITTING INSTRUCTIONS Position the sprayer so as to minimise contamination to the operator. -
Page 6: Maintenance
CONNECTING TO 12 VOLT DC SUPPLY The Sprayer requires a 12 volt DC power source. A three metre loom is provided with the sprayer to allow the sprayer to be connected to the 12 volt DC source available. Connect the alligator clips remembering the brown or red wire is positive and the blue or black is negative. -
Page 7: Troubleshooting Guide
Notes TROUBLE SHOOTING GUIDE Symptom Remedy • Ensure battery wires are connected to battery properly. Pump does not operate • Check the inline Fuse in the power loom • Check battery is not flat or low • Check terminals are fitted to On/Off power switch • Check that 2 wires are connected to pump pressure switch • Check if there is a slow leak of liquid. Check all hose connections and The pump continues to run when the spray gun is off the spray gun for any leaks. • Check the tank is not empty or the suction filter is not fully immersed. • The pressure switch may need adjusting, the pump will need to be removed and generally 1 turn anticlockwise with a 1/16” allen key will correct the problem •... - Page 8 SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 244 – 264 Greens Rd Dandenong South 3175 Australia Telephone: +61 (03) 9215 2700 Facsimile: +61 (03) 9215 2701 www.silvan.com.au SILVAN NEW ZEALAND PTY.LTD. 22 Sunshine Avenue Te Rapa, Hamilton, 2001 New Zealand Telephone: +64 (07) 8496030 Fax: +64 (07) 8496070...
