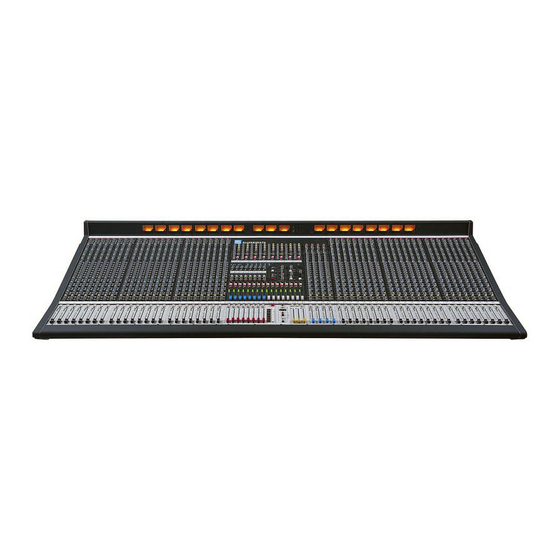

ALLEN & HEATH ML5000 Quick Start Sheet

audiovias.com
MONO PA
L R C
BLEND
LR C
PAN
L R
STEREO PA
L R C
BLEND
LR C
PAN
L R
Copy this sheet to keep with the console for guest user reference.
Configure the Mode Switches :
up
Use a pen or pointed object to select the underpanel
AUX
mode switches.
mode
GRP
FRONT-OF-HOUSE
AUX 1-8 = Post-fade for effects. Rotary masters.
AUX 9-16 = Switchable pre or post-fade and mono
or stereo in pairs. Fader masters with inserts.
GROUP 1-8 = Audio groups with individual routing
switches. Switchable pre or post-pan for mono or
stereo groups. Fader masters with subgrouping.
down
MONITOR
AUX
AUX 1-8 = MIX 1-8 individually switchable pre or
mode
GRP
post-fade. Fader masters with inserts.
AUX 9-16 = MIX 9-16 switchable pre or post-fade
and mono or stereo in pairs. Fader masters with
inserts.
MAIN C OUT = Engineers wedge monitor.
DUAL MODE
down
C
WEDGE
Set the mode switches to configure fader masters 1-
mode
MONITOR
8 in any combination of audio groups and aux
sends.
STEREO+ FILL
L
BLEND
LR C
PAN
L R
LCR
L
BLEND
LR C
PAN
L R
QUICK START SHEET
Using LCRplus™
PAN and BLEND = Two
controls adjust the balance
between L, R and C.
R C
MAIN MIX = Routes the
channel to the main L,R,C
outputs.
GRP PAN ON = Press for
stereo (follow pan) groups.
=
LCR +
BLEND
R C
LR
=
PAN
L
www.audiovias.com
ML5000 User Guide
MAIN
MIX
C
R
