Dual Function Live Sound Console SERVICE MANUAL Publication AP4511...
Page 2
Introduction This service manual provides technical information on the Allen & Heath ML3000 audio console. Included is the technical specification, system block diagram, circuit schematics with board layouts, and a spare parts list. Information on the power supply is available in a separate publication. Only technically qualified service personnel should carry out service work on the console and its power supply.
Refer servicing to qualified technical personnel only. Installation Install the console in accordance with the instructions printed in this User Guide. Do not connect the output of power amplifiers directly to the console. Use audio connectors and plugs only for their intended purpose. ML3000 Service Manual...
The console should be transported in the original packing or purpose built foam lined flightcase. Protect the control surface from damage during transit. The console is a large and heavy item. To avoid injury ensure adequate man power and precaution when lifting or moving the console. ML3000 Service Manual...

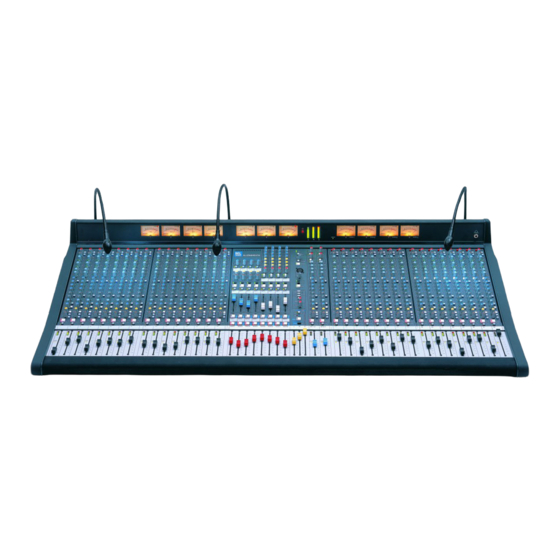

ML3000 Key Features The Allen & Heath ML3000 is a small footprint, affordable VCA equipped dual function live sound console providing many of the features of its larger brothers the ML4000 and ML5000. It can be quickly configured for front-of-house (FOH) or stage monitor mixing. As one console suitable for both applications it is equally well suited to installation, rental and touring.
MUTE Assign MUTE and VCA groups: Select using GRP MUTE Assign using CH MUTES GROUP ASSIGN GROUP ASSIGN GROUP ASSIGN VIEW DUMP Press and Hold with GRP MUTE View on channels GROUP GROUP GROUP ASSIGNED ASSIGNED ASSIGNED ML3000 Service Manual...
TB/Osc out ....TRS jack ..imp balanced, tip+ ..<50 ohm....0dBu ........Max +21dBu Local Monitor ....TRS jack ..imp balanced, tip+ ..<50 ohm....0dBu ........Max +21dBu Headphones....TRS jack ..tip left, ring right..for stereo headphones >30 ohms ML3000 Service Manual...
GRP 3 GRP 4 POST-FADE AUX9 AUX10 AUX1 AUX2 AUX3 AUX4 AUX5 AUX6 STEREO 7-8 LEV OSC/NOISE/TALKBACK OSC/NOISE TO TB TB/OSC OUT PINK NOISE TRIM +48V TRIM TALK TO TB TB MIC 1kHz OSC Disable MONITOR DIM ML3000 Service Manual...
Page 11
L METERS AFL MIX METERS 1-4 PFL AFL PFL MIX R METERS SL SL METERS 5-8 PAFL LOGIC MATRIX C METERS METER SELECT MONITOR SOURCE PHONES WEDGE MON HEADPHONES TB DIM 2TRK MONO LOCAL 2TRK LOCAL MONITOR ML3000 Service Manual...
41 kg (90 lbs) 40 Channel 48 kg (106 lbs) RPS11 psu 9.5 kg (21 lbs) PHONES SOCKET LAMP SOCKETS ML3000-24 = 1141 ML3000-32 = 1396 ML3000-40 = 1651 FC 57 (3U) 482.6 Refer to the power supply user guide for safety and installation instructions.
0V earth at the console. Use good quality cables and connectors and check for correct wiring and reliable solder joints. Allow sufficient cable loop to prevent damage through stretching. ML3000 Service Manual...
The output faders are best operated around ‘-10’ to ‘0’ Using the Meters. The ML3000 provides metering for loudest average volume required. This allows of inputs and outputs. For best results operate the plenty of additional headroom if you need it.
MIDI / RS232 MIDI Overview MIDI MIDI The ML3000 includes a Musical Instrument Digital RS232 CH1-16 Interface (MIDI) port. Standard 5-pin IN and OUT SLAVE sockets allow connection external MIDI mode equipment such as computer show control systems, sequencers, instruments...
Page 18
Transmit and Receive. The format for a single later date, for example a re-run of a previous packet is as follows: performance. You can also use the dump facility to program additional ML3000 consoles, for example <SysEx header> <packet type>...
Power Up and Power Down You can check the current version number of the The console settings are remembered when power ML3000 software running on the console using a is removed. On power up these settings are PC connected via RS232. Instructions for this are restored.
Internal Options Links The ML3000 is designed to offer the utmost flexibility to satisfy the application without modification. However, the following internal link options are provided to allow customisation to satisfy the more specialist applications or personal preferences. Remember to set these internal links according to...
32 Channel vinyl dustcover AP4510 40 Channel vinyl dustcover SERVICE TOOLS The tools required to service the ML3000 are standard to an electronics service workshop and are easily obtainable. The following items are necessary for disassembly and service access: TOOL ORDER CODE...
ORDERING AN ASSEMBLY The following assemblies for the ML3000 are supplied fully tested. Please quote the description and order code for the part required. Printed circuit board (PCB) assemblies: DESCRIPTION ORDER CODE Mono Input PCB assembly 002-742 Stereo Input PCB assembly...
Page 23
20 way Dist. to Meter harness AL4657 10 way Meter Power harness AL4664 THE CHASSIS TRIM DESCRIPTION ORDER CODE ML3000 (all formats) Left & Right Chassis side trims AA4432-L/R Left & Right Moulded side trims AA4433-L/R Ident strip Master AK4439 Ident strip Master Rear...
Page 24
It is recommended that the spares kit order code 002-781 is held and maintained by the service agent to enable in-field service repairs to the ML3000 independent of the ALLEN & HEATH factory. Commonly available items such as resistors, capacitors, tools and soldering equipment are not included.
Page 25
POT ALPS 11MM 5K RD REV 502RD AI8111 FADER ALPS 100MM 10KD(T) DUST AI8117 SWITCH 2PCO LATCH SINGLE AL0162 JACK SKT STEREO SW PCB CHROME AL0328 JACK SKT 1/4" ST PCB MET AL4713 JACK NUT NKL PTD BRASS RING AL4715 ML3000 Service Manual...
Page 26
AE0086 IC CMOS 4053B - CD4053BCN AE0117 IC CMOS 4051B - CD4051BCN AE0118 IC NE5532N OP-AMP AE0221 IC 6N136 OPTO-ISOLATOR AE0222 IC REGULATOR 7805 AE0308 IC CMOS 74HC165 AE2749 IC CMOS 74HC4094N AE2755 IC LM393N COMPARATOR AE2818 ML3000 Service Manual...
AE0239 TRANSISTOR MJ11016 AE0240 TRANSISTOR COVER T03 AK2767 THYRISTOR TIC126M 12A AE0272 IC REGULATOR 783 AE0214 IC REGULATOR UA723CN AE0056 FUSE HOLDER 20MM PANEL 10A AL4219 DC CABLE ASSY (10 PIN PLUG → 10 PIN 002-223 SOCKET) ML3000 Service Manual...
Page 28
Fitting Instructions for ML3000-SLV2 Kit These are the instructions for fitting the SYS-LINK Version 2 console expander option kit to the ML3000 console. This work must be carried out by technically qualified service personnel only. Whilst we believe this information to be reliable we do not assume responsibility for inaccuracies.
Page 29
Software Compatibility The ML3000 must be loaded with V1.31 or higher operating software for the SYS-LINK option to function correctly. You can check the current version number of the console software using a PC connected via RS232. Instructions for this and the latest version of software are provided on the Allen &...
Page 30
3 cable ties (AK0151) Fig. 5 Step 8: Fit the free end of 20way harness AL4685 to CN10 on the master distribution PCB assembly Fig. 5. Fig.5 Midi- power Master distribution AL4685 CN10 AP4721 ML3000-SLV2 Fitting Notes...
Page 31
Check your work and remove any dirt or debris from within the console. Re-fit the base panel. AL4686 Step 13: Connect power and test the SYS-LINK system for correct operation. Refer any queries to Allen & Heath technical support. AP4721 ML3000-SLV2 Fitting Notes...
Page 32
Technical Drawings The following section includes the full set of technical drawings associated with the ML3000. The BLOCK DIAGRAM is the same as printed in the User Guide and illustrates the signal flow through the console. The MAP DRAWINGS show the interconnection between the various circuit assemblies.
Page 53
BOX 13X2 M 90 DEG DB37FH(DMR) DB37FH(DMR) ALLEN&HEATH ISSUE DATE ML3000 SYSLINK IN TITLE: 10/7/01 Kernick Industrial Estate, 21/8/01 PCB PROFILE CHANGED TO MAKE SPACE FOR NEW MIDI PWR PCB Penryn, Cornwall, PAGE: 08-01-02 VALUE CHANGES AND 1 TRACK CHANGE England.
