Call Out

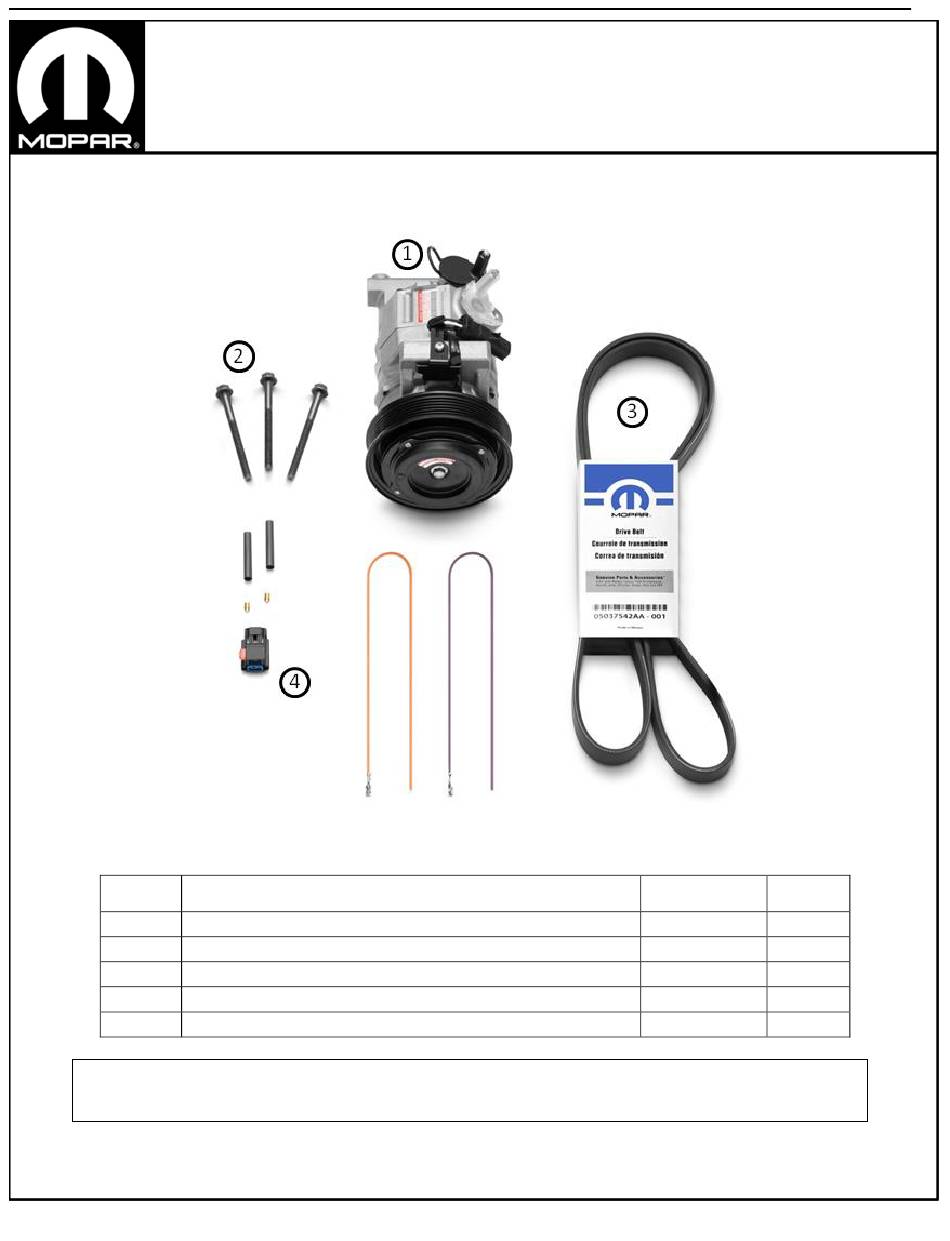

Car AC Add-On Kit
1
2
3
4
CALL MOPAR FOR ASSISTANCE OR FOR FRENCH/SPANISH INSTRUCTIONS 1-888-528-HEMI (4364)
2/21/2017

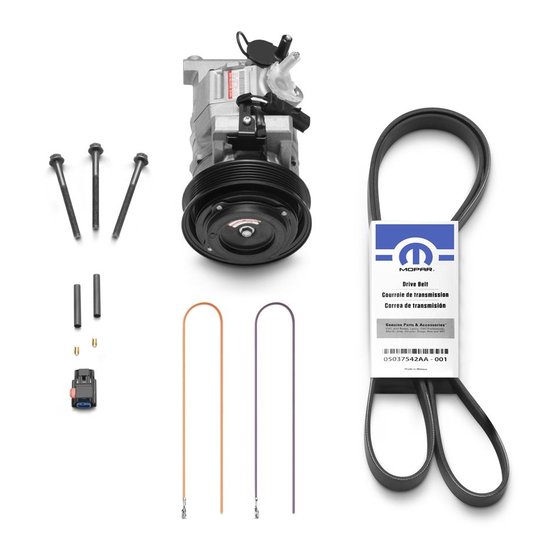

Car FEAD Air Conditioning Add-On Kit
Description
COMPRESSOR, Air Conditioning, Fixed Disp. 10S17
Bolt, M8X1.25X100.00
Belt W/ AC - 2070mm
Wiring Harness
PLEASE READ ALL INSTRUCTION PRIOR TO INSTALLATION.
77072446AB
5.7L & 6.4L Crate HEMI
www.mopar.com
Part Number
Quantity
77072446AB
68202994AA
1
06509468AA
3
05037542AA
1
05017117AA
1
1
K6862610
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mopar 77072446AB
Summary of Contents for Mopar 77072446AB
- Page 1 Car AC Add-On Kit 77072446AB COMPRESSOR, Air Conditioning, Fixed Disp. 10S17 68202994AA Bolt, M8X1.25X100.00 06509468AA 05037542AA Belt W/ AC - 2070mm 05017117AA Wiring Harness PLEASE READ ALL INSTRUCTION PRIOR TO INSTALLATION. CALL MOPAR FOR ASSISTANCE OR FOR FRENCH/SPANISH INSTRUCTIONS 1-888-528-HEMI (4364) 2/21/2017 K6862610...
- Page 2 Compressor Specifications Type Specification Min. RPM of Compressor 575 RPM Max. RPM of Compressor 8000 RPM Pulley Ratio 1.35 Refrigerant Type HFO1234yf / HFC134a Compressor Displacement 176.6 cu.in./rev Oil Type ND-12 PAG oil Min. Clutch Engagement Voltage 8.0 VDC DO NOT spin A/C compressor over 8000 RPM, damage may occur.
- Page 3 1. Position the A/C compressor (4) to the engine (5) and install the 3 bolts loosely. Using the sequence shown; upper front bolt (1), then lower front bolt (2), then rear bolt (3), tighten the bolts to the proper torque specification 28 N·m (21 ft. lbs.) NOTE: Typical A/C compressor and refrigerant lines shown.
- Page 4 9. With the addition of the Car Power Steering Add-On Kit (77072448), a new 2100 mm belt will be required. Part Number 04627031AA. 10. Connect the engine wire harness to the A/C clutch connector (1). Wiring harness assembly instructions are on page 5.
- Page 5 1. Place the strands of the wires overlapping each other inside of the splice clip (1). 2. Using Mopar crimping tool (1) or equivalent, crimp the splice clip and wires together. 3. Solder (3) the connection (2) together using rosin core solder (1).
