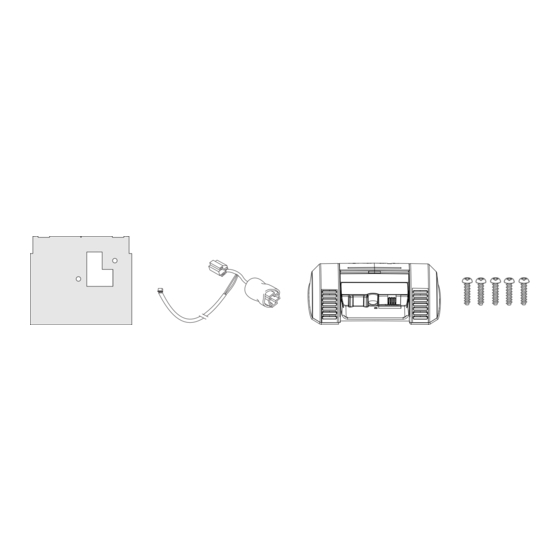

• Disconnect and isolate the negative battery cable.
E N
• Clean dash with isopropyl alcohol.
• Débranchez et isolez le câble négatif de la batterie.
F R
• Nettoyez le tableau de bord avec de l'alcool
• Desconecte y aísle el cable negativo de la batería.
E S
• Limpie la consola con alcohol isopropilo.
August 2006
B
7/32"
1/2"
(5.6 mm)
(12.5 mm)
190-00542-04 Rev. B
Jeep
C
#2
isopropylique.
K6859781
Trail Guide
®
™
D
Printed in Taiwan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mopar Jeep Trail Guide
Summary of Contents for Mopar Jeep Trail Guide

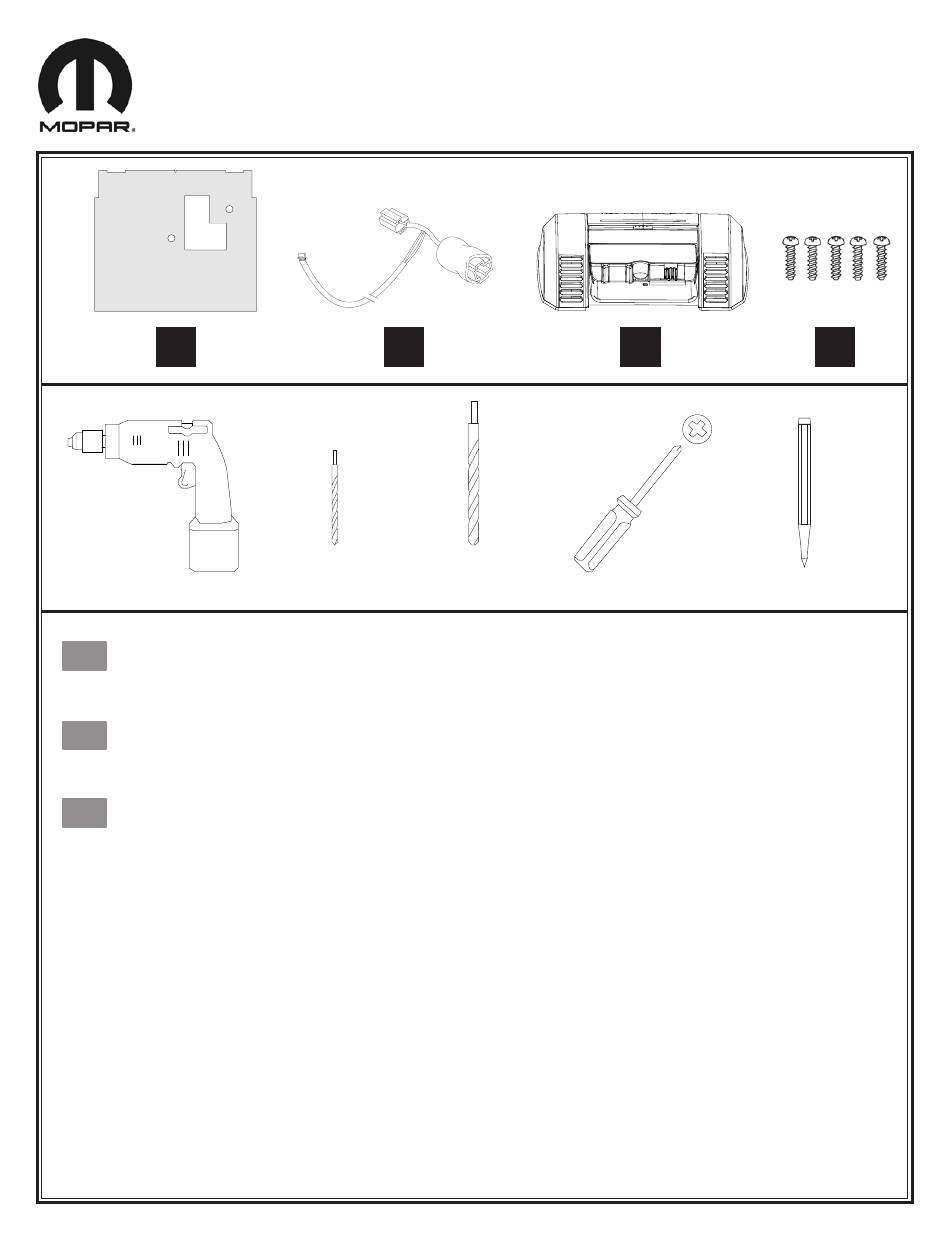

- Page 1 Jeep Trail Guide ® ™ 7/32” 1/2” (5.6 mm) (12.5 mm) • Disconnect and isolate the negative battery cable. • Clean dash with isopropyl alcohol. • Débranchez et isolez le câble négatif de la batterie. • Nettoyez le tableau de bord avec de l’alcool isopropylique.
- Page 2 Remove top panel and trim panel. ♦ Retirez le panneau supérieur et le panneau de garnissage. ♦ Retire el panel superior y el de guarnición. ♦ If present, remove compass module from underside of top panel. ♦ Secure template on underside of top panel. ♦ S’il est installé, retirez le module de boussole de Fixez le gabarit sur la face inférieure du la face inférieure du panneau supérieur.
- Page 3 7/32” (5.6 mm) Remove template. Drill holes. ♦ Retirez le gabarit. Percez les trous. ♦ Retire la plantilla. Perfore los agujeros. ♦ Connect cigarette lighter harness. Route cable up through dash. Test for switched power at the cigarette lighter using a (DVOM) Digital Volt – Ohm Meter. Reinstall trim panel. ♦ Connectez le câble de la prise d’allume-cigarette.
- Page 4 Snap ♦ Fixation ♦ Ajuste ♦ Route cable through hole in top panel. Connect to bottom of mount. ♦ Passez le câble dans le trou du panneau supérieur. Connectez-le au bas du support. ♦ Pase el cable por el agujero del panel superior. Conecte el cable con el sistema. ♦ Line up mount with holes.
- Page 5 ♦ STEP button ♦ Bouton STEP Botón STEP Manually calibrate the compass, as follows: NOTE: Do not calibrate the compass near large metal objects, such as other vehicles, large buildings, or bridges; or near overhead or underground power lines. 1. Start the engine, but leave the vehicle in PARK. 2.
