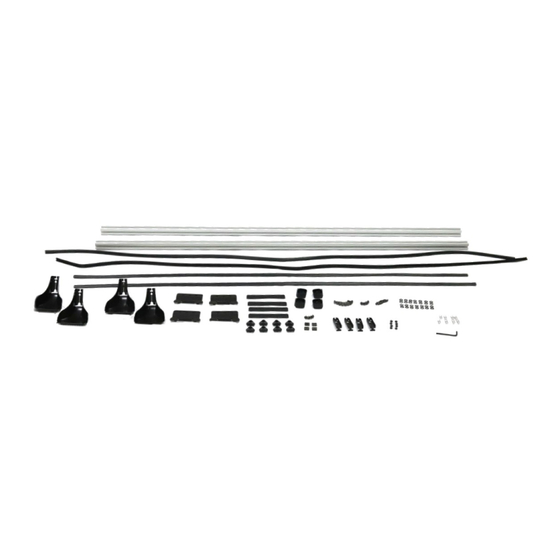

DT RAM SPORT UTILITY RAILS
A
x2
B
x2
G
x28
L
x4
EN
Parts must not be fitted until registration
of the vehicle has been obtained.
Subject to alteration without notice.
SAFETY NOTES
• Bars have 150lbs (68KG) capacity,
which includes carriers and load.
• After driving a short distance
(and thereafter at refular intervals,
depending on the quality of the road surface)
tighten the boted joints and ensure that the
load is still securely fastened in position.
• Remeber that the load may change
the behaviour of the vehilce on the road
(side winds, cornering, braking).
6/7/18
H
x8
M
x4
ES
No se permite montar las piezas antes
de registrar el vehículo.
Revervadas modificaciones técnicas.
INDICACIONES PARA LA SEGURIDAD
•Las barras tienen 150 lb (68 kg) de capacidad
que incluye portadoras y carga.
• Por primera vez, al cabo de un recorrido corto
y después en intervalos adecuados, según
las caracteristicas de la calzada, se deberán
reapretar las uniones atornilladas y controlar
el asiento y la fijación de la carga.
• Adaptar la manera de conducir al
comportamiento en carretera cambiado del
vehículo (sensibilidad al viento lateral,
comportamiento en curvas y en el frenado).
i
x8
N
x8
506-7339
C
x4
D
x8
E
x4
F
x4
J
K
x8
O
P
x8
FR
Ne pas monter les pièces avant l'enregistrement du
véhicule. Sous réserve de modifications techniques.
CONSIGNES DE SÉCURITÉ
• Les barres ont une capacité de 150 lb (68 kg);
le poids des dispositifs et de la charge compris.
• Après seulement quelques kilomètres de route et
ensuite à intervalles réguliers à définir suivant l'état
de la chaussée, resserrer les vis de liaison, contrôle
l'assise et la fixation du chargement.
• Adapter votre conduite à la nouvelle tenue de route
de la voiture (sensibilité au vent latéral, tenue de
route dans les tournants et au freinage.
EN = English / ES = Spanish / FR = French
1
www.mopar.com
x4
x8
K6862903

Advertisement

loading
Need help?

Need help?

Do you have a question about the 82215789 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mopar 82215789

  • Page 1 DT RAM SPORT UTILITY RAILS www.mopar.com Parts must not be fitted until registration No se permite montar las piezas antes Ne pas monter les pièces avant l’enregistrement du of the vehicle has been obtained. de registrar el vehículo. véhicule. Sous réserve de modifications techniques.
  • Page 2 STEPS FOR INSTALL 1. Sub-Assy Stanchion (Figure 1)- x4 2. Torque bolt i to 4Nm. 3. Install stanchion bar guide to stanchions, loosely - x4 4. Remove CMR end cap from front of bed by using #25 Torx Head both Driver/Passenger side 5.
  • Page 3 6. Install assembled stanchion onto CMR (slide to rear of bed) 7. Reinstall tie-downs removed in step 4 8. Install 2 assembled stanchion onto CMR (leave at front of bed) 9. Repeat (step 5, 6, 7) on passenger side 10.
  • Page 4 12. Install end caps on bars 13. Tighten stanchions to bars, 4 Nm. 14. Slide to rub strip into channel - x2 15. Re install CMR end caps- tighten T25 torx head screw 6/7/18 506-7339 K6862903...
