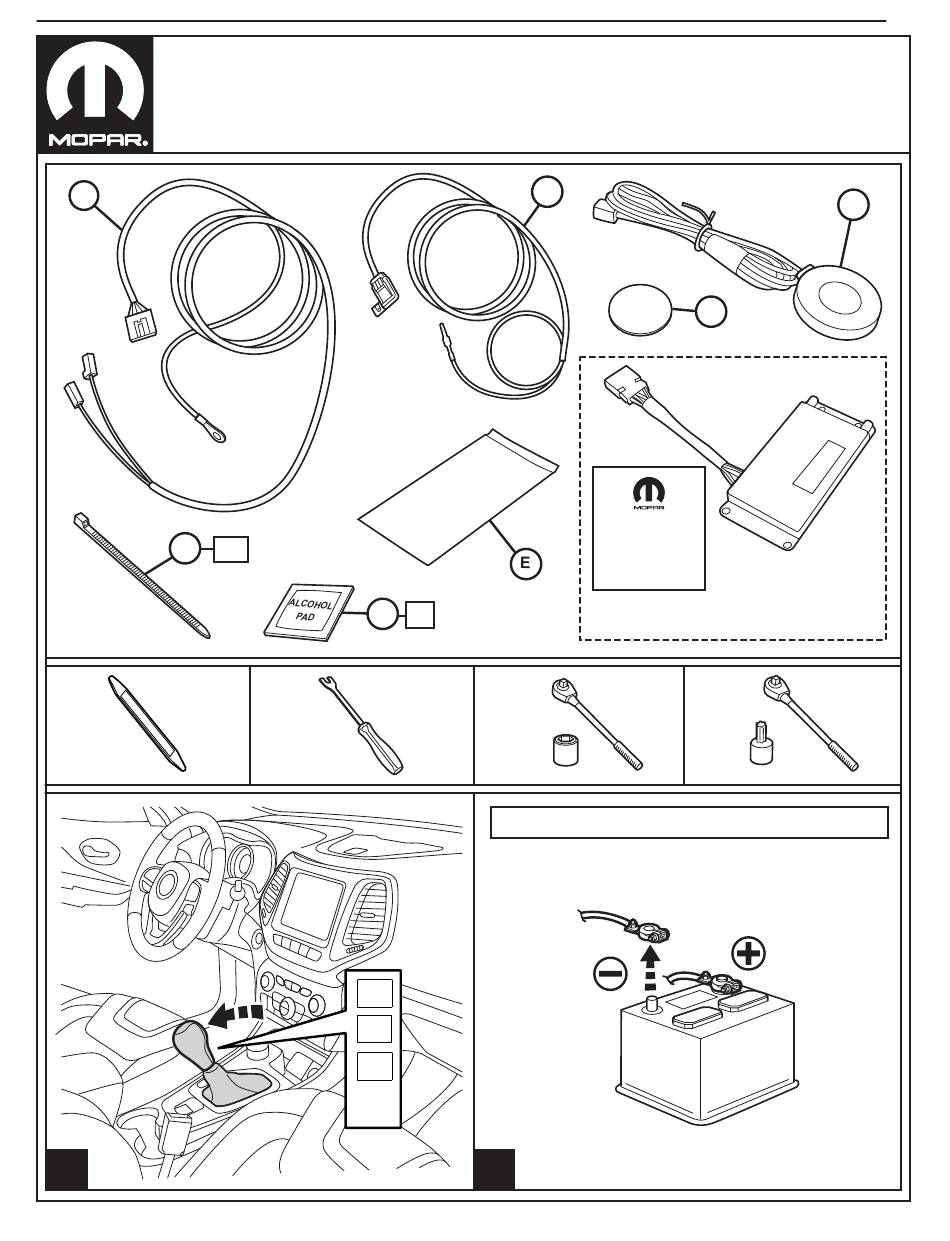

- Page 1 JEEP CHEROKEE MOPAR CONNECT INSTALLATION KIT www.mopar.com CUSTOMER ACTIVATION CARD NOT INCLUDED IN KIT ORDER PART NO. 82213158$$ RETAIN ALL FASTENERS FOR REINSTALLATION K6862324 11-5-14...
- Page 2 NOTE: HVAC DUCTING MAY NEED TO BE REMOVEDTO ACCESS SCREWS UNDERNEATH 11-5-14 K6862324...
- Page 3 DISCONNECT ALL PLUGS BEHIND PANEL 11-5-14 K6862324...
- Page 4 OPEN HOOD NOTE: Engine is not fully shown in this view VIEW FROM DRIVER FOOTWELL UNDER DASH NOTE: Engine is not fully shown in this view 11-5-14 K6862324...
- Page 5 (STEERING COLUMN) NOTE: AVOID CONTACT WITH BRAKE PEDAL AND STEERING LINKAGE THIS SIDE FACES THE THIS SIDE FACES THE 11-5-14 K6862324...
- Page 6 THIS SIDE FACES THE ANTENNA (C) WILL MOUNT ON TOP OF DUCTING NOT INCLUDED IN KIT ORDER PART NO. 82213158SS 11-5-14 K6862324...
- Page 7 7” (178mm) GREEN STAR CONNECTOR WITH WHITE HARNESS CONNECTORS WHITE STAR CONNECTOR WITH GREEN HARNESS CONNECTORS CONNECT TO ANY EMPTY SOCKET 11-5-14 K6862324...
- Page 8 TOP OF GLOVEBOX 11-5-14 K6862324...
- Page 9 Autonet Mobile Customer Care Center at 1 -855-75MOPAR Testing the Mopar Connect Module After Installation In The Vehicle 1. Ensure that all doors have been closed on the vehicle for at least 3 minutes. Have all doors been closed on the vehicle for at least 3 minutes? a) No, go to Step 2.
- Page 10 Mopar Connect – End Of Line (EOL) Procedure (continued) 4. Leave the ignition key in the RUN position for up to 3 minutes while the Mopar Connect module reads the VIN of the vehicle and re-writes the Network Name (SSID) that will be used in the next step.
- Page 11 Verification of communication via network/WiFi as indicated by the Pass/Fail message in the center of the screen when the EOL test is executed from the browser screen. For proper function of the Mopar Connect module, both parts (9a and 9b) of the EOL test must pass.
- Page 12 Mopar Connect – End Of Line (EOL) Procedure (continued) 10. Click on the button “Run EOL test” 11. If both parts of the EOL test passes, the following will be displayed: If both parts of the EOL test pass, then EOL testing is complete. Otherwise, continue to Step 12.
- Page 13 Mopar Connect – End Of Line (EOL) Procedure (continued) • A missing VIN indicates that the Mopar Connect is not properly connected to the vehicle’s CAN bus. • A red color Fail status displayed indicates that the network/WiFi portion of the EOL test failed.
- Page 14 CHECK ALL WIRING AND TRIM ALL CABLE TIES. REVERSE STEPS 2 THROUGH 10, 12 THROUGH 14 AND 20 THROUGH 22 GIVE ACTIVATION CARD TO CUSTOMER TO REINSTALL ALL BODY PANELS FOR FINAL ACTIVATION PROCEDURE. AND COMPONENTS. AFTER FINAL ASSEMBLY,...
