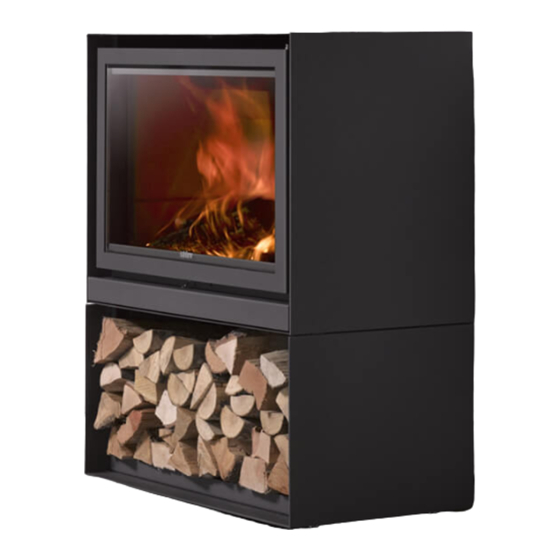

Page 1: Table Of Contents
STUV 16: MODEL SPECIFICATIONS 1. TECHNICAL DATA 2. PRE-INSTALLATION 3. INSTALLATION 4. OPERATION 5. TESTING Keep for future use... -
Page 2: Technical Data
W780 x H625 x D456mm Firebox weight 121Kg Flue kit Standard 6”/8”/10” DETERMINED UNDER TEST CONDITIONS: Nominal thermal output Efficiency (Australian Test) Emissions (Australian Test) 0.7 g/Kg 6/8” Flue WOOD STORE OBLICA | STUV 16 INSTALLATION AND USER MANUAL PAGE 2... -
Page 3: Pre-Installation
2. PRE-INSTALLATION Congratulations on your purchase of the STUV 16. This appliance should be installed and checked by a qualified professional. Ensure you have read the operation guidelines thoroughly prior to first use. For any questions or concerns please contact Oblica on 03 9416 0400. - Page 4 250mm Combustible 250mm IMPORTANT: Frames must also be considered. Timber window frames must be treated as combustible surfaces (see 2.3). Aluminium frames can be treated as non-combustible surfaces (see 2.2). OBLICA | STUV 16 INSTALLATION AND USER MANUAL PAGE 4...
-
Page 5: Installation
(see the following diagrams below). 10” Outer Case RUBBER DEKTITE FLASHING 6” Active Flue 8” Outer Case 10” Outer Case CEILING RING 6/8/10” Flue NOTE: The active flue must go inside the fireplace spigot. OBLICA | STUV 16 INSTALLATION AND USER MANUAL PAGE 5... - Page 6 The top of the flue must be 900mm above the roofline. Alternatively, there must be a minimum distance of 3 meters from any higher section of roof. > 3 m – > 900 cm – > 900 cm > 900 cm – – OBLICA | STUV 16 INSTALLATION AND USER MANUAL PAGE 6...
- Page 7 400mm 400mm 500mm 500mm Insulative board (12mm) Combustible + non combustible finish 1060mm floor Insulative board (12mm) Combustible + non combustible finish (eg. timber) 1060mm floor (eg. timber) Joist Joist OBLICA | STUV 16 INSTALLATION AND USER MANUAL PAGE 7...
- Page 8 + non combustible finish (eg. timber) Concrete Concrete TOP VIEW 167.5 167.5 167.5 167.5 Floor protector Floor protector Combustible floor (eg: Timber) Combustible floor 500mm (eg: Timber) 500mm 1060mm 1060mm OBLICA | STUV 16 INSTALLATION AND USER MANUAL PAGE 8...
-
Page 9: Operation
• The maximum load capacity for the STUV 16 is 6kg of wood. • Burning only seasoned hardwood helps to protect the environment and lower emissions. For details of a wood supplier in your area please call our office on 03 9416 0400 or email info@oblica.com.au. WARNING: •... -
Page 10: Testing
2.5g/kg of dry wood and an efficiency of 60%. CONCLUSION: This appliance does comply with the requirements of AS/NZS 4012:4013 (2014) for the configuration tested. *and a 60% efficiency OBLICA | STUV 16 INSTALLATION AND USER MANUAL PAGE 10...
