Summary of Contents for Oblica skantherm
-
Page 1: Table Of Contents
ELEMENTS: MODEL SPECIFICATIONS 1. TECHNICAL DATA 2. PRE-INSTALLATION 3. INSTALLATION 4. OPERATION 5. TESTING Keep for future use... -

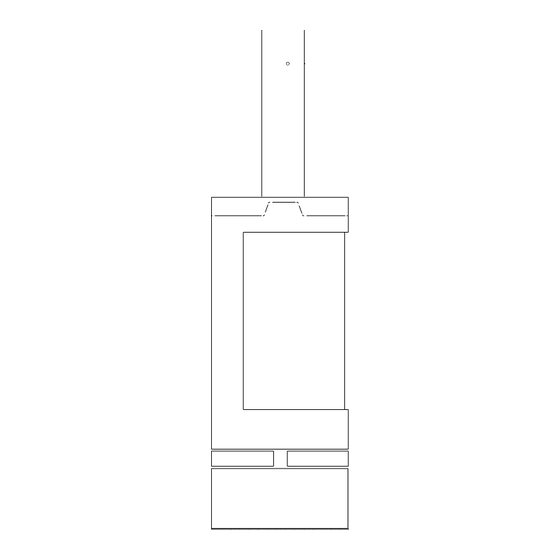

Page 2: Technical Data
W400 x H806 x D400mm Firebox weight 130kg Flue kit Standard 6”/8”/10” DETERMINED UNDER TEST CONDITIONS: Nominal thermal output Efficiency (Australian Test) Emissions (Australian Test) 0.6 g/Kg 8” Flue MINIMAL CONFIGURATION 806mm 203mm 400mm OBLICA | ELEMENTS INSTALLATION AND USER MANUAL PAGE 2... -
Page 3: Pre-Installation
Congratulations on your purchase of the Elements. This appliance should be installed and checked by a qualified professional. Ensure you have read the operation guidelines thoroughly prior to first use. For any questions or concerns please contact Oblica on 03 9416 0400. The installation process is outlined below: –... - Page 4 Combustible Non Combustible Australian Building Code. 50mm For information on heat shielding please contact our office on 03 9416 0400 or email info@oblica.com.au. 300mm Combustible Non Combustible Configuration 1 – Parallel installation 50mm...
-
Page 5: Installation
The combustion air should be lockable outwards with an air damper and the position of the air damper should be visible in the installation room. Combustion air conduit as well as the connection piece need to be airtight. OBLICA | ELEMENTS INSTALLATION AND USER MANUAL PAGE 5... - Page 6 6” Active Flue 8” Outer Case 10” Outer Case CEILING RING 8” Flue 8” Flue 6” Active Flue Fireplace outlet NOTE: The active flue must go around the fireplace outlet on the outside. OBLICA | ELEMENTS INSTALLATION AND USER MANUAL PAGE 6...
- Page 7 The top of the flue must be 9000mm above the roofline. Alternatively, there must be a minimum distance of 3 meters from any higher section of roof. > 3 m – > 90 cm – > 90 cm > 90 cm – – OBLICA | ELEMENTS INSTALLATION AND USER MANUAL PAGE 7...
- Page 8 100mm 200mm 200mm 200mm 200mm Combustible 800mm Combustible Insulative board (9mm) 800mm Insulative board (9mm) floor (eg. timber) floor (eg. timber) + non combustible finish + non combustible finish Joist Joist OBLICA | ELEMENTS INSTALLATION AND USER MANUAL PAGE 8...
- Page 9 Non combustible finish (eg.tiles) floor (eg. timber) (eg.tiles) Concrete Concrete TOP VIEW 100mm 100mm 200mm 200mm 200mm 200mm Floor protector Combustible floor Floor protector (eg: Timber) 800mm Combustible floor (eg: Timber) 800mm OBLICA | ELEMENTS INSTALLATION AND USER MANUAL PAGE 9...
- Page 10 Elements above the firing chamber may only be used for storage stones. The storage of objects and in particular of flammable materials is not possible. For more detailed information please refer to the general assembly and operation instructions. OBLICA | ELEMENTS INSTALLATION AND USER MANUAL PAGE 10...
- Page 11 60 kg approx. 50 kg approx. 60 kg p view) (Top view) ts box, ermostones s box, OBLICA | ELEMENTS INSTALLATION AND USER MANUAL elements box, elements box, 24 thermostones 12 thermostones, 12 thermostones, 10 thermostones, 10 thermostones, 12 thermostones,...
- Page 12 Press both brackets together. The lid can now be pulled out of the box. Pleas skantherm wagner gmbh & co. kg | postfach 3265 | d-59281 oelde | tel. +49(0) 25 22-59 01-0 | info@skantherm.de | www.skantherm.de vacuum lifting tool vacuum lifting tool from the lid immediately in order to avoid damage to the The use of a vacuum lifting tool is not needed for the insertion of a lid.
-
Page 13: Operation
• The maximum load capacity for the Elements is 10kg of wood. • Burning only seasoned hardwood helps to protect the environment and lower emissions. For details of a wood supplier in your area please call our office on 03 9416 0400 or email info@oblica.com.au. WARNING: •... -
Page 14: Testing
0.6g/kg of dry wood, within the maximum specification of 4.0g/kg of dry wood. CONCLUSION: This appliance does comply with the requirements of AS/NZS 4013:2014 for the configuration tested. OBLICA | ELEMENTS INSTALLATION AND USER MANUAL PAGE 14...
