Mechanical Installation

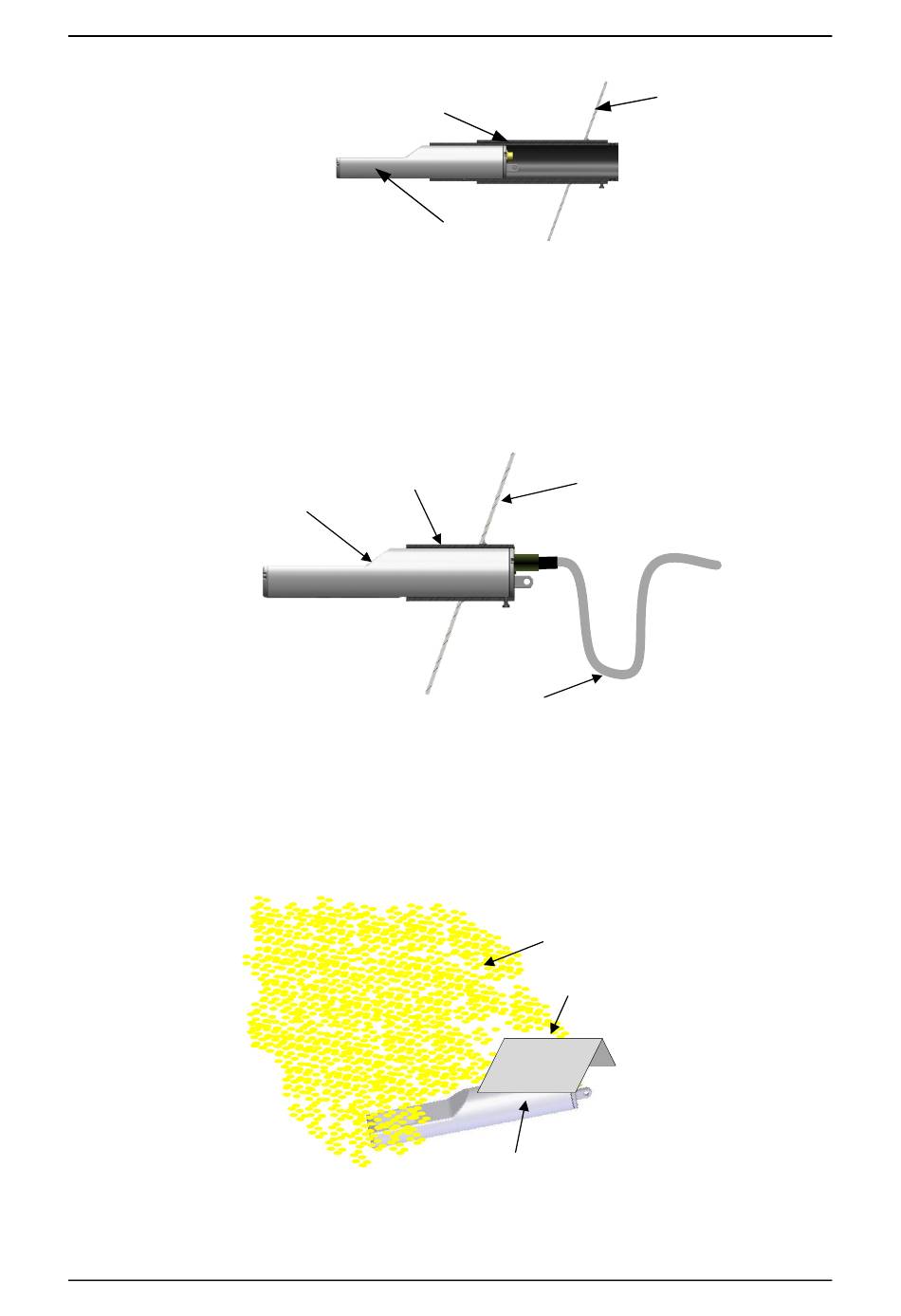

Figure 17: Hydro-Probe installed in an Extension Mounting Sleeve
Drip Loop
4.3
Some corrosion is possible if the moisture run off from the material reaches the connector.
This will be increased if the moisture is allowed to run along the sensor cable and collect at
the connector. This can be reduced by installing the cable with a drip loop. This will cause the
moisture to drip off of the cable before it reaches the connector. See Figure 18
Protection cover
4.4
Install a cover over the top of the sensor to deflect the material away from the connector. See
Figure 19
Extension
Mounting sleeve
Hydro-Probe
Mounting Sleeve
Hydro-Probe
Figure 18: Hydro-Probe installed with a drip loop
Figure 19: Deflector plate
Bin wall
Bin wall
Drip Loop
Material
Protection cover
Hydro-Probe
Hydro-Probe XT User Guide HD0538 Rev: 1.6.0 25
