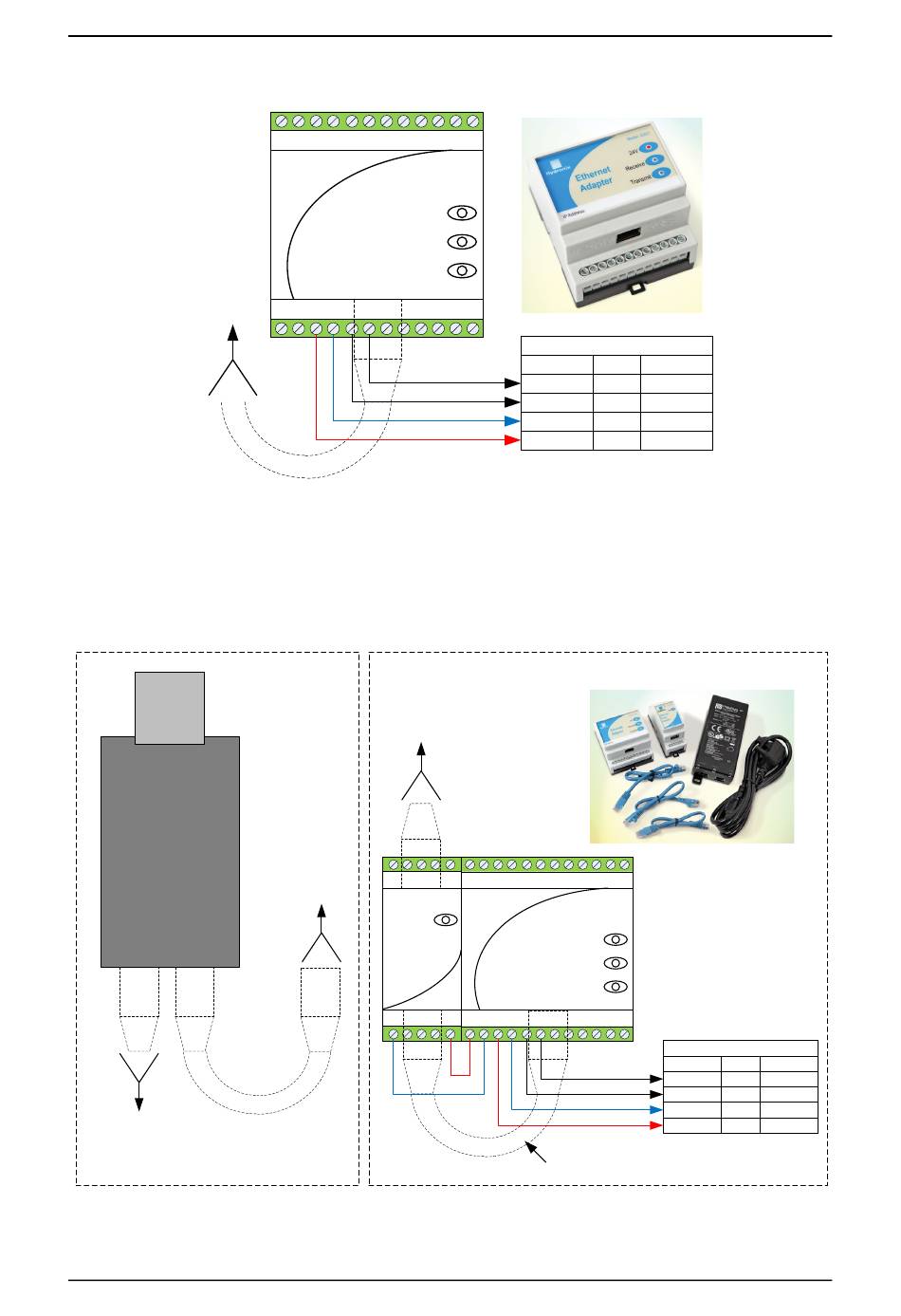

Figure 29: Ethernet Adapter Connections (Eak01); Figure 30: Ethernet Power Adapter Kit Connections (Epk01) - Hydronix Hydro-Probe XT User Manual

Electrical Installation and Communication
Hydronix Part No: EAK01
10/100baseT
CAT5e
Hydronix Part No: EPK01
Control Room Cabinet
IEC Mains
Cable
100-240v AC
50-60Hz
EPI01
Ethernet
Power
Injector
OUT IN
10/100baseT
CAT5e
Ethernet
to EPA01

Figure 30: Ethernet Power Adapter Kit connections (EPK01)

Model: EA01
24V
Ethernet
Adapter
Receive
Transmit

Figure 29: Ethernet Adapter Connections (EAK01)

Junction box close to sensors
10/100baseT
CAT5e
Ethernet
to EPI01
10/100baseT
CAT5e
Ethernet
to Network
Switch
IN
Model: EPA01
24V
Ethernet
Power
Adapter
OUT
Cable to Sensor (0975A)
Description Colour Connector Pin
RS485/A White F
RS485/B Black G
0v DC Power Black B
24v DC Power Red A
Model: EA01
24V
Ethernet
Adapter
Receive
Transmit
Description
RS485/A
RS485/B
0v DC Power
24v DC Power
10/100baseT
CAT5e
