Chapter 2
Vibratory feed mounting
2.2
With vibratory feeders, the sensor is normally fitted by the manufacturer – contact Hydronix
for further information on positioning. It is difficult to predict where the flow of material occurs,
but the location shown below is recommended.

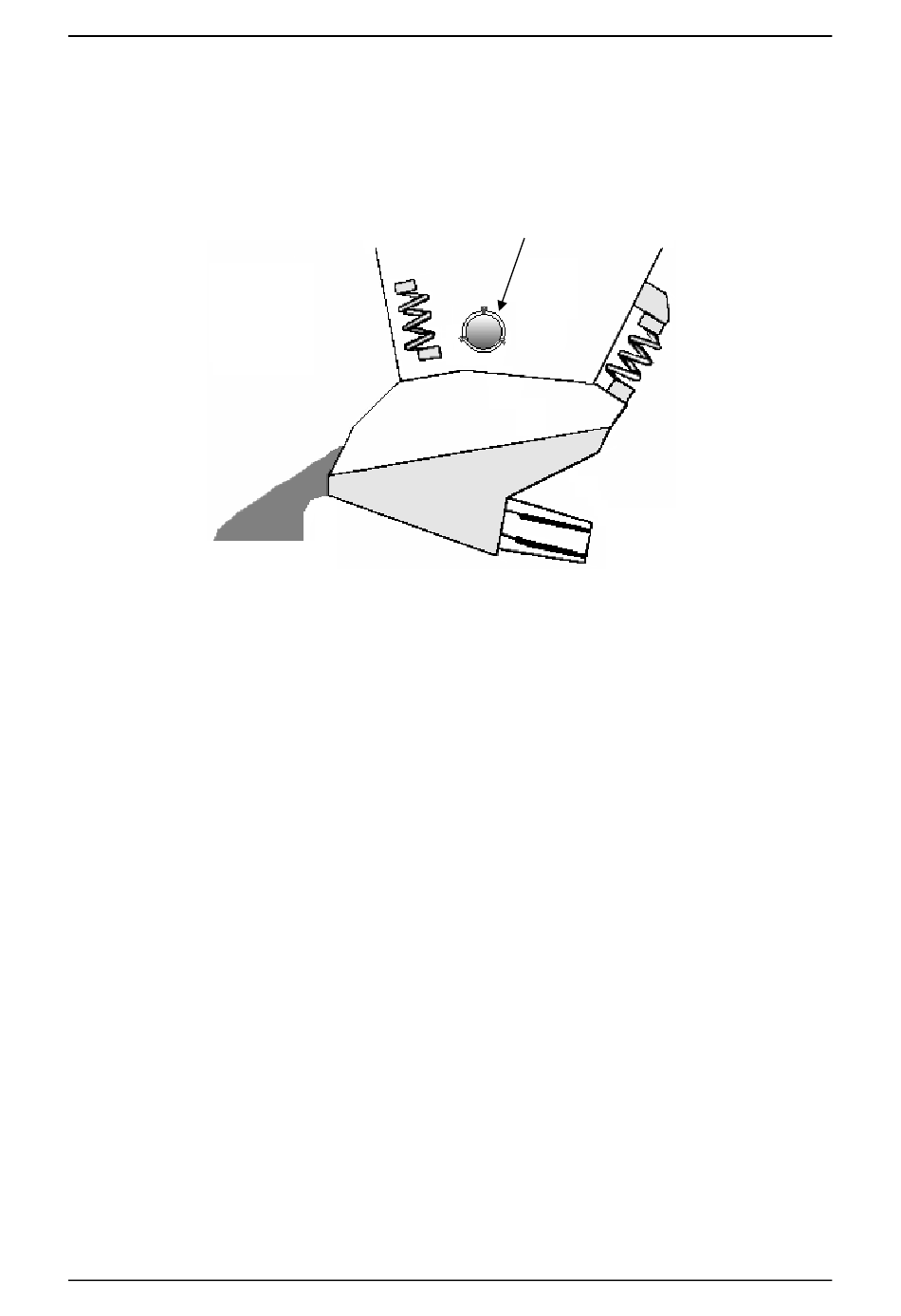

Figure 9: Mounting the Hydro-Probe XT in a vibratory feeder
18 Hydro-Probe XT User Guide HD0538 Rev: 1.6.0
Hydro-Probe XT
Mechanical Installation
