Summary of Contents for Olimpia splendid PROCOOL 16 E

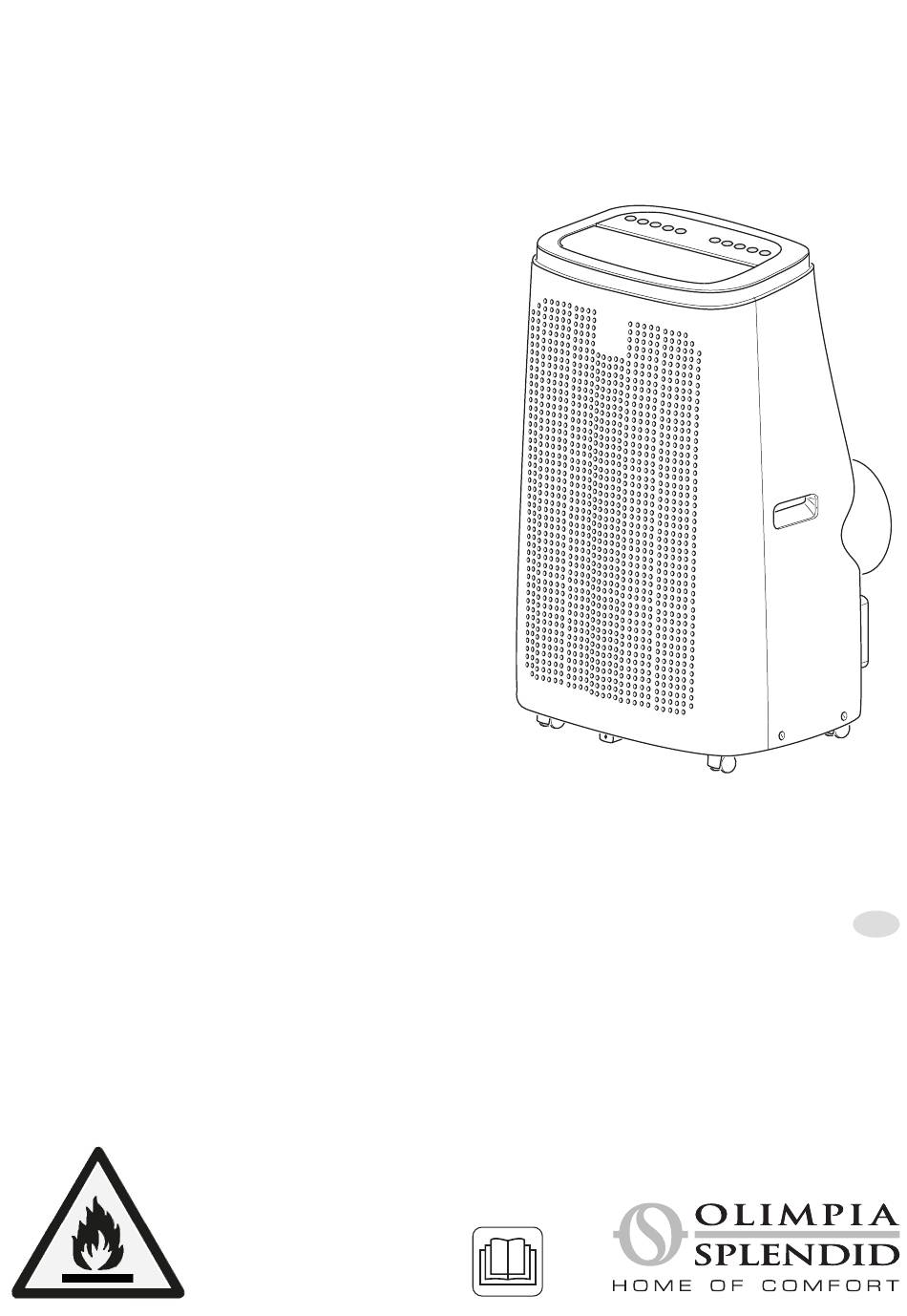

- Page 1 PROCOOL 16 E INSTRUCTION FOR USE AND MAINTENANCE Caution: risk of fire...
- Page 3 1. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. 2. Ensure the portable air conditioner is kept away from open flames, gas appliances and electric heaters. 3. Do not pierce or burn. 4.
-
Page 4: Table Of Contents
4.2 - MAINTENANCE ..........................18 4.2.a - Drainage Instructions ........................18 4.2.b - Unit Storage ..........................19 5 - TECHNICAL DATA ........................19 6 - WIRING DIAGRAM ........................19 7 - TROUBLE SHOOTING ......................20 DISPOSAL Treatment: Don’t put the abandoned machine with other unsorted waste together. Such waste shall be placed separately for other special use. EN - 1 PROCOOL 16 E... -
Page 5: Main Index
MAIN INDEX The main index of this manual is given on page “EN-1” 0 - WARNINGS 0.1 - GENERAL INFORMATION First of all, we would like to thank you for choosing our appliance. Please refer to detailed information regarding product installation. The refrigerant used in portable air conditioners is the environmentally friendly hydrocarbon R32. -
Page 6: General Warnings
4. When drainage pipes are installed, ensure that they are properly connected, and are not distorted or bent. 5. While adjusting the upper and lower louvers, handle with care to avoid damaging them. 6. When moving the appliance, make sure that it is in an upright position. EN - 3 PROCOOL 16 E... - Page 7 7. The unit should stay away from gasoline, flammable gas, stoves and other heat sources warning: low burning velocity mateial 8. To avoid danger, do not dissemble or modify the portable air conditioner in any way. If a failure occurs, contact the manufacturer or a qualified service agent. 9. Do not install and use the air conditioning in the bathroom or other humid environments. 10.
-
Page 8: Warnings For R290 Refrigerant Gas
14. The appliance shall be stored so as to prevent mechanical damage from occurring. 15. To avoid danger, do not attempt to repair or access the refrigerant in any way. Contact the manufacture or a service agent for assistance. EN - 5 PROCOOL 16 E... - Page 9 16. Servicing must only be performed as recommended by the equipment or qualified service agent. 17. TRANSPORT OF EqUIPMENT CONTAINING FLAMMABLE REFRIGERANTS See transport regulations. 18. MARKING OF EqUIPMENT USING SIGNS See local regulations. 19. DISPOSAL OF EqUIPMENT USING FLAMMABLE REFRIGERANTS See national regulations. 20.
- Page 10 Checks to electrical devices Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; That there no live electrical components and wiring are exposed while charging, recovering or purging the system; That there is continuity of earth bonding. EN - 7 PROCOOL 16 E...
- Page 11 23. REPAIRS TO SEALED COMPONENTS a) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
- Page 12 However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: • Remove refrigerant; • Purge the circuit with inert gas; • Evacuate; • Purge again with inert gas; • Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFn to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFn and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFn charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available. EN - 9 PROCOOL 16 E...
- Page 13 29. ChARGING PROCEDURES In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. Cylinders shall be kept upright. Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. Label the system when charging is complete (if not already). Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFn. The system shall be leak tested on completion of charging but prior to commissioning. a follow up leak test shall be carried out prior to leaving the site.
- Page 14 Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely. EN - 11 PROCOOL 16 E...
-
Page 15: Features And Components
1 - FEATURES AND COMPONENTS (Fig.1) • Brand new appearance, compact structure, smooth line, simple and generous shape. • Functions: cooling, dehumidification, fan and drainage. • user friendly LED display and full function remote control. • air filtration capability. • Timing switch function. • Protection function includes various functions including compressor restart after three minutes. The Max operation temperature for the air conditioner Cooling: 35/24°C; heating:20/12°C; Temperature operation range: 7-35°C. Mask Window slider Swing leaf Top cover Front housing Rear housing Exhaust pipe... -
Page 16: Installation
• Storage of packed (unsold) equipment. Storage package protection should be constructed such that me- chanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations. 2.2 - INSTALLATION AND ADJUSTMENT Before using the portable air conditioner, keep it upright for at least two hours. The portable air conditioner can be easily moved in the room. In the moving process, ensure that the unit is in an upright position and placed on a flat surface. Do not install and use the air conditioning in the bathroom or other humid en- vironments. Install the exhaust pipe assembly (fig.2): a. Take out the outer connector assembly and the exhaust pipe assembly, and remove the plastic bags; b. Insert the exhaust pipe assembly (the end of the exhaust joint) into the back panel vent slot (push to the left) and complete the assembly. EN - 13 PROCOOL 16 E... - Page 17 Install the main unit (fig.3): a. move the portable air conditioner with the installed exhaust pipe to the window keeping distance between the main unit and walls to a minimum of 50 cm. The length of the exhaust hose ranges between 280~1,500mm, and this length is based on the specifications of the portable air conditioner. m i n . Do not use extension tubes or 5 0 c m replace it with other different hoses, or this may cause a mal- function. The exhaust pipe must not be blocked; otherwise it may cause overheating.
-
Page 18: Use Of The Appliance
• SLEEP MODE Button: When the power is on and In the cooling mode, press ‘SLEEP’ button to start the sleep mode. Under sleep mode, the FAN speed is set to LOW speed and not adjustable. The SLEEP mode can be cancelled by pressing the button. • POWER Button: Press this button to turn on and turn off the unit. EN - 15 PROCOOL 16 E... -
Page 19: Remote Control
3.2 - REMOTE CONTROL 3.3.a - Insertion of batteries The batteries are supplied with the machine. Display Check the polarity indicated on the bottom of the compartment . DOWN botton 3.3.b - Replacement of batteries Power botton Always use new batteries. The use of old or different batter- Sleep Mode ies could generate malfunction- Swing ing of the remote control. Timer The remote control uses two dry alkaline 1.5V batteries (AAA.). When replacing batteries, replace both and dispose of the dead batteries in the appropriate col- lection centres and as required by law. -
Page 20: Maintenance And Cleaning
4 - MAINTENANCE AND CLEANING Before cleaning and maintenance, turn off the machine and unplug the water plug. 4.1 - CLEANING 4.1.a - Clean the surface a. Clean with surface of machine with a wet soft cloth. Don’t use chemicals, such as benzene, alcohol, gasoline, etc; otherwise, the surface of the air conditioning will be damaged . 4.1.b - Clean the filter screen If the filter becomes clogged the portable air conditioner will lose its effectiveness, so it is recom- mended that the filter is checked every two weeks. 4.1.c - Clean the upper filter screen frame a. unscrew and remove the filter net as shown. b. Soak the filter screen in warm water (40 degrees C) and let it dry naturally EN - 17 PROCOOL 16 E... -
Page 21: Maintenance
4.2 - MAINTENANCE 4.2.a - Drainage Instructions This machine has two drainage methods: - Manual drainage a. When the portable air conditioner be- comes full of water, it must be emptied. Ensure the unit is turned off and unplug Please move the machine carefully, to avoid water being spilled. b. Place a container below the side water outlet located at the back of the unit. c. Remove the water plug, the water will automatically flow into the water con- tainer. -
Page 22: B - Unit Storage
Type: ............5ET or 932 Voltage: ..........250V Current: ..........3.15 A The maximum amount of refrigerant is .. 580 grams 6 - WIRING DIAGRAM The specific technical parameters of the machine shall be subject to the nameplate on the product. Schematic diagram for air conditioning: Capillary Condens Compresso Evaporat EN - 19 PROCOOL 16 E... -
Page 23: Trouble Shooting
7 - TROUBLE SHOOTING Problems Reasons Solutions Check to make sure the unit is There is no electricity. plugged in and the wall socket is in the on position. The overflow indicator displays Discharge the water inside. “FL”. Recommend to use the portable The ambient temperature is too air conditioner at the temperature low or too high. The air conditioning does not of 7-35°C (44-95°C). work. - Page 24 Olimpia Splendid Australia Pty Ltd 80-84 Burlington Oakleigh, Victoria, 3166 Ph: 1300 664 768 sales@olimpiasplendid.com.au Olimpia Splendid New Zealand Pty Ltd C/ Key Services Ltd 34 A Cryers Road East Tamaki, Manukau City Auckland, New Zealand P: (09) 4767981...
