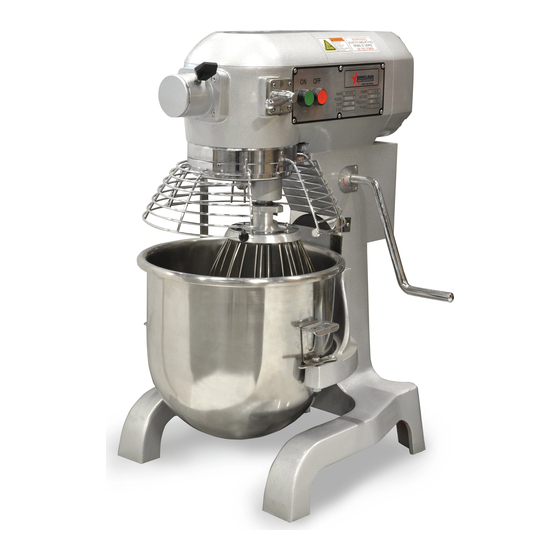

Omcan MX-CN-0020-G Instruction Manual

Baking mixers
Hide thumbs Also See for MX-CN-0020-G:
Table of Contents

Advertisement

Quick Links

Download this manual
Baking Mixers
Models MX-CN-0020-G, 0020-T, 0030-G, 0030-T, 0010-G
Items 20467, 20441, 17835, 20442, 17836
Instruction Manual
Revised - 06/07/2021
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-CN-0020-G and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan MX-CN-0020-G

Summary of Contents for Omcan MX-CN-0020-G

  • Page 1 Baking Mixers Models MX-CN-0020-G, 0020-T, 0030-G, 0030-T, 0010-G Items 20467, 20441, 17835, 20442, 17836 Instruction Manual Revised - 06/07/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model MX-CN-0010-G / Model MX-CN-0020-G / Model MX-CN-0020-T Model MX-CN-0030-G / Model MX-CN-0030-T Section Page General Information ---------------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------------- 4 - 5 Technical Specifications ---------------------------------------------------------------------------- 5 - 6 Installation -------------------------------------------------------------------------------------------------- 7...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.

  • Page 5: Technical Specifications

    Safety and Warranty Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. Please see https://omcan.com/disclaimer for complete info.
  • Page 6 20” x 15.5” x 24.5” / 508 x 394 x 622mm Packaging Dimensions 22” x 18” x 29” / 559 x 457 x 737mm Item Number 20467 20 QT MIXERS Model MX-CN-0020-G MX-CN-0020-T Power 1.5 HP / 1.12 kW Shaft RPM | 195 | 355 Capacity 18.9 L / 20 QT...

  • Page 7: Installation

    WARNING: DO NOT SWITCH GEARS DURING USAGE. The Omcan mixers are equipped with Standard Safety features. Refer to the diagram on page 3 for an explanation of their functions. The bowl safety guard must be in the closed position or the mixer will not operate.

  • Page 8: Operation

    Operation pull the gear change hand lever (1) to the position required. 3. Shutting down: when the operation is completed, turn off the power switch (5) first, then pull the gear change hand lever (1) to position 1, and lower bowl to load position (6), and finally disconnect the power supply.
  • Page 9 Operation On/Off Switch - MX-CN-0020-G Features: 1. On Button 2. Off Button On/Off Switch - MX-CN-0030-T Features: 1. Separate On and Off Switches 2. Countdown Timer Knob 3. Speed Adjusting Lever with Handle On/Off Switch - MX-CN-0030-G Features: • On Button •...
  • Page 10 Operation Installing Mixer Bowls - All Models 1. Place the bowl on the two arms to keep it in place. Insert the bowl pin into pin support located on frame. Carefully align holes on the bowl with the studs on the bowl arms. (Fig.1) 2.
  • Page 11 Fig.4 Fig.5 Installing Mixer Attachments - MX-CN-0020-T / MX-CN-0020-G Ensure machine is off, lower bowl to loading position. Open the Guard by pulling the handle away from the magnetic latch. (Fig.6) Raise the attachment over the shaft, keeping note of where the notch is. (Fig.7) Guide the notch through the path until it reaches the end and locks.

  • Page 12: Maintenance

    Operation Fig.9 Maintenance Clean the bowl and attachments daily or after use to maintain hygiene standards. Clean the mixer with a soft wet cloth. The transmission gear box is greased in factory. Check the greasing each 6 months. To add or refill grease, open the top cover, then fill grease from aperture or replace the grease directly.
  • Page 13 Troubleshooting Motor temperature raises while Too low voltage Check the power supply reduced output speed Over-loaded Reduce load The speed of mixing is too high, or Select a suitable speed and wrong attachment is being used, or attachment. Reduce load. mixing too long.

  • Page 14: Mixer Capacity Chart

    Mixer Capacity Chart AGITATORS 0020-G 0030-G ALLOWABLE SUITABLE AGITATOR 0010-G SPEEDS 0020-T 0030-T OPERATION PRODUCT CAPACITY OF BOWL (QTS. LIQUID) Egg Whites Whip 1, 2, 3 1 1/2 pts 1 qt 1.5 qt Mashed Potatoes Beater 8 lbs 12 lbs 20 lbs Mayonnaise (Qts of Oil) Whip...

  • Page 15: Parts Breakdown

    Parts Breakdown Model MX-CN-0010-G 20467...
  • Page 16 Parts Breakdown Model MX-CN-0010-G 20467 Item No. Description Position Item No. Description Position Item No. Description Position 25061 Wire Whip for 20467 24985 Plug Cover (Steel) for 20467 25123 Gear for 20467 25062 Hook for 20467 25714 Nut 14x1.5 for 20467 25124 Ring for 20467 25063...
  • Page 17 Parts Breakdown Model MX-CN-0020-G 20441 Model MX-CN-0020-T 17835...
  • Page 18 Parts Breakdown Model MX-CN-0020-G 20441 Model MX-CN-0020-T 17835 Item No. Description Position Item No. Description Position Item No. Description Position Red Button Round without Timer for 25153 Wire Whip for 20441, 17835 25070 Bearing 6204 for 20441, 17835 24924 20441, 17835...
  • Page 19 Parts Breakdown Model MX-CN-0030-G 20442 Model MX-CN-0030-T 17836...
  • Page 20 Parts Breakdown Model MX-CN-0030-G 20442 Model MX-CN-0030-T 17836 Item No. Description Position Item No. Description Position Item No. Description Position Brass Gear-New Style 28 Teeth for 24951 Dough Hook for 20442, 17836 24987 Spacer-Lower for 20442, 17836 25024 20442, 17836 24952 Beater for 20442, 17836 24988...

  • Page 21: Electrical Schematics

    Electrical Schematics Model MX-CN-0010-G 20467 Name Model Specs Remark Motor 110V 60Hz / 1725rpm / 1PH 0.4Kw Micro Switch V-152-1C25 250V 10A Contact Switch CJX2-0910 Ac110V 60Hz Start Button SPL63 250V 10A Green Stop Button SPL63 250V 10A Overload Protector Ac125/250V 15A KUOYUH Start Capacitor...
  • Page 22 Electrical Schematics Model MX-CN-0020-G 20441 Name Model Specs Remark Motor 110V 60Hz / 1725rpm / 1PH 1.1Kw Micro Switch V-152-1C25 250V 10A Contact Switch CN--11 Ac110V 60Hz Start Button SPL63 250V 10A Green Stop Button SPL63 250V 10A Overload Capacitor...
  • Page 23 Electrical Schematics Model MX-CN-0020-T 17835 Name Model Specs Remark Motor 110V 60Hz / 1PH 1.1Kw Micro Switch V-152-1C25 250V 10A Contact Switch CN--11 Ac110V 60Hz Start Button SPL63 250V 10A Green Stop Button SPL63 250V 10A Overload Capacitor Ac125/250V 15A KUOYUH Start Capacitor 300MF 125VAC...
  • Page 24 Electrical Schematics Model MX-CN-0030-G 20442 Name Model Specs Remark Motor 110V 60Hz / 1725rpm / 1PH 1.8Kw Micro Switch V-152-1C25 250V 10A Contact Switch CN--11 Ac110V 60Hz Start Button SPL63 250V 10A Green Stop Button SPL63 250V 10A Overload Protector Ac125/250V 20A KUOYUH Start Capacitor...
  • Page 25 Electrical Schematics Model MX-CN-0030-T 17836 Name Model Specs Remark Motor 110V 60Hz / 1725rpm / 1PH 1.8Kw Micro Switch V-152-1C25 250V 10A Contact Switch CN--11 Ac110V 60Hz Start Button SPL63 250V 10A Green Stop Button SPL63 250V 10A Overload Capacitor Ac125/250V 20A KUOYUH Start Capacitor...

  • Page 26: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
