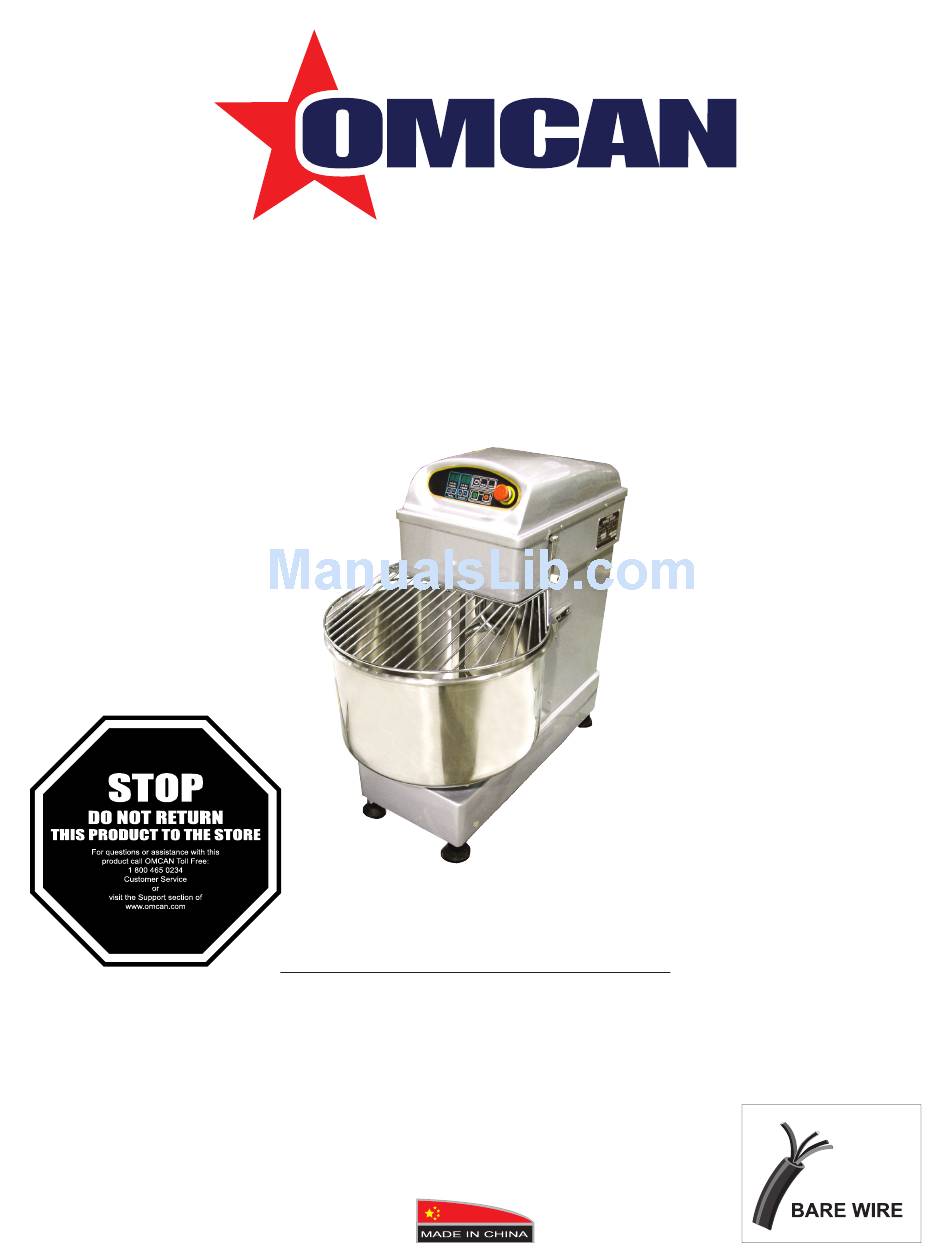

- Page 1 Dough Mixers Models MX-CN-0037, 0043, 0053 Items 19194, 19195, 19196 Instruction Manual Revised - 08/10/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MX-CN-0037 / Model MX-CN-0043 / Model MX-CN-0053 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Operation --------------------------------------------------------------------------------------------- 6 Maintenance ----------------------------------------------------------------------------------------- 7 Troubleshooting ------------------------------------------------------------------------------------- 7 Parts Breakdown... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PART AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Technical Specifications Model MX-CN-0037 MX-CN-0043 MX-CN-0053 Rated Voltage 220V / 60Hz / 3 IPON IPX1 Power (kw) 0.85 / 1.1 1.1 / 2.2 Rated Input Power (kw) 1.55 Bowl Volume 35 L / 37 QT 40 L / 42 QT... -
Page 7: Maintenance
3. The transmission case is packed with special grease that will last for six months. To add or replace the grease, it is necessary to remove the upper cover. This should be done by an Omcan authorized provider. Note: Before maintaining the unit, the machine must be unplugged from the power supply. -
Page 8: Parts Breakdown
Parts Breakdown Model MX-CN-0037 19194 Model MX-CN-0043 19195 Model MX-CN-0053 19196... - Page 9 Parts Breakdown Model MX-CN-0037 19194 Item No. Description Position Item No. Description Position Item No. Description Position 75463 Protective Casing for HS30DA 75474 Chain for HS30DA 75485 Back Cover for HS30DA 75464 Bowl for HS30DA 75475 Chain Pulley Z = 19 for HS30DA...
-
Page 10: Electrical Schematics
Electrical Schematics Model MX-CN-0037 19194 Model MX-CN-0043 19195 Model MX-CN-0053 19196 Item Description Item Description Micro-Computer Controller Journey Switch Motor Push-Lock/Turn-Reset Switch KM1/2 Contactor Fusioner Fuse 2A Heat Relay... -
Page 11: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 12 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
