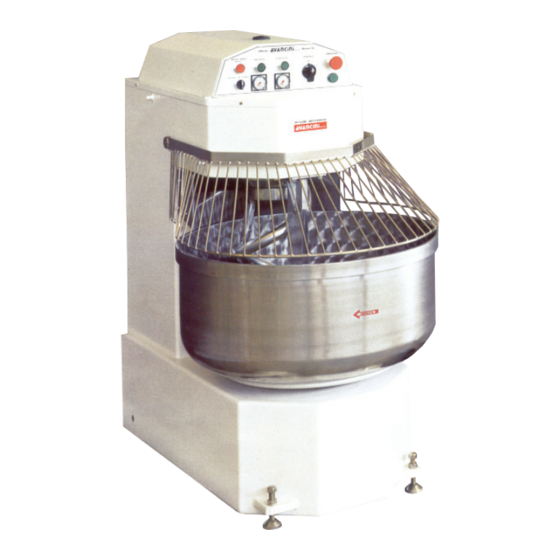

- Page 1 Spiral Dough Mixers Models MX-IT-0080, 0091 Items 13175, 13161 Instruction Manual Revised - 08/11/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MX-IT-0080 / Model MX-IT-0091 Section Page General Information ------------------------------------------------------------------------------------------------------ 3 - 4 Safety and Warranty ----------------------------------------------------------------------------------------------------- 4 - 5 Technical Specifications ----------------------------------------------------------------------------------------------------- 6 Installation ------------------------------------------------------------------------------------------------------------------ 6 - 7 Operation ------------------------------------------------------------------------------------------------------------------- 7 - 8 Maintenance --------------------------------------------------------------------------------------------------------------- 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 To prevent accidents and ensure best performance the machine must not be modified or altered unless authorised by Omcan. Nor must it be used in conditions or for purposes other than those for which it has been expressly designed. Any arbitrary modification implemented in this machine will automatically exempt Omcan from any liabilities for ensuing damage or injury and warranty claims.
-
Page 6: Technical Specifications
Technical Specifications Model MX-IT-0080 MX-IT-0091 Spiral - 1.4 / 5.5 HP Spiral - 2.8 / 6.4 HP Horsepower Bowl - 0.50 HP Bowl - 0.75 HP Bowl RPM 14 RPM 117 - 1st speed Spiral RPM 234 - 2nd speed Bowl Capacity 176 lbs. -
Page 7: Installation
Installation Important: If the machine or some of its parts fail, call your Omcan for repairs. Note: for machines with three-phase power supply: in case of counter rotation, invert two phases of the power supply plug. Check bowl rotation each time you replace the power supply plug or change power mains socket. -
Page 8: Operation
Operation TWO-SPEED MACHINES To start the machine set the commutator to the required speed. Depress the start push button. If you want to change speed with the machine in operation, first set the selector to “0” then set the new speed. Subsequently press the start push button. -
Page 9: Troubleshooting
Never use the machine with any missing, disassembled or open guards and shields. If servicing operations require repairs to electrical system and/or replacement of bearings or mechanical components, call Omcan. Together with the top control panel, remove all the fixing screws of the panel except one, which should be loosened to allow the panel to rotate while still remaining attached to the machine (this allows you not to detach the electrical cable from the panel). -
Page 10: Parts Breakdown
Parts Breakdown Model MX-IT-0080 13175... - Page 11 Parts Breakdown Model MX-IT-0080 13175 Item No. Description Position Item No. Description Position Item No. Description Position 63007 Base for SP80 63038 Vertical Lateral Removal for SP80 63124 Screw M8x12 for SP80 63008 Tube for SP80 63039 Roof Support for SP80...
- Page 12 Parts Breakdown Model MX-IT-0091 13161...
- Page 13 Parts Breakdown Model MX-IT-0091 13161 Item No. Description Position Item No. Description Position Item No. Description Position 63007 Base for SP100 63043 Vertical Bar for SP100 63079 Screw M10x30 Zinc for SP100 63008 Tub for SP100 63044 Protection for SP100 63080 Screw M10x35 Zinc for SP100 63009...
-
Page 14: Electrical Schematics
Electrical Schematics Model MX-IT-0080 13175 Model MX-IT-0091 13161... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
