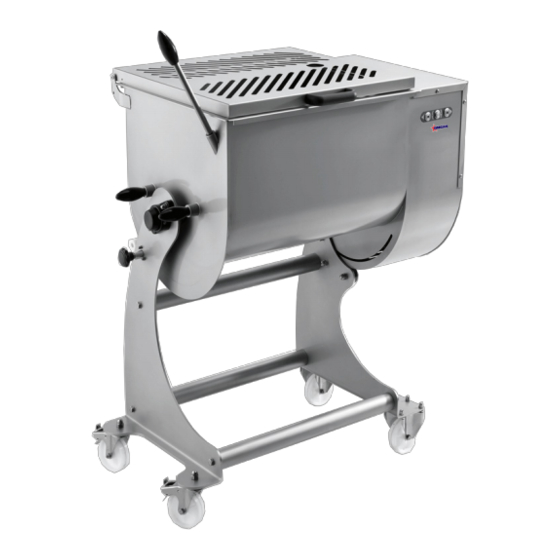

- Page 1 Meat Mixer Model MM-IT-0050-S Item 47134 Instruction Manual Revised - 05/12/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MM-IT-0050-S Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 8 Technical Specifications -------------------------------------------------------------------------- 8 Installation --------------------------------------------------------------------------------------- 8 - 9 Operation --------------------------------------------------------------------------------------- 9 - 11 Maintenance --------------------------------------------------------------------------------- 11 - 14 Troubleshooting... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty FILING AND USING THIS MANUAL This instruction manual is to give clear information, using diagrams and explanations, to the end user regarding how to use the appliance, how to transport it, maintenance and servicing. Before using the appliance carefully read this manual.
- Page 6 Safety and Warranty • Do Not touch any of the electrical parts without having first disconnected the appliance from the electricity supply: there is risk of electrocution. • Do Not mix quantities that cannot be contained in the mixing drum. •...
- Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 8: Technical Specifications
Safety and Warranty waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model MM-IT-0050-S Power 2 x 550W / 0.75 HP Electrical 220V / 60Hz / 1 Tank Dimensions 16.5” x 19.7” / 420 x 500mm Capacity 88 L / 50 kgs. -
Page 9: Installation
Installation materials can be disposed of as per normal procedures. If the appliance is destined to countries where there are specific waste laws, dispose of packaging conforming with the local laws in force. HANDLING APPLIANCE As the following have wheels they can be manually moved by pulling. CONNECTING TO ELECTRICITY SUPPLY ATTENTION! Check the electricity supply corresponds to the value given on the appliance ID plate. -
Page 10: Operation
Operation 4. Then immediately press push button “2” for stopping. This is to check that the appliance works correctly. 5. Press push button “3” for starting. 6. The indicator light “5” should come on. 7. Checking that the rotor rotates in an opposite direction to before. 8. -
Page 11: Maintenance
Operation maximum temperature of 7°C and terminating the process within 10 minutes. Once the meat has been processed, thoroughly clean all the machine parts. After every work cycle, we recommend leaving the mixer to rest for a few minutes before using it again. The machine is not designed for working inside a cold room: this could seriously damage the electrical components sensitive to condensate (which forms at low temperatures) and also alter the viscosity of the grease and/or lubricating oil in the gearboxes and cogs inside it, jeopardizing the machine’s correct operation and causing potential... - Page 12 Maintenance the mixing blades are mounted correctly. To facilitate this operation there are numbers stamped on the mixing blades and on the pins on the inside of the bowl. The number on the blade must correspond to the number on the pin.
- Page 13 Maintenance Functional checks with the appliance running: • Check the efficiency of the protections and safety features. There is the possibility that during transport these have been damaged or are out of adjustment. • Carry out several functional tests using pieces of food that are the same size that will be used in normal working conditions.
-
Page 14: Troubleshooting
Switch the switch to position “1”. The grille is raised. Lower the grille. The microswitch mounted on the Contact Omcan. mixing drum does not work. Either the electric motor or the command circuit board is faulty. The controls do not work or the blades do not change direction. - Page 15 Figure Drawings...
- Page 16 Figure Drawings...
-
Page 17: Parts Breakdown
Parts Breakdown Model MM-IT-0050-S 47134... - Page 18 Parts Breakdown Model MM-IT-0050-S 47134...
- Page 19 Parts Breakdown Model MM-IT-0050-S 47134 Item No. Description Position Item No. Description Position Item No. Description Position Mobile Wheel with Brake D 100 C/Perno AG284 Cable 3x1.50 for 47134 61579 62643 Flat Washer DIN 125 D 6 for 47134 for 47134 Motor Cable 3x1.5 / MN L = 860 for...
-
Page 20: Electrical Schematics
Electrical Schematics Model MM-IT-0050-S 47134... -
Page 21: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
